Products Description
The PCM-S-0802 custom cable tree wire harness integrates one JAE MX84B012SF1 12-pin connector with six Molex 43645-0200 2-pin connectors, providing an organized multi-branch connection between a central controller and multiple electrical modules.
The harness uses 22AWG UL1452 wire with black PET braided sleeving, heat-shrink protection and cable ties for organized routing and mechanical protection. Its 1-to-6 architecture is suitable for low-current signal, monitoring and control circuits in battery systems, industrial machinery and multi-module electronic equipment.
Custom cable lengths, branch configurations, labeling, wire specifications and connector combinations can be manufactured according to customer drawings.

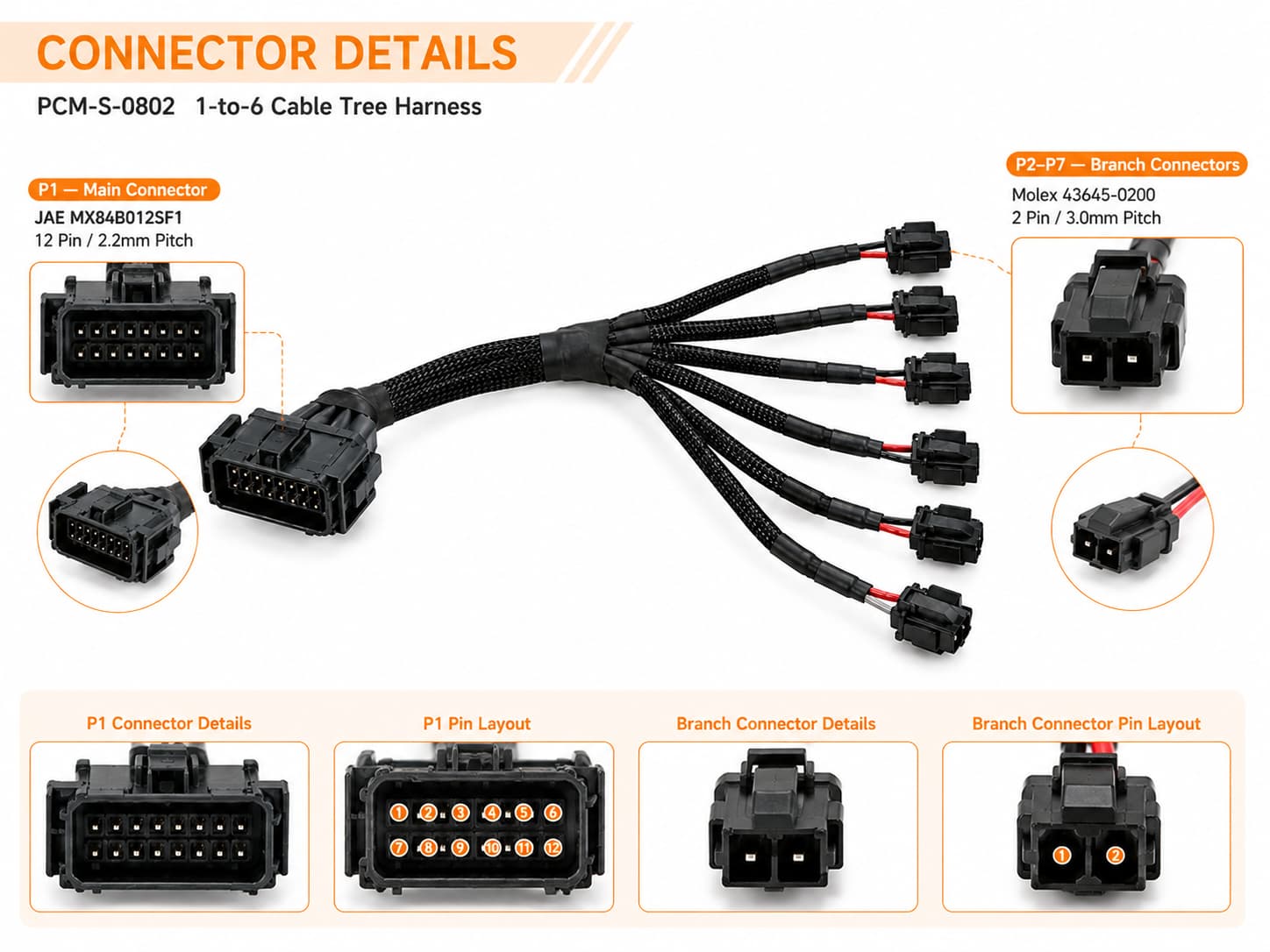

Connector & Product Configuration
| Item |
Specification |
|---|---|
| Product No. |
|
| Connector 1 |
|
| Connector 1 Terminal |
|
| Connector 2-7 |
|
| Connector 2-7 Terminal | Molex 43030-0001 |
Key Product Advantages
JAE to Molex Custom Interconnection
Combines the JAE MX84B012SF1 and Molex 43645-0200 connectors into one ready-to-install custom wiring assembly.
1-to-6 Multi-Branch Design
One 12-pin main interface distributes twelve individual circuits into six independent 2-pin branches for organized multi-module connectivity.
22AWG UL1452 Wiring
22AWG construction is suitable for low-current signal, monitoring and control connections inside electronic and industrial equipment.
PET Braided Cable Protection
Black PET braided sleeving, heat-shrink tubing and cable ties provide organized routing and additional mechanical protection.
Application Scenarios
Multi-Module Control Equipment
The 1-to-6 architecture simplifies internal wiring where one centralized controller needs individual electrical connections to several independent modules.
Energy Storage Control Systems
The cable tree can provide low-current signal and control connections between a central control interface and distributed modules inside energy storage equipment.
