HD44 Male to Female Interface Cable

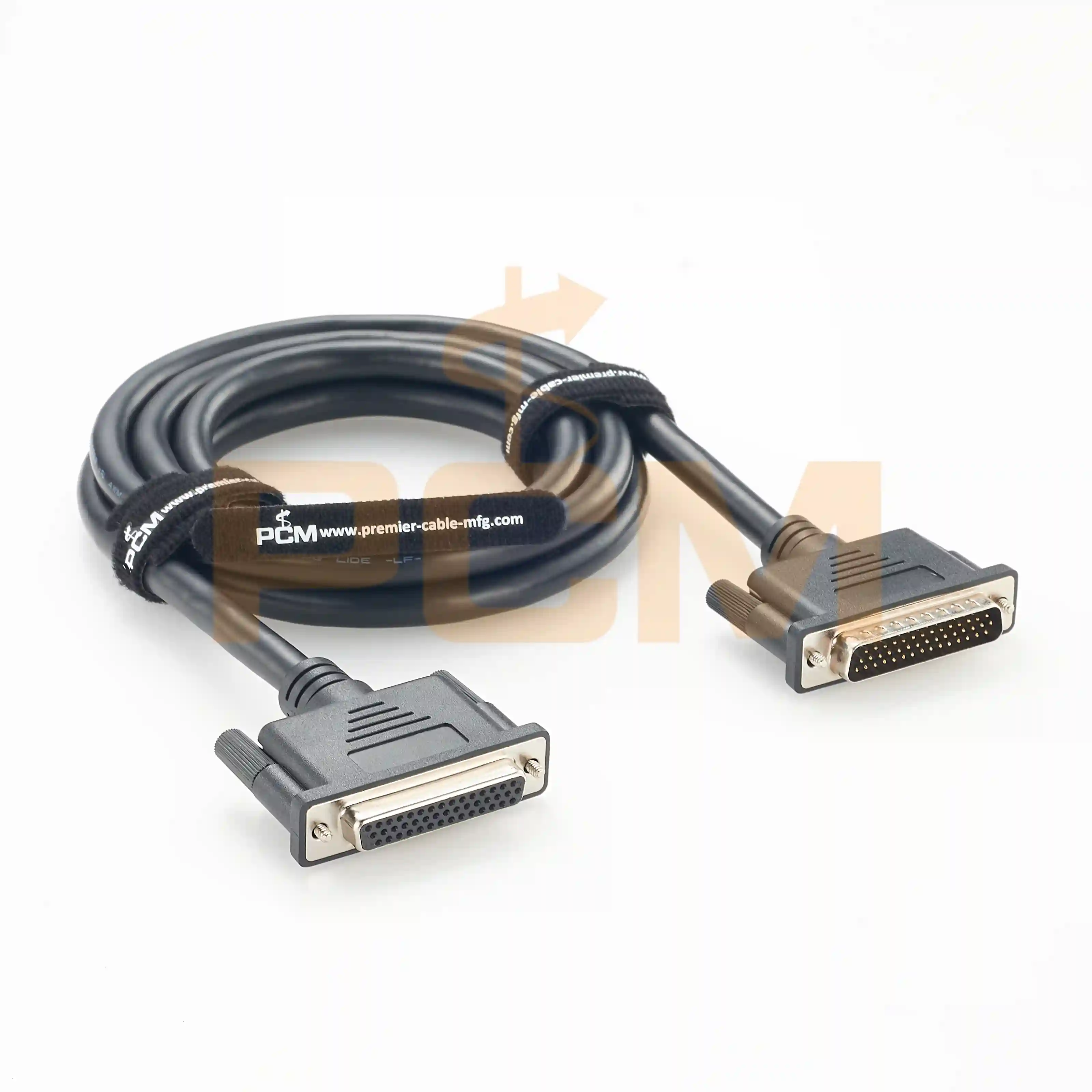

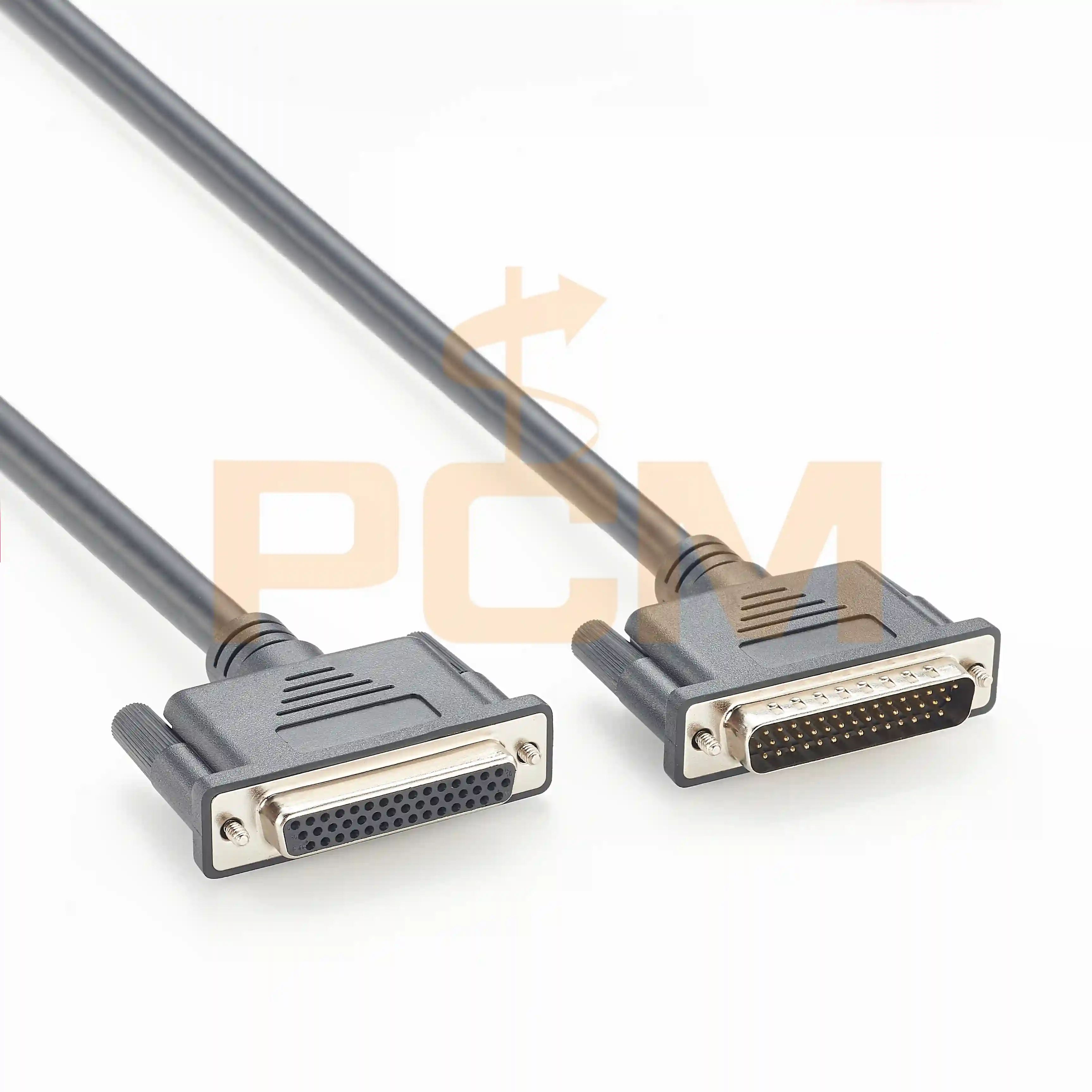

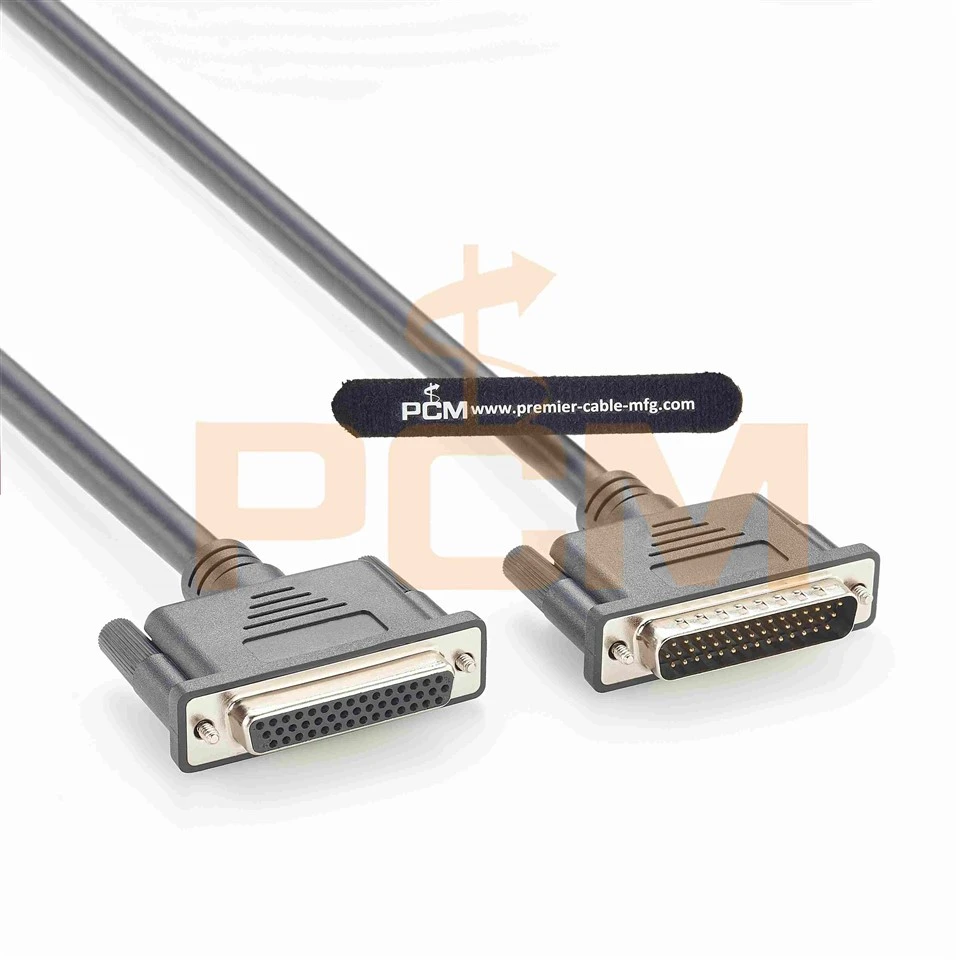

The PCM-0964 HD44 male to female cable provides a 44-position high-density D-Sub male connector on one end and a matching HD44 female connector on the other. It is designed for extending or linking compatible equipment interfaces in industrial control, test, measurement and OEM systems.
The standard assembly uses black UL20276 28 AWG multi-pair shielded cable with an outside diameter of approximately 8.0 mm. The finished cable length is 2000 ± 30 mm. Both connectors use black insulators, nickel-plated shells and UNC #4-40 locking hardware.
The connector pair defines the mechanical interface only. Pin assignment must follow an approved wire list or customer drawing. Cable length, wiring, shielding, labels and connector configuration can be customized for the required equipment connection.
Technical Specifications
| Specification | Value |
| P1 Connector | 44-position high-density D-Sub male |
| P2 Connector | 44-position high-density D-Sub female |
| Common Interface Name | HD44 male to HD44 female |
| Cable Type | UL20276, 28 AWG × 25 pairs + AEB |
| Cable Outside Diameter | Approximately 8.0 mm |
| Cable Color | Black |
| Finished Length | 2000 ± 30 mm |
| Connector Shell | Nickel-plated metal shell with black insulator |
| Locking Hardware | UNC #4-40 |
| Compliance | RoHS compliant |
Electrical Inspection
- 100% open-circuit, short-circuit and miswire test
- Insulation resistance: 10 MOhm minimum at DC 300 V
- Contact resistance: 3 Ohm maximum
- Cable length, connector orientation and workmanship inspected before shipment
Typical Applications
- Industrial equipment interface extension
- Data-acquisition and measurement systems
- Electronic test fixtures and test benches
- Machine-control and automation equipment
- Laboratory instruments and OEM systems
- Custom replacement interconnect cables
