Product Description

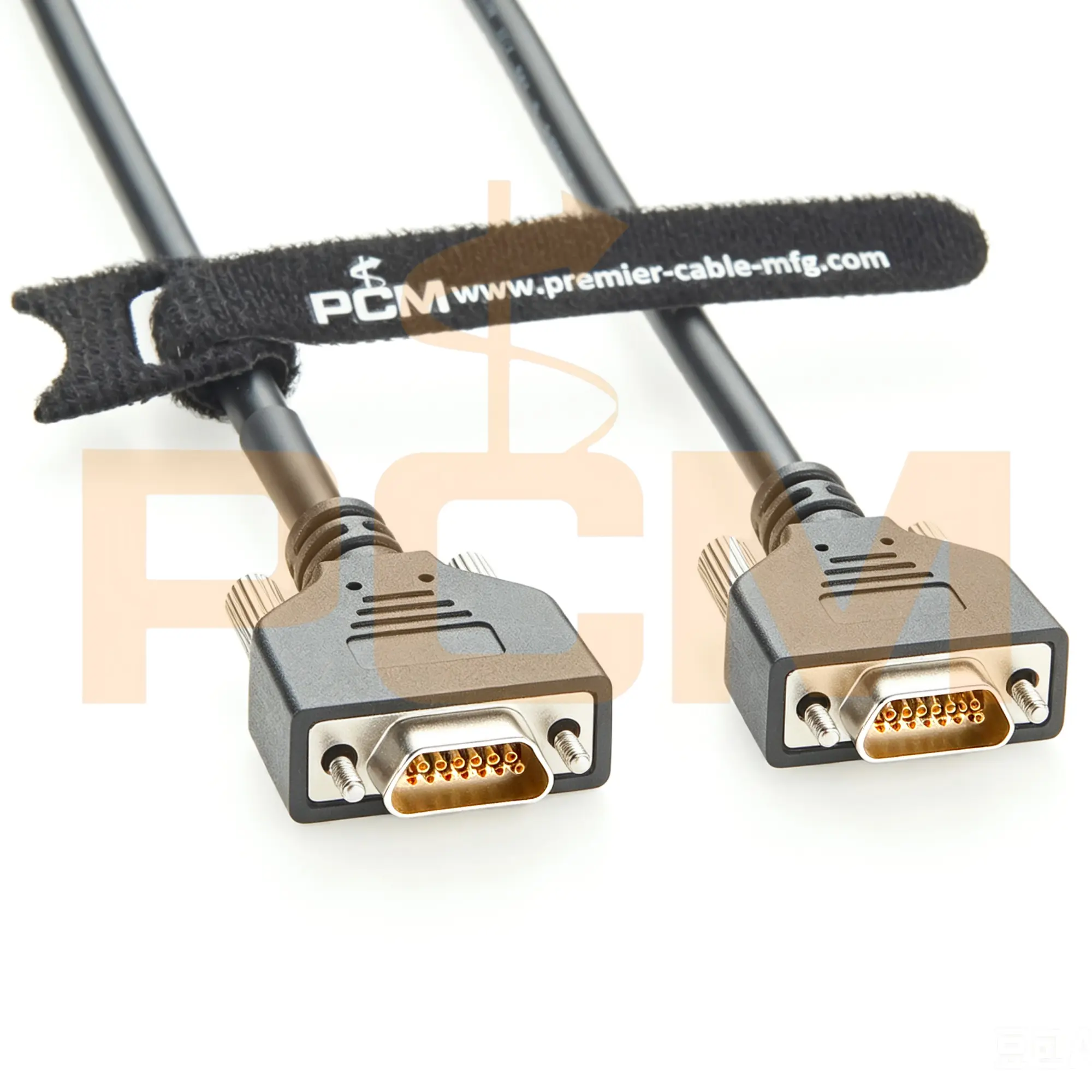

Micro-D 15-Pin Female to Female Cable Assembly is a compact dual-ended signal and equipment I/O cable designed as a compatible alternative to Molex 834229053, 834229054 and 834229055 cable assemblies.
The cable uses one Commercial Micro-D 15-circuit female connector on each end, allowing equipment fitted with compatible Micro-D 15-pin male interfaces to be interconnected without conventional full-size D-Sub connectors.
Three standard lengths are available: 0.46 m for Molex 834229053 compatibility, 0.91 m for 834229054 compatibility and 1.83 m for 834229055 compatibility.
Custom cable length, pinout, shielding, conductor specification, jacket material, labels, connector orientation and overmold options are available according to the customer's drawing, existing sample or equipment requirements.
Key Features
- Commercial Micro-D 15-pin female-to-female cable assembly
- Compatible alternative to Molex 834229053, 834229054 and 834229055
- Standard lengths of 0.46 m, 0.91 m and 1.83 m
- Compact CMD-to-CMD configuration for space-limited equipment
- All 15 circuits loaded with standard 28 AWG conductors
- Passive point-to-point signal and equipment I/O interconnection
- 100% open, short and miswire electrical testing
- Custom length, pinout, shielding, jacket, labeling, orientation and overmold options
Technical Specifications
| Product Name | Micro-D 15-Pin Female to Female Cable Assembly |
| Compatible Part Numbers | Molex 834229053, 834229054 and 834229055 |
| Reference Series | Molex 83422 Series |
| Product Type | Commercial Micro-D CMD-to-CMD Cable Assembly |
| Connector P1 | Commercial Micro-D, 15 Circuits, Female |
| Connector P2 | Commercial Micro-D, 15 Circuits, Female |
| Gender Configuration | Female to Female |
| Connector Configuration | CMD-to-CMD |
| Circuits Loaded | 15 |
| Number of Rows | 2 |
| Wire Size | 28 AWG standard |
| Standard Lengths | 0.46 m, 0.91 m and 1.83 m |
Compatible Part Numbers and Cable Lengths
The following reference part numbers use the same Commercial Micro-D 15-circuit female-to-female configuration. Their primary difference is the standard cable length.
| Molex Reference Part Number | Cable Length | Connector Configuration |
| 834229053 | 0.46 m | Commercial Micro-D 15-Pin Female to Female |
| 834229054 | 0.91 m | Commercial Micro-D 15-Pin Female to Female |
| 834229055 | 1.83 m | Commercial Micro-D 15-Pin Female to Female |
Custom lengths, including 2 m, are available. Custom-length versions should not be represented as Molex 834229053, 834229054 or 834229055 because these reference part numbers correspond to the standard lengths listed above.
Ordering Information
When requesting a quotation, please provide the compatible reference part number or required cable length, complete pin-to-pin wiring diagram, shielding and cable-jacket requirements, connector orientation, labeling requirements and order quantity.
Drawing
