Straight-Through DB25 Extension Cable

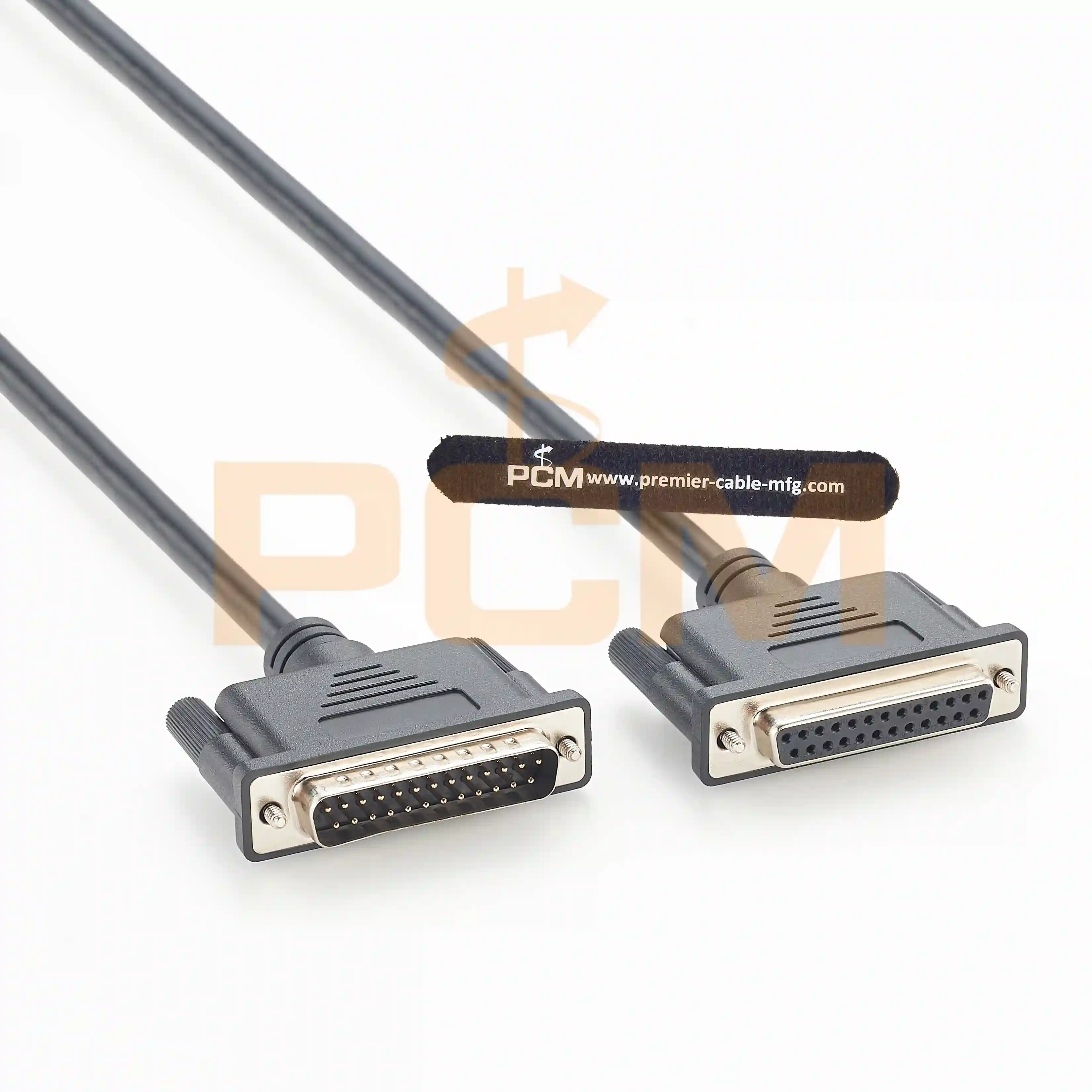

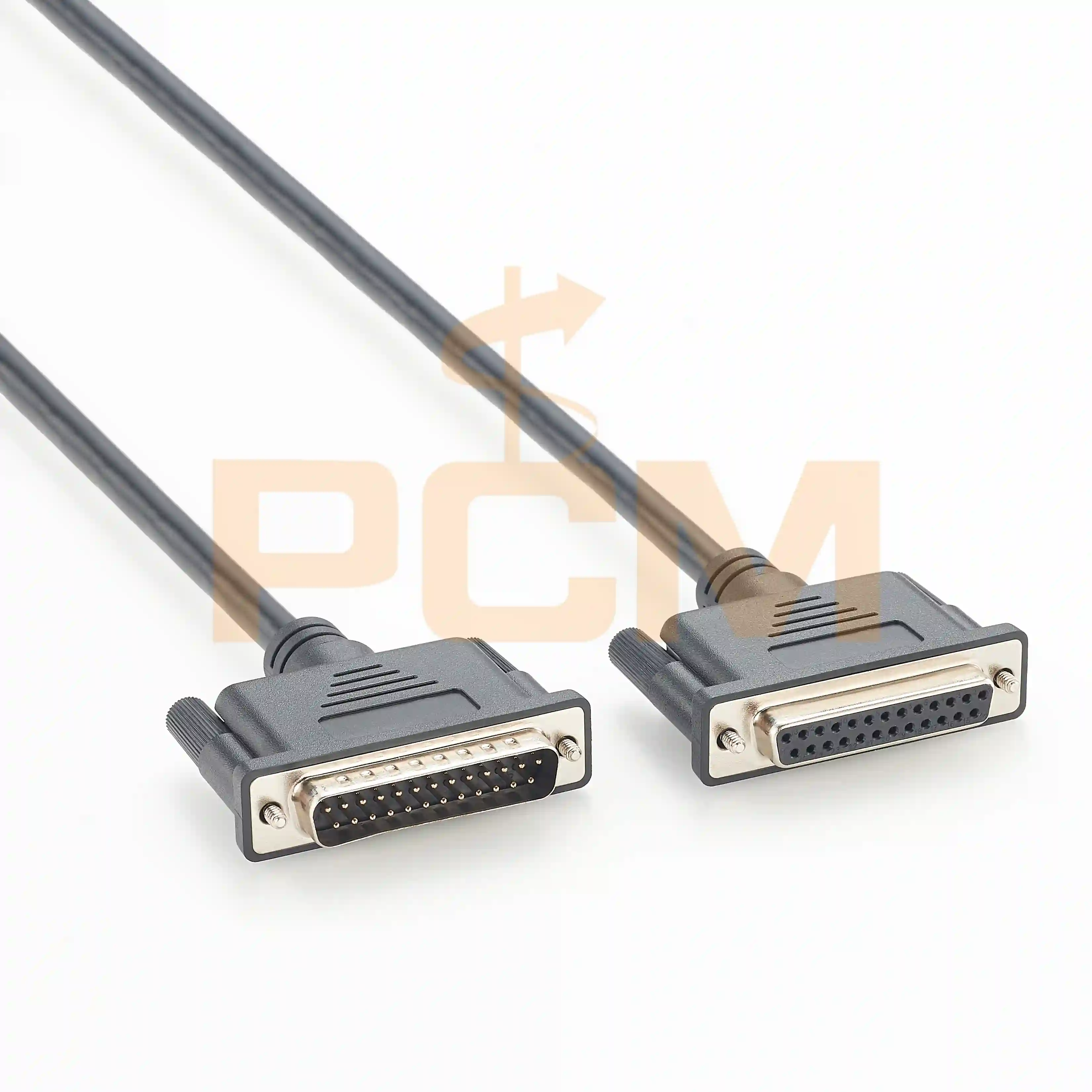

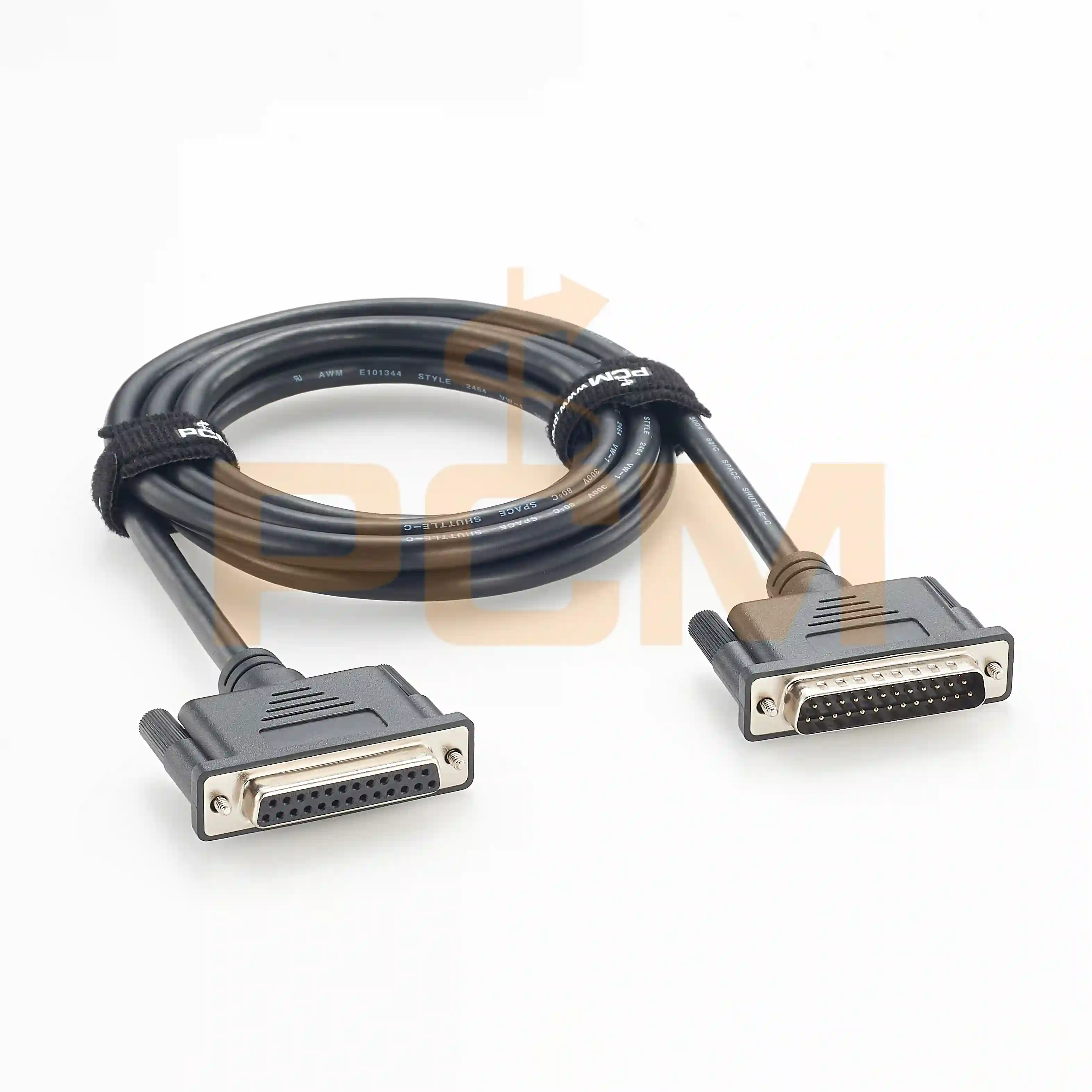

PCM-0968 is a DB25 male-to-female 25-pin extension cable with confirmed straight-through wiring from Pin 1 to Pin 25 and shield continuity from S to S.
The standard assembly uses black UL2464 28 AWG 25-conductor shielded cable with a finished length of 2000 ± 30 mm. Both connectors feature black insulators, nickel-plated shells and UNC #4-40 locking hardware.
This male-to-female configuration is suitable for extending compatible DB25 interfaces used in industrial control, data-acquisition, test, measurement and OEM equipment.
Confirmed Pin Assignment
| P1 | P2 | Connection |
| Pins 1–25 | Pins 1–25 | Straight-through, pin to matching pin |
| Shield S | Shield S | Shield continuity |
The documented 1-to-1 pin map makes PCM-0968 suitable for applications requiring a standard DB25 extension format. Equipment compatibility should still be checked against the device interface and signal requirements.
Product Specifications
| Specification | Value |
| Product Number | PCM-0968 |
| P1 Connector | DB25 male, 25 pin contacts |
| P2 Connector | DB25 female, 25 socket contacts |
| Cable | UL2464, 28 AWG × 25 conductors + AEB |
| Cable Outside Diameter | Approximately 7.0 mm |
| Cable Color | Black |
| Finished Length | 2000 ± 30 mm |
| Connector Shell | Nickel-plated shell with black insulator |
| Locking Hardware | UNC #4-40 |
| Compliance | RoHS compliant |
Inspection and Applications
- 100% open-circuit, short-circuit and miswire test
- Insulation resistance: 10 MOhm minimum at DC 300 V
- Contact resistance: 3 Ohm maximum
- Industrial control and I/O interface extension
- Data-acquisition and measurement equipment
- Test fixtures, laboratory instruments and OEM systems
Drawing
