PCL-10137 Compatible DB37 Cable

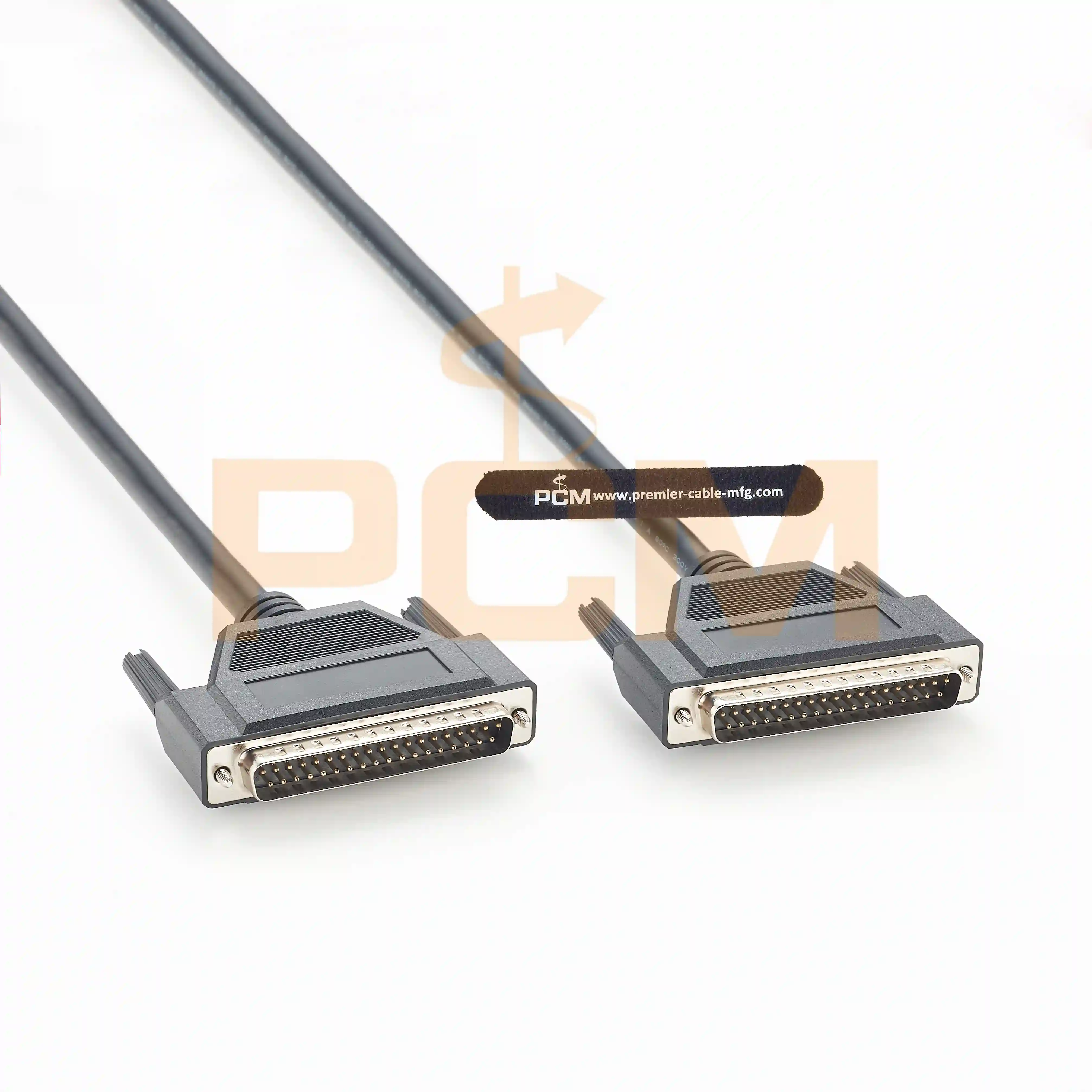

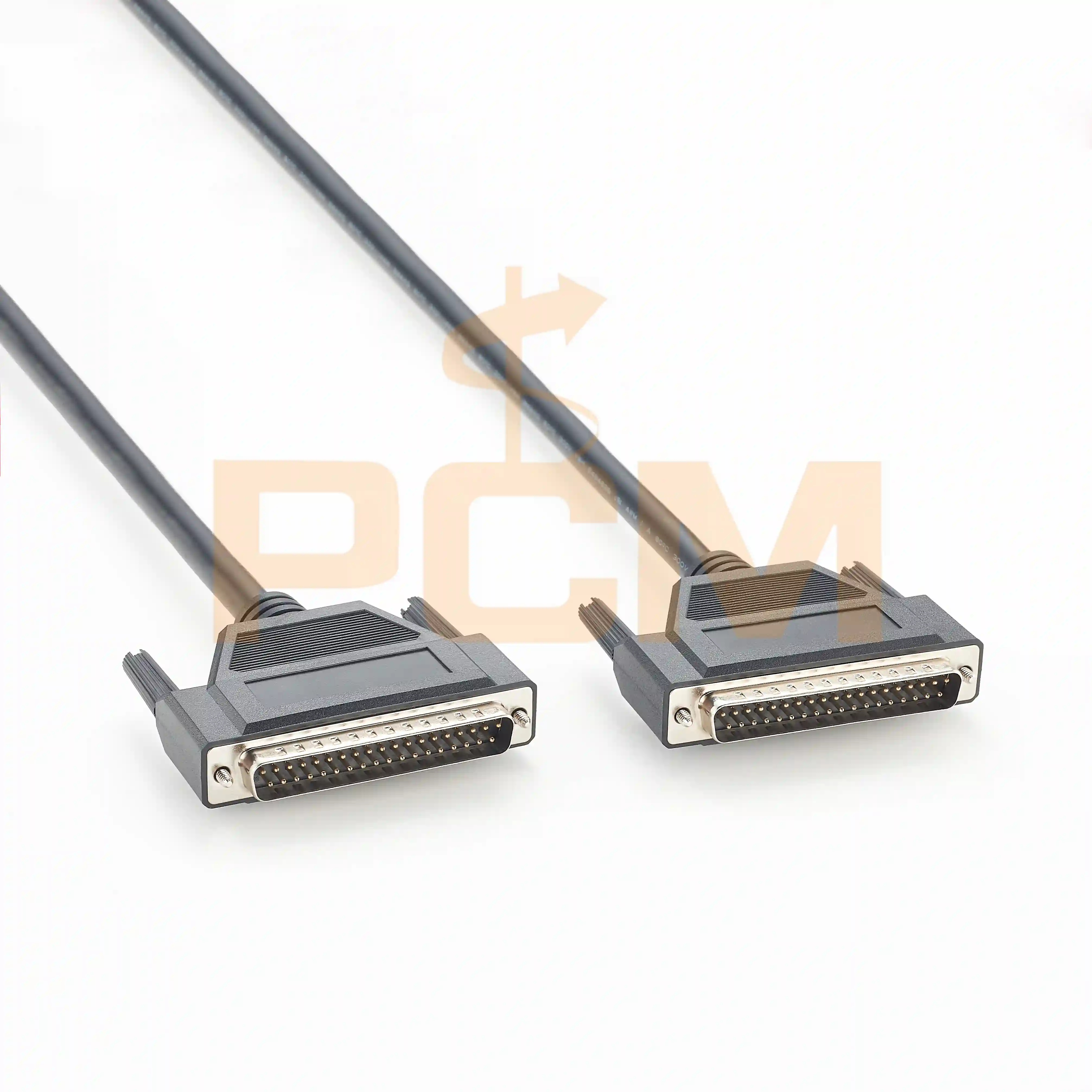

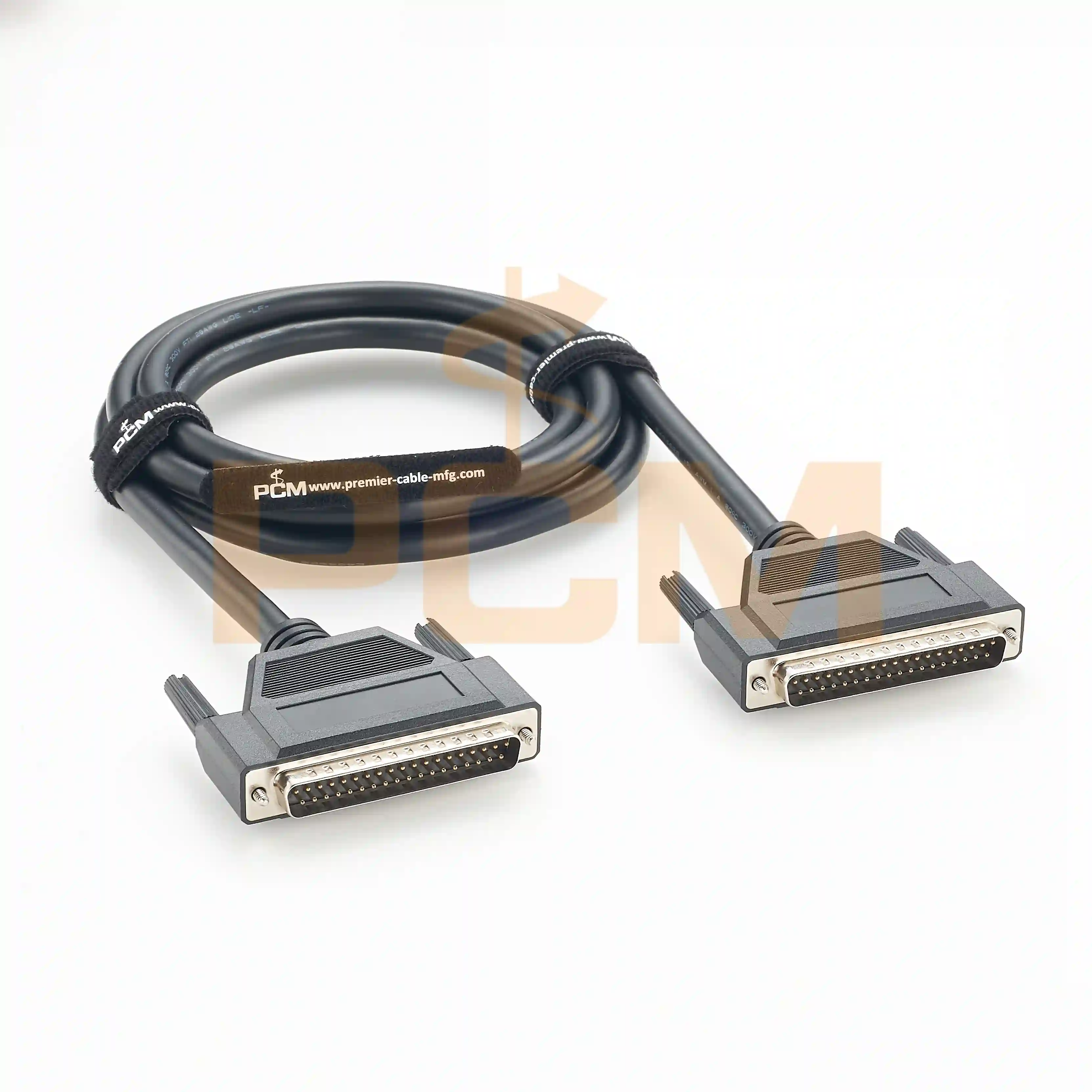

PCM-0966 is a DB37 male-to-male shielded cable available as a compatible replacement for Advantech PCL-10137-1E, PCL-10137-2E and PCL-10137-3E cable assemblies.
Both ends use 37-position D-Sub male connectors with black insulators, nickel-plated shells and UNC #4-40 locking screws. The cable is designed for compatible data-acquisition, control and industrial I/O equipment using DB37 female interfaces.
Standard lengths include 1 m, 2 m and 3 m. The assembly uses black UL2464 26 AWG 37-conductor shielded cable. Contact assignment is manufactured according to the approved wiring specification for the selected version.
Available Replacement Versions
| Premier Cable Part Number | Cable Length | Compatible Reference |
| PCM-0966-1M | 1000 ± 30 mm | PCL-10137-1E |
| PCM-0966-2M | 2000 ± 30 mm | PCL-10137-2E |
| PCM-0966-3M | 3000 ± 30 mm | PCL-10137-3E |
Advantech is a trademark of its respective owner. The listed part numbers are provided only as compatibility references; PCM-0966 is manufactured by Premier Cable.
Product Specifications
| Specification | Value |
| P1 Connector | DB37 male, 37 pin contacts |
| P2 Connector | DB37 male, 37 pin contacts |
| Cable Construction | UL2464, 26 AWG × 37 conductors + AE |
| Cable Outside Diameter | Approximately 9.5 mm |
| Cable Color | Black |
| Connector Shell | Nickel-plated metal shell with black insulator |
| Locking Hardware | UNC #4-40 |
| Compliance | RoHS compliant |
Inspection and Application
- 100% open-circuit, short-circuit and miswire test
- Insulation resistance: 10 MOhm minimum at DC 300 V
- Contact resistance: 3 Ohm maximum
- Suitable for compatible data-acquisition cards, industrial I/O modules and DB37 interface equipment
- Available for OEM replacement, maintenance and system-integration requirements

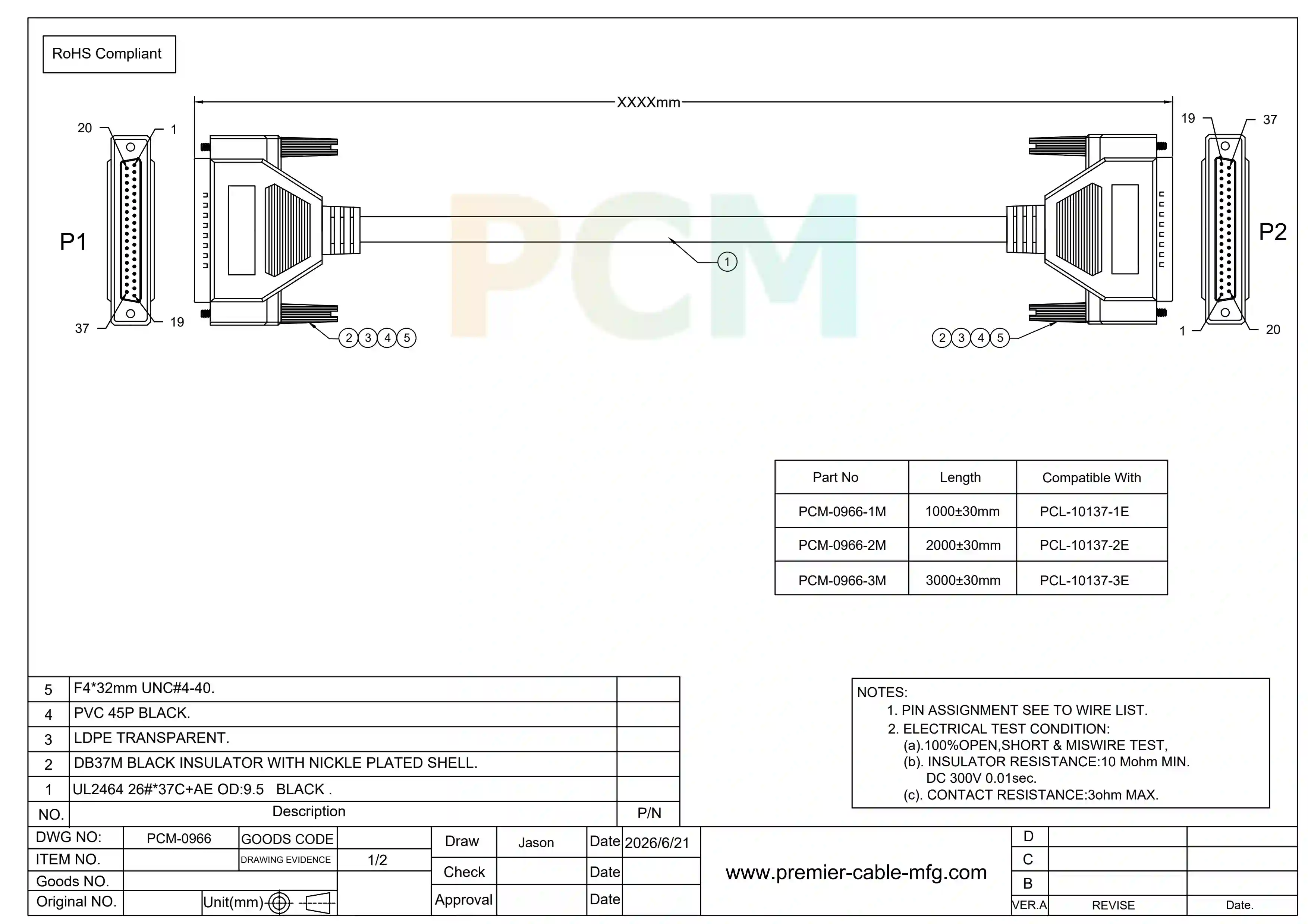

Drawing
