PCM-0965 DB37 Male To Female 37-Pin Interface Extension Cable

PCM-0965 is a DB37 male-to-female shielded cable designed to extend or relocate a compatible 37-position D-Sub equipment interface.

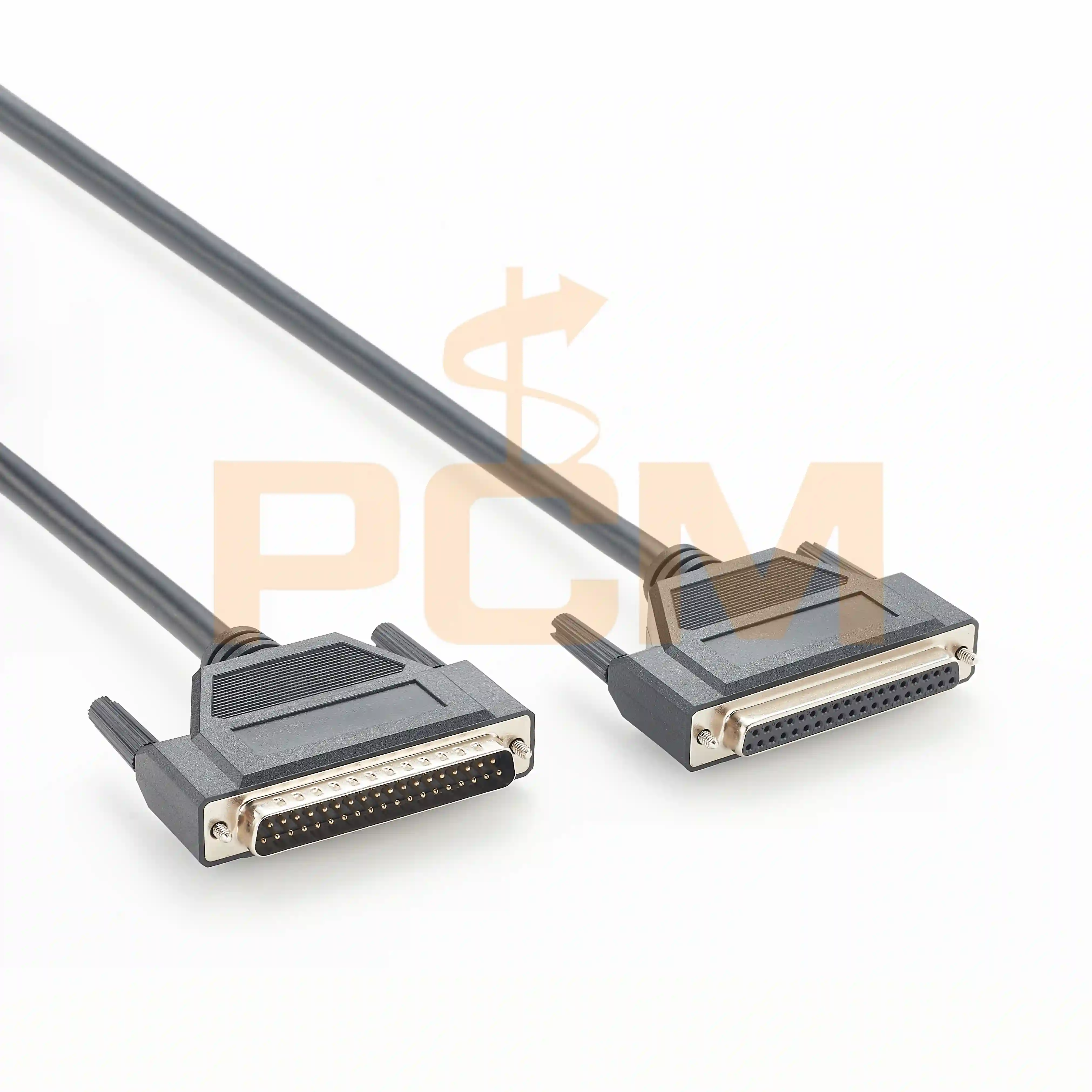

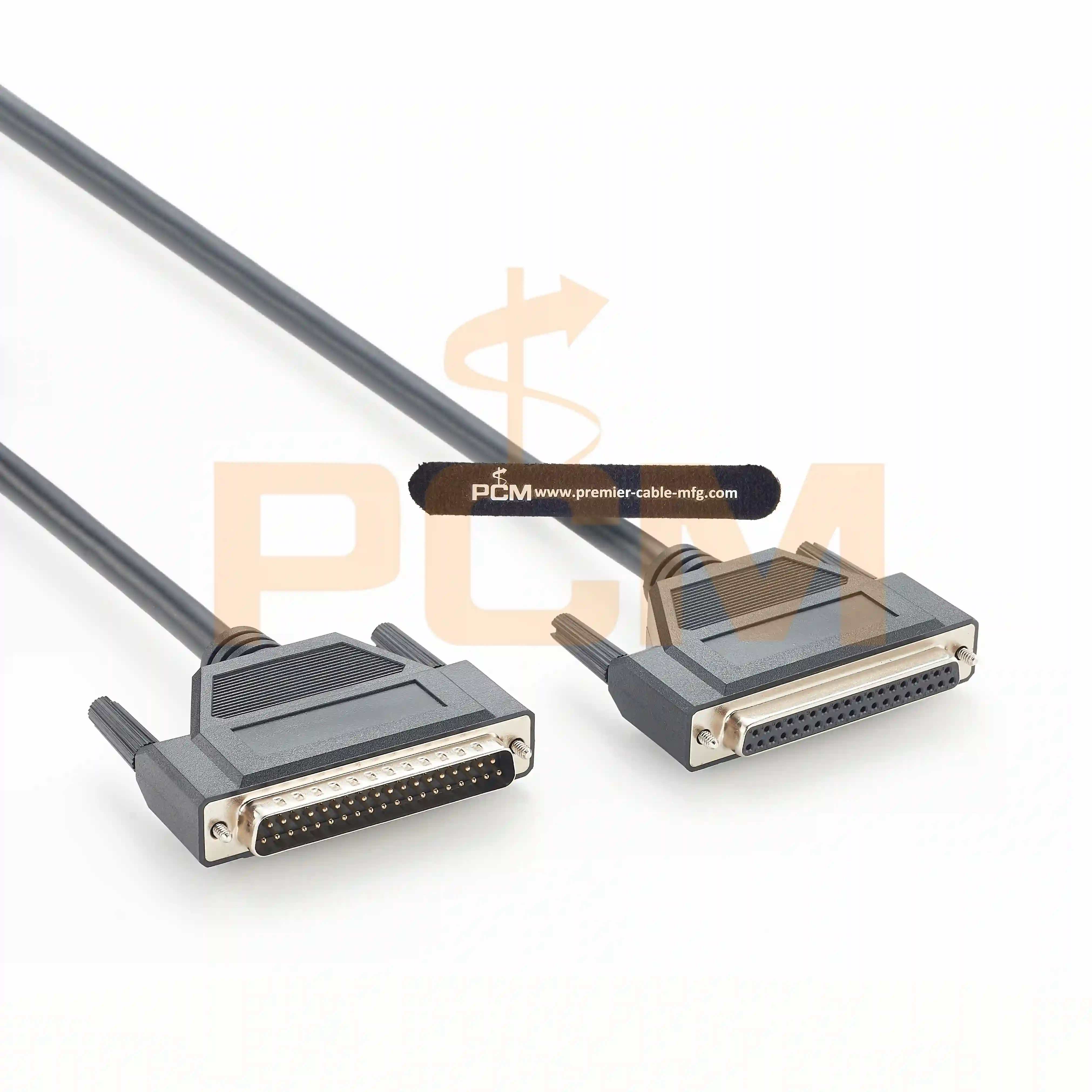

The P1 end uses a DB37 male connector and the P2 end uses a DB37 female connector. This complementary arrangement is suitable for control systems, test equipment, data-acquisition hardware and OEM installations where the original DB37 connection requires additional routing length.

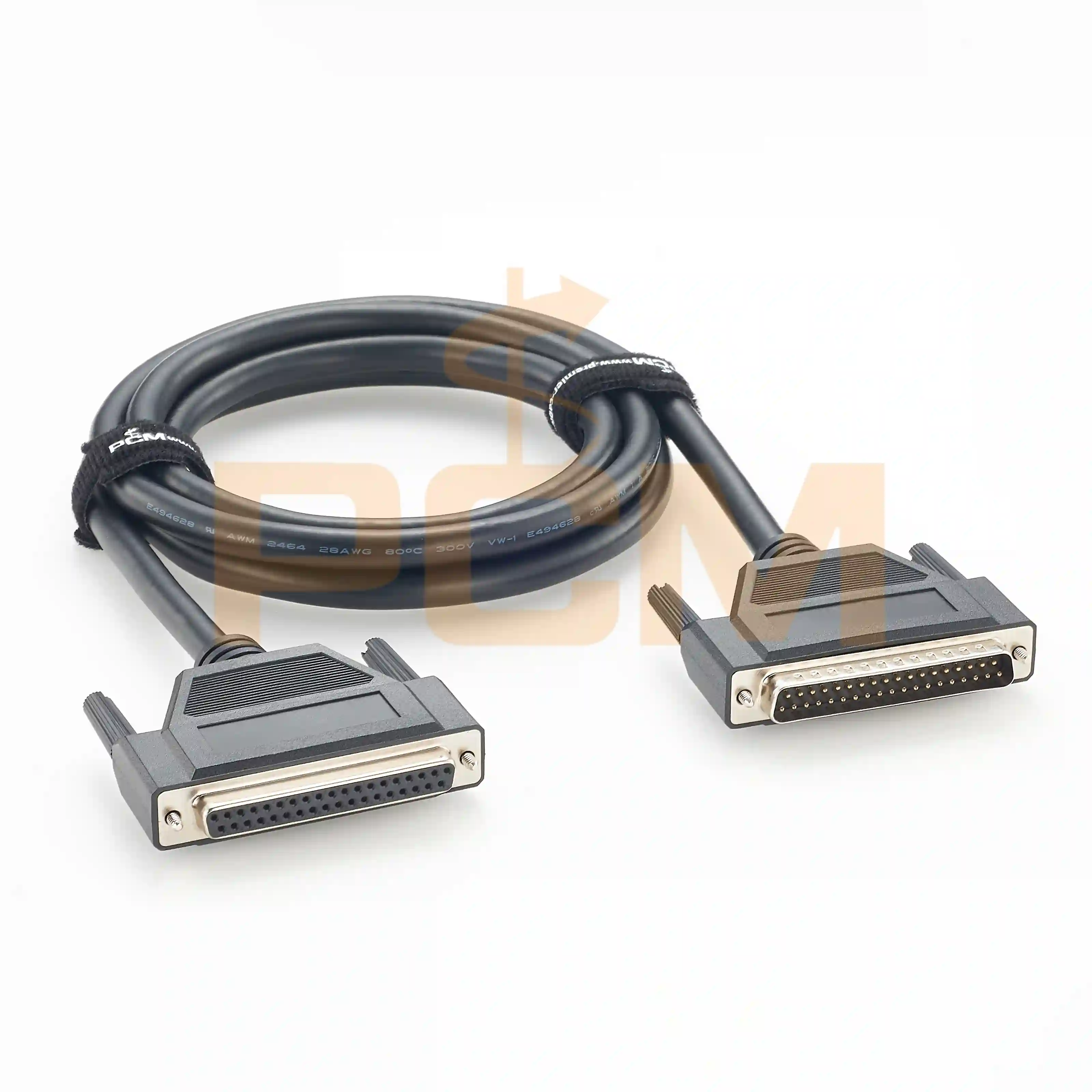

The standard assembly uses grey UL2464 26 AWG 37-conductor shielded cable with a finished length of 2000 ± 30 mm. Both connectors include black insulators, nickel-plated shells and UNC #4-40 locking hardware.

• Relocating a DB37 equipment connection
• Extending industrial control and I/O interfaces
• Connecting test instruments and fixtures
• Routing data-acquisition signals between enclosures
• Replacing equipment-specific DB37 interface cables

The male-to-female connector arrangement supports physical interface extension, but the electrical function depends on the approved contact map. The drawing does not independently confirm universal straight-through wiring.

• Pin assignment manufactured according to an approved wire list
• 100% open-circuit, short-circuit and miswire test
• Insulation resistance: 10 MOhm minimum at DC 300 V
• Contact resistance: 3 Ohm maximum
• Connector orientation, cable length and workmanship checked before shipment
