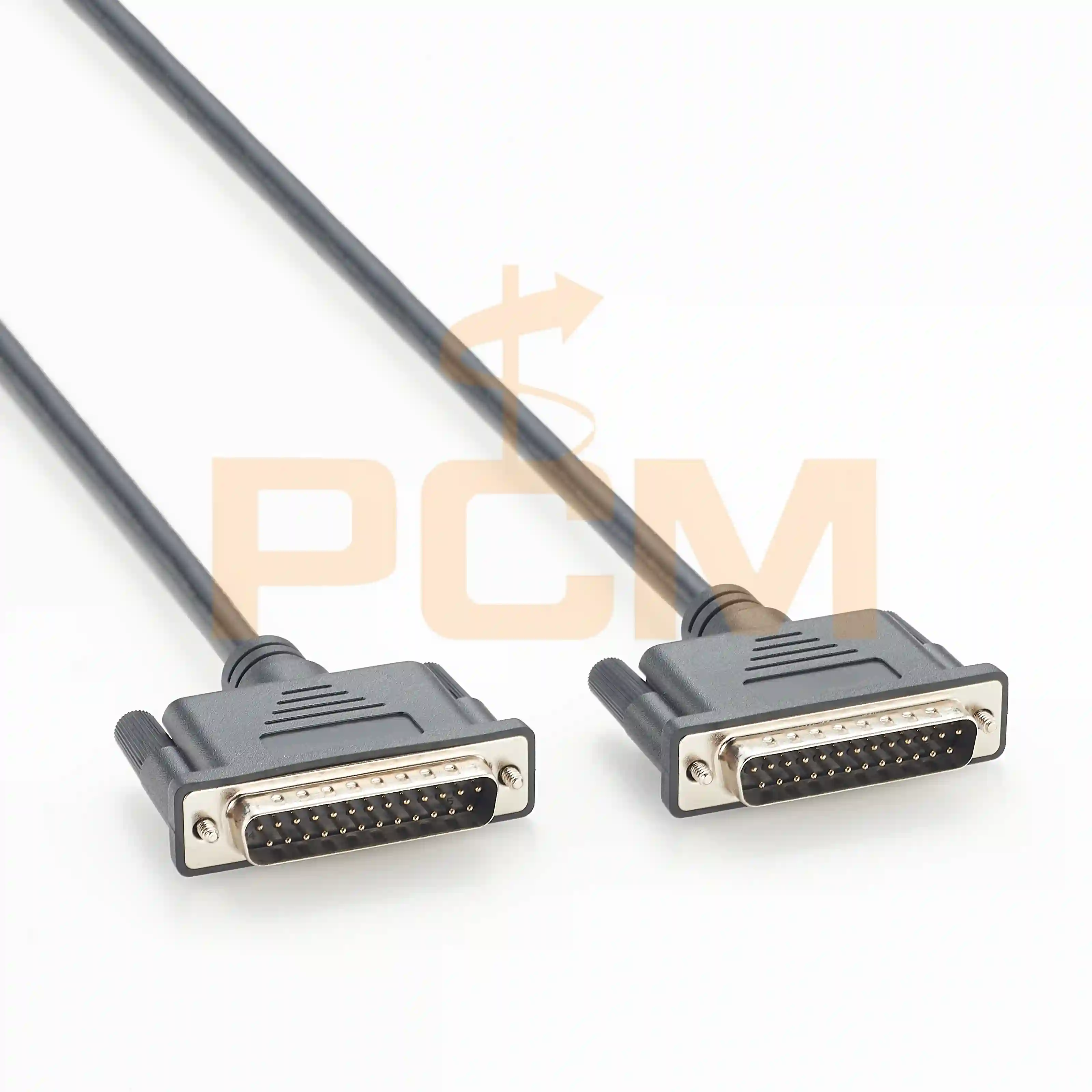

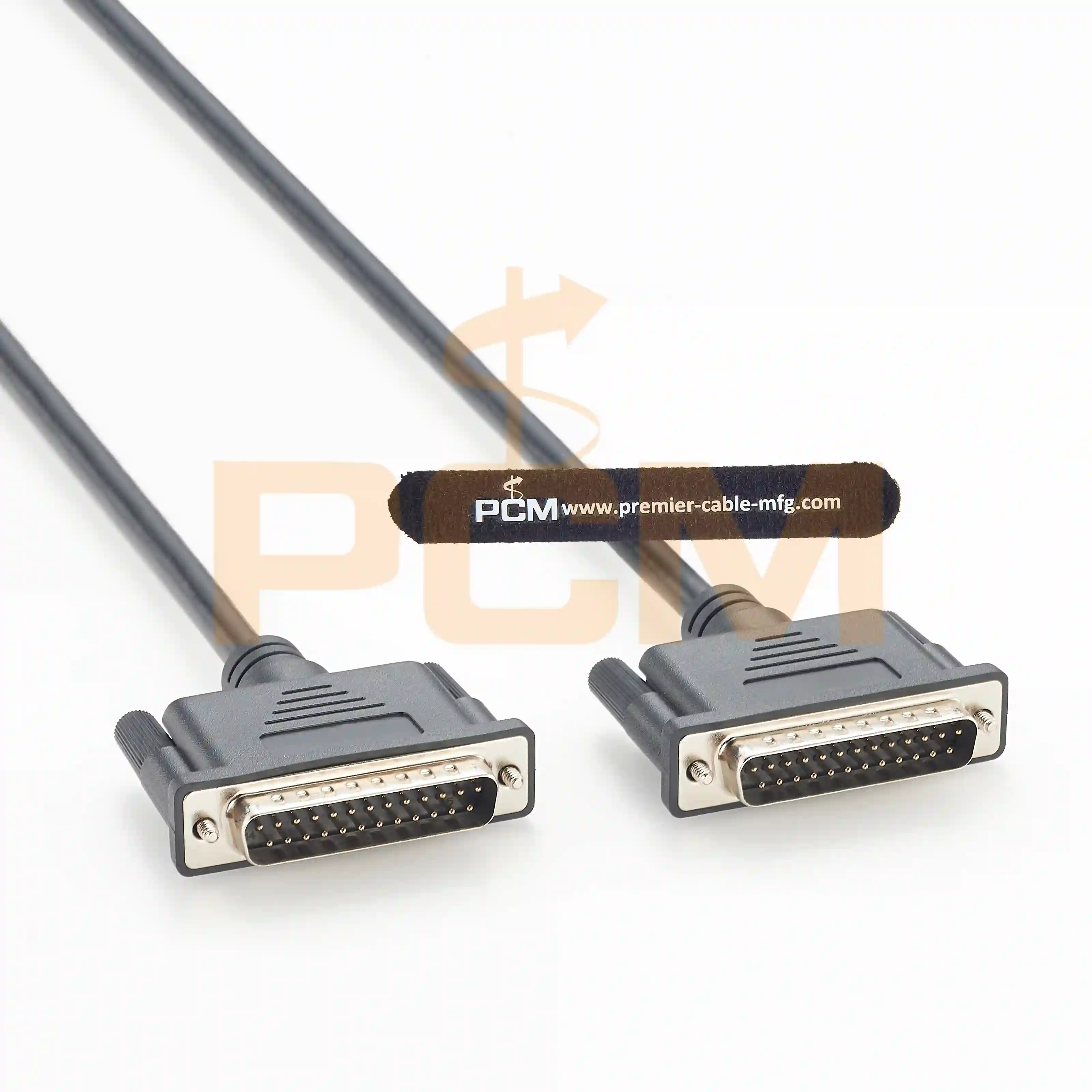

PCL-10125 Compatible DB25 Cable
PCM-0967 is a DB25 male-to-male shielded cable available in 1 m, 2 m and 3 m versions for applications requiring compatibility with Advantech PCL-10125-1E, PCL-10125-2E and PCL-10125-3E cable assemblies.
Both ends use 25-position D-Sub male connectors with black insulators, nickel-plated shells and UNC #4-40 locking screws. The standard cable uses black UL2464 28 AWG 25-conductor shielded cable with an outside diameter of approximately 7.0 mm.
The standard wiring is straight-through from Pin 1 to Pin 25, with the shield connection carried from S to S. Each finished assembly is inspected for open circuits, short circuits and incorrect wiring before shipment.
Available Lengths and Reference Models
| Premier Cable Part Number | Finished Length | Compatible Reference |
| PCM-0967-1M | 1000 ± 30 mm | PCL-10125-1E |
| PCM-0967-2M | 2000 ± 30 mm | PCL-10125-2E |
| PCM-0967-3M | 3000 ± 30 mm | PCL-10125-3E |
Advantech is a trademark of its respective owner. The listed part numbers are provided only as compatibility references; PCM-0967 is manufactured by Premier Cable.
Straight-Through Pin Assignment
| P1 Contact | P2 Contact | Connection |
| Pins 1–25 | Pins 1–25 | Pin-to-pin straight-through |
| Shield S | Shield S | Shield continuity |
This confirmed straight-through contact map distinguishes PCM-0967 from customer-specific DB25 cables that may use crossed or equipment-specific wiring.
Construction and Inspection
| Specification | Value |
| Connector Configuration | DB25 male to DB25 male |
| Cable | UL2464, 28 AWG × 25 conductors + AEB |
| Cable Outside Diameter | Approximately 7.0 mm |
| Cable Color | Black |
| Connector Shell | Nickel-plated shell with black insulator |
| Locking Hardware | UNC #4-40 |
| Wiring Test | 100% open-circuit, short-circuit and miswire test |
| Insulation Resistance | 10 MOhm Min. at DC 300 V |
| Contact Resistance | 3 Ohm Max. |
| Compliance | RoHS compliant |
Drawing
