Products Description

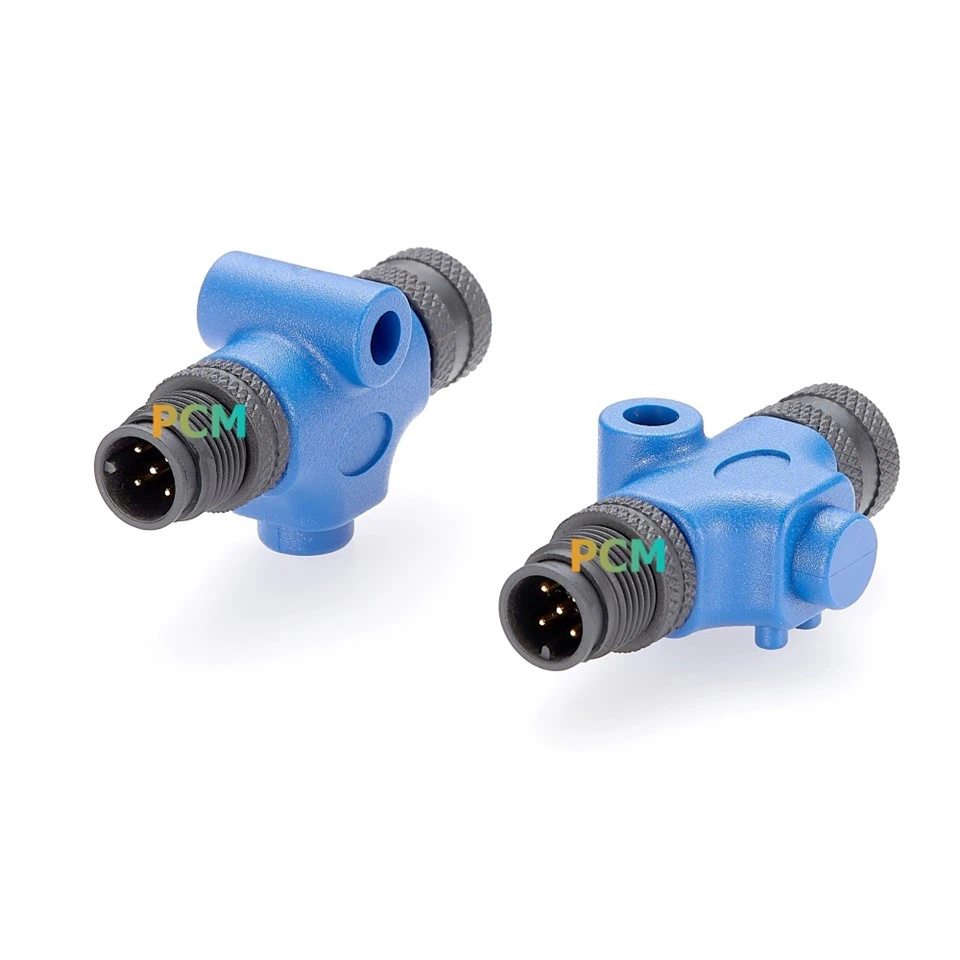

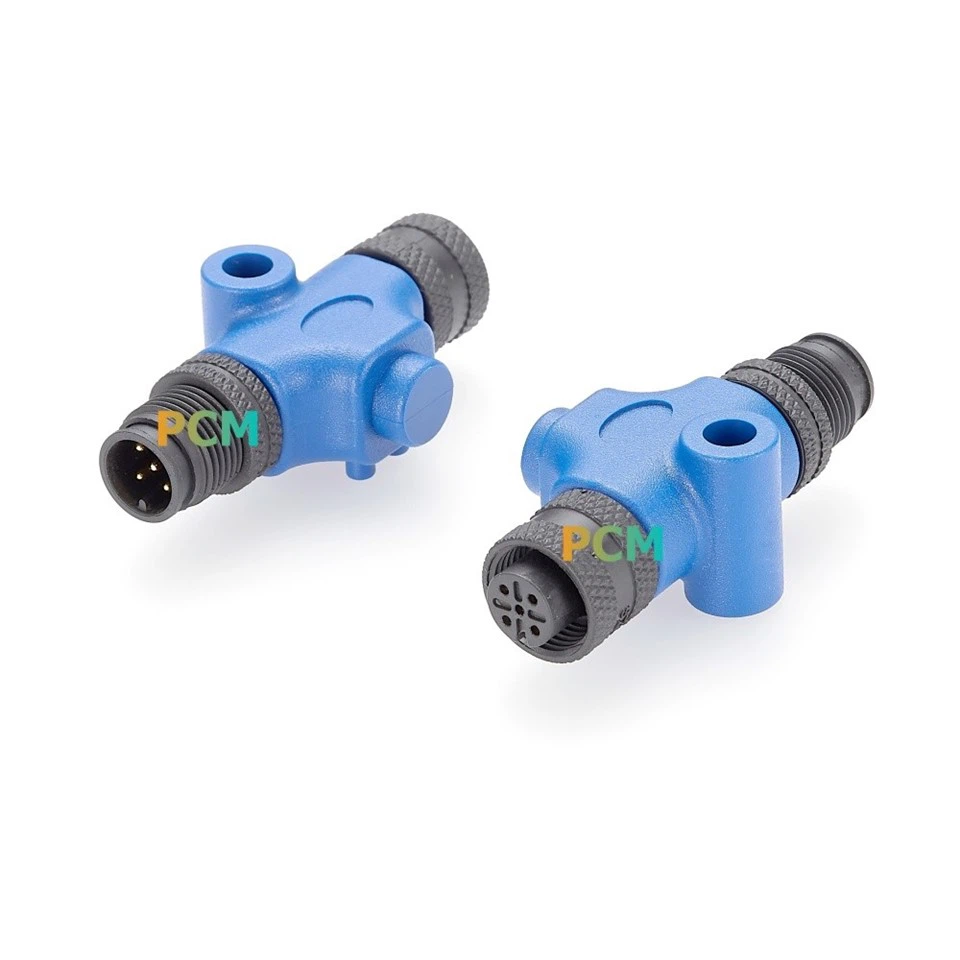

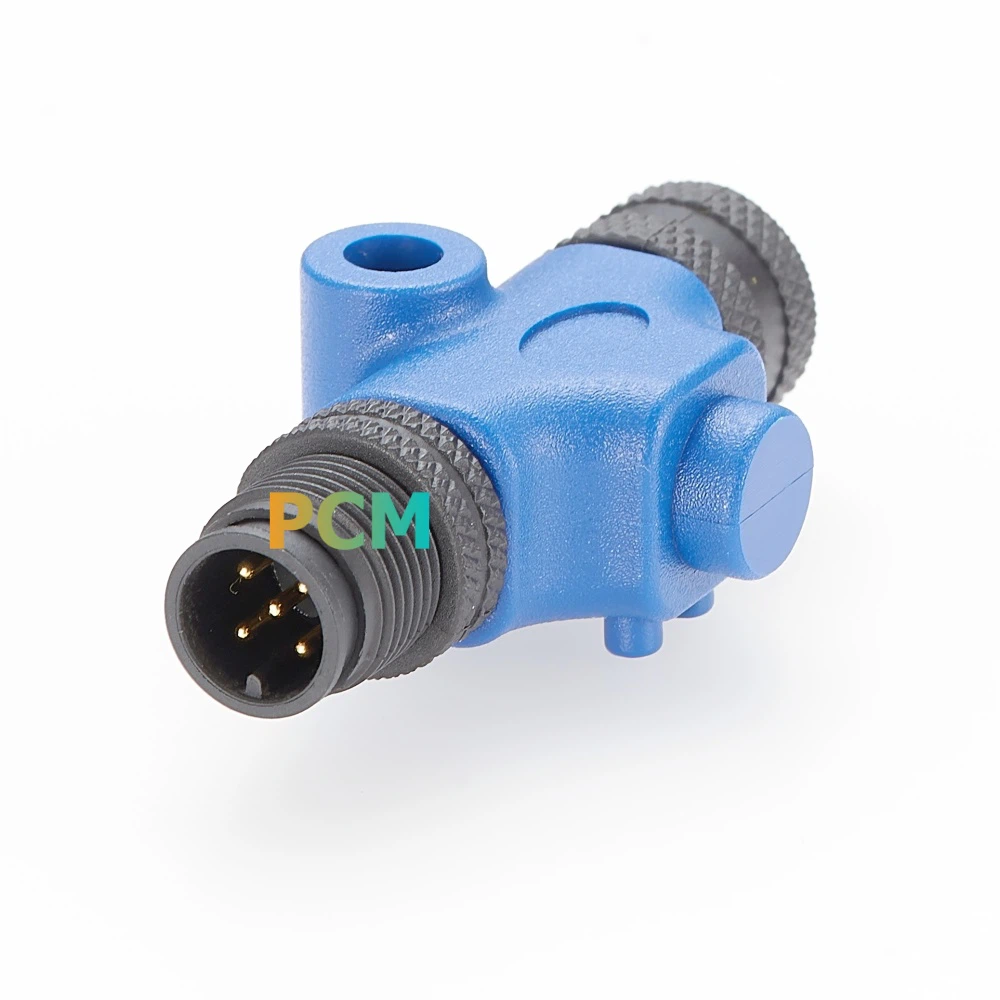

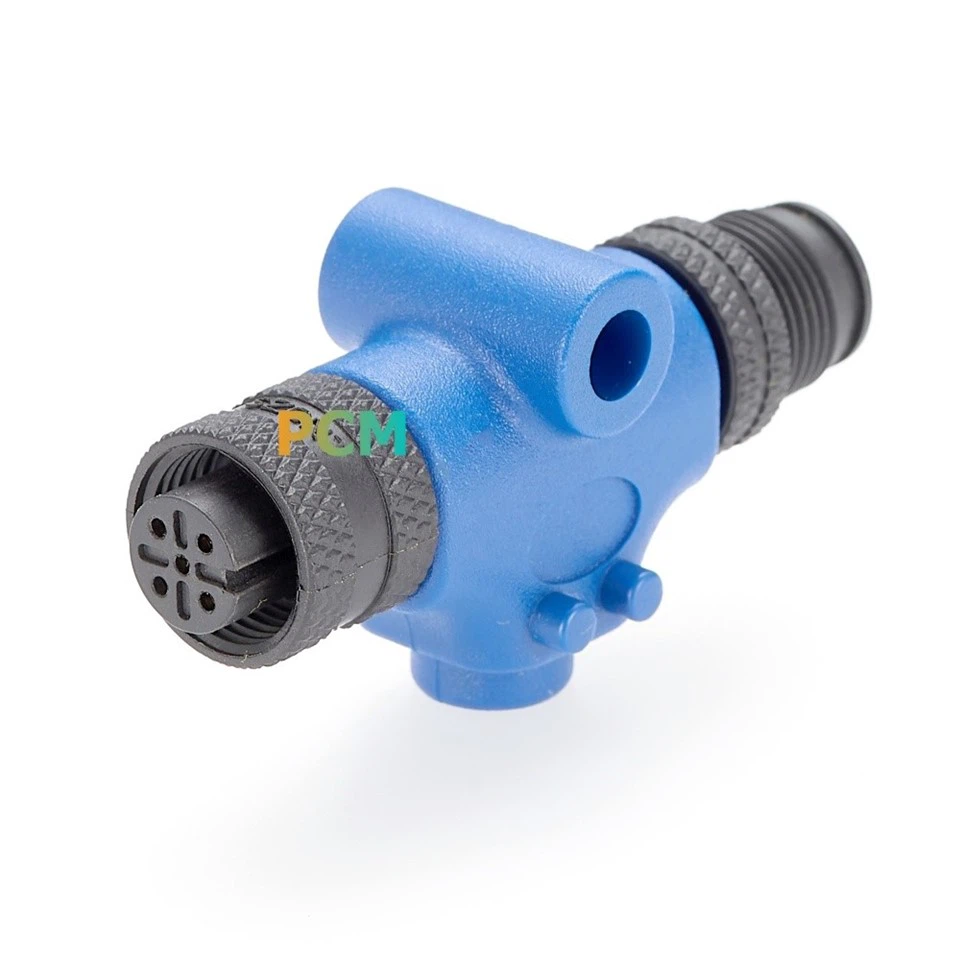

The NMEA2000 In-line Terminator is a critical component designed for network termination; installed between the backbone cable and the device, it ensures stable and reliable communication throughout the entire NMEA2000 system. The product features a built-in 120-ohm termination resistor, which effectively suppresses signal reflections and electromagnetic interference, thereby safeguarding the integrity and accuracy of data transmission.
The PCM-0853 utilizes a standard M12 circular connector interface, ensuring a secure connection and compatibility with a wide range of marine electronic devices-including GPS navigators, chart plotters, engine monitoring systems, and various sensors. Its housing boasts an IP67 rating for water and dust resistance, enabling it to operate stably over extended periods in harsh marine environments characterized by moisture and salt spray; it is, therefore, an indispensable component for constructing highly reliable NMEA2000 networks.
Specification
|
Product name |
NEMA2000 Inline Terminator |
|
DWG No. |
PCM-0853 |
|
Connector A |
M12 5Pin Female |
| Connector B | M12 5Pin Male |
| Impedance |
120Ω |
| DC | 300V |
Drawing
