Products Description

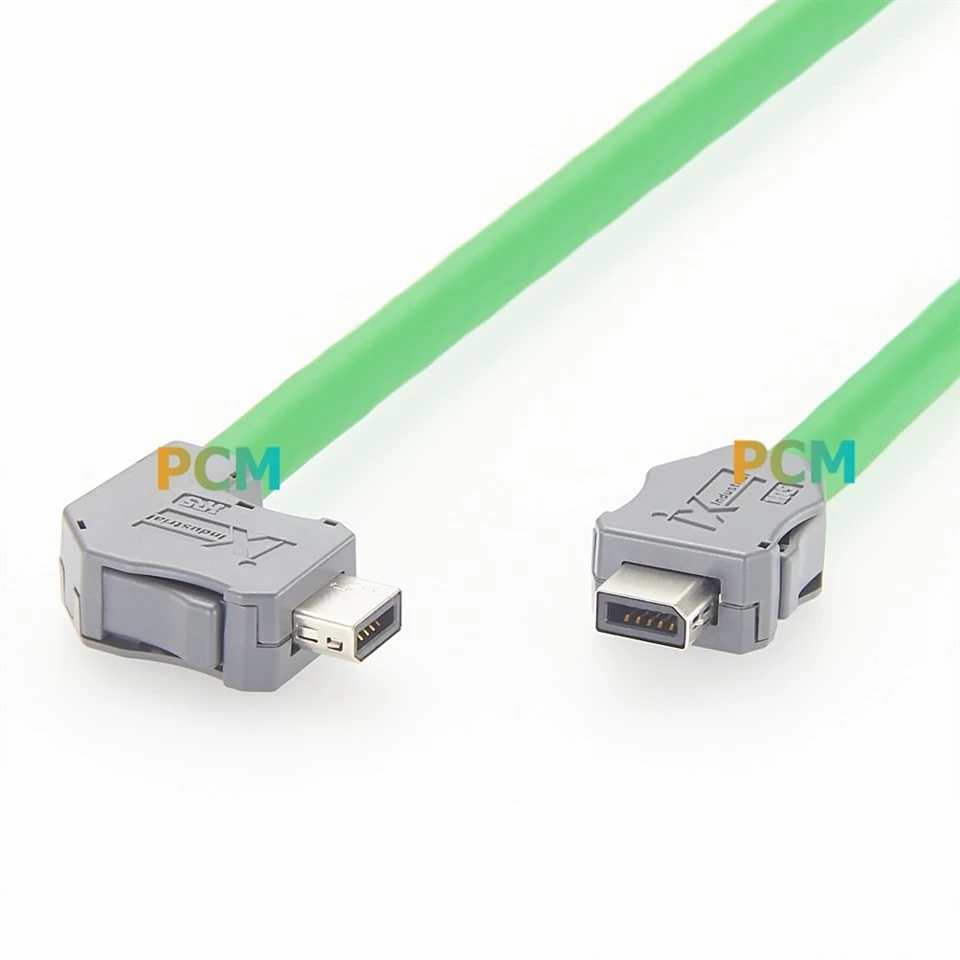

The PCM-0973 is an industrial Ethernet cable meeting Cat6A performance standards; it features a standard straight Hirose IX40G-A-10S-CV connector at one end and a 90° upward-angled IX40G-A-10S-CVL2 connector at the other. Designed primarily for industrial Ethernet communication, EtherCAT motion control systems, and factory automation applications, the cable utilizes the compact IX Industrial interface to enable higher port density and more compact equipment layouts within limited spaces. The upward-angled connector facilitates cable routing within cabinets, relieves stress at the bend point to extend service life, and ensures a neat, organized cabling setup. This cable provides stable, reliable, high-speed connectivity for devices such as EtherCAT servo drives, industrial robots, PLCs, visual inspection equipment, and industrial switches.
Specification
| Product Name | IX Industrial Ethernet Cable with 90° Upward Right Angle Connector |
| Part No. | PCM-0973 |
| Connector 1 |
X40G-A-10S-CVL2 7.0 A KEY
|
| Connector 2 |
X40G-A-10S-CV 7.0 A KEY
|
| OD | 6.8mm |
| Cable | Cat6A SFTP |
| Length |
1.5m |
Note
▲ Note that for the ix A-key plug, "CVL2" designates a right-angle configuration where the interface faces upward, while the cable exits in the opposite direction-downward.
Applications
♦ EtherCAT Motion Control Networks: Serves as a high-speed communication link between EtherCAT servo drives, industrial robots, and motion controllers, ensuring the real-time, precise transmission of control commands.
♦ Industrial Robots: Whether within the robotic arm itself or inside the control cabinet, cables must withstand continuous vibration and movement. The PCM-0973's 90° upward cable exit design helps alleviate cable stress, while the connector's robust structure resists vibration and shock, ensuring reliable data connectivity.
♦ Process Industries and Process Control: Used for high-reliability data transmission within control systems (such as DCS) in sectors like chemicals and pharmaceuticals.
♦ Industrial IoT (IIoT) and Edge Computing: Acts as the physical link for communication between edge computing devices and the cloud, supporting efficient data upload and processing.
