Products Description

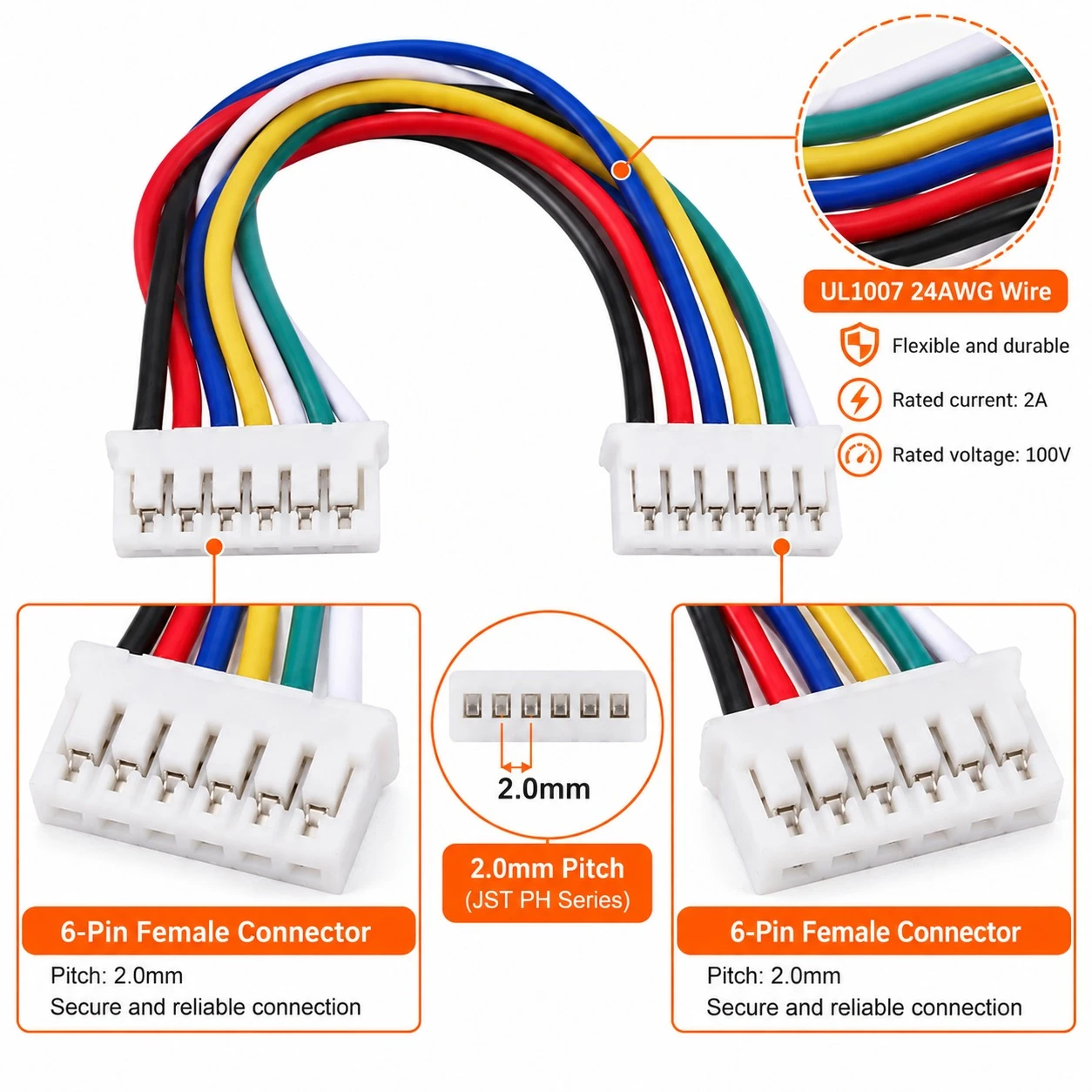

The JST PH series of cables is designed for compact electronic devices, development boards, and prototyping applications. The connectors use a standard 2.0mm pitch JST PH type interface, and the cables are made of UL1007 compliant 24AWG wire, balancing flexibility, reliability, and the wiring requirements of everyday electronic devices.
The double-sided version features JST PH female connectors on both ends for direct connection or extension between devices; the single-sided version has a JST PH connector on one end and a female crimp terminal for 0.1-inch (2.54mm) pitch connector housings on the other, facilitating the installation of different crimp housing sizes for various project requirements.
This series of cables can also be used with JST PH adapter boards. These adapter boards offer different configurations, including top and side entry, converting the JST PH interface to a breadboard-compatible 0.1-inch pitch through-hole interface. They can also be used to create JST PH to JST SH connection solutions, improving compatibility between devices with different interfaces.
Specification
|
Product Name |
JST 6 Pin Female to Female PH-Style Cable |
|
Connector A |
JST PH 6Pin Female |
| Connector B | JST PH 6Pin Female |
|
Cable Length |
16cm, Or OEM |
| Wire Gauge |
24AWG |
| Rated Current | 2A |
| Rated Voltage | 100V |
| Pin 1 | Black |
| Pin 2 | Red |
| Pin 3 | Blue |
| Pin 4 | Yellow |
| Pin 5 | Green |
| Pin 6 | White |
Product Display
Application Scenarios
Electronic Device and Control Module Connections
Suitable for connections between sensors, control modules, PCB circuit boards, and small electronic devices. The JST PH 2.0mm interface has a compact structure, enabling stable signal and power transmission within limited space, suitable for applications such as smart devices, embedded systems, electronic modules, and internal device wiring.
Breadboard Development and Prototype Testing
Suitable for prototyping and functional testing of breadboards, development boards, and microcontrollers. It can be connected to a 0.1-inch (2.54mm) pitch interface via an adapter, facilitating circuit building, program debugging, and electronic experiments, suitable for DIY projects, R&D testing, teaching experiments, and rapid prototyping.
Products Advantages
Small size
Suitable for space-constrained electronic devices and PCB connections.
Stable Connection
ST PH connectors provide a secure mating connection, suitable for power and signal transmission.
Easy Prototyping
Compatible with 0.1-inch (2.54mm) breadboard interfaces via adapters, facilitating R&D and testing.
Color Identification
Different colored wires easily distinguish circuits, improving wiring and maintenance efficiency.
