Products Description
The 2-pin JST PH-Style Female Crimp Cable is designed for compact cable connections in electronic devices and DIY projects. It features a 2-pin female crimp connection with red and black wires, offering a simple and convenient design suitable for PCBs, power modules, LED devices, sensors, and other low-voltage electronic equipment.
The cable uses UL1007 compliant 24 AWG wire, providing excellent flexibility and stable electrical performance. It is rated for 2A current and 100V voltage. Clear pin color differentiation-black wire to Pin 1 and red wire to Pin 2-facilitates quick identification and reduces the possibility of wiring errors.
The standard cable length is approximately 12cm. Pre-installed crimp pins allow direct use with compatible crimp connector housings and standard 0.1-inch male connectors, reducing the need for wire stripping and crimping. The cable can also be cut and redesigned to meet the wiring requirements of different devices and projects, providing flexible connection solutions for prototyping, equipment maintenance, and custom electronic projects.
Specification
|
Product Name |
2 Pin JST PH-Style Female Crimp Cable |
|
Connector Type |
JST PH-Style Female |
| Number of Pins | 2 Pin |
|
Cable Length |
12cm, Or OEM |
| Wire Gauge |
24AWG |
| Wire Standard | UL1007 |
| Rated Current | 2A |
| Rated Voltage | 100V |
| Pin 1 | Black Wire |
| Pin 2 | Red Wire |

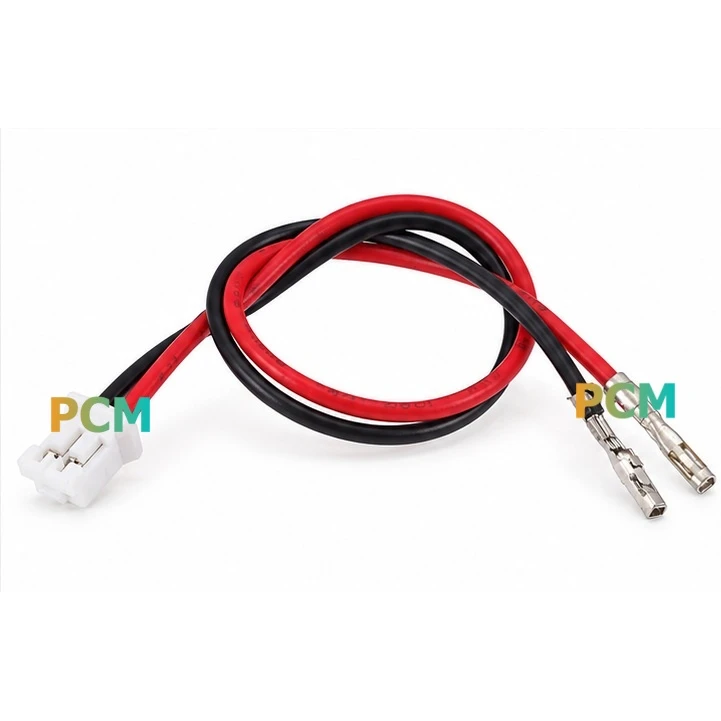

Product Display
Application Scenarios

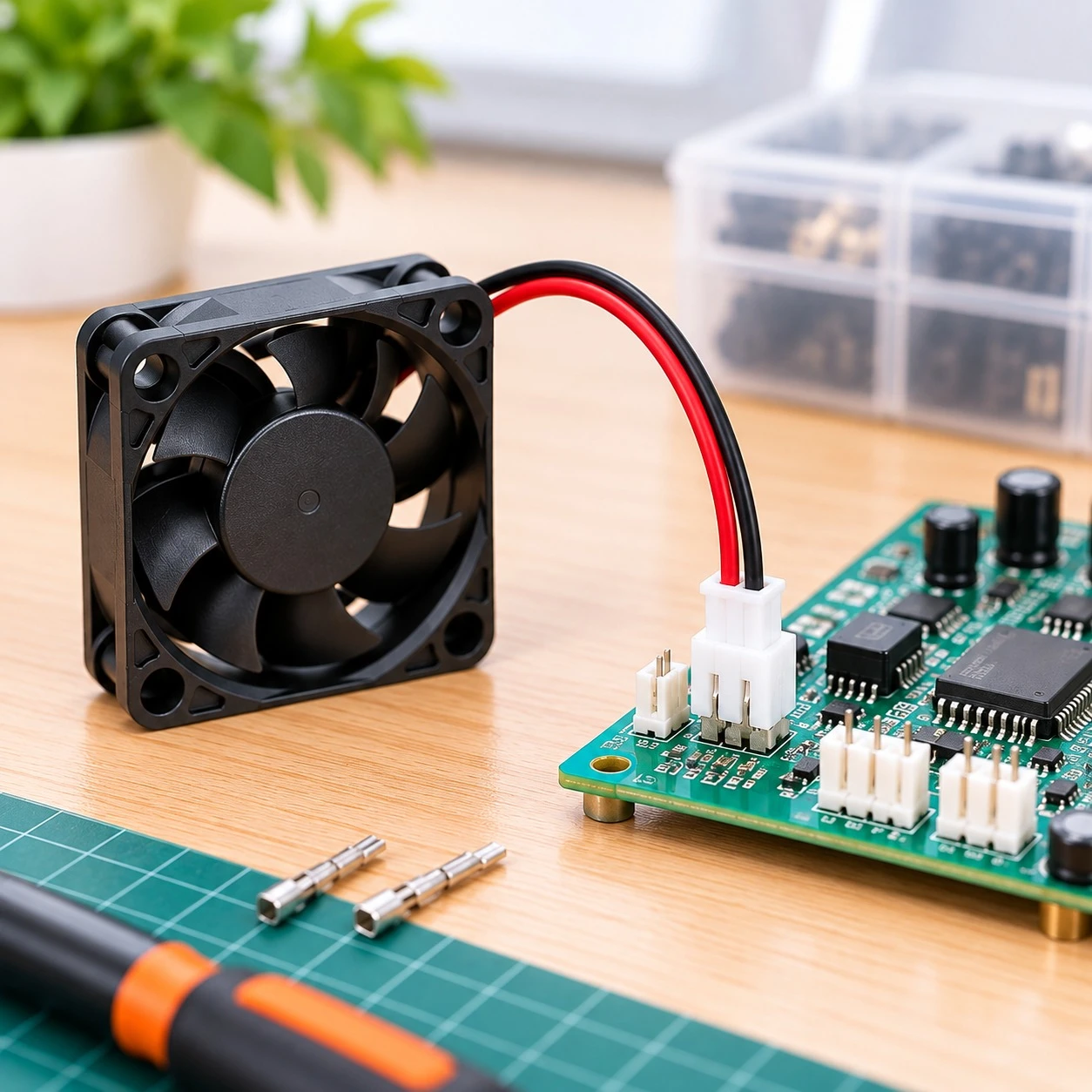

PCB and Cooling Fan Connection
Suitable for power connections between PCB circuit boards, cooling fans, and electronic control modules. The compact 2-pin design with red and black wires makes the circuit easily identifiable, suitable for internal wiring in electronic devices, cooling systems, and DIY electronic projects.

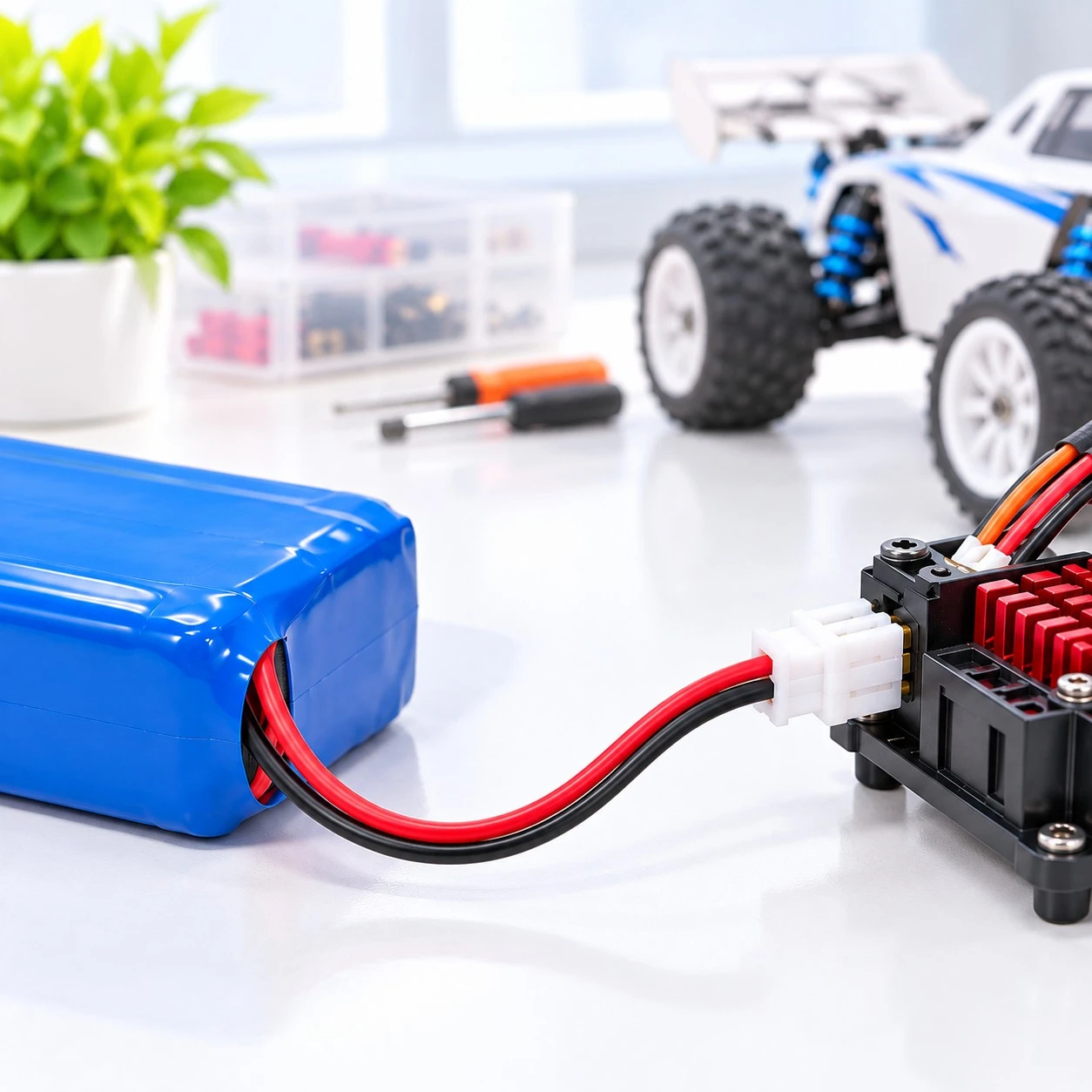

RC Model and Battery Connection
Suitable for connecting RC remote control models, battery packs, and electronic control modules. The 24 AWG UL1007 wire offers good flexibility, facilitating wiring in confined spaces, and can be used for remote control cars, model equipment, and other low-voltage power supply projects.
Products Advantages
Clear Wiring
The red and black dual-color design, with black wire corresponding to Pin 1 and red wire to Pin 2, allows for quick and easy wire identification.
Pre-crimped Design
Pre-installed crimp terminals at the ends reduce wire stripping and crimping steps, improving assembly efficiency.
Manufacturable
Cables can be cut and further processed according to actual wiring requirements.
Compact Design
Small in size, suitable for wiring scenarios within electronic devices and where space is limited.
