Products Description

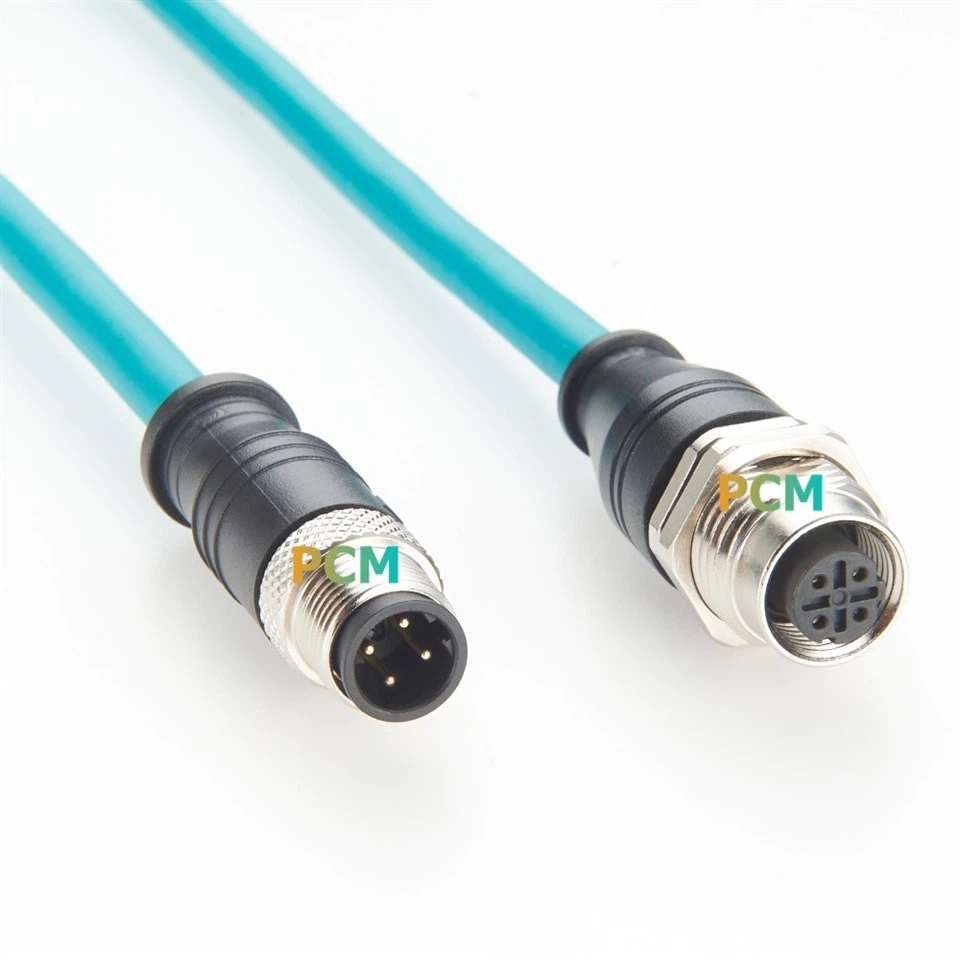

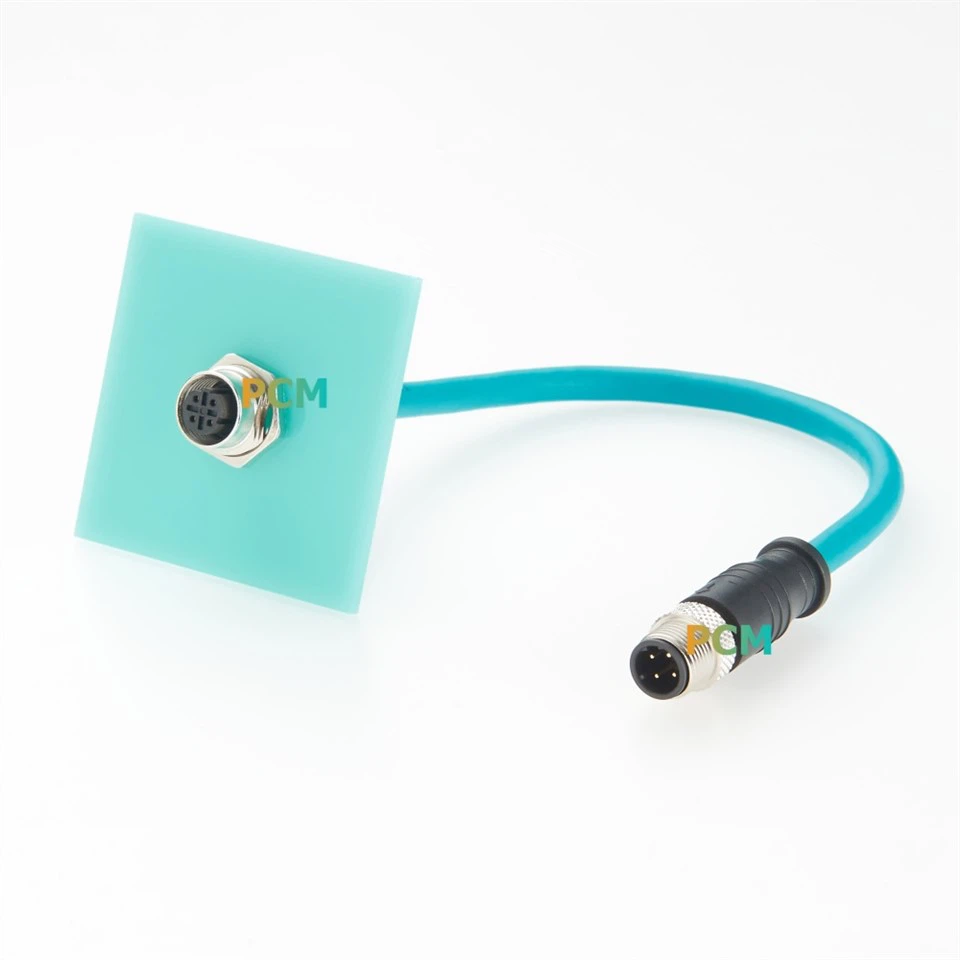

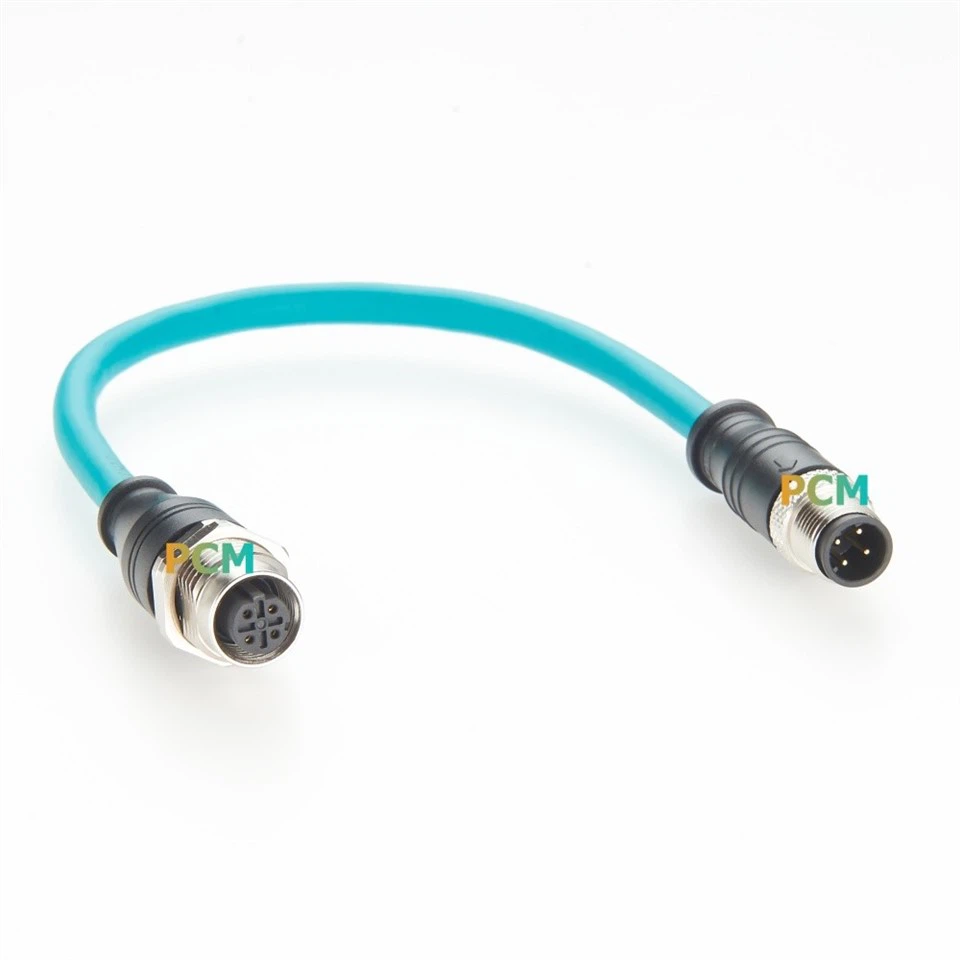

The Profinet M12 D-Code Panel Mount Cable features a shielded, 2-pair, 24 AWG twisted-pair construction, ensuring high-speed data transmission while providing superior protection against electromagnetic interference (EMI). The assembly consists of an M12 D-coded, 4-pin male-to-female connection interface, paired with a front-locking panel-mount female receptacle (designed for use with a 16mm mounting cutout), making it ideal for integration into various control panels or equipment enclosures. With an IP67 protection rating, the PCM-HD-0202 ensures reliable operation in harsh and demanding industrial environments, providing users with a secure and durable network connection solution.
Specification
|
Product name |
Profinet M12 D-Code Panel Mount Cable |
|
DWG No. |
PCM-HD-0202 |
|
Connector 1 |
M12 D-Coded 4 Pin Female |
|
Connector 2 |
M12 D-Coded 4 Pin Male |
|
OD |
6.6mm |
| Cable Length | 0.3m |
| Cutout Size | 15.3mm |
Applications
☆ Industrial Automation Systems: Facilitating stable communication connections between PLCs, I/O modules, and control cabinets.
☆ Smart Manufacturing Equipment: Such as assembly lines and robotic systems, enabling high-speed data transmission.
☆ Sensor and Actuator Connectivity: Providing reliable network interfaces at the field device level.
☆ Industrial Control Cabinet and Panel Integration: Suitable for embedded installation within enclosures and operator panels.
☆ Logistics and Warehousing Systems: Providing network communication links for equipment such as conveyor systems and sorting machinery.
☆ Food and Packaging Machinery: Maintaining stable operation even in humid and dusty environments.
☆ Automotive Manufacturing Lines: Supporting highly reliable industrial network communication within the production workshop.

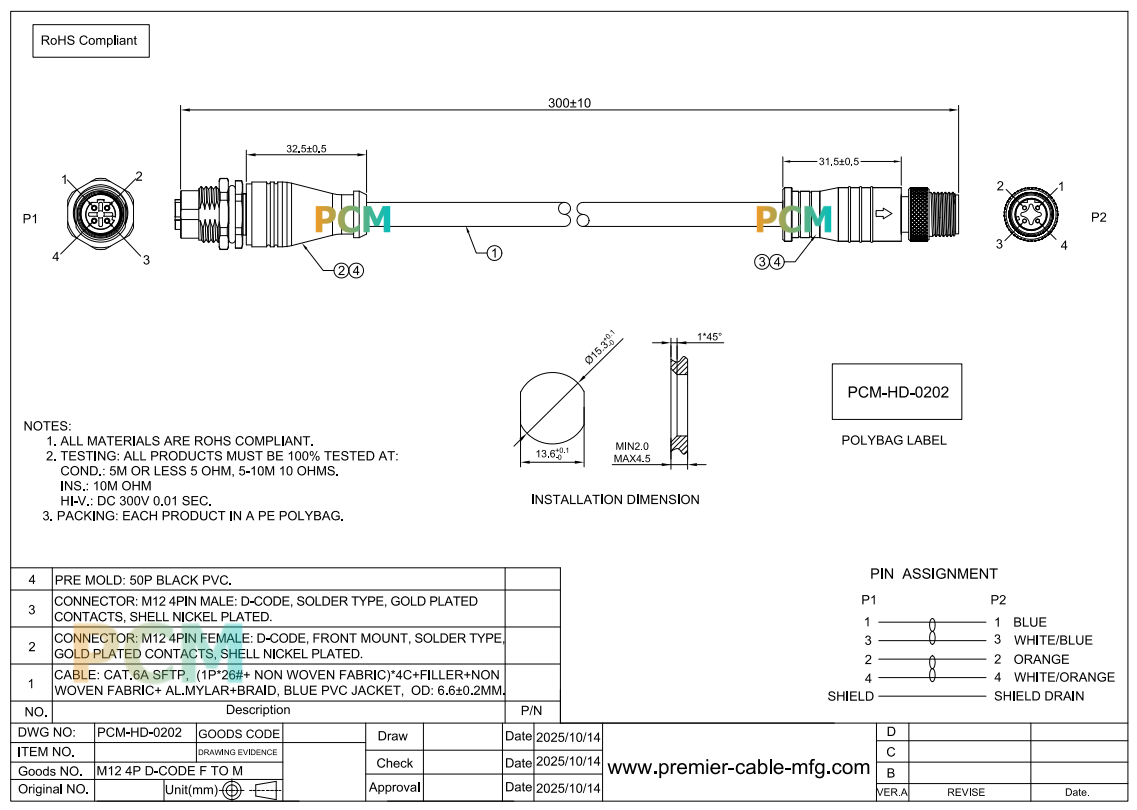

Drawing
