How to Choose M8 and M12 PROFINET Cables for Industrial Ethernet Applications
A practical purchasing guide for M8 D-Code, M12 D-Code, M12 X-Code and RJ45 PROFINET cable assemblies. Learn how to select the correct connector size, coding, gender, RJ45 interface, cable length, shielding and customization options for industrial automation projects.
- M8 and M12 PROFINET cables are used for industrial Ethernet connections between PLCs, switches, I/O modules, sensors, cameras, drives and field devices.
- M8 D-Code cables are ideal for compact devices and space-limited installations.
- M12 D-Code cables are widely used for 100Mbps PROFINET and industrial Ethernet networks.
- M12 X-Code cables are suitable for Gigabit Ethernet and higher-speed industrial network applications.
- Before ordering, buyers should confirm connector size, coding, gender, RJ45 end type, cable length, shielding, jacket material and application environment.
Definition: PROFINET is an industrial Ethernet communication protocol. M8 and M12 PROFINET cables refer to industrial Ethernet cable assemblies using M8 or M12 circular connectors to carry PROFINET communication signals in automation systems.
📋 Contents
What Is PROFINET and Why Does Connector Selection Matter?
PROFINET is an industrial Ethernet communication protocol used in automation systems. It enables reliable data communication between PLCs, remote I/O modules, sensors, drives, industrial switches, industrial cameras, robots and other field devices.
M8 and M12 are connector types commonly used to carry PROFINET and industrial Ethernet signals in field installations. Depending on the equipment interface, buyers may need M8 D-Code, M12 D-Code, M12 X-Code, RJ45, or different adapter cable combinations.
- PROFINET refers to the industrial Ethernet communication protocol.
- M8 and M12 refer to industrial circular connector sizes.
- D-Code and X-Code refer to connector coding types.
- RJ45 is the standard Ethernet interface commonly used on PLCs, switches, computers and test equipment.
- Adapter cables and extension cables are used to connect different interface types in the same industrial network.
Buying Note: Before ordering, buyers should always confirm connector size, coding, gender and pin assignment according to the equipment specification. D-Code and X-Code connectors are not interchangeable.
M8 or M12 PROFINET Cable - Which One Should Buyers Choose?
M8 PROFINET cables are more suitable for compact industrial devices where space is limited. M12 PROFINET cables are more widely used in field-level industrial Ethernet networks where stronger mechanical connection and long-term installation reliability are required.
| Buying Requirement | Recommended Cable Type |
|---|---|
| Compact sensors, small I/O modules, industrial cameras | M8 D-Code PROFINET Cable |
| PLCs, remote I/O, industrial switches, drives, robots | M12 D-Code PROFINET Cable |
| 100Mbps PROFINET network | M8 D-Code or M12 D-Code |
| Gigabit industrial Ethernet | M12 X-Code |
| Connection to PLC, switch, computer or tester RJ45 port | M8 / M12 to RJ45 Cable |
| Extension of field device connection | M8 / M12 Male to Female Extension Cable |
M8 PROFINET Cable Series for Compact Industrial Devices
M8 D-Code PROFINET cables are commonly used for compact industrial Ethernet devices, including sensors, small I/O modules, industrial cameras and space-saving automation equipment. For buyers, the most important points are connector gender, RJ45 interface type, cable length and whether the device side requires a male or female M8 connector.
M8 D-Code to RJ45 Male PROFINET Adapter Cables
When buyers need to connect an M8 D-Code field device directly to a PLC, industrial switch, computer or network tester with a standard RJ45 port, M8 to RJ45 male adapter cables are one of the most common choices. The RJ45 male plug can be inserted directly into the Ethernet port, making installation, testing and maintenance faster.

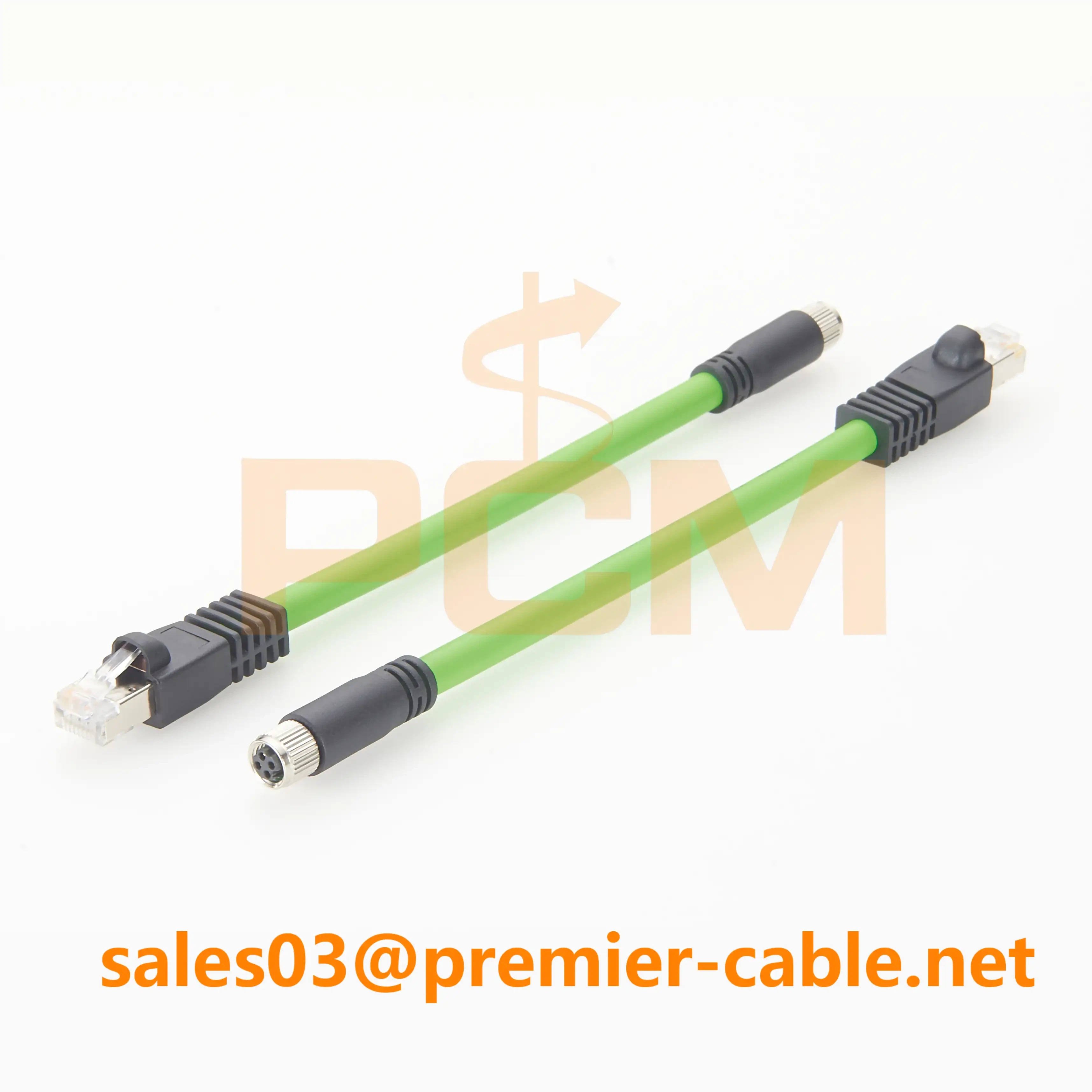

M8 D-Code Female to RJ45 Male Adapter Cable
PCM-S-0742
For connecting M8 male device ports to RJ45 PLC or switch ports.

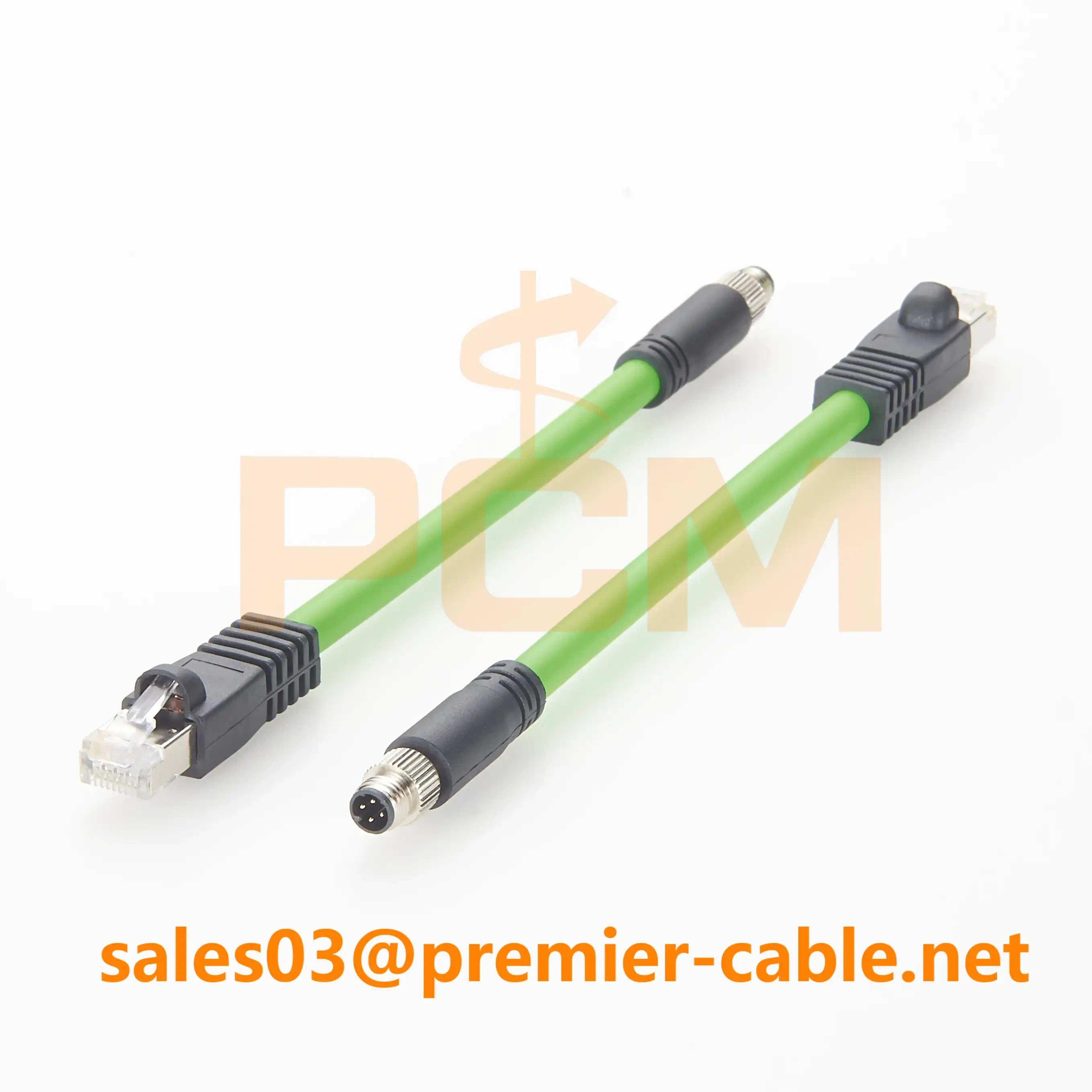

M8 D-Code Male to RJ45 Male PROFINET Cable
PCM-S-0741
For connecting M8 female device interfaces to standard RJ45 Ethernet ports.
M8 D-Code to RJ45 Female Adapter Cables
If buyers want to use an existing RJ45 Ethernet patch cable on site, M8 to RJ45 female adapter cables are more suitable. The RJ45 female socket allows flexible extension with standard Ethernet cables and is useful for cabinet wiring, panel connections and maintenance replacement.

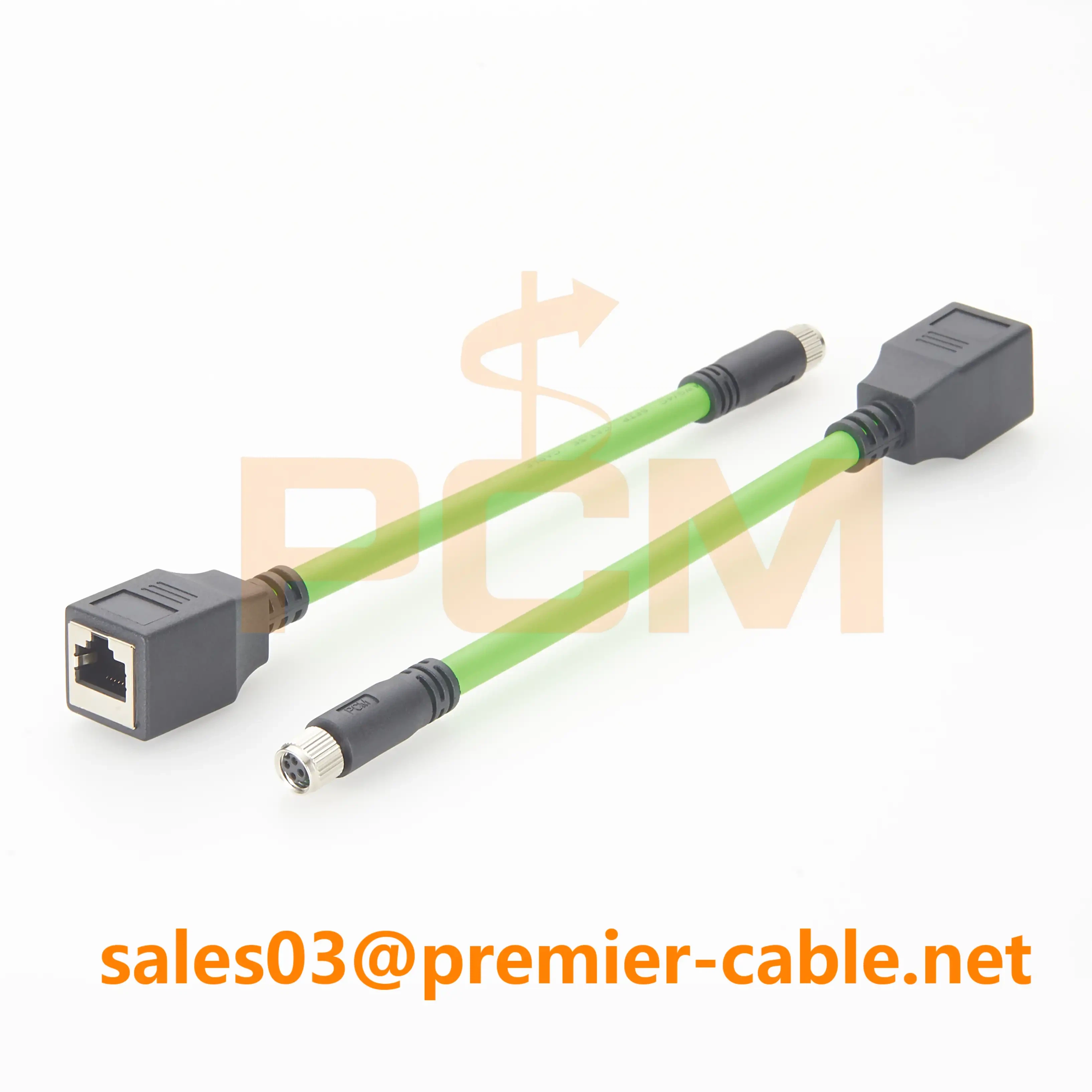

M8 D-Code Female to RJ45 Female Adapter Cable
PCM-S-0740
For connecting standard RJ45 patch cables to M8 male field devices.
M8 D-Code Male to RJ45 Female Adapter Cable
PCM-S-0739
For converting M8 female equipment interfaces to RJ45 socket connection.
M8 D-Code Extension and Device-to-Device Cables
For compact automation devices installed in narrow spaces, buyers may need to extend the M8 connection instead of converting it to RJ45. M8 extension cables and device-to-device cables help improve wiring flexibility between sensors, I/O modules, cameras and other industrial Ethernet devices.

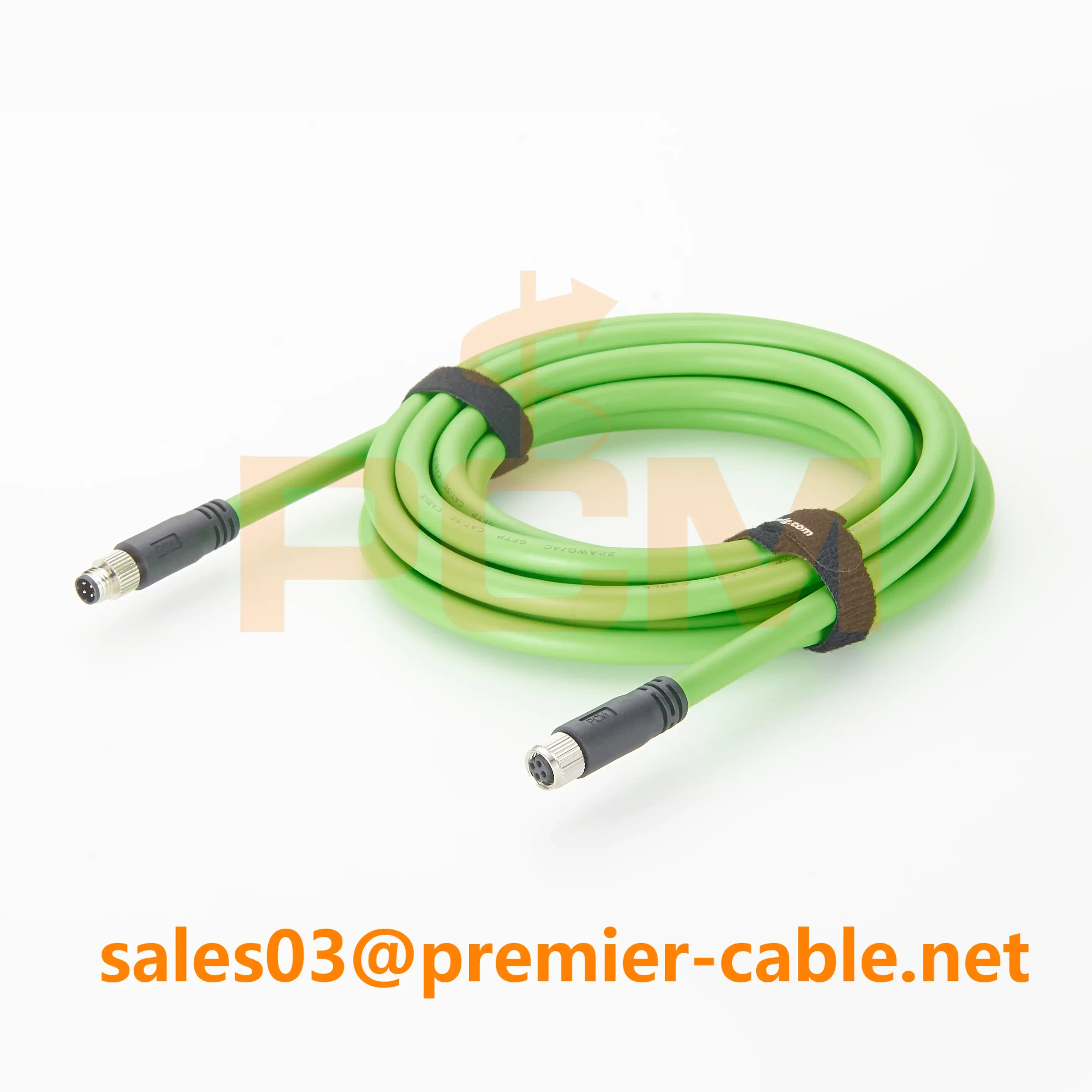

M8 D-Code Male to Female Extension Cable
PCM-S-0737
For extending compact PROFINET field device connections.

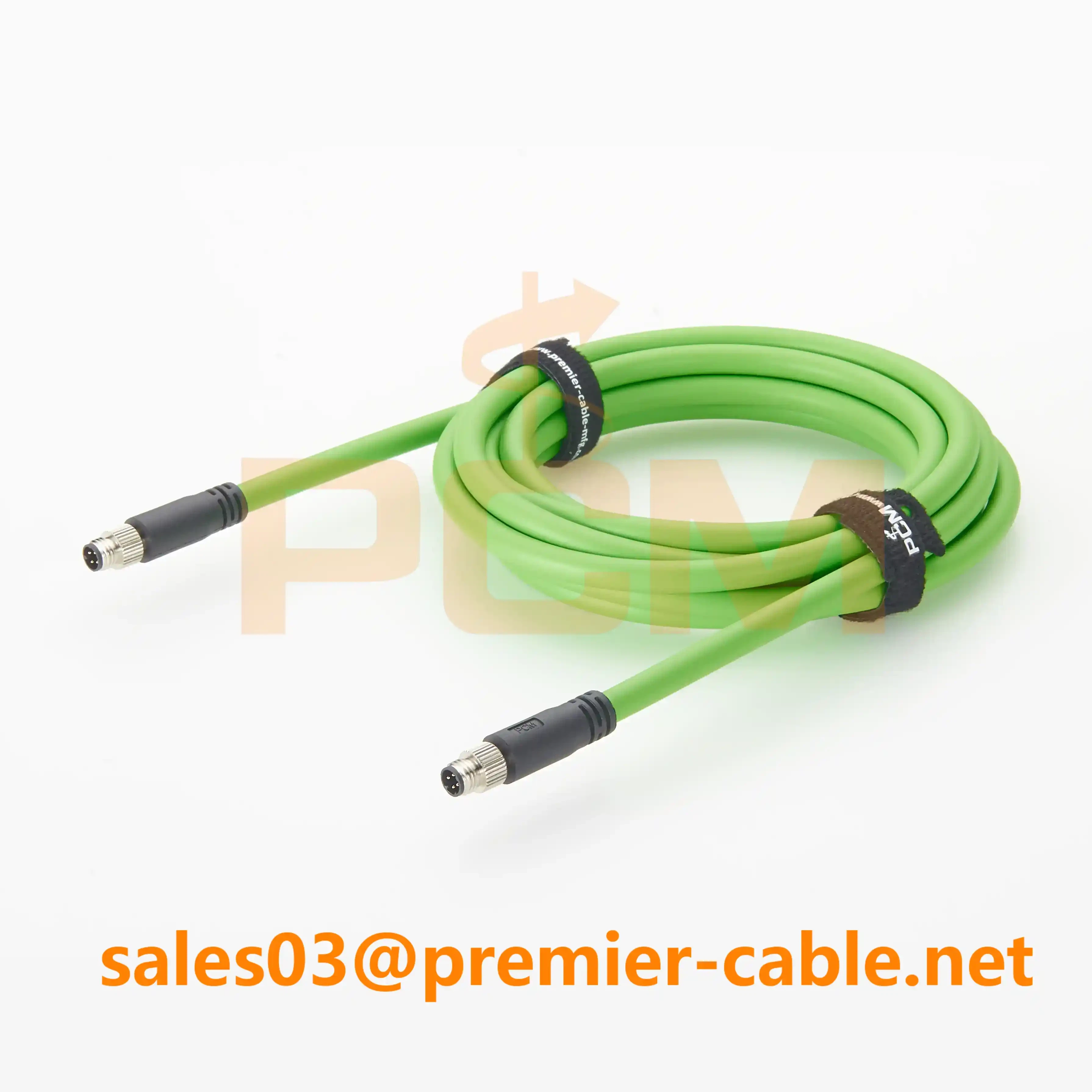

M8 D-Code Male to Male Industrial Ethernet Cable
PCM-S-0738
For specific device-to-device Ethernet connection requirements.
M12 PROFINET Cable Series for Industrial Ethernet Networks
M12 D-Code PROFINET cables are widely used in industrial Ethernet networks where reliable field connection, mechanical stability and flexible installation are required. In addition to M12 to RJ45 adapter cables, buyers may also need RJ45 patch cables, M12 extension cables, straight connectors and angled connector options depending on the equipment layout.
RJ45 and M12 D-Code Connection Cables for PROFINET Networks
RJ45 male to RJ45 male Ethernet patch cables are commonly used between PLCs, industrial switches, HMIs, computers and testing equipment. RJ45 to M12 D-Code male cables are used when a standard RJ45 network port needs to connect with an M12 D-Code industrial Ethernet interface.

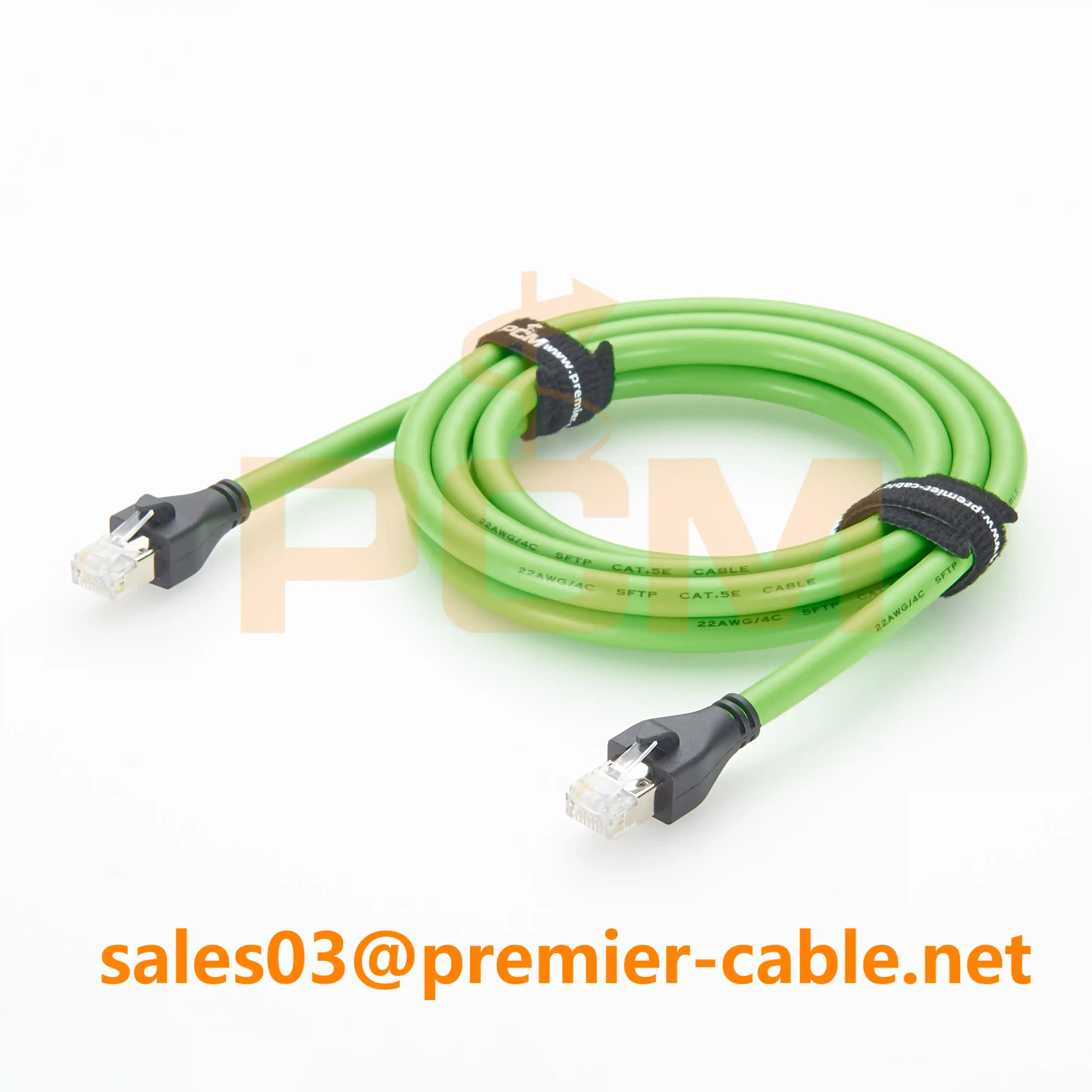

RJ45 Male to RJ45 Male Ethernet Patch Cable
PCM-HD-0209
For standard PROFINET connection between PLCs, industrial switches, HMIs and testing equipment.

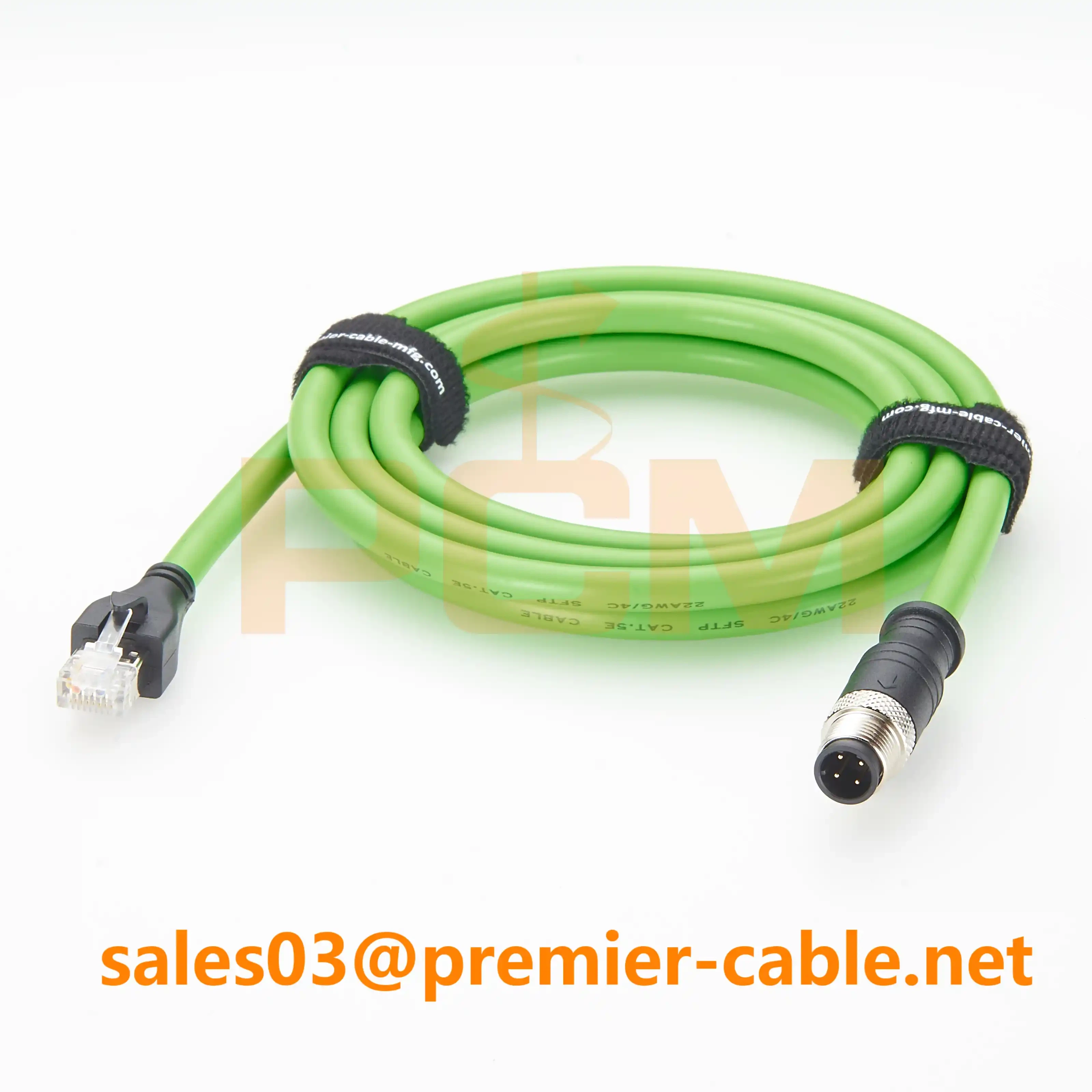

RJ45 Male to M12 D-Code Male PROFINET Cable
PCM-HD-0210
For connecting standard RJ45 Ethernet ports to M12 D-Code industrial Ethernet devices.

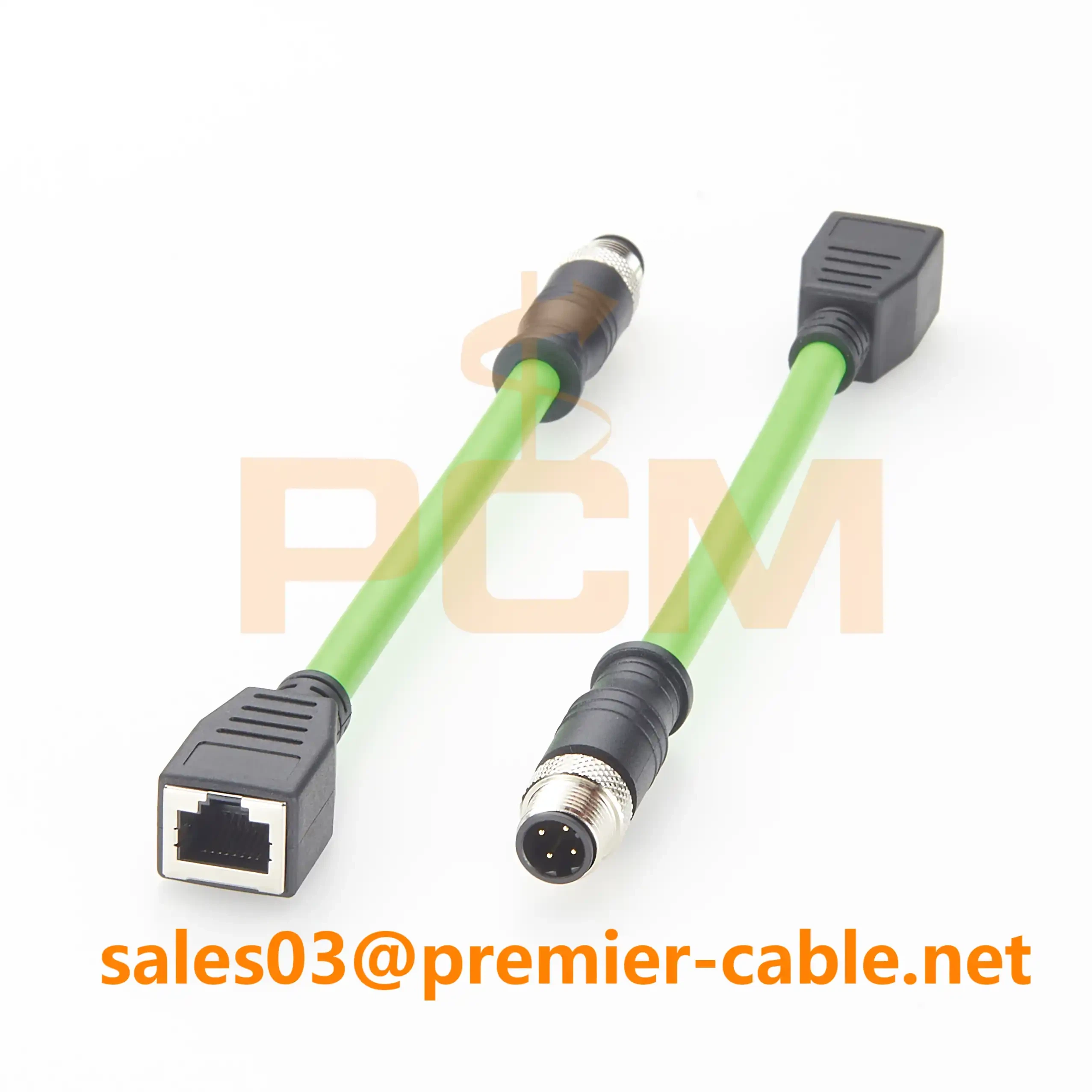

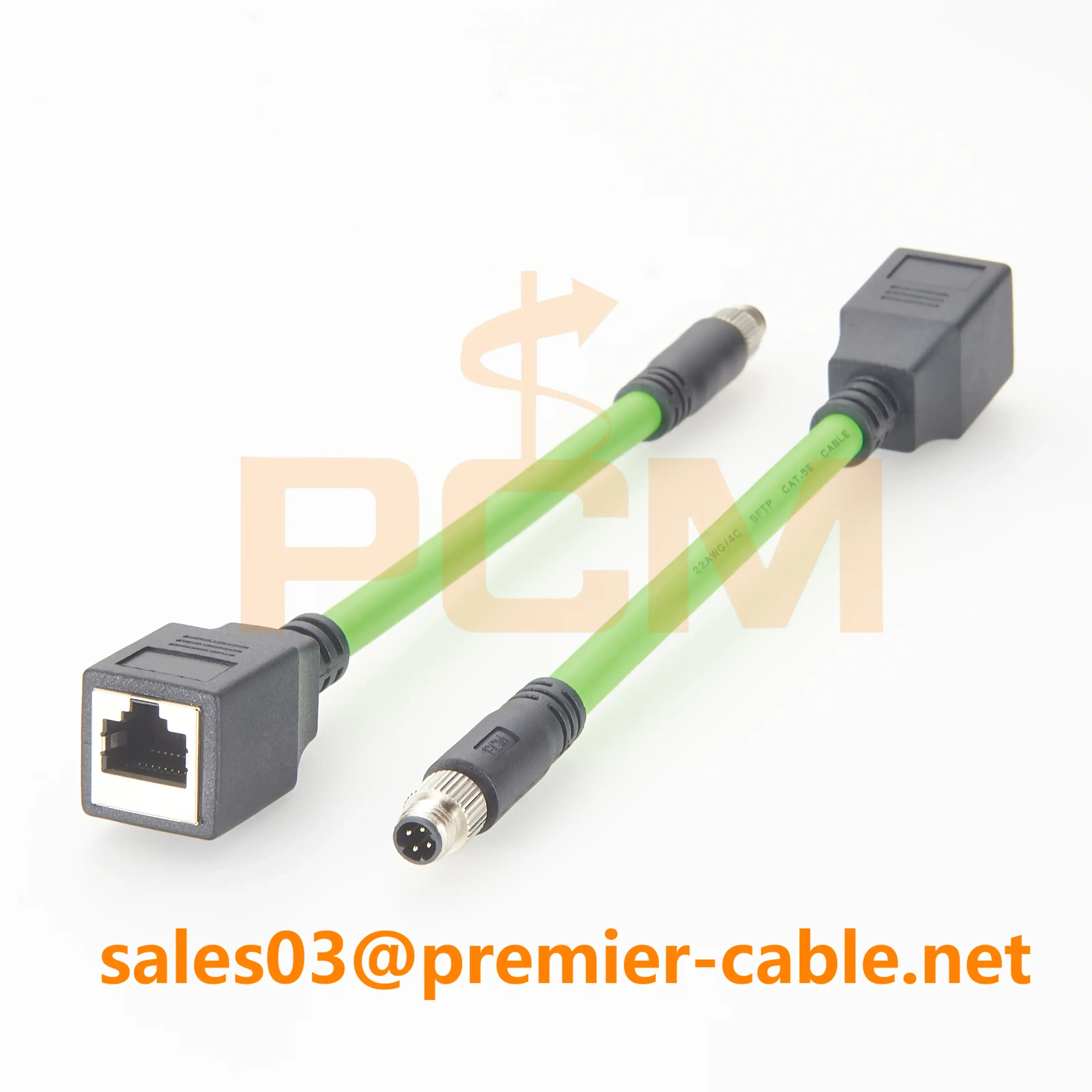

M12 D-Code Male to RJ45 Female Adapter Cables: Straight and Angled Options
M12 D-Code male to RJ45 female adapter cables allow buyers to connect standard RJ45 patch cables to M12 industrial Ethernet devices. Straight connectors are suitable for general installation, while angled connectors are useful for compact cabinets, side-mounted device ports and space-limited wiring areas.
M12 D-Code Male to RJ45 Female Adapter Cable
PCM-HD-0244
For connecting RJ45 patch cables to M12 D-Code industrial Ethernet interfaces.

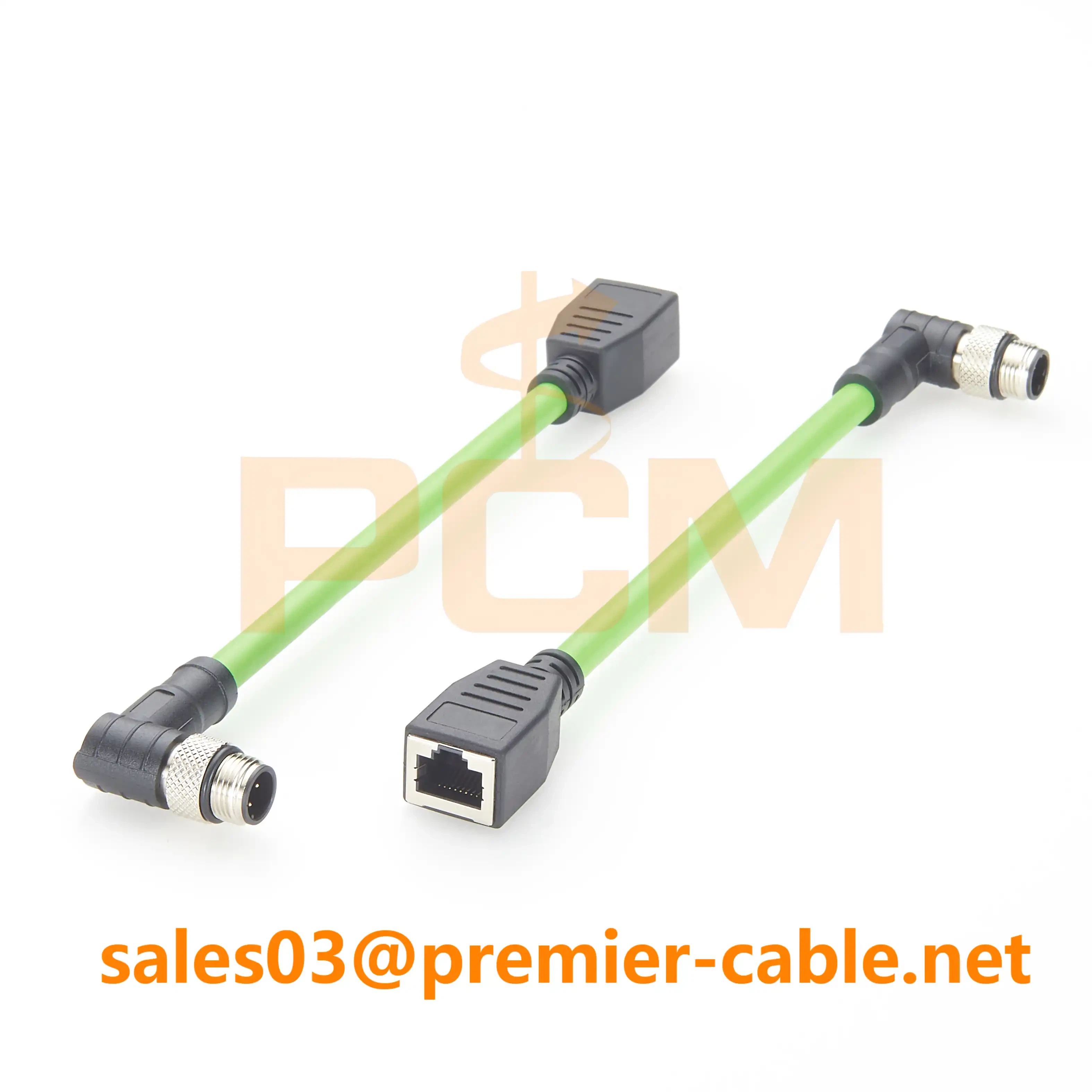

M12 D-Code Male Angled to RJ45 Female Adapter Cable
PCM-HD-024
For compact cabinet wiring and space-limited PROFINET installations.
M12 D-Code Male to Female PROFINET Extension Cables
M12 D-Code male to female extension cables are used to extend existing PROFINET and industrial Ethernet connections in field installations. Angled female versions help reduce cable bending stress and improve wiring flexibility in narrow installation spaces.

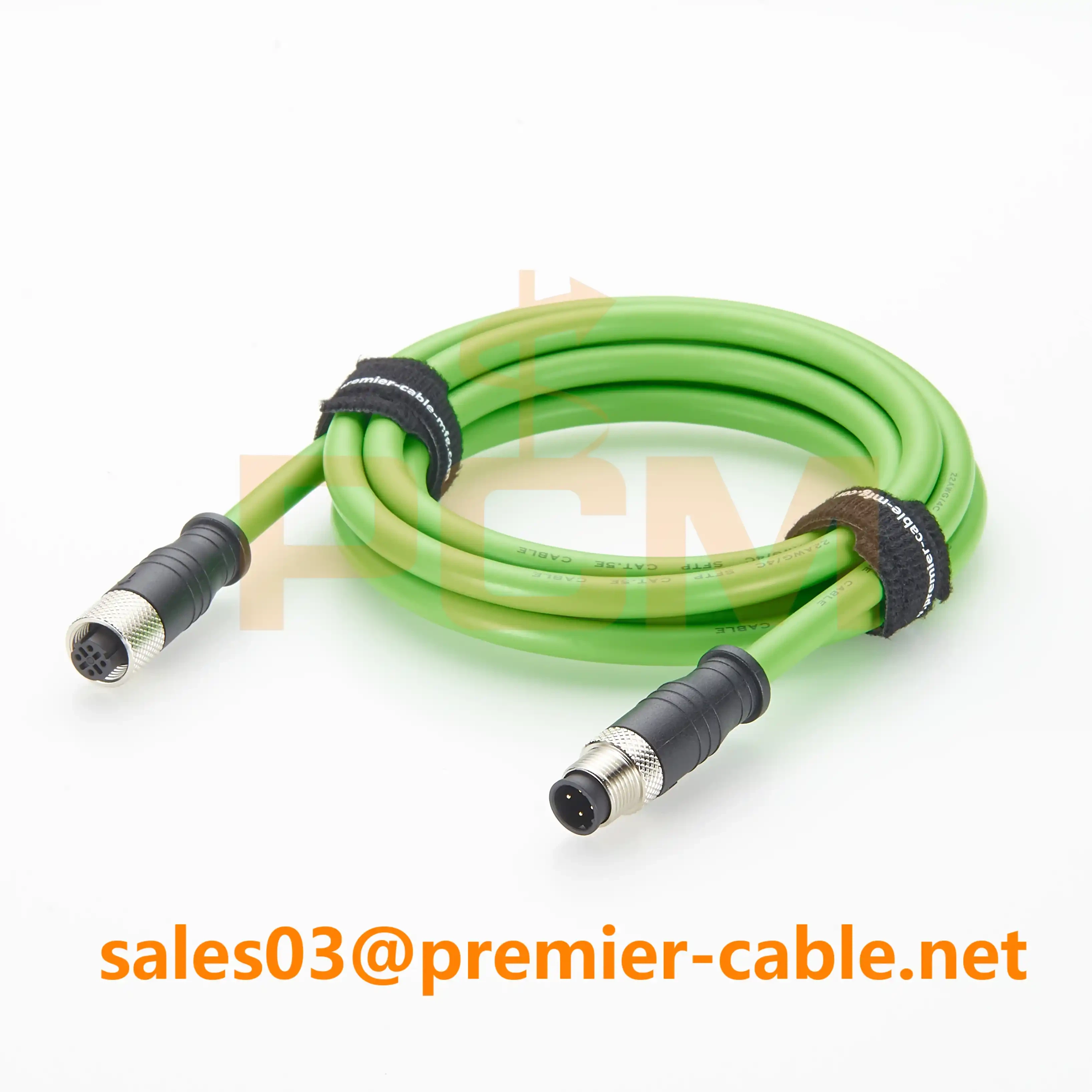

M12 D-Code Male to Female PROFINET Extension Cable
PCM-HD-0241
For extending M12 D-Code industrial Ethernet field connections.

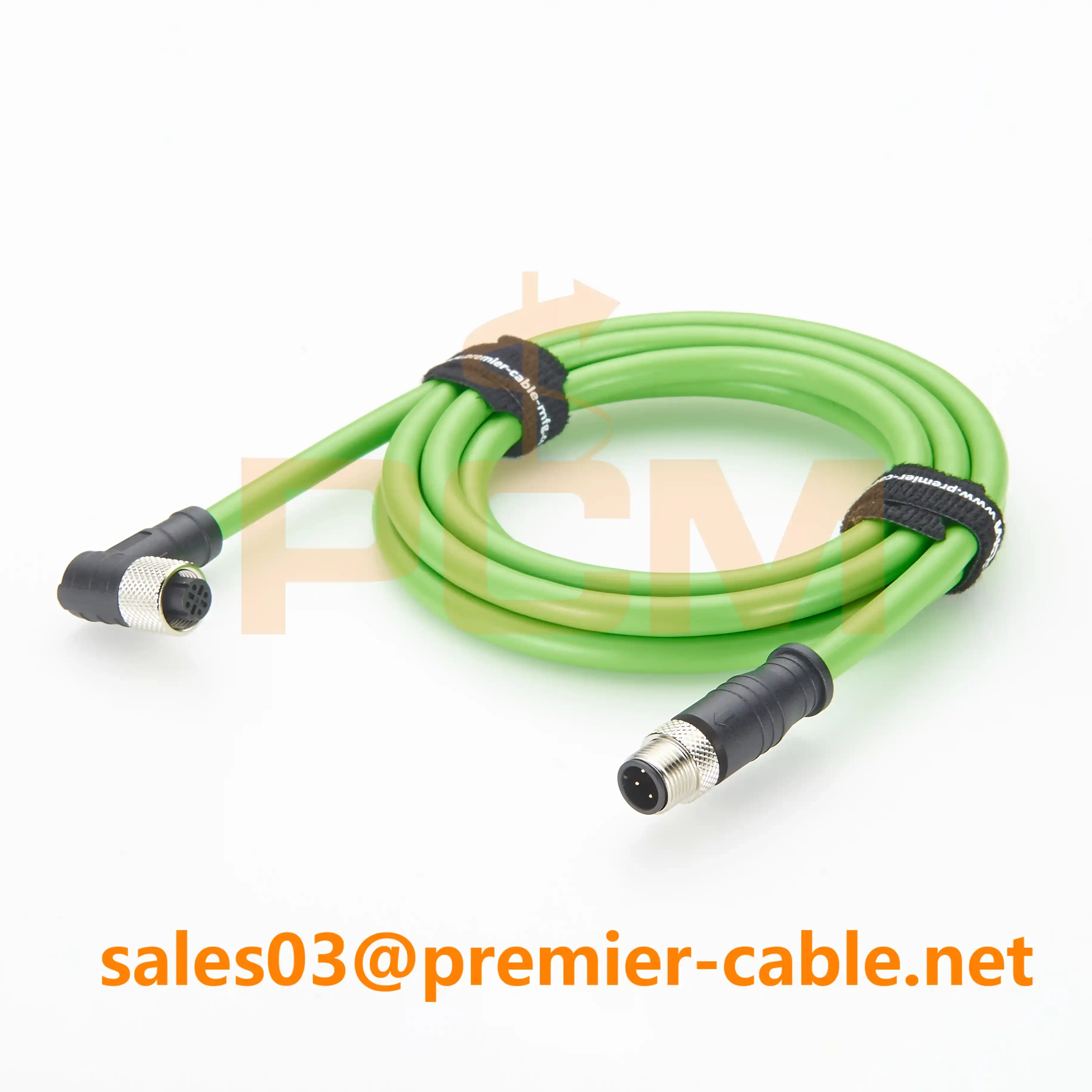

M12 D-Code Male to Angled Female Extension Cable
PCM-HD-0242
For flexible cable routing in narrow installation spaces.

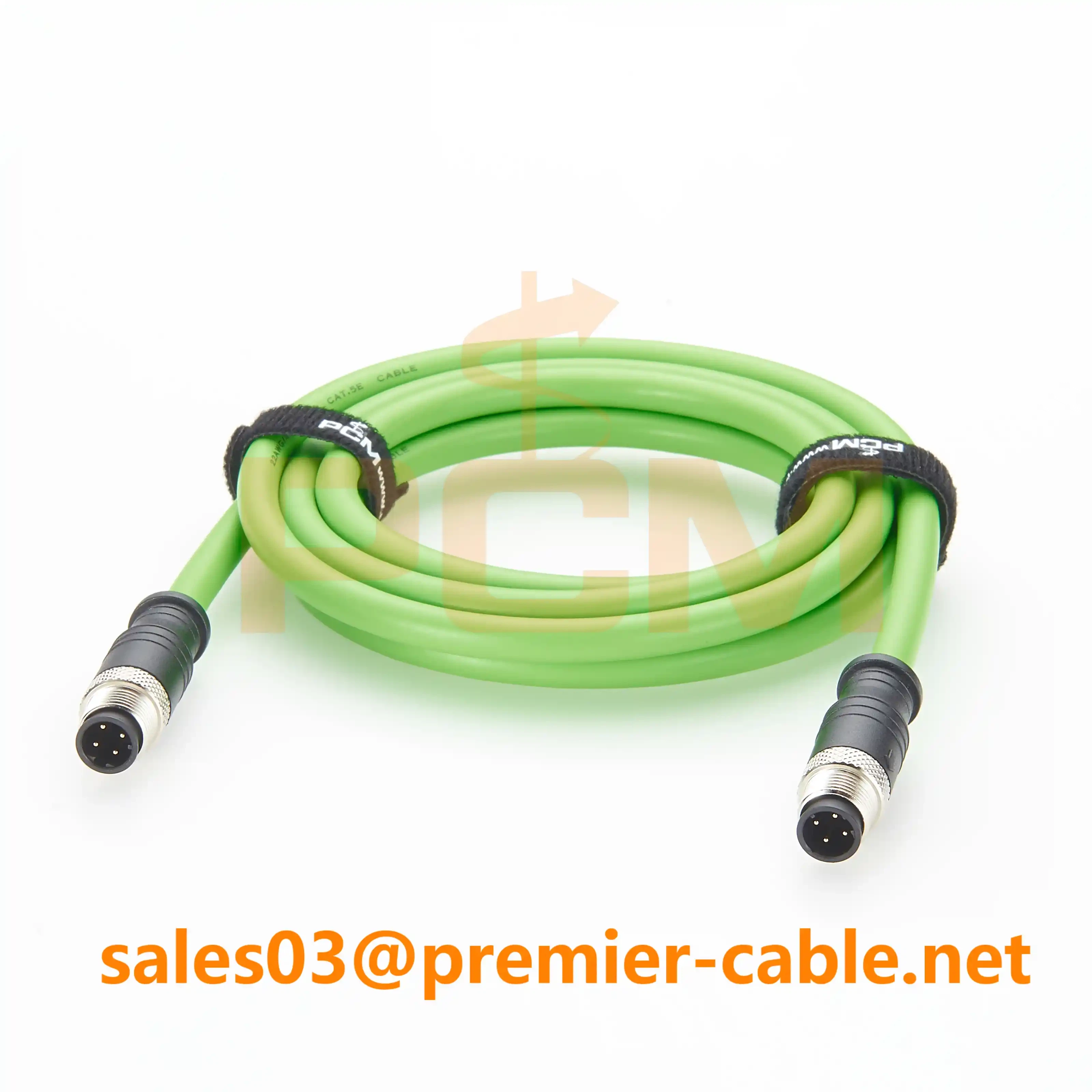

M12 D-Code Male to Male Industrial Ethernet Cables
M12 D-Code male to male industrial Ethernet cables are used for specific device-to-device PROFINET connections. Straight and angled connector options allow buyers to match different equipment layouts and cable routing requirements.
M12 D-Code Male to Male Industrial Ethernet Cable
For specific M12 device-to-device PROFINET connection requirements.

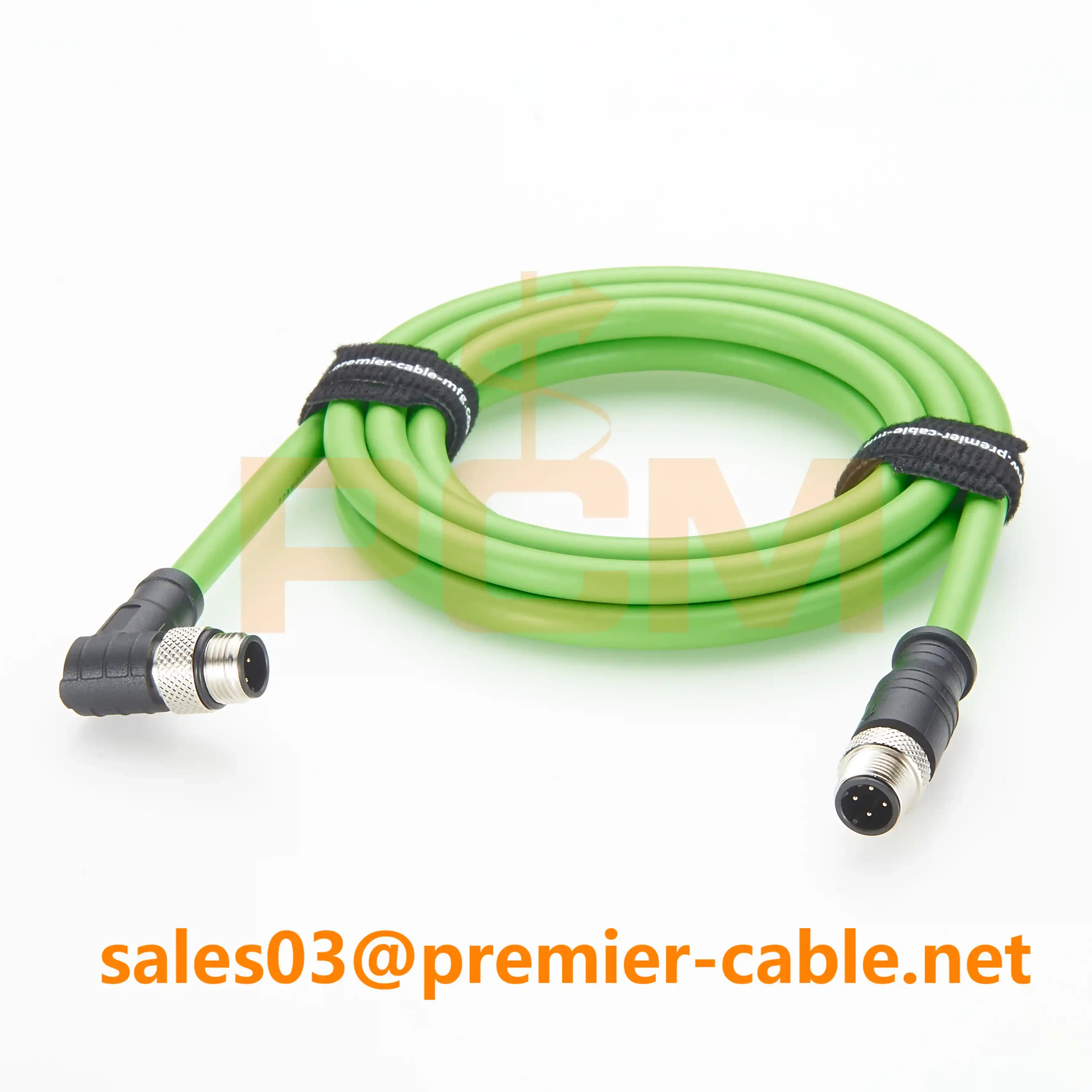

M12 D-Code Male to Angled Male PROFINET Cable
PCM-HD-0243
For device connections where angled cable routing is required.
M8 vs M12 PROFINET Cable - Buying Comparison
| Buying Point | M8 PROFINET Series | M12 PROFINET Series |
|---|---|---|
| Connector Size | Smaller and more compact | Larger and stronger |
| Common Coding | M8 D-Code | M12 D-Code / M12 X-Code |
| Typical Applications | Sensors, compact I/O modules, industrial cameras, small devices | PLCs, remote I/O, switches, drives, robots, field devices |
| Common Connection Types | M8 to RJ45, M8 to M8 | M12 to RJ45, M12 to M12 |
| Buying Focus | Space, gender, cable length, RJ45 end type | Coding, speed, shielding, IP rating, mechanical strength |
| Suitable Buyers | Sensor users, compact equipment manufacturers, maintenance teams | System integrators, machine builders, factory automation buyers |
What Buyers Should Confirm Before Ordering
Providing complete specifications during inquiry shortens quotation turnaround and avoids sample iteration. Before ordering M8 or M12 PROFINET cables, buyers should confirm the following details:
- Connector size: M8 or M12
- Coding type: D-Code or X-Code
- Connector gender: Male or Female
- RJ45 side: RJ45 Male plug or RJ45 Female socket
- Cable length: 0.2m, 0.5m, 1m, 2m, 3m, 5m, 10m or customized
- Cable shielding: Shielded or unshielded
- Jacket material: PVC or PUR
- Connector direction: Straight or angled
- Application: PLC, I/O module, sensor, camera, switch, robot or drive
- Brand compatibility: Binder, Phoenix Contact, Siemens, Turck, Murrelektronik or other standard industrial connector interfaces
Replacement Note: For replacement projects, buyers should check the original connector coding, pin assignment and electrical specification before confirming compatibility.
Stock, Compatibility and Customization
We supply M8 D-Code and M12 D-Code / X-Code PROFINET cable assemblies for industrial Ethernet applications. Common adapter options include M8 to RJ45, M12 to RJ45, M8 extension cables and M12 extension cables.
Standard lengths such as 0.2m and 3m are available in stock. Customized cable length, connector gender, straight or angled type, shielding structure, jacket material and private label packaging can also be supplied according to project requirements.
Our M8 and M12 PROFINET cable assemblies are designed for standard industrial Ethernet interfaces and can be used as compatible alternatives to Binder, Phoenix Contact and other major industrial connector brands, provided that the coding, pin assignment and electrical specifications match.
Frequently Asked Questions
Is PROFINET the same as M12 PROFINET cable?
No. PROFINET is an industrial Ethernet communication protocol. M12 PROFINET cable refers to an industrial Ethernet cable assembly using M12 connectors to carry PROFINET signals.
When should I choose M8 PROFINET cables?
M8 D-Code PROFINET cables are suitable for compact industrial devices such as sensors, small I/O modules, industrial cameras and space-saving automation equipment.
When should I choose M12 PROFINET cables?
M12 D-Code or X-Code PROFINET cables are more suitable for industrial field networks, PLC systems, remote I/O, industrial switches, drives, robots and automation equipment.
What is the difference between M12 D-Code and M12 X-Code?
M12 D-Code is commonly used for 100Mbps PROFINET and industrial Ethernet applications. M12 X-Code is designed for Gigabit Ethernet and higher-speed industrial network connections. They are not interchangeable.
Can M8 and M12 PROFINET cables replace Binder or Phoenix Contact cables?
They can be used as compatible alternatives when the connector coding, gender, pin assignment, cable specification and electrical requirements match the original product.
Need M8 or M12 PROFINET Cables for Your Project?
If you are not sure which cable is suitable for your equipment, please send us your device interface photo, connector gender, coding type, required cable length and application environment. Our team can help you choose the correct M8 or M12 PROFINET cable assembly for your industrial Ethernet connection.
- M8 D-Code to RJ45 adapter cables
- M12 D-Code to RJ45 PROFINET cables
- M12 X-Code Gigabit Ethernet cable assemblies
- M8 and M12 extension cables
- Standard lengths in stock, including 0.2m and 3m
- Custom length, connector gender, shielding, jacket material and private label options available
Source M8 and M12 PROFINET Cable Assemblies
Premier Cable supplies M8 D-Code, M12 D-Code, M12 X-Code and RJ45 industrial Ethernet cable assemblies for automation, PLC, sensor, I/O module, industrial switch, camera, drive and robot applications. Standard and custom cable assemblies are available.
