Deutsch DT Extension Cable Assemblies: Plug-and-Play Wiring for Harsh Environments
Pre-assembled DT04-to-DT06 extension cables from 2-pin to 12-pin. IP67-sealed, 16AWG, ready to install - no cutting, splicing, or field crimping required. Designed for LED work lights, sensors, ECU systems, agricultural machinery, construction equipment, and marine applications.
- A Deutsch DT extension cable is a pre-assembled DT04 receptacle-to-DT06 plug harness that extends existing DT connections without cutting or splicing the original wiring.
- Available in 2-pin, 3-pin, 4-pin, 6-pin, 8-pin, and 12-pin configurations using 16AWG wire rated for 13 A per contact at 13.5 VDC.
- IP67-sealed when mated, operating temperature −55 °C to +125 °C, vibration-resistant wedge lock - suitable for automotive, agriculture, construction, and marine environments.
- Common applications: LED work light extension, sensor/actuator wiring, ECU and CAN Bus connections, agricultural and construction machinery harness retrofit.
- Custom lengths (0.5 m to 10 m+), pinout configurations, overmolded designs, and OEM labeling available with MOQ from 100 pcs.
Definition: A Deutsch DT extension cable assembly is a factory-terminated wiring harness with a DT04 receptacle on one end and a DT06 plug on the other, creating an inline sealed extension between two existing Deutsch DT interfaces.
📋 Contents
What Is a Deutsch DT Extension Cable Assembly?
A Deutsch DT extension cable assembly is a factory-assembled wiring harness that connects inline between two existing Deutsch DT interfaces. One end carries a DT04 receptacle (pin housing); the other end carries a DT06 plug (socket housing). When mated, it creates a sealed, vibration-resistant extension without any modification to the original harness.
Instead of cutting wire, stripping insulation, crimping size 16 contacts in the field, and hoping the seal holds through mud season, a plug-and-play extension cable eliminates these steps entirely. Based on our production feedback, field-crimped DT connections account for a significant share of warranty returns in off-road lighting kits - poor crimp depth and damaged interfacial seals are the two most common failure modes.
Deutsch DT extension cables are used wherever the original harness is too short or a device needs to be relocated:
- Power extension for LED work lights and auxiliary lighting
- Signal transmission for sensors, actuators, and speed/position encoders
- ECU, CAN Bus, and vehicle communication system wiring
- Maintenance and retrofit wiring in agricultural and construction machinery
- Marine, off-road, and industrial waterproof power distribution

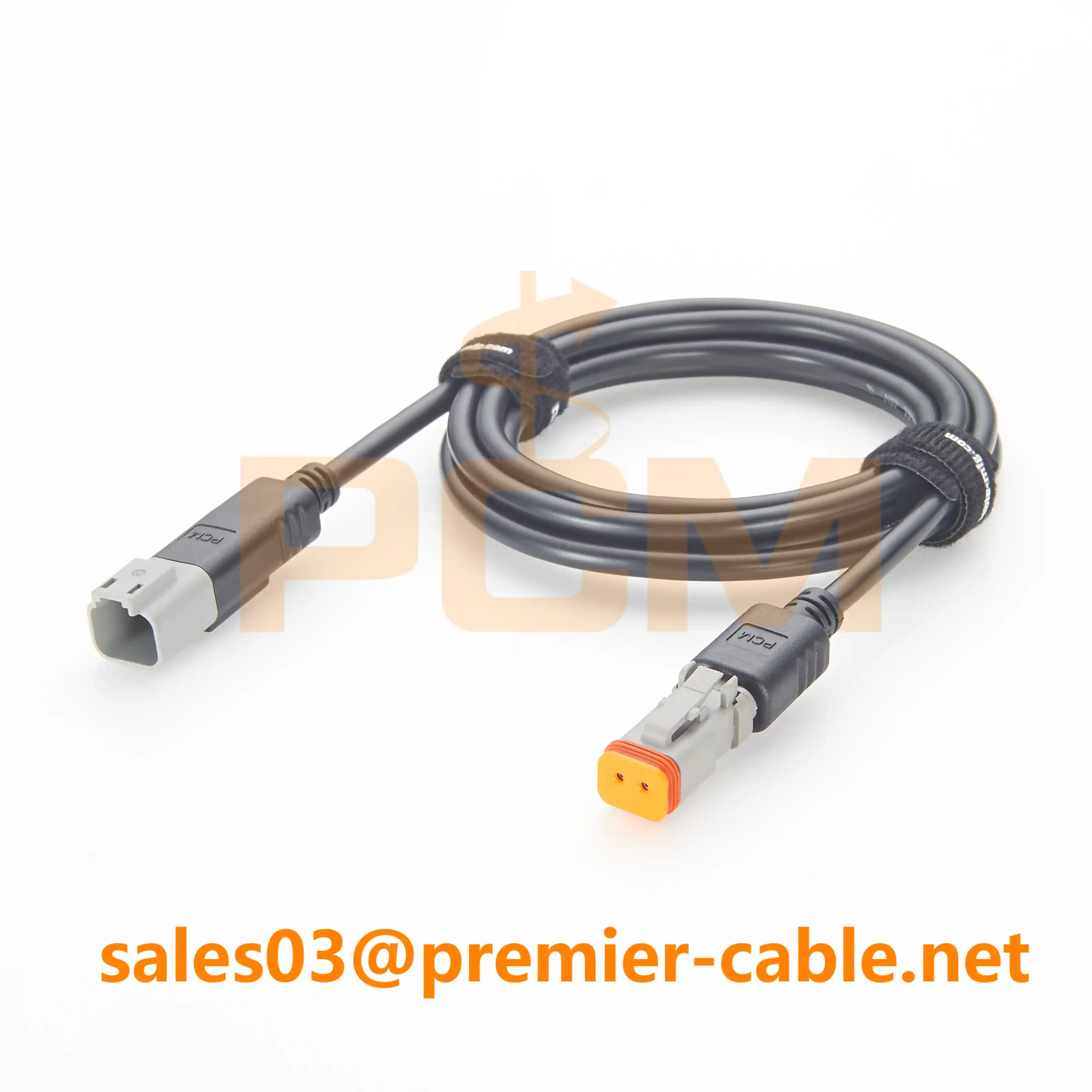

PCM-S-0717: 2P Extension Cable

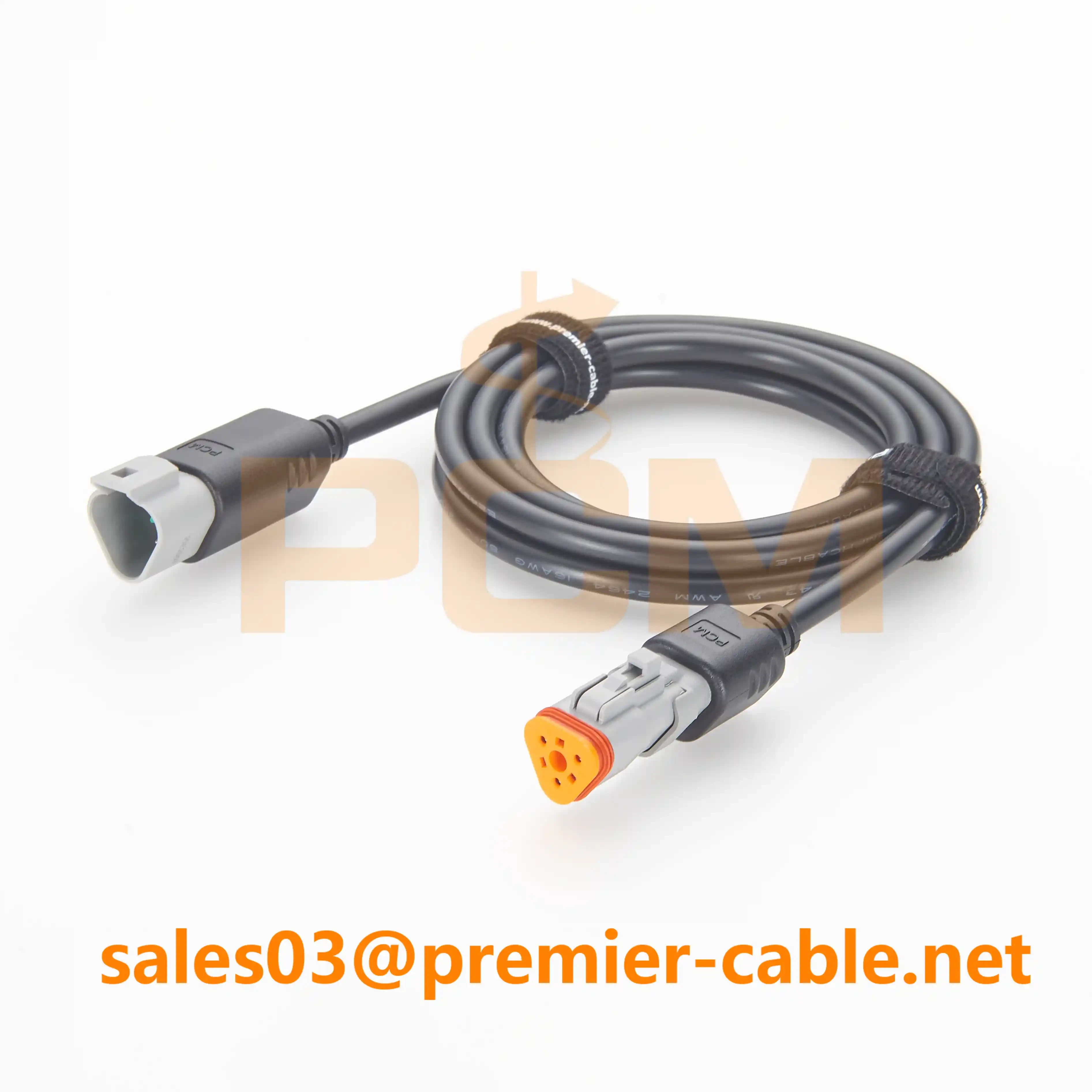

PCM-S-0718: 3P Extension Cable
Deutsch DT Extension Cable - Technical Specifications
All Deutsch DT extension cables in this series are built on the TE Connectivity Deutsch DT platform (formerly Deutsch Engineered). The following specifications apply to the connector system and standard cable construction.
| Parameter | Specification |
|---|---|
| Connector Series | Deutsch DT (TE Connectivity) |
| Contact Size | Size 16 (1.6 mm dia.) |
| Current Rating | 13 A per contact (continuous, 23 °C) |
| Voltage Rating | 13.5 VDC (system) / 500 VAC (dielectric withstand) |
| Wire Gauge | 16 AWG standard (14–20 AWG compatible) |
| Waterproof Rating | IP67 (mated condition, per IEC 60529) |
| Operating Temperature | −55 °C to +125 °C |
| Contact Resistance | ≤5 mΩ initial |
| Mating Cycles | 100+ cycles (per TE Connectivity specification) |
| Vibration Resistance | Wedge lock + interfacial seal; meets SAE J1455 vibration profiles |
| Insulation Material | Thermoplastic nylon (glass-filled) |
| Sealing | Silicone interfacial seal + wire seal on each cavity |
| Pin Configurations | 2P, 3P, 4P, 6P, 8P, 12P |
| Standard Cable Length | 1 m, 2 m (custom 0.5–10 m available) |
Engineering Note: The 13 A rating applies at 23 °C ambient. At +105 °C engine bay temperatures, derate to approximately 7–8 A per contact. Always verify current requirements against the full TE Connectivity DT Series derating curve in the Deutsch DT datasheet.

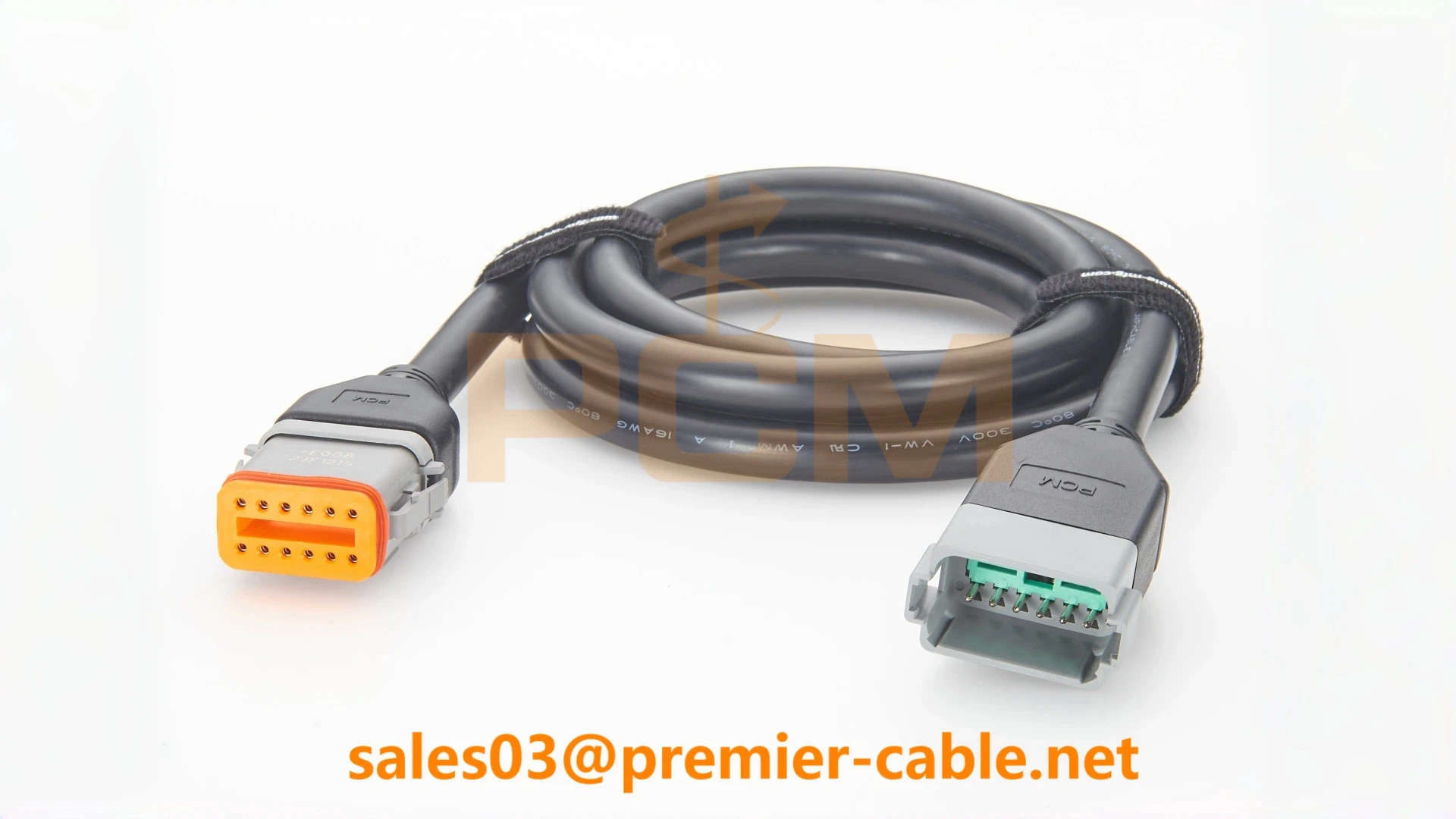

PCM-S-0722: 12P Extension Cable - Full 12-Pin DT Configuration
Why Plug-and-Play Wiring Matters in Harsh Environments
In harsh environments, wiring failure is caused by more than electrical overload. Moisture ingress through unsealed splices, vibration-induced micro-fretting at poorly crimped contacts, dust contamination in exposed cavities, and inconsistent field installation quality all contribute to premature failure.
A pre-assembled Deutsch DT extension cable addresses these failure modes at the manufacturing stage rather than leaving them to field technicians working under time pressure:
- Controlled crimp quality. Factory crimping uses calibrated applicators with pull-test verification (per TE Connectivity specification: ≥80 N pull force on size 16 contacts). Field hand-crimp tools produce variable results.
- Sealed from Day 1. Interfacial seals and wire seals are pre-installed and inspected before shipping. In our production experience, approximately 1 in 8 field-assembled DT connections has a mispositioned wire seal that allows moisture wicking.
- No harness modification. The original OEM harness remains intact. This preserves warranty coverage and makes future troubleshooting straightforward - disconnect the extension, test both sides independently.
- Faster installation. A plug-and-play cable installs in under 60 seconds. Field assembly of a single DT connector pair (strip, crimp, insert, verify, seal) typically takes 8–15 minutes depending on pin count and technician experience.

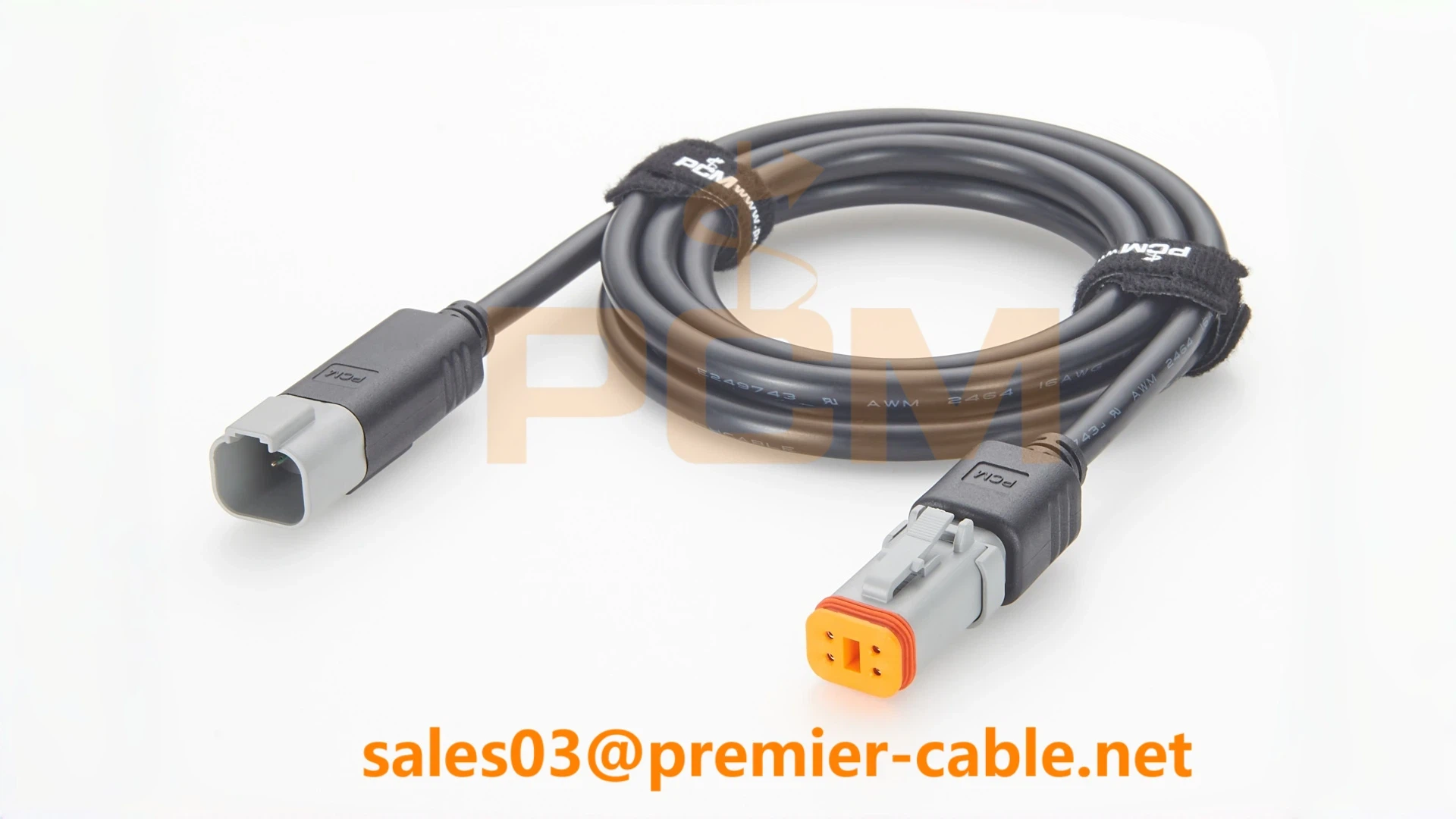

PCM-S-0719: 4P Extension Cable - Typical Field-Use Product
⚠️ Common Field Failure: On agricultural machinery operating in muddy conditions, improperly sealed DT splices can wick moisture 30–50 mm along the wire via capillary action. Within one season, copper oxidation raises contact resistance enough to cause intermittent sensor dropout. A factory-sealed extension cable eliminates this failure path.
Common Applications of Deutsch DT Extension Cables
The Deutsch DT series was originally designed by Deutsch Engineered (now TE Connectivity) for heavy-duty vehicle and off-highway applications. Extension cables inherit this ruggedness and serve five primary application categories.
| Application | Typical Pin Count | Why DT Extension Cables Fit | Example |
|---|---|---|---|
| LED Work Lights & Auxiliary Lighting | 2-pin, 4-pin | Lights are often roof/bumper-mounted far from the switch harness; sealed connection survives washdown | PCM-S-0717 (2P), PCM-S-0719 (4P) |
| Sensors & Actuators | 3-pin, 4-pin | Position sensors, speed encoders, and solenoids require stable signal continuity under vibration | PCM-S-0718 (3P), PCM-S-0719 (4P) |
| ECU, CAN Bus & Control Modules | 8-pin, 12-pin | Multi-circuit connections for engine harness, gearbox control, and communication bus wiring | PCM-S-0721 (8P), PCM-S-0722 (12P) |
| Agricultural & Construction Machinery | 2–12 pin (varies) | Field repair, retrofit, and seasonal equipment where original harness must stay intact | Full range PCM-S-0717 to PCM-S-0722 |
| Marine, Off-Road & Industrial | 2-pin, 6-pin | Salt spray, submersion, UV exposure - IP67 sealed connector system designed for outdoor permanent installation | PCM-S-0717 (2P), PCM-S-0720 (6P) |
LED Work Lights - The Most Common Use Case
LED work lights, light bars, and auxiliary lamps account for more than half of Deutsch DT extension cable orders in our production records. The reason is simple: lights are mounted at the physical extremes of equipment (roof bars, bumper frames, boom arms), and the factory harness almost never reaches.
A 2-pin extension (PCM-S-0717) handles simple power connections up to 13 A - sufficient for most LED bars under 150 W at 12 V. For lighting systems with dimming, strobe, or color-temperature control, a 4-pin cable (PCM-S-0719) carries power plus two signal lines.

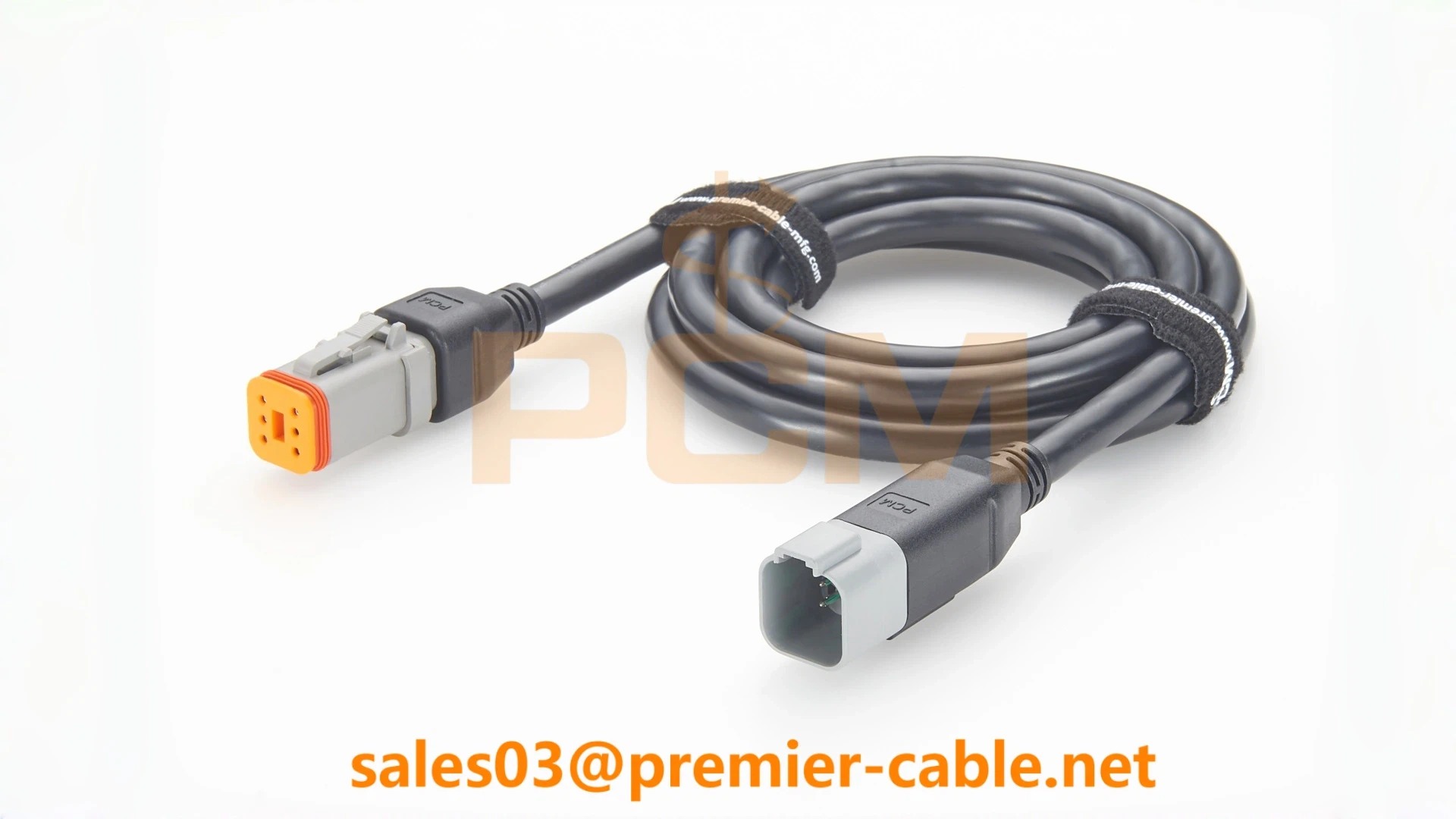

PCM-S-0720: 6P Extension Cable - Automotive & Marine
ECU and CAN Bus - Where Pin Count and Pinout Matter Most
Engine control units, transmission controllers, and CAN Bus nodes use 8-pin and 12-pin DT connectors. In these applications, the wiring sequence (pinout) must match the system design exactly - a single pin swap can route CAN-H to ground, potentially damaging the transceiver IC.
For multi-pin ECU extensions, we recommend buyers provide the specific pinout diagram or reference the OEM connector part number (e.g., DT04-8P with pins 1–2 = CAN-H/L, 3–4 = 12V/GND, 5–8 = analog inputs). Custom pinout verification is included in our production QC process.

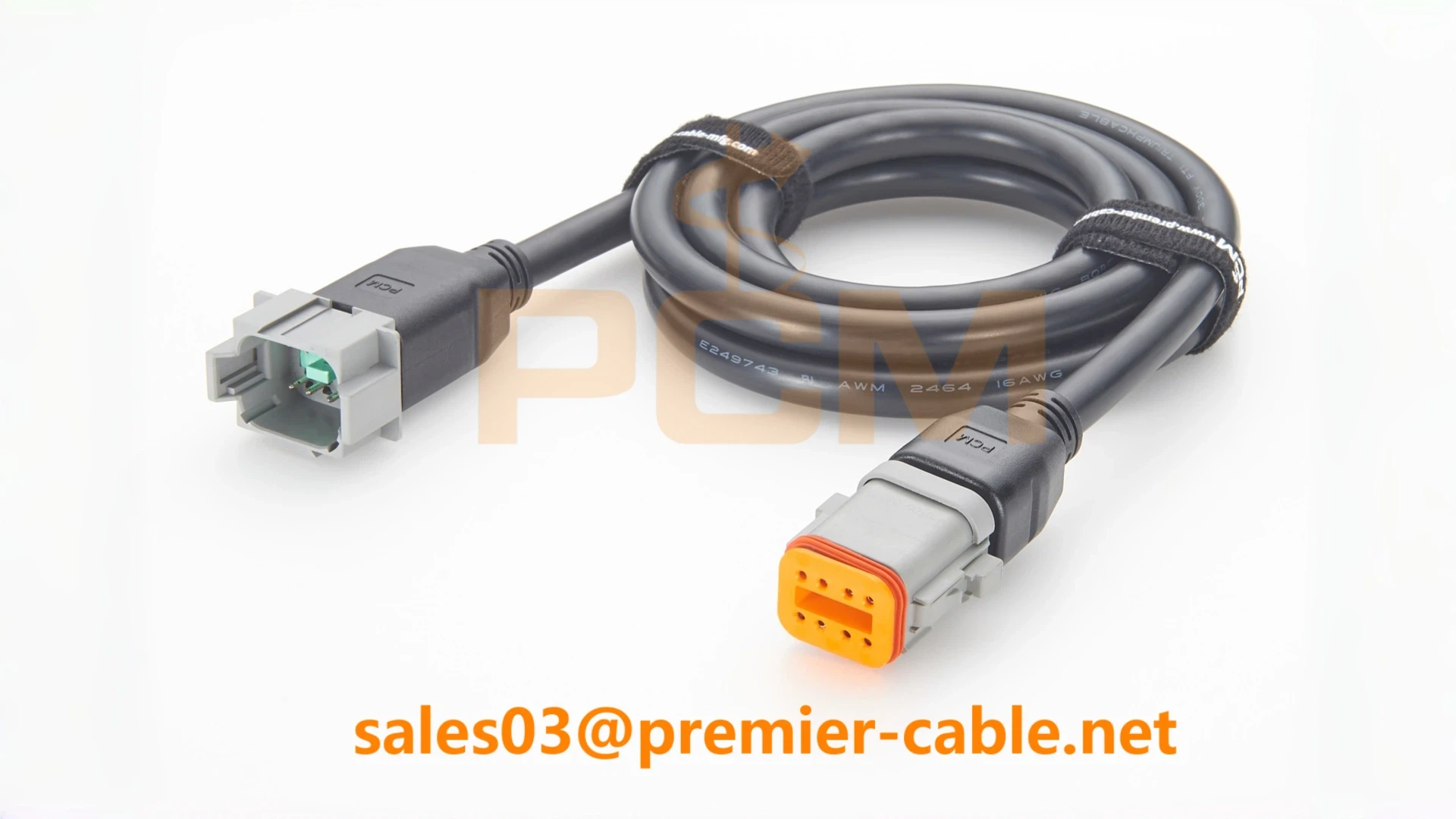

PCM-S-0721: 8P Extension Cable - ECU & Engine Harness
Available Deutsch DT Extension Cable Configurations
Premier Cable supplies six standard Deutsch DT extension cable configurations covering the full DT pin-count range. All use genuine TE Connectivity DT04/DT06 housings with factory-crimped size 16 contacts and silicone wire seals.
| Part Number | Connector A | Connector B | Wire | Length | Current (per pin) | Typical Applications |
|---|---|---|---|---|---|---|
| PCM-S-0717 | DT04-2P | DT06-2S | 16 AWG | 1 m | 13 A | LED lights, power extension, low-voltage signal |
| PCM-S-0718 | DT04-3P | DT06-3S | 16 AWG | 1 m | 13 A | Sensors, actuators, power + signal wiring |
| PCM-S-0719 | DT04-4P | DT06-4S | 16 AWG | 1 m | 13 A | LED work lights, sensors, control devices |
| PCM-S-0720 | DT04-6P | DT06-6S | 16 AWG | 2 m | 13 A | Automotive, marine, LED systems, industrial |
| PCM-S-0721 | DT04-8P | DT06-8S | 16 AWG | 2 m | 13 A | Engine harness, ECU, gearbox, sensor systems |
| PCM-S-0722 | DT04-12P | DT06-12S | 16 AWG | 2 m | 13 A | ECU, CAN Bus, agricultural machinery, control modules |
In most purchasing situations, the required pin count is already determined by the equipment mating connector or wiring diagram. The key factors buyers should confirm are: connector configuration, cable length, wire gauge, pinout sequence, and operating environment.
Beyond standard extension cables, Premier Cable also offers splitter and Y-adapter configurations for applications that require one-to-two signal or power distribution through the Deutsch DT interface:

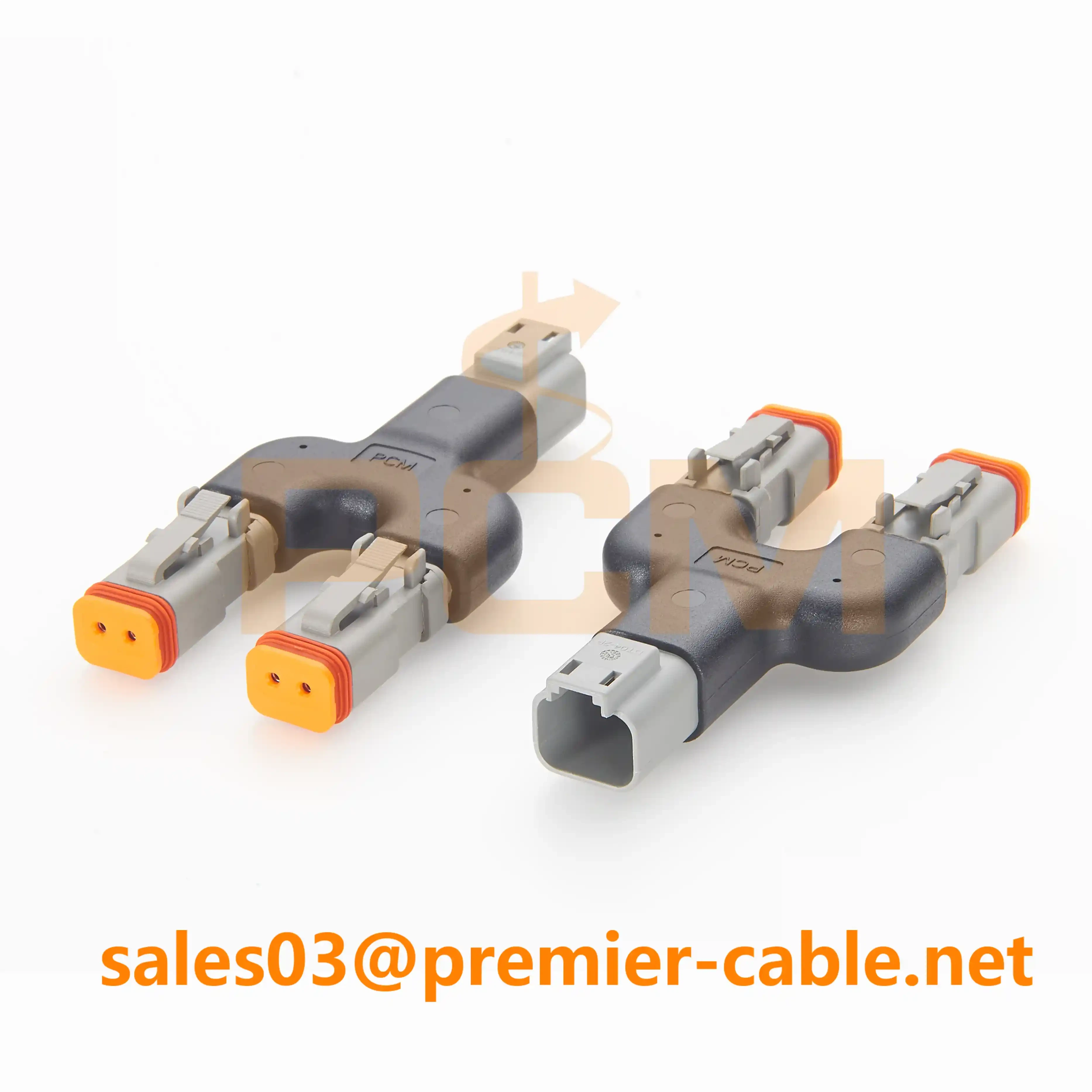

PCM-S-0723: One-to-Two Splitter Adapter

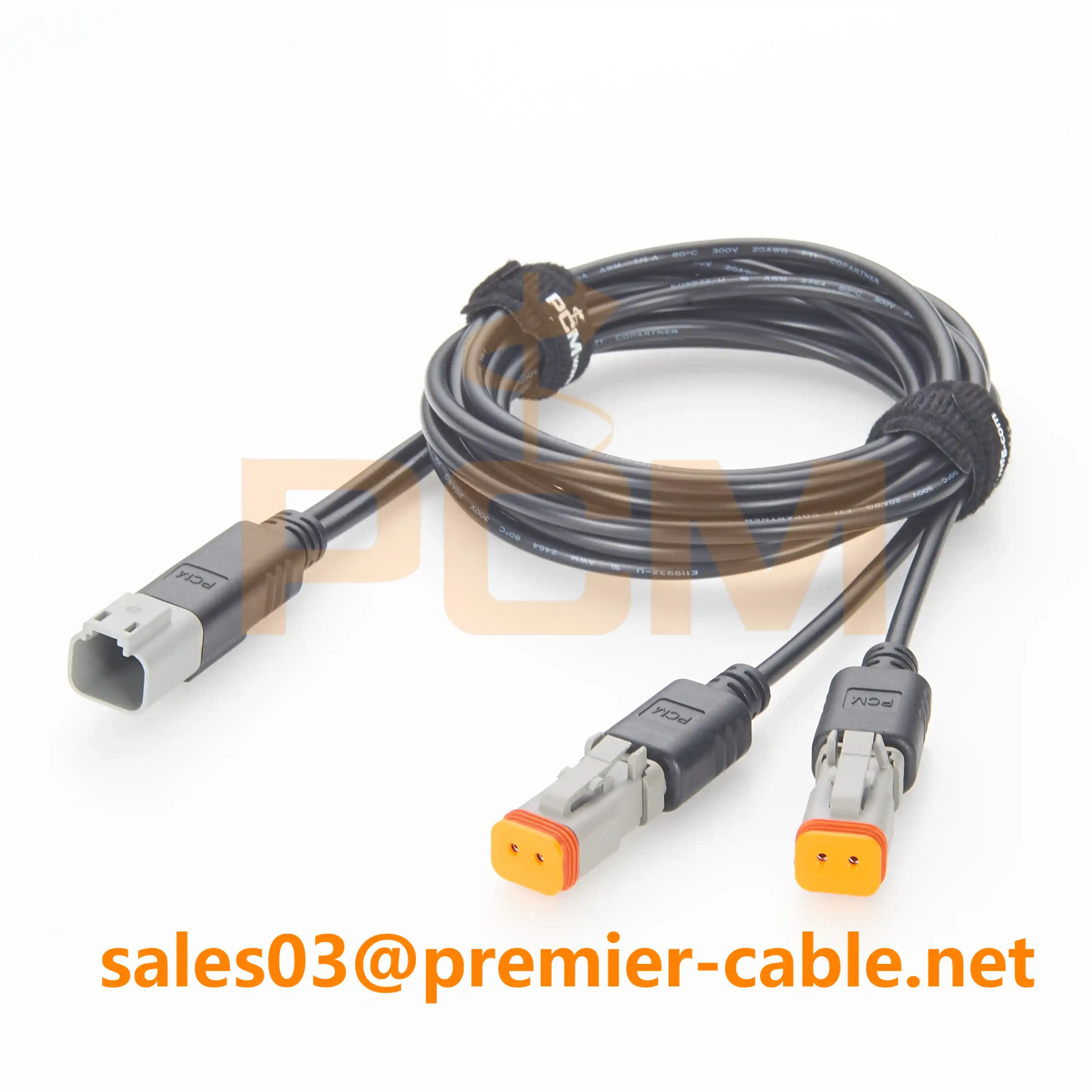

PCM-S-0724: One-to-Two Y-Splitter with Leads
Deutsch DT Extension Cable vs Cutting, Splicing or Re-Crimping
When a harness needs to be extended, the alternative to a plug-and-play cable is cutting the original wire and adding length manually. This comparison summarizes the trade-offs based on field installation conditions.
| Comparison Item | Deutsch DT Extension Cable | Cut, Splice or Re-Crimp |
|---|---|---|
| Installation Time | < 60 seconds (plug in) | 8–15 minutes per connection |
| Original Harness | Preserved - no modification | Permanently altered |
| IP67 Seal Integrity | Factory-verified seal | Depends on technician seal installation |
| Crimp Quality | Machine-crimped, pull-tested (≥80 N) | Variable - depends on tool and skill |
| Vibration Resistance | Wedge lock + dual seal | Butt splice or solder joint may fatigue |
| Troubleshooting | Disconnect at junction, test each side | Must trace through splice |
| Warranty Impact | OEM harness untouched | May void harness warranty |
| Repeatability (Batch) | Every cable identical | Quality varies unit to unit |
| Cost per Connection | Higher material cost, lower labor cost | Lower material cost, higher labor cost |
| Suitable For | Field maintenance, retrofit, OEM kits, batch production | One-off repairs where no extension cable is available |
For field maintenance, machinery retrofit, LED lighting installation, small-to-medium batch production, and any application where harness warranty or future serviceability matters, a pre-assembled Deutsch DT extension cable is the more practical choice. Manual splicing remains acceptable only for one-off emergency repairs where a replacement cable is unavailable.

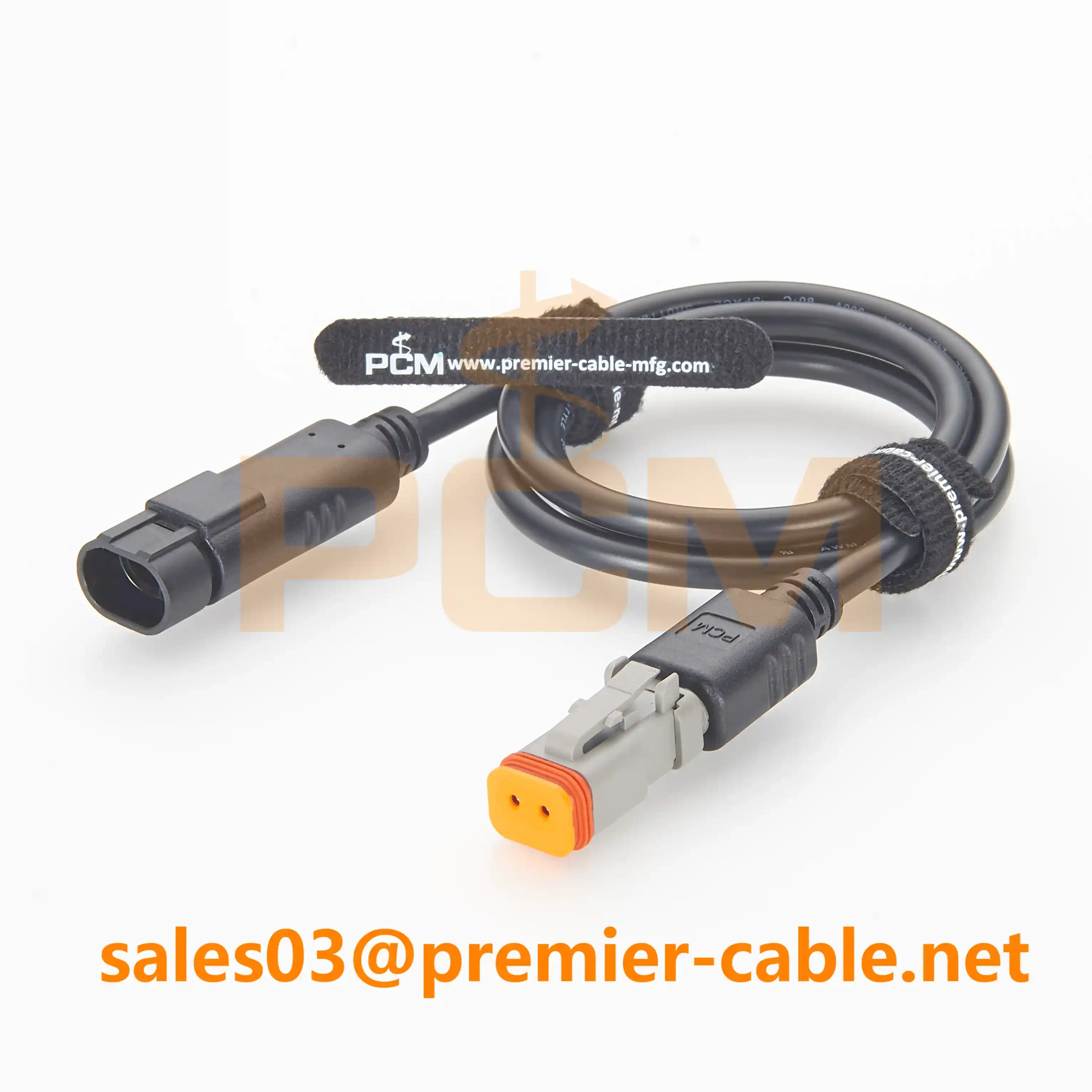

PCM-S-0725: 2P DT Female to AMP Male
PCM-S-0726: 2P DT Female to AMP Female
What Buyers Should Confirm Before Ordering
Providing complete specifications during inquiry shortens quotation turnaround and avoids sample iteration. Here are the seven parameters that determine whether a standard cable works or a custom assembly is required.
1. Connector Configuration
Confirm the exact housing type: DT04-2P to DT06-2S, DT04-4P to DT06-4S, DT04-8P to DT06-8S, or DT04-12P to DT06-12S. If the mating connector on your equipment is not a standard Deutsch DT, a hybrid or adapter cable may be needed.
2. Cable Length
Standard lengths are 1 m and 2 m. Custom lengths from 0.5 m to 10 m+ are available. For lengths over 5 m at 16 AWG, calculate voltage drop: at 13 A over 5 m (10 m total circuit), drop is approximately 0.65 V on a 12 V system - within tolerance for most lighting and sensor applications, but verify for current-sensitive ECU circuits.
3. Wire Gauge
16 AWG is standard for the DT size 16 contact system (rated 13 A at 23 °C). Options include:
- 14 AWG: Higher current capacity (up to 18 A), stiffer cable, larger bend radius
- 18 AWG: Signal-only applications, more flexible, lower cost
- 20 AWG: Low-current sensors only (< 5 A), maximum flexibility
4. Pinout and Wiring Sequence
Standard cables use straight-through wiring (pin 1 to pin 1, pin 2 to pin 2, etc.). If your application requires a crossover or custom wiring sequence, provide a pinout table or reference the equipment wiring diagram.
5. Environmental Requirements
Standard Deutsch DT connectors are rated IP67 when mated. For applications requiring submersion beyond 1 m or prolonged washdown exposure, specify overmolded connector ends which provide IP68/IP69K-level sealing at the cable entry.
6. Cable Construction
- Overmolded vs assembled (field-serviceable) connector ends
- PVC vs PUR vs TPE jacket (UV resistance, flexibility, chemical resistance)
- Corrugated loom, braided sleeve, or heat-shrink protection
- Cable labeling, color coding, or custom markings
Frequently Asked Questions
What is the IP rating of a Deutsch DT extension cable?
The Deutsch DT connector system is rated IP67 when fully mated, meaning it withstands temporary immersion in water up to 1 m depth for 30 minutes per IEC 60529. Overmolded versions can achieve IP68/IP69K ratings for prolonged submersion or high-pressure washdown applications.
Can I use a DT extension cable for CAN Bus wiring?
Yes. 8-pin and 12-pin Deutsch DT extension cables (PCM-S-0721, PCM-S-0722) support CAN Bus connections. Ensure the pinout matches your CAN-H, CAN-L, power, and ground assignments exactly. Provide the pinout diagram when ordering to avoid transposition errors.
What maximum current can a 16AWG DT cable carry?
Each size 16 contact is rated 13 A continuous at 23 °C ambient. At elevated temperatures (+105 °C), derate to approximately 7–8 A. For higher current applications, 14 AWG wire can be specified, though the contact rating remains the limiting factor at 13 A per pin.
How do I choose between 2-pin and 12-pin configurations?
The pin count is determined by your existing equipment connector or wiring diagram. Simple LED power circuits use 2-pin. Sensors with power, signal, and ground use 3-pin. ECU and CAN Bus systems with multiple circuits use 8-pin or 12-pin. Match the existing mating connector on your equipment.
Need a Deutsch DT Extension Cable for Your Project?
- 2-pin to 12-pin DT04/DT06 extension cables in stock
- IP67 sealed, 16AWG, factory-crimped and pull-tested
- Custom lengths, pinouts, and overmolded options available
- IPC/WHMA-A-620 Class 2 workmanship standard
- Bulk pricing for OEM and fleet maintenance programs
Source Deutsch DT Extension Cables
Premier Cable manufactures Deutsch DT extension cable assemblies for LED lighting, sensor wiring, ECU connections, agricultural machinery, and marine applications. Standard 2-pin to 12-pin configurations and custom assemblies available.
