DC Valve Connector Overview

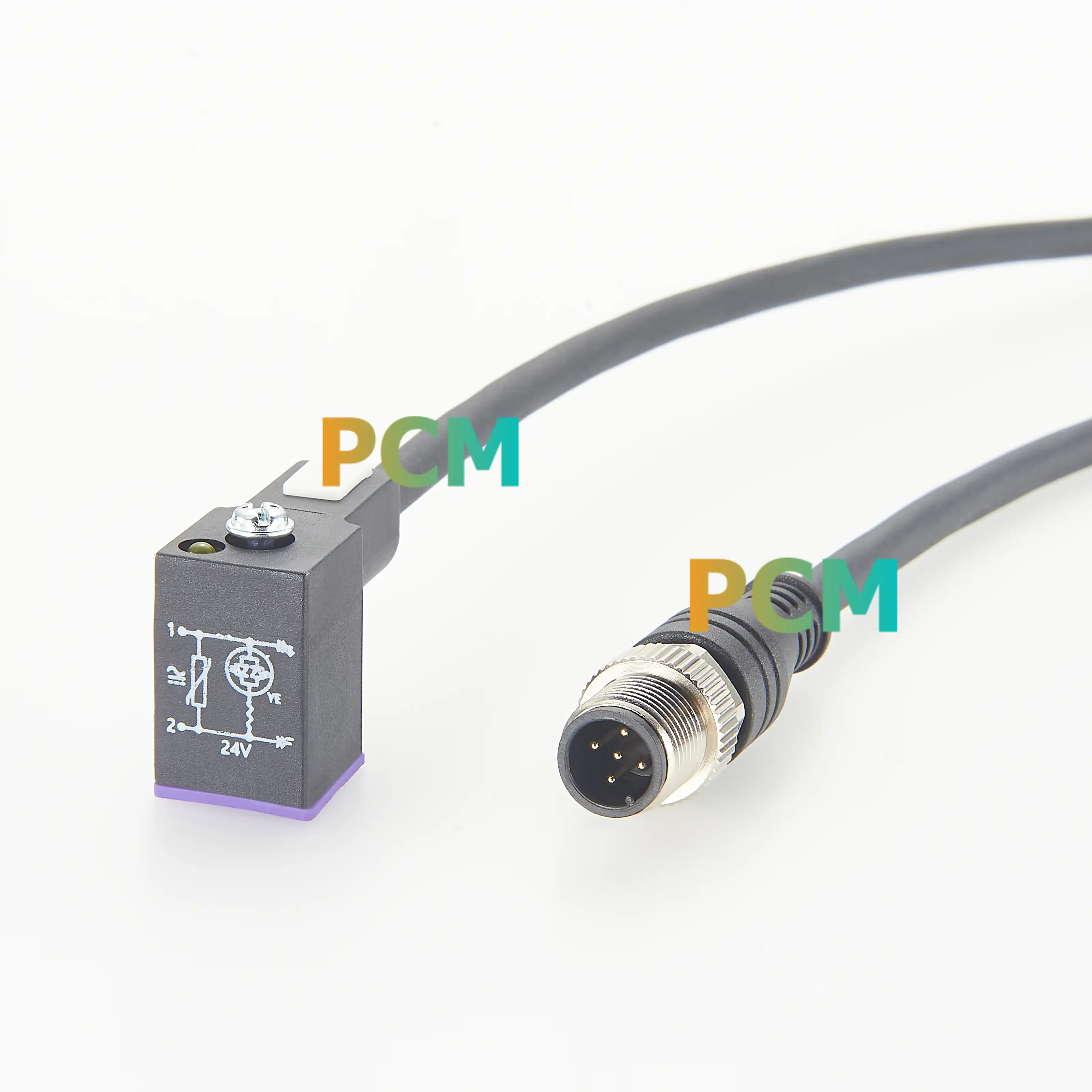

PCM-HS-009 is a monitored valve cable assembly built for DC solenoid valves that use a DIN 43650 / EN 175301-803 Form C interface. It combines a straight M12 A-coded 5-pin male plug with a compact right-angle Form C valve connector, making it suitable for machines where the valve connection must remain visible, protected, and easy to service.
The assembly uses a 3 × 0.50 mm² black PUR UL cable. Only M12 Pins 3, 4 and 5 are used: two conductors carry the valve circuit and the third conductor provides protective earth. The Form C end includes a yellow LED for visual status checking and a VDR suppression component for DC coil transient protection.
PCM-HS-009 is available in 0.6 m and 2 m standard lengths. It can be referenced as a compatible alternative for IFM E11427 and E11429 when the connector form, wiring arrangement, indicator circuit, and required cable length are matched.

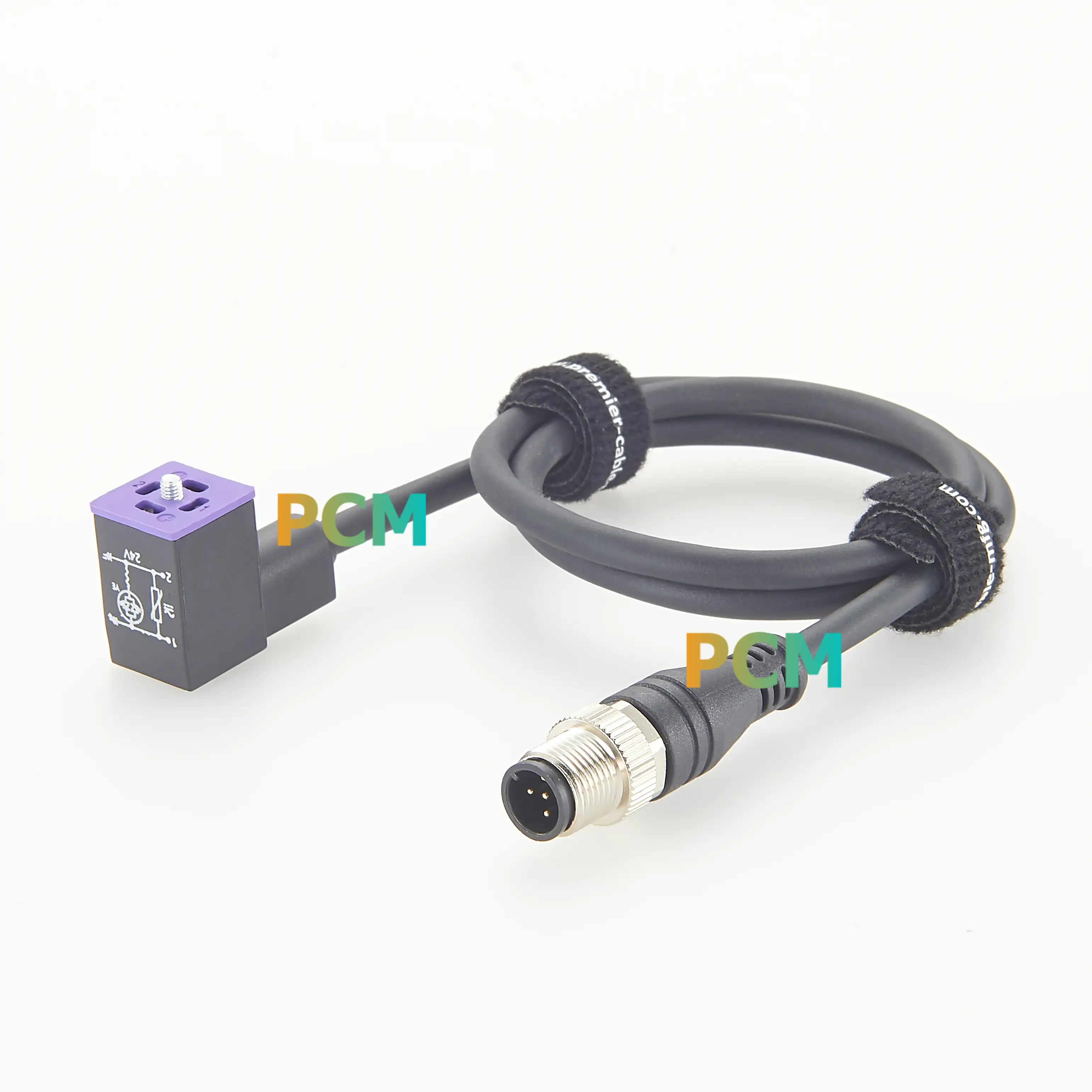

M12 A-Coded 5-Pin Male Plug

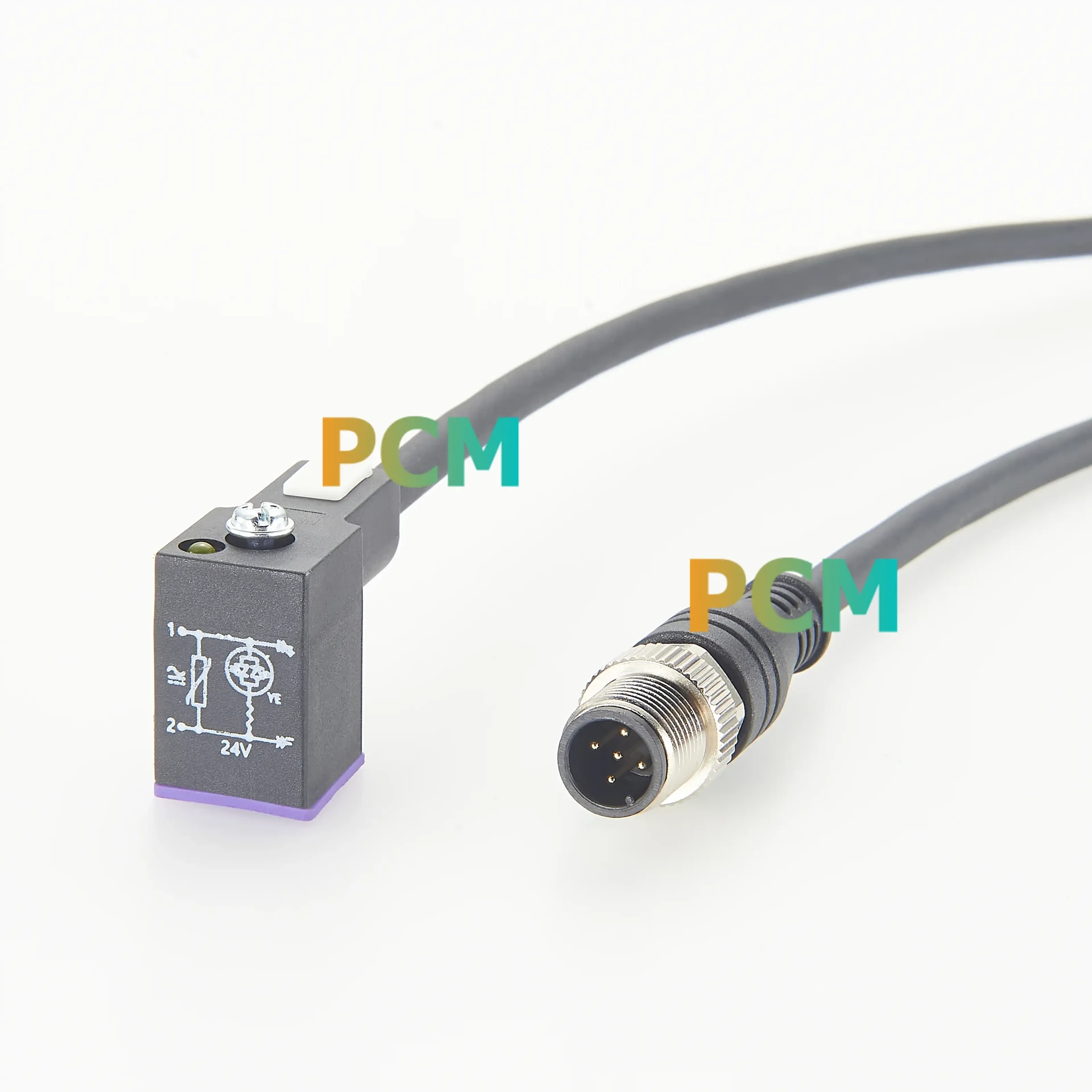

Form C Valve End with Yellow Indicator
LED Indication and Coil Protection
| Yellow LED Indicator Provides a quick visual check of valve power status. |
Integrated VDR Helps suppress voltage transients generated by a DC solenoid coil. |
Protective Earth Path M12 Pin 5 is connected to the Form C protective-earth terminal. |
The LED and suppression circuit make PCM-HS-009 especially useful where technicians need to identify an energized valve quickly during commissioning, troubleshooting, or routine maintenance. For final selection, confirm that the valve coil voltage and circuit polarity are suitable for the DC LED/VDR configuration.
Cable and Connector Construction
| PCM Part Number | PCM-HS-009 |
| Assembly Type | M12 5-Pin Male to DIN 43650 / EN 175301-803 Form C Valve Connector Cable |
| Machine-Side Connector | M12 A-Coded 5-Pin Male, Straight |
| Valve-Side Connector | DIN 43650 / EN 175301-803 Form C, Right Angle |
| Cable Format | 3 × 0.50 mm², PUR UL, Black, 5.0 mm Outer Diameter |
| Active Circuit | DC Valve Circuit with Yellow LED and VDR Surge Suppression |
| M12 Pins Used | Pin 3, Pin 4 and Pin 5 |
| Connector Material | TPU + ET Body; CuZn Contacts with Silver Plating |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to +90°C |
| Length Choices | 0.6 m ±20 mm / 2 m ±30 mm; Other Lengths Available on Request |
Wiring Configuration
PCM-HS-009 uses three of the five available M12 contacts. The two valve-circuit conductors are routed through the Form C connector, while the remaining connected conductor is dedicated to protective earth.
| M12 Contact | Function | Form C Terminal | Connection Use |
| Pin 4 | Valve Circuit | Pin 1 | Coil Connection |
| Pin 3 | Valve Circuit | Pin 2 | Coil Connection |
| Pin 5 | Protective Earth | PE | Ground Connection |
Ordering Lengths and Reference Options
| PCM-HS-009 Length | IFM Reference | Ordering Note |
| 0.6 m ±20 mm | E11427 | Confirm circuit and connector requirements. |
| 2 m ±30 mm | E11429 | Custom length can be supplied. |
Installation Parts Included
| Waterproof Gasket × 1 Supports sealing between the Form C connector and the valve coil interface. |
M2.5 × 25 Mounting Screw × 1 Provided for Form C connector installation. |
Recommended Equipment Uses
PCM-HS-009 can be used on DC solenoid valves in pneumatic actuators, hydraulic valve manifolds, packaging machinery, material-handling equipment, process skids, and other automation systems that use an M12 field connection and a Form C valve coil. The integrated LED helps maintenance teams locate energized outputs without disconnecting the cable.
PCM-HS-009 Dimensional Drawing
Need a Form C Valve Cable with a Different Length, Wiring, or Indicator Circuit?
