In the field of industrial automation and intelligent manufacturing, M23 power cables provide a high-performance connection solution, widely used in servo systems, drives, motors, power modules and other equipment. Although they are all called "M23 power cables", they can be divided into many types according to different structural forms, installation methods, pin configurations and application requirements.

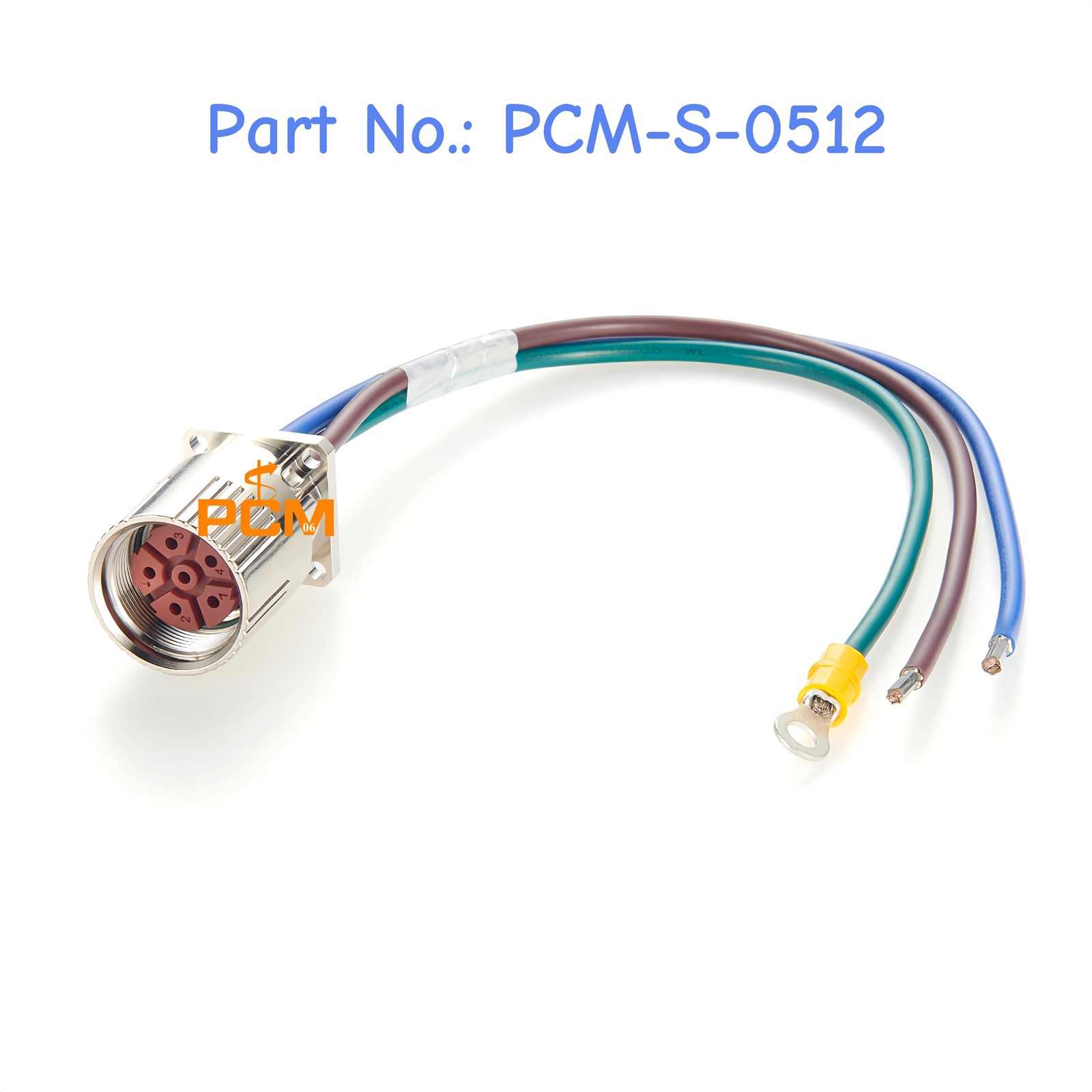

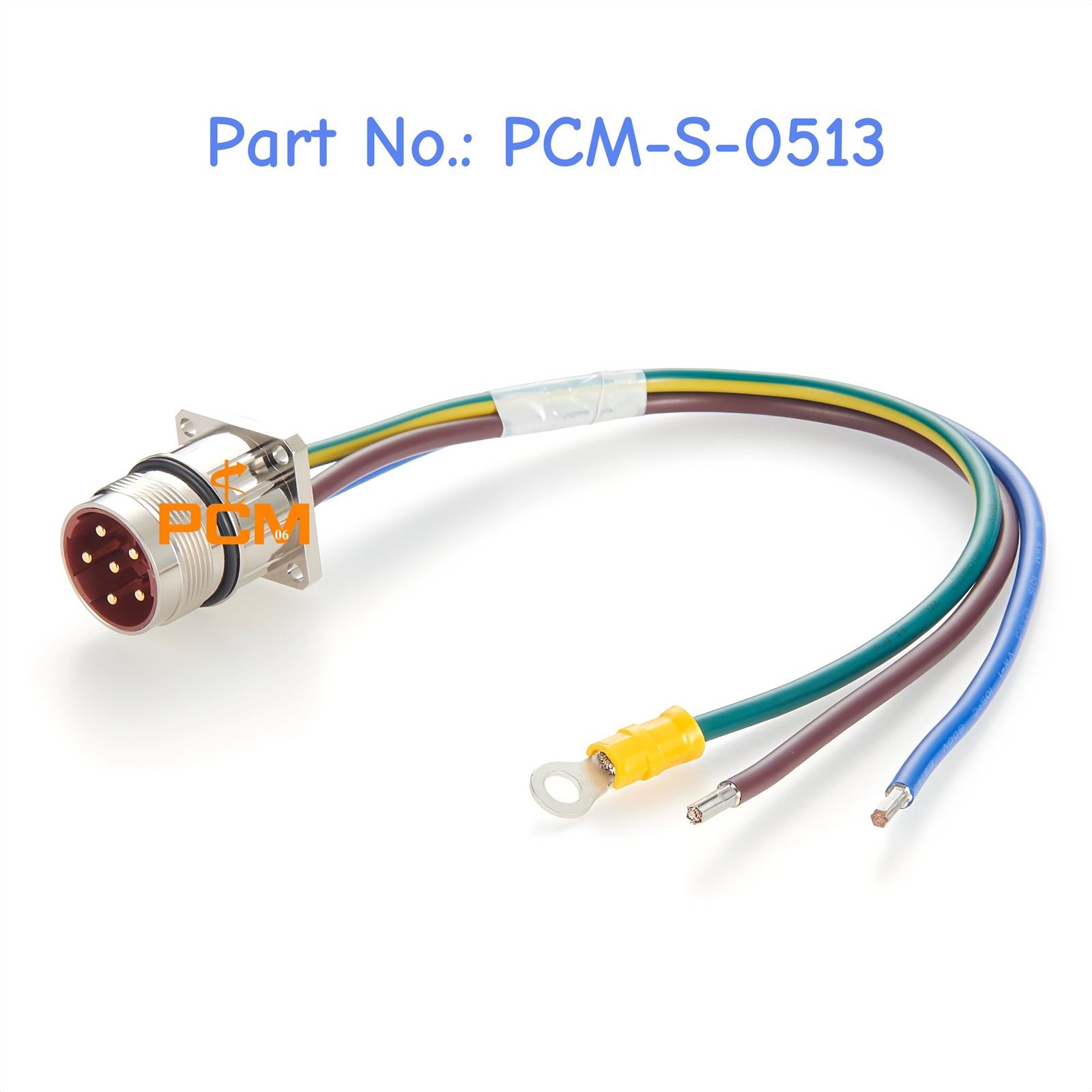

Panel mount
Suitable for installation in control cabinets or equipment housings, providing a fixed interface. With the locking nut, it can achieve stable wiring and high-level protection. Usually a female connector (Socket) or a male connector (Plug), used with field wiring cables.
Connector Orientation

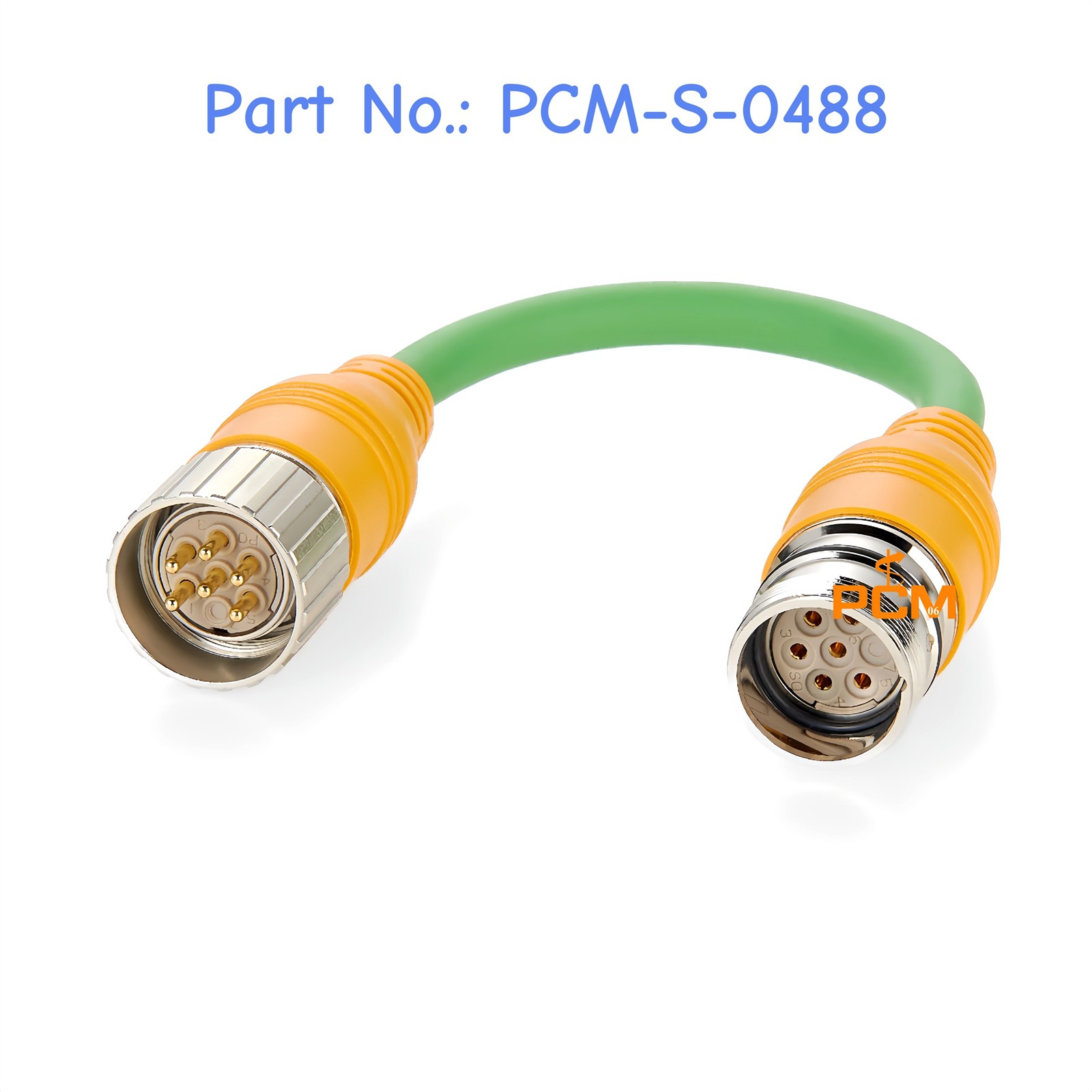

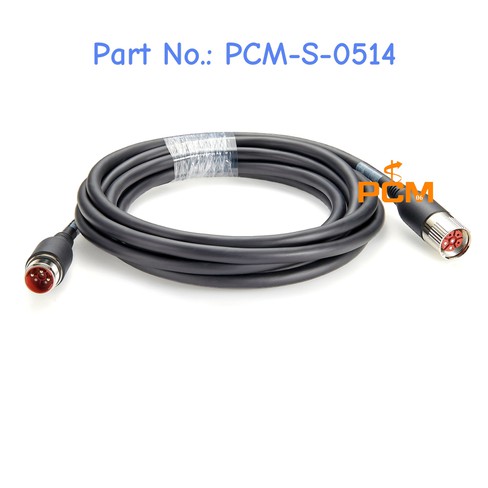

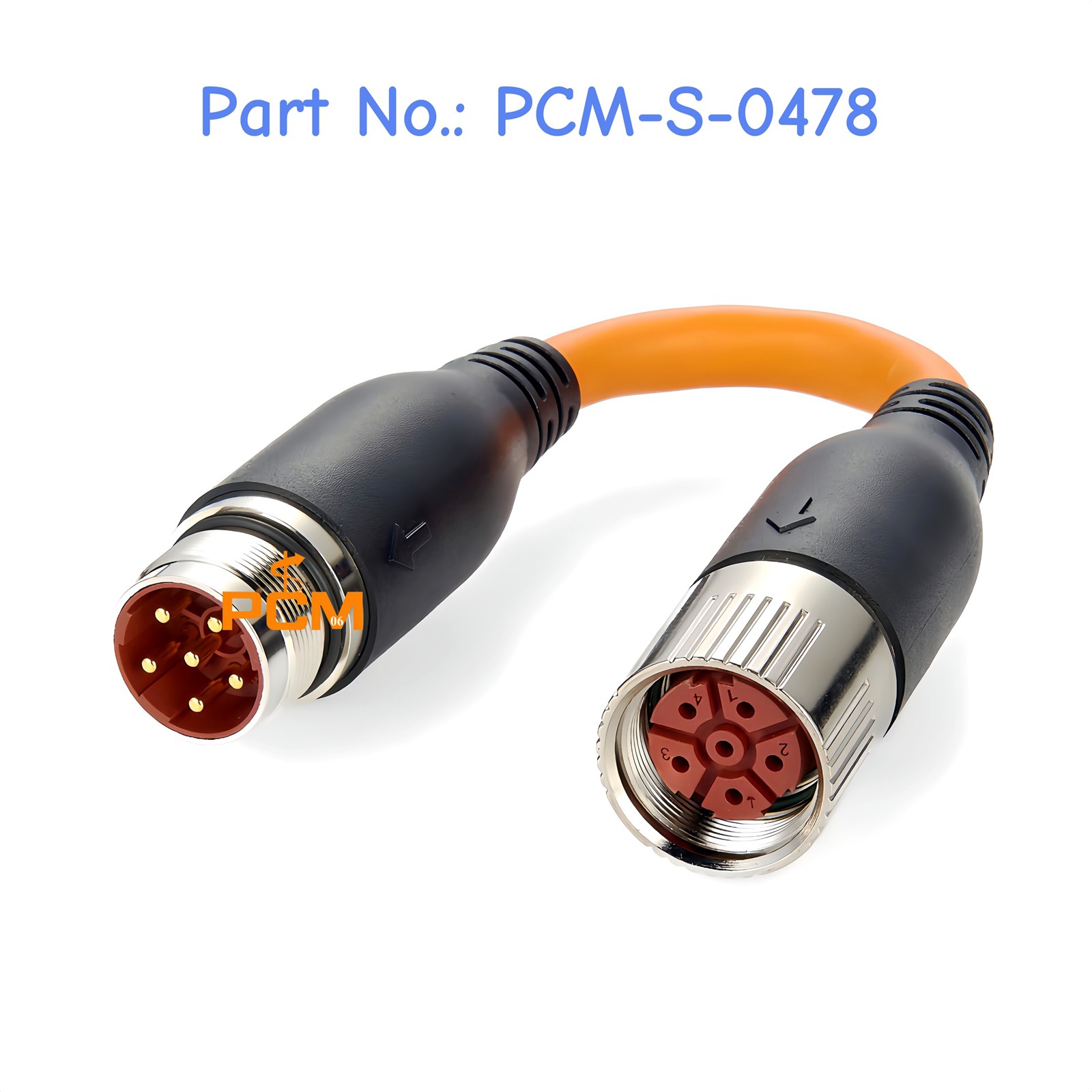

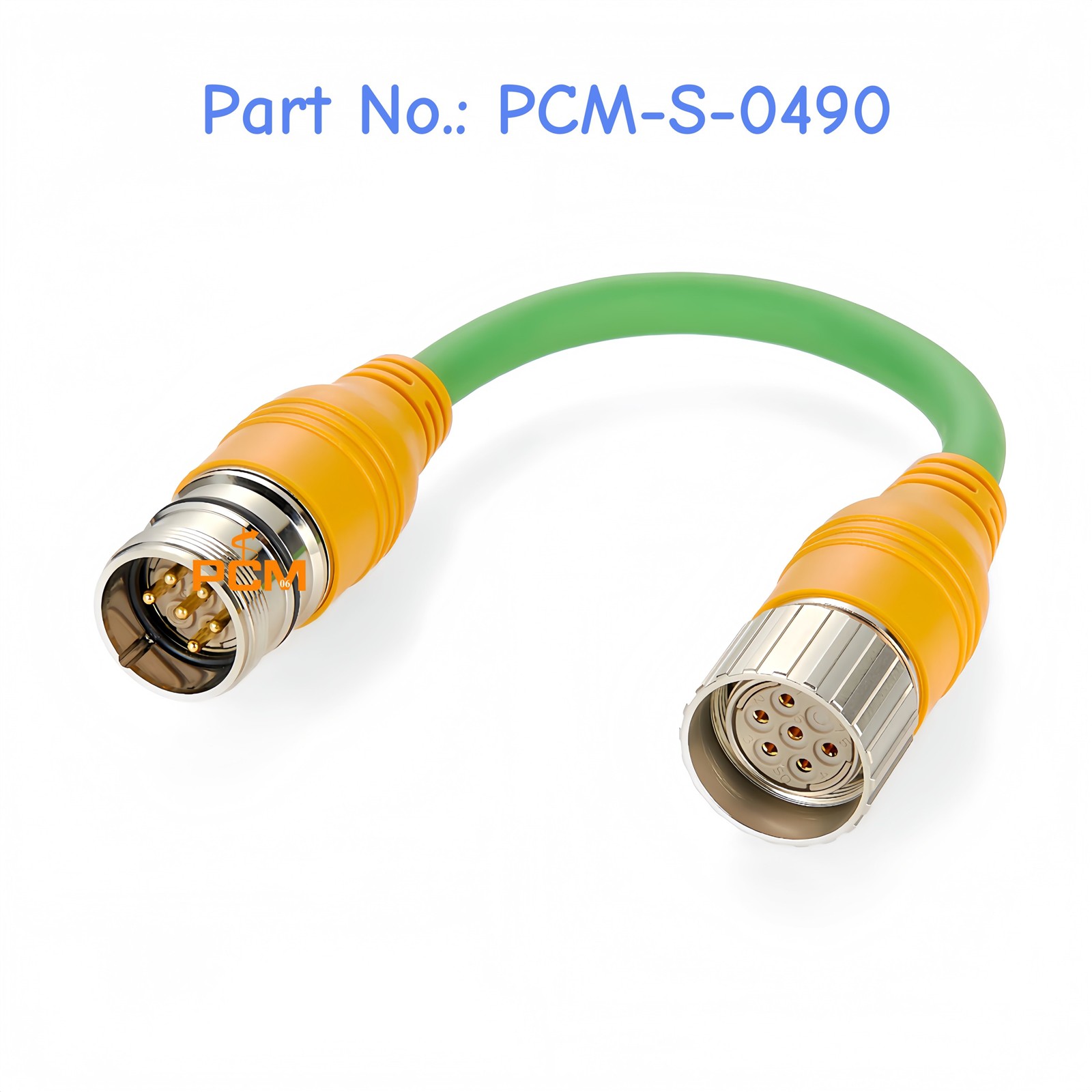

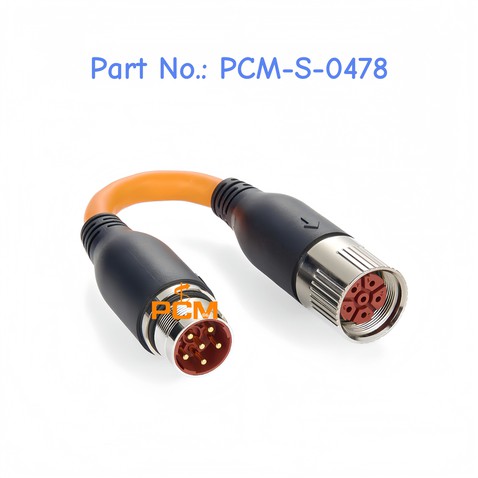

Straight: The Straight M23 Power Cables are suited for ample space, featuring a compact design and easy installation, making them one of the most common connection types.

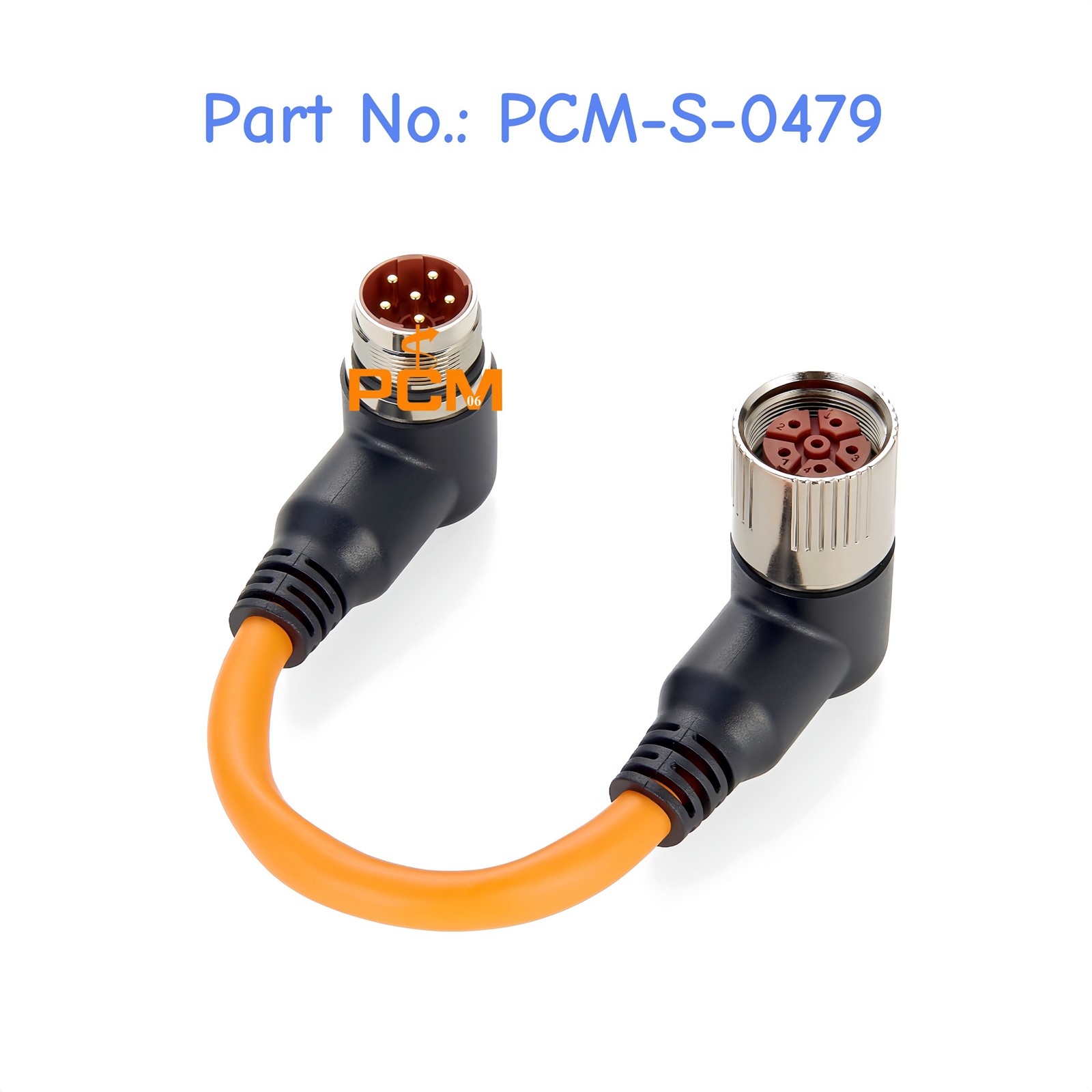

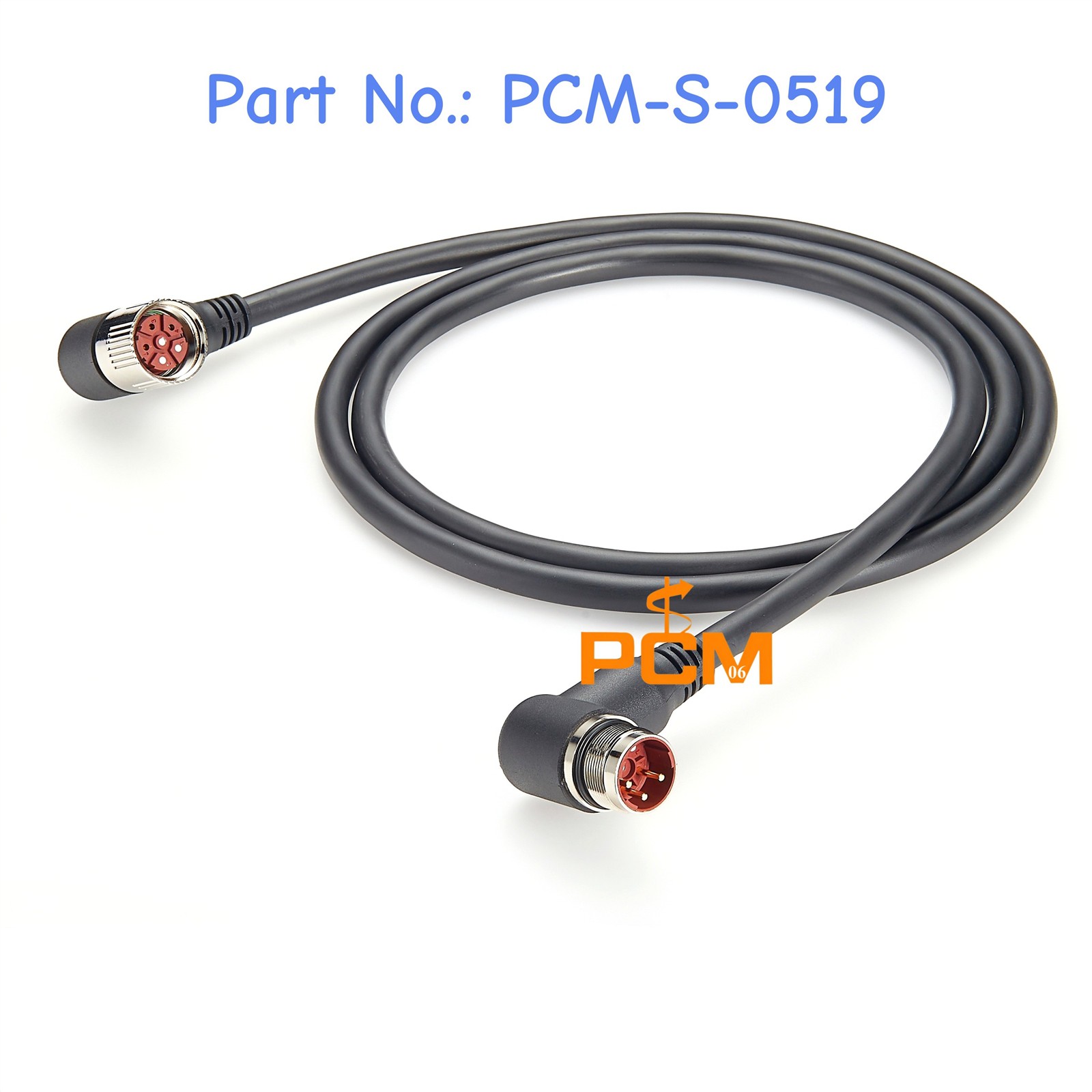

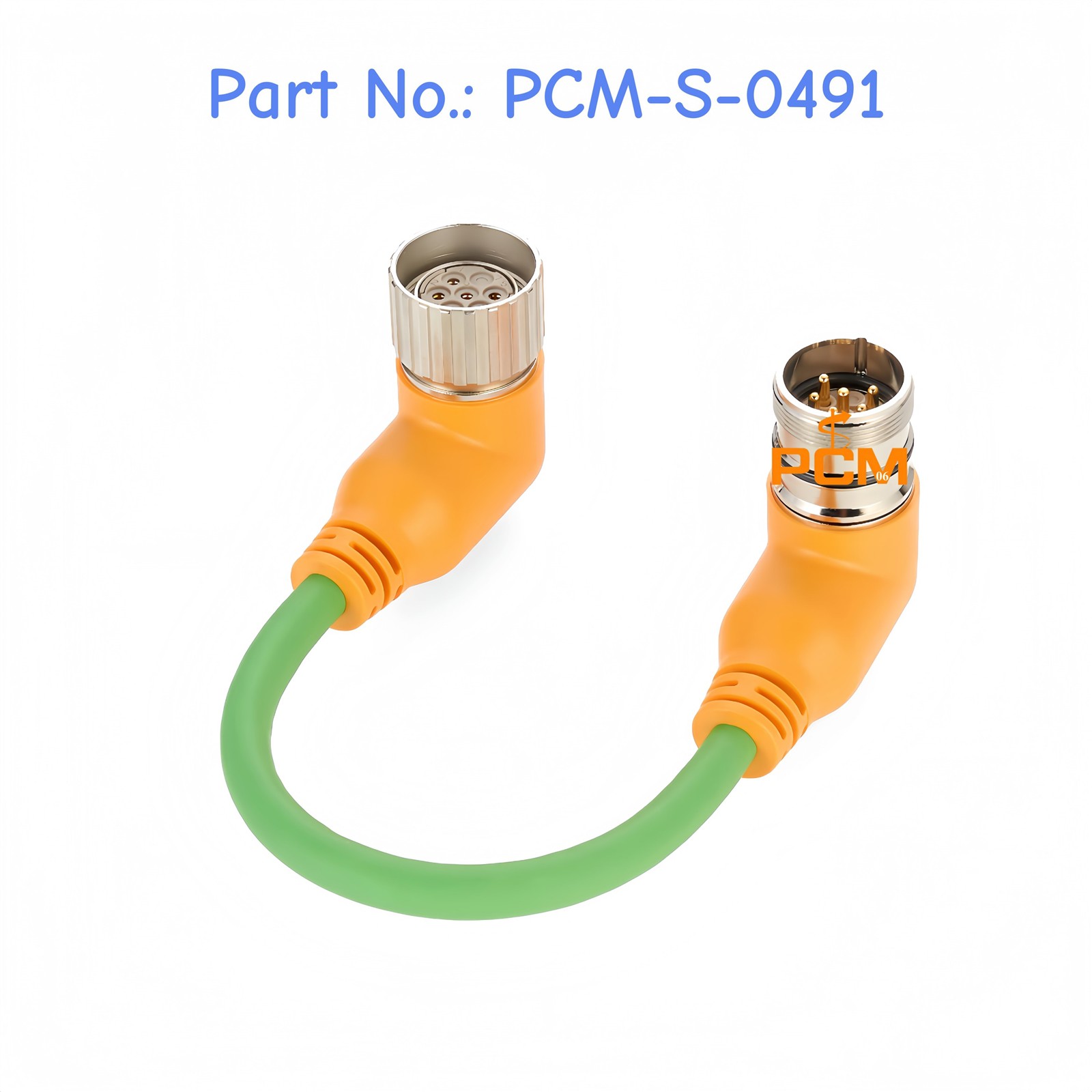

Right-Angle: The Right Angle M23 Power Supply Cables are ideal for tight spaces or angled cable routing, minimizing installation depth and preventing excessive cable bending.
Number of Contacts
3-pin: Suitable for basic power supply
6-pin: Commonly used in servo motors
Device Type

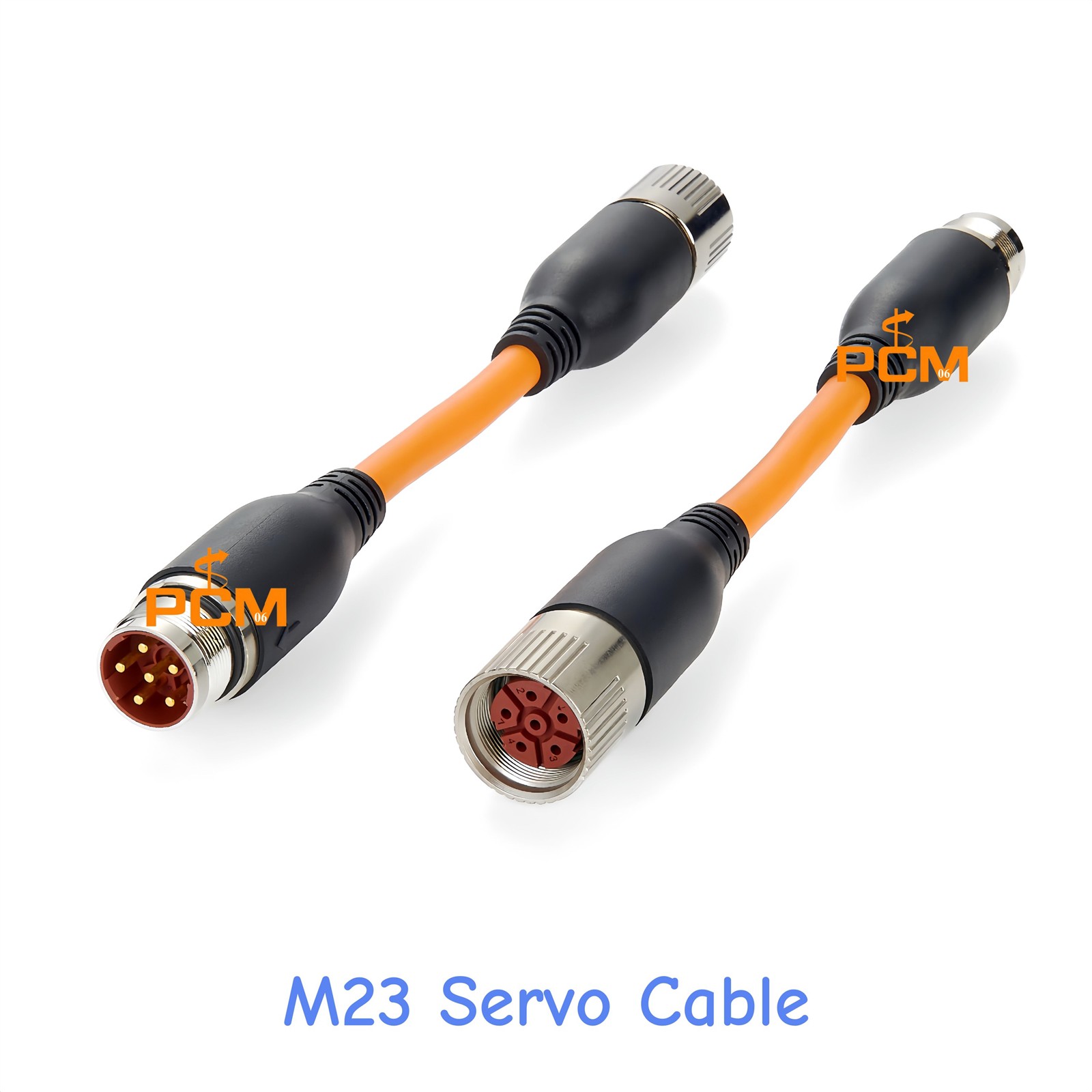

Servo Motor: Our M23 Servo Cable is built for high-current transmission, typically used for motors, drives, and power supply lines.

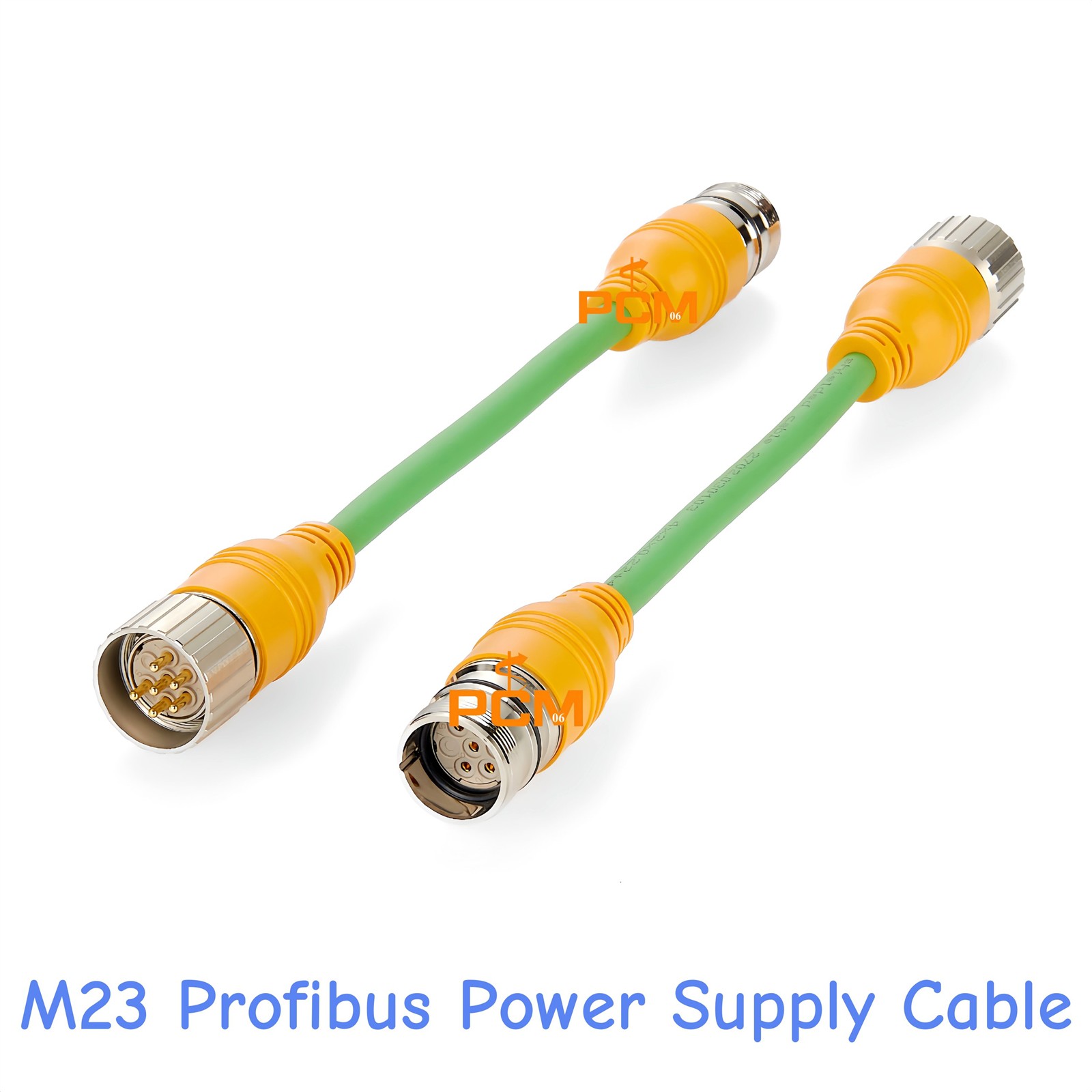

Profibus Interbus I/O Module: Our M23 Profibus Power Supply Cable is designed for low-current signal transmission, such as Profibus or Interbus I/O Module.
In summary, the M23 power cable includes a combination of multiple structures, pins and functions to meet the diverse connection needs of industrial sites. The correct selection of the M23 power cable type is not only related to the reliability and stability of the system, but also an important part of improving the performance of automation equipment.
