Products Description
The JST PH-Style 3-Pin Female-to-Female Cable is a compact and reliable connection cable designed for low-voltage electronic devices, PCB modules, sensors, controllers, and DIY electronics projects.
Both ends feature 3-pin female PH-style connectors, allowing compatible modules, circuit boards, sensors, controllers, and other electronic components to be interconnected quickly without additional soldering. The cable is made with 24 AWG UL 1007 wires and is rated for up to 2 A and 100 V, providing stable electrical performance for a wide range of electronic applications.
The three color-coded wires make installation and circuit identification easier: Black – Pin 1, Red – Pin 2, White – Pin 3.
Specification
|
Product Name |
3 Pin JST PH-Style Female to Female Cable |
|
Connector A |
JST PH 3Pin Female |
| Connector B | JST PH 3Pin Female |
|
Cable Length |
16cm, Or OEM |
| Wire Gauge |
24AWG |
| Rated Current | 2A |
| Rated Voltage | 100V |
| Pin 1 | Black |
| Pin 2 | Red |
| Pin 3 | White |

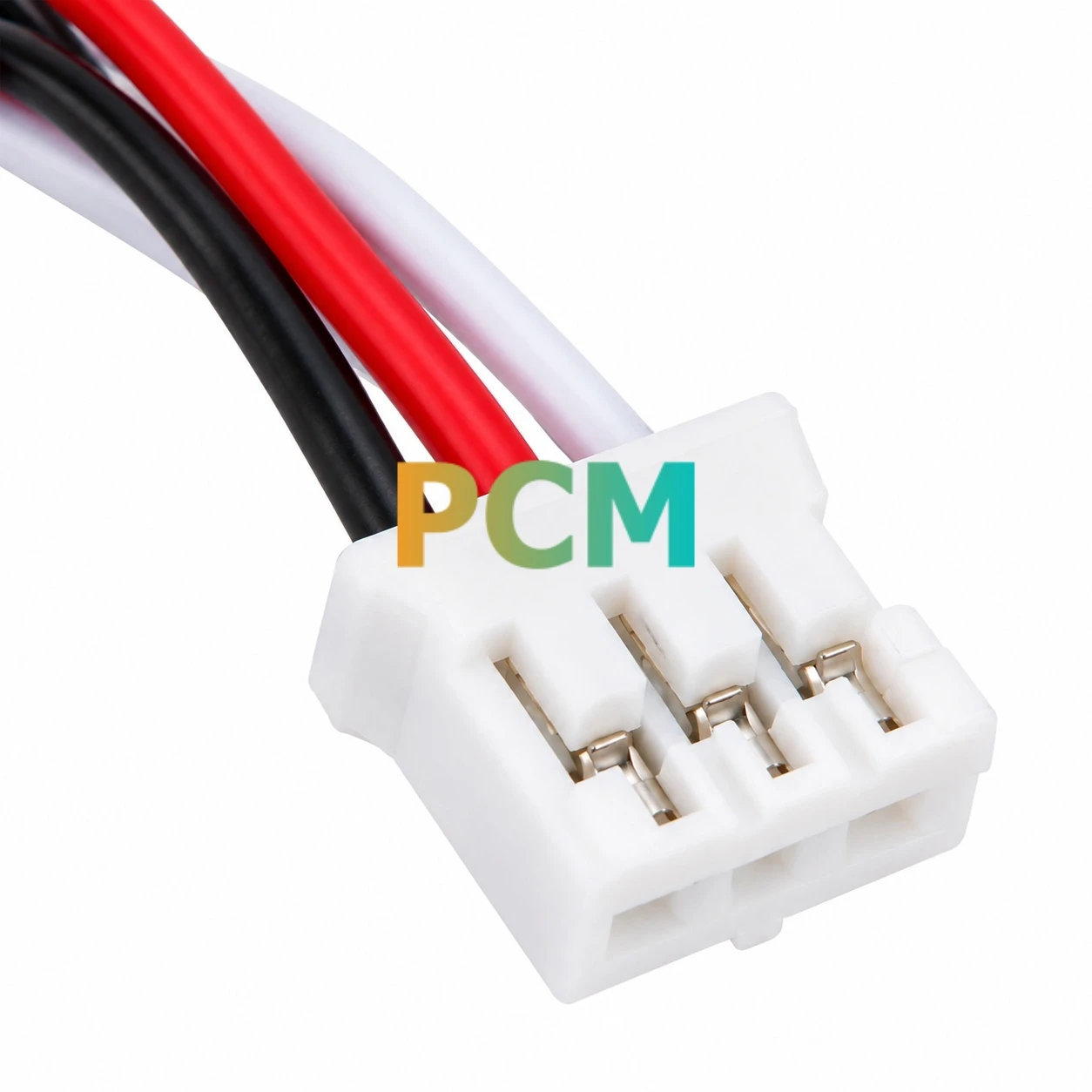

Product Display
Application Scenarios

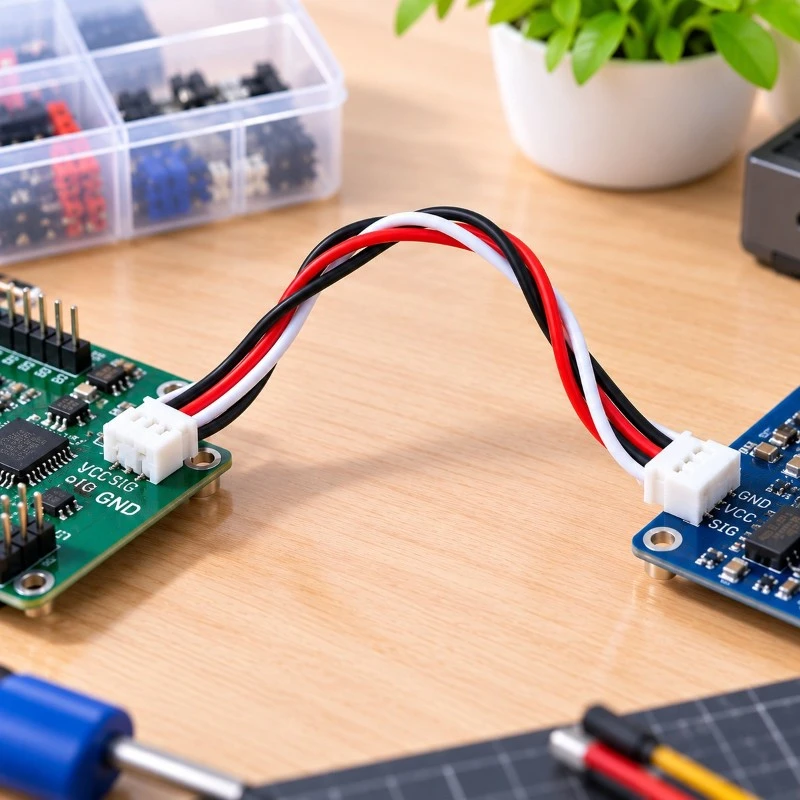

PCB Circuit Board Connection
Suitable for signal and power connections between PCB circuit boards, control modules, and development boards. The 3-pin female-to-female connector allows for quick connection to compatible ports, reducing soldering operations and making it suitable for electronic device development, prototyping, and DIY projects.

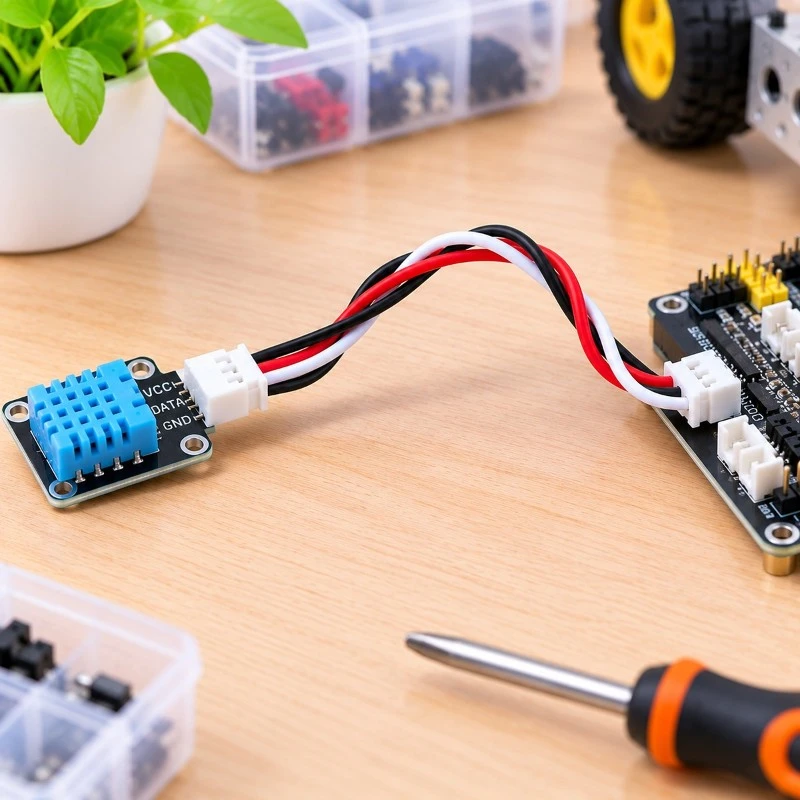

Sensor Module Connection
Can be used to connect sensors for temperature, humidity, light, distance, etc., to the main control board. Red, black, and white wires easily distinguish between power, ground, and signal lines, providing a stable and convenient connection solution for sensor data acquisition and intelligent control systems.
Products Advantages
Plug and
Play
3-pin female-to-female connector for easy connection, no soldering required.
Stable Transmission
24 AWG UL1007 cable, supports up to 2A current and 100V voltage.
Easy Three-Color Identification
Black, red, and white wire design for quick and easy identification of different circuits.
Wide
Applications
Suitable for PCBs, circuit boards, sensors, controllers, and various DIY electronics projects.
