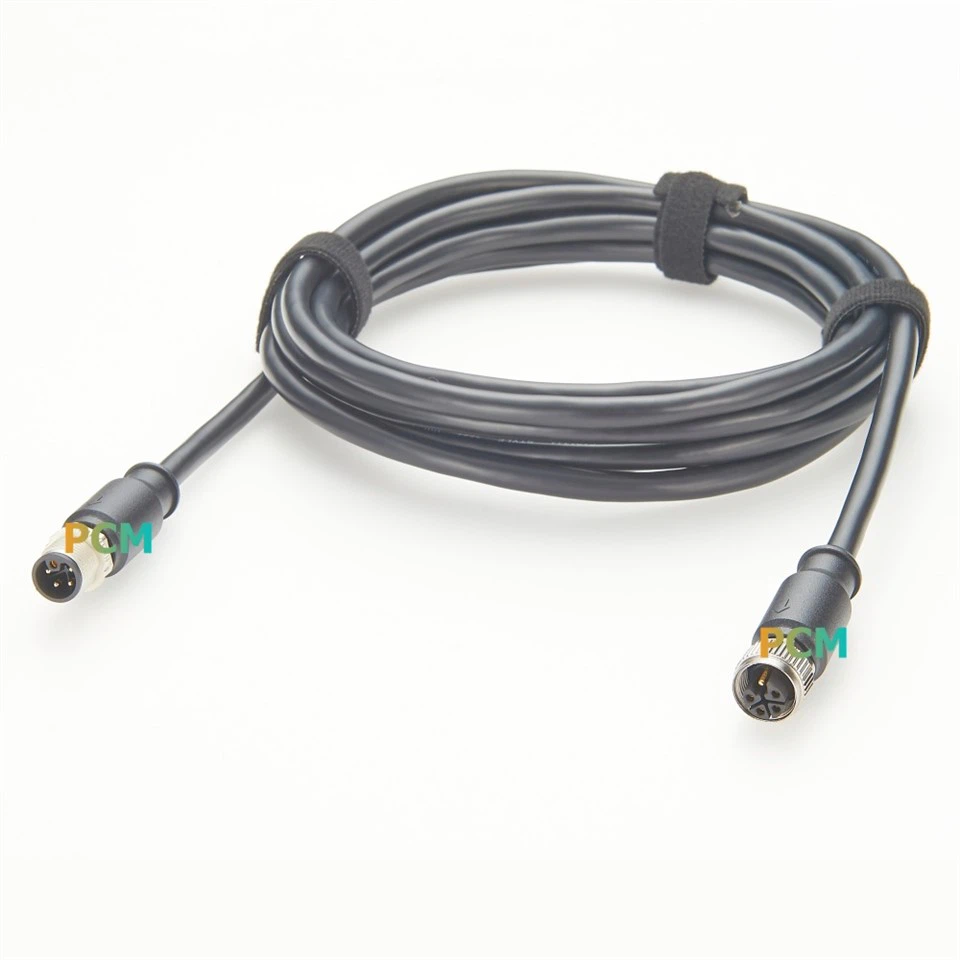

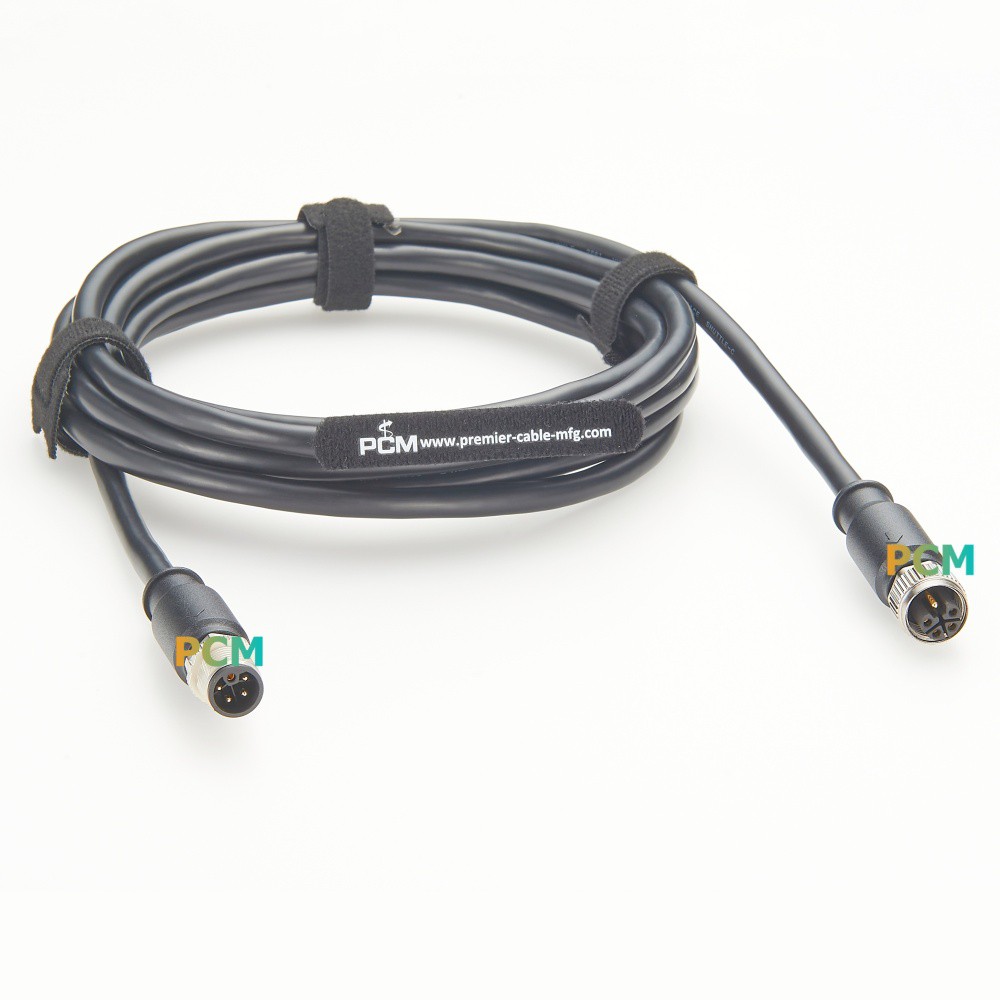

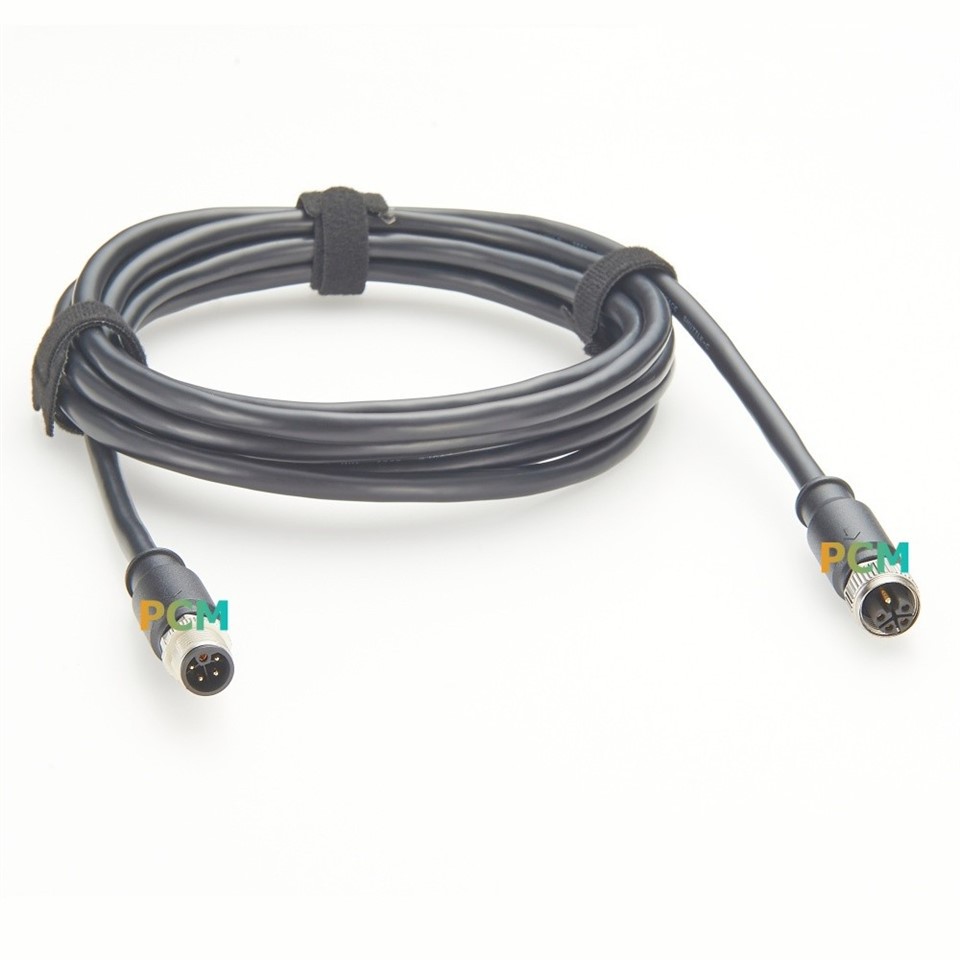

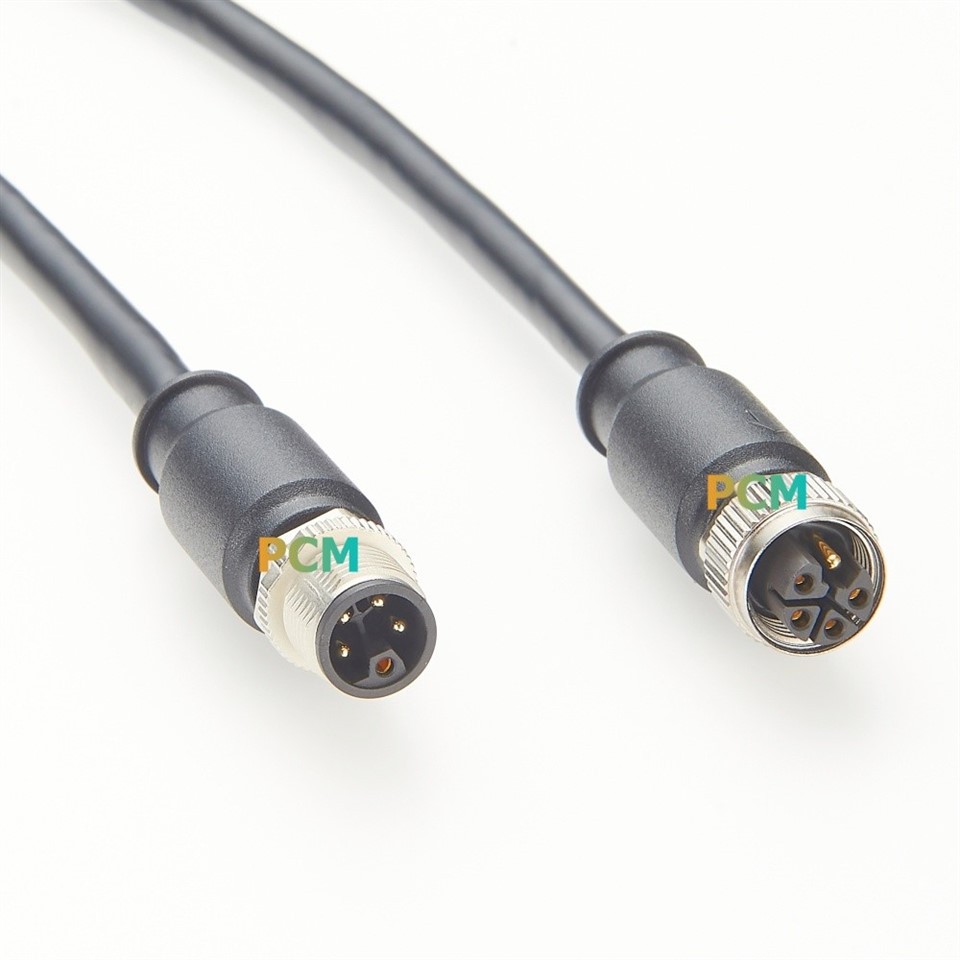

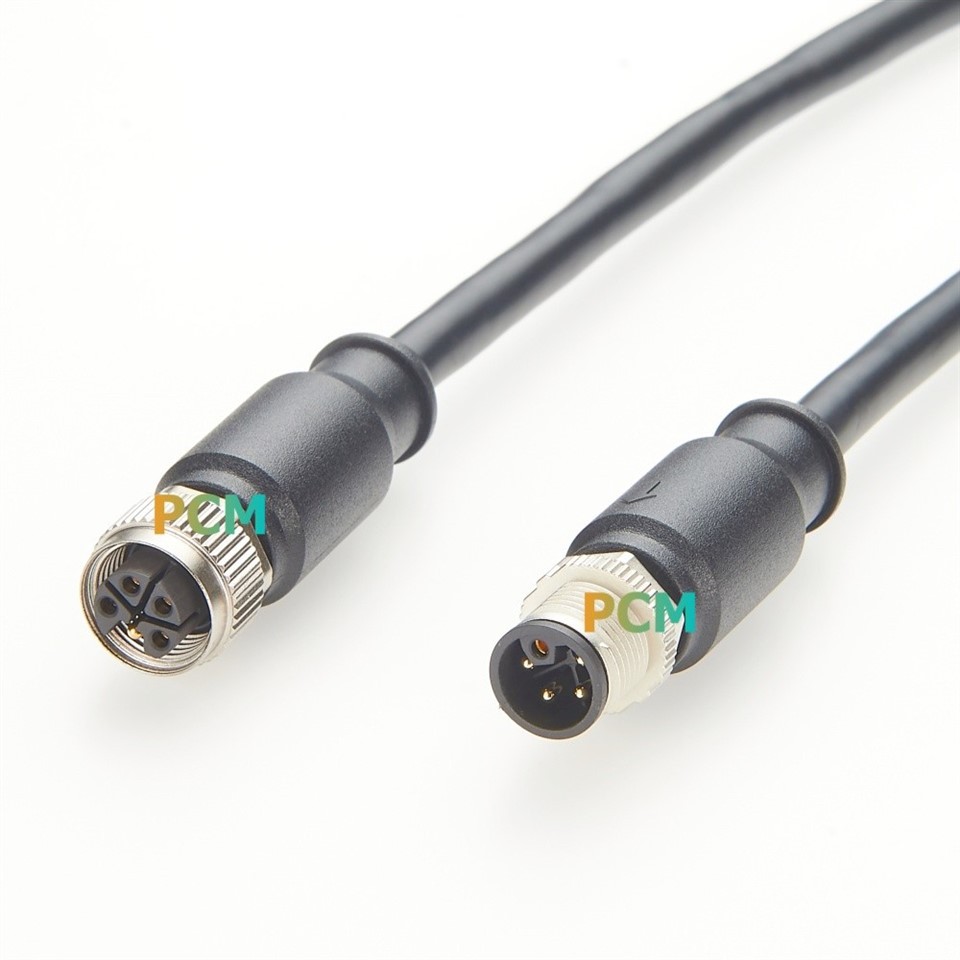

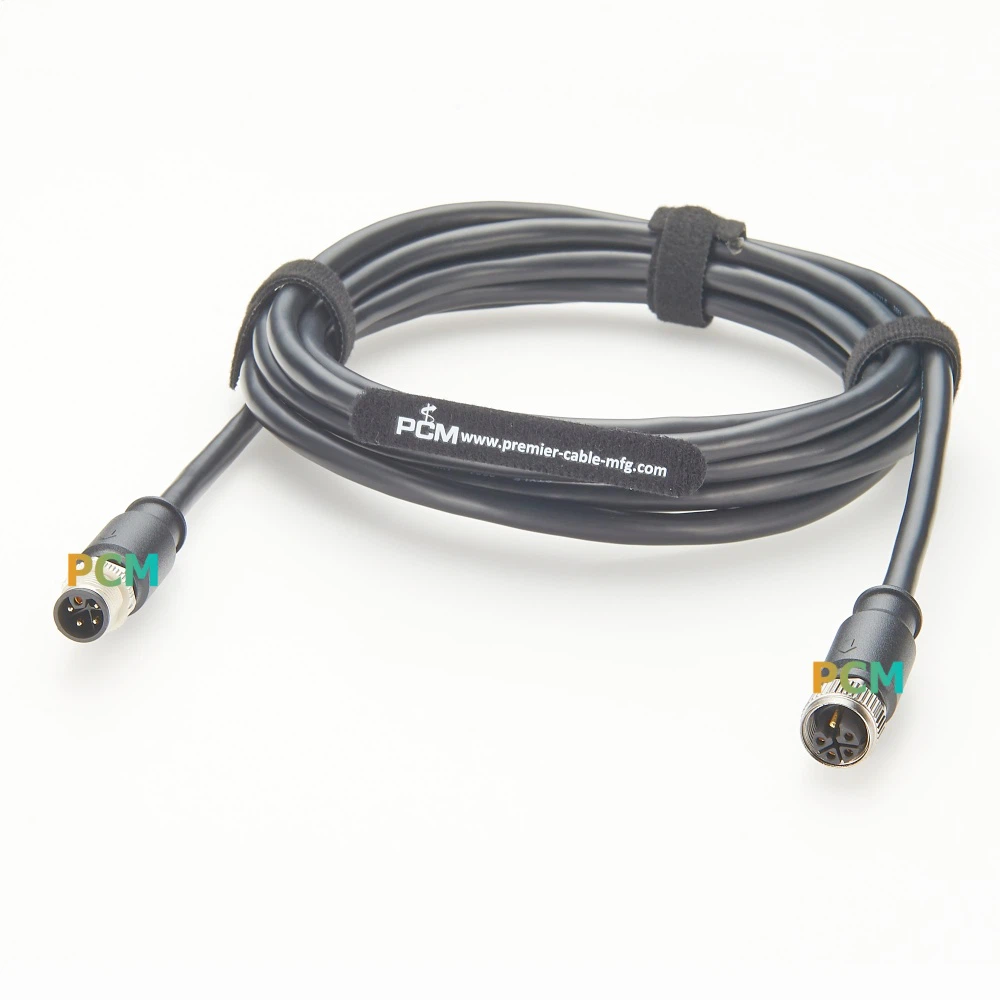

Products Description
The M12 L-Code 5-Position Power Cable is a high-performance connection cable specifically designed for power transmission in industrial automation systems. Featuring a 5-pin L-coded configuration, it supports high current loads and stable power output, making it ideal for powering PLC control systems, motor drives, and various other industrial devices. The PCM-0851 model exhibits excellent resistance to interference and exceptional electrical stability, ensuring reliable operation even within complex industrial environments. Its outer jacket is constructed from oil-resistant, abrasion-resistant, and highly flexible materials, enabling it to withstand conditions involving frequent bending and vibration. The connector utilizes a threaded locking mechanism to ensure a secure and reliable connection, offering an ingress protection rating of up to IP67; it is available in single-ended, double-ended, and custom-length configurations. This cable is well-suited for use in damp, dusty, and otherwise harsh industrial field applications.
Specification
|
Product name |
M12 L-Code 5 Position Power Cable |
|
DWG No. |
PCM-0851 |
|
Connector 1 |
M12 L-Coded 5 Pin Female |
|
Connector 2 |
M12 L-Coded 5 Pin Male |
|
OD |
6.5mm |
| Cable Length | 1.5m |
| Wire Gauge | 20AWG |
FAQ
Q: Can an M12 L-coded 5-pin power cable be cross-mated with a standard M12 A-coded power cable?
A: No. L-coding utilizes a unique mechanical keying design that is completely incompatible with A-, B-, and D-coded interfaces; attempting to force a connection will damage the connector. This design serves to prevent high-power supplies (16A) from being inadvertently connected to signal or low-current circuits, thereby eliminating potential safety hazards.
Q: What is the maximum transmission distance for this cable?
A: It is primarily limited by voltage drop. In a 24V DC system with a 16A load and a cross-sectional area of 2.5 mm², the recommended maximum length for a single cable segment is 20 meters (resulting in an approximate voltage drop of 5%). If this distance is exceeded, it is necessary to increase the cable gauge or utilize an intermediate power distribution box. For communication-related applications (such as PROFINET power channels), the length is generally kept within 30 meters.
Q: Is it necessary to connect the FE pin during field wiring?
A: It is strongly recommended. The FE pin is used to ground the cable shielding (if present) or the metal housing of the device; this helps suppress electromagnetic interference (EMI) and ensures compliance with the EMC requirements for PROFINET devices. Failing to connect the FE pin may result in signal instability or the accumulation of static electricity.

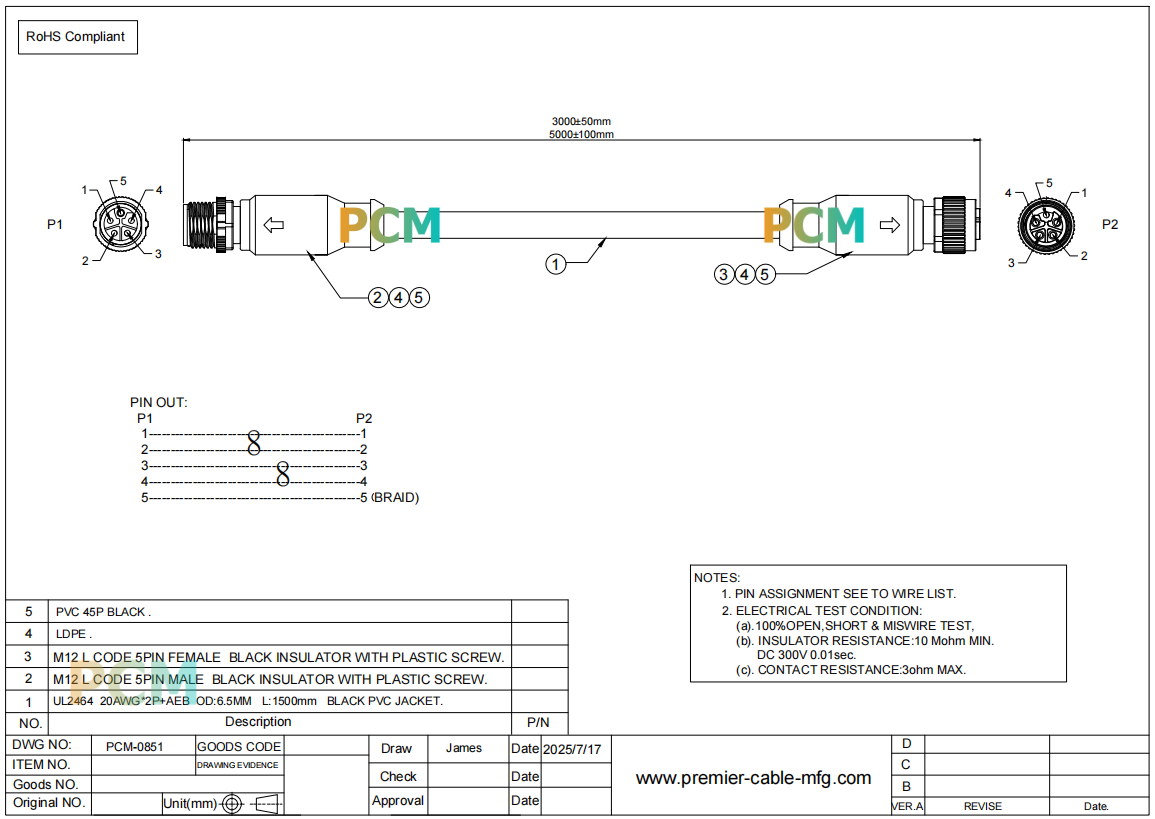

Drawing
