The M12 L-Code panel-mount connector is designed for fixed panel installation on industrial equipment, providing a stable, high-power electrical connection suitable for automation systems and control cabinet applications. PCM Cable # : PCM-S-0533

Send Inquiry

Description

Send Inquiry

Products Description

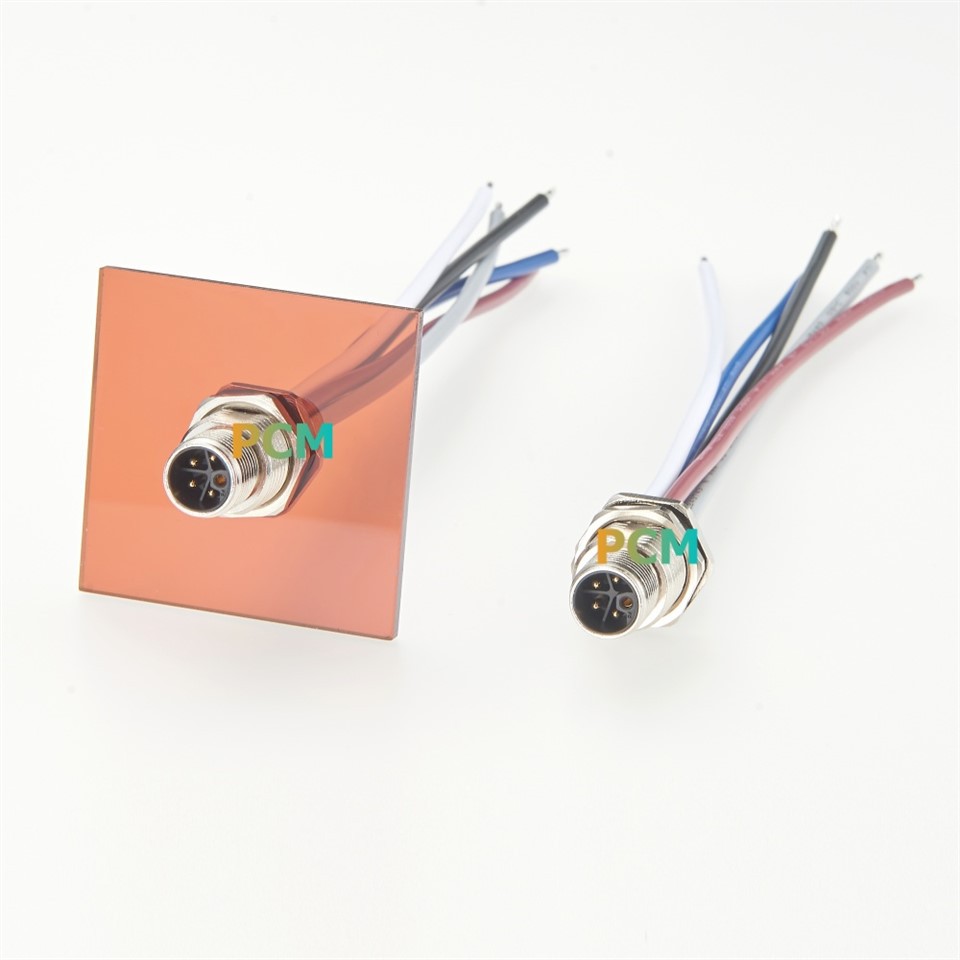

Front Mount M12 L Code Panel Mount Connector

The M12 L-coded panel-mount connector is a compact, high-current power interface specifically designed for the field of industrial automation. Compliant with the IEC 61076-2-111 standard, it supports currents of up to 16A and operating voltages of 63V AC/DC, with a rated power output reaching 0.75kW, thereby ensuring stable and reliable power transmission for demanding industrial applications. The PCM-S-0533 features a front-lock panel-mount design with a 16mm cutout, facilitating secure and seamless integration into control cabinets or equipment panels. Equipped with a 5-core 16 AWG UL1015 pigtail cable (with tinned ends), it allows for direct soldering to PCBs or connection to other terminals, thereby enhancing installation flexibility and efficiency; it is widely utilized in industrial control systems and automation equipment.

Specification

Product name	M12 L Code Panel Mount Connector

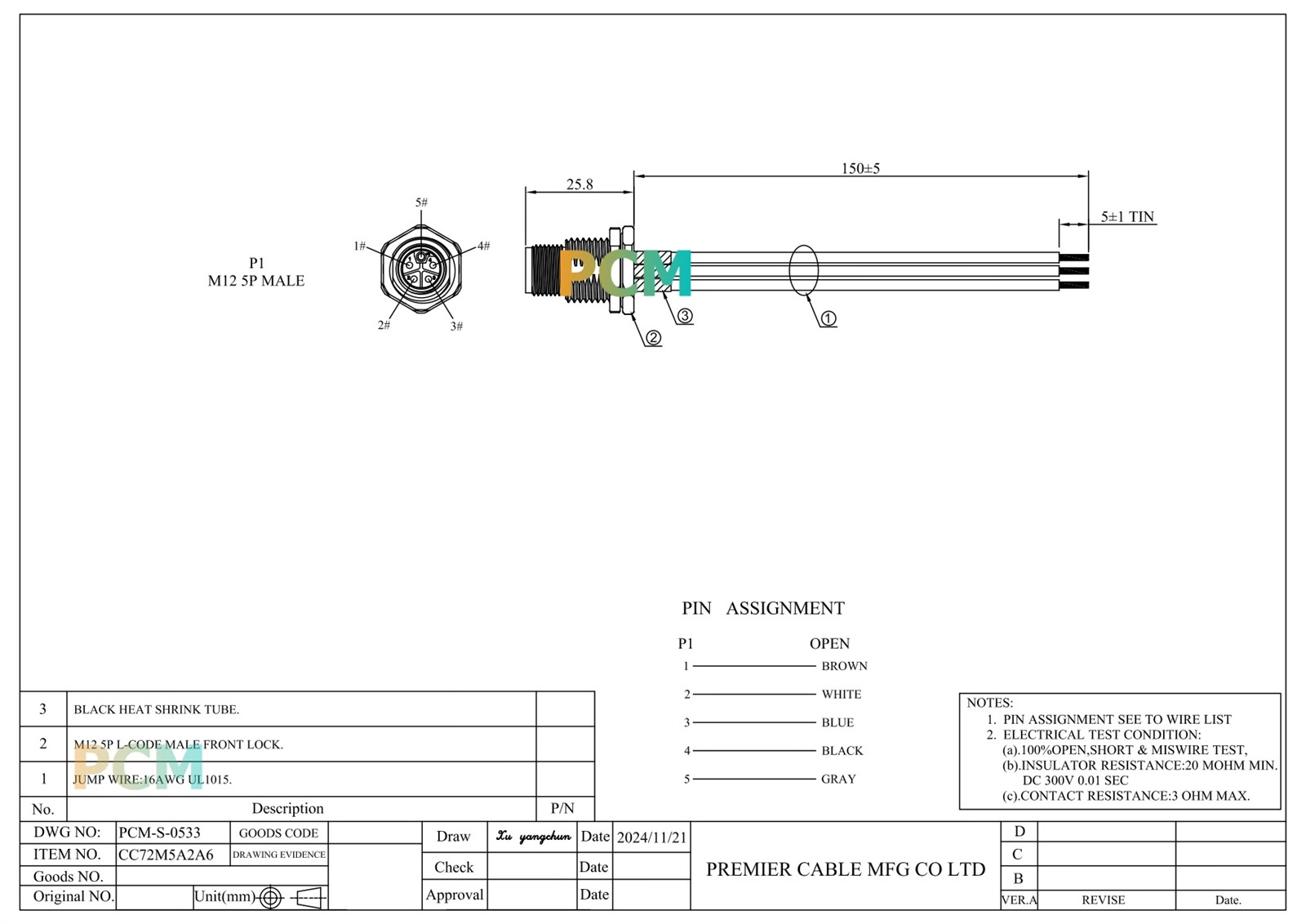

DWG No.	PCM-S-0533
Connector Type	M12 L-Coded 5 Pin Male
Jump Wire	16AWG
Cutout Size	16mm

Features

▲ High Current-Carrying Capacity: Supports currents up to 16A and operating voltages of 63V AC/DC, with a rated power output reaching 0.75kW, meeting the high-power supply demands of industrial applications.

▲Standardized Design: Compliant with the IEC 61076-2-111 standard, ensuring high compatibility with industrial automation systems.

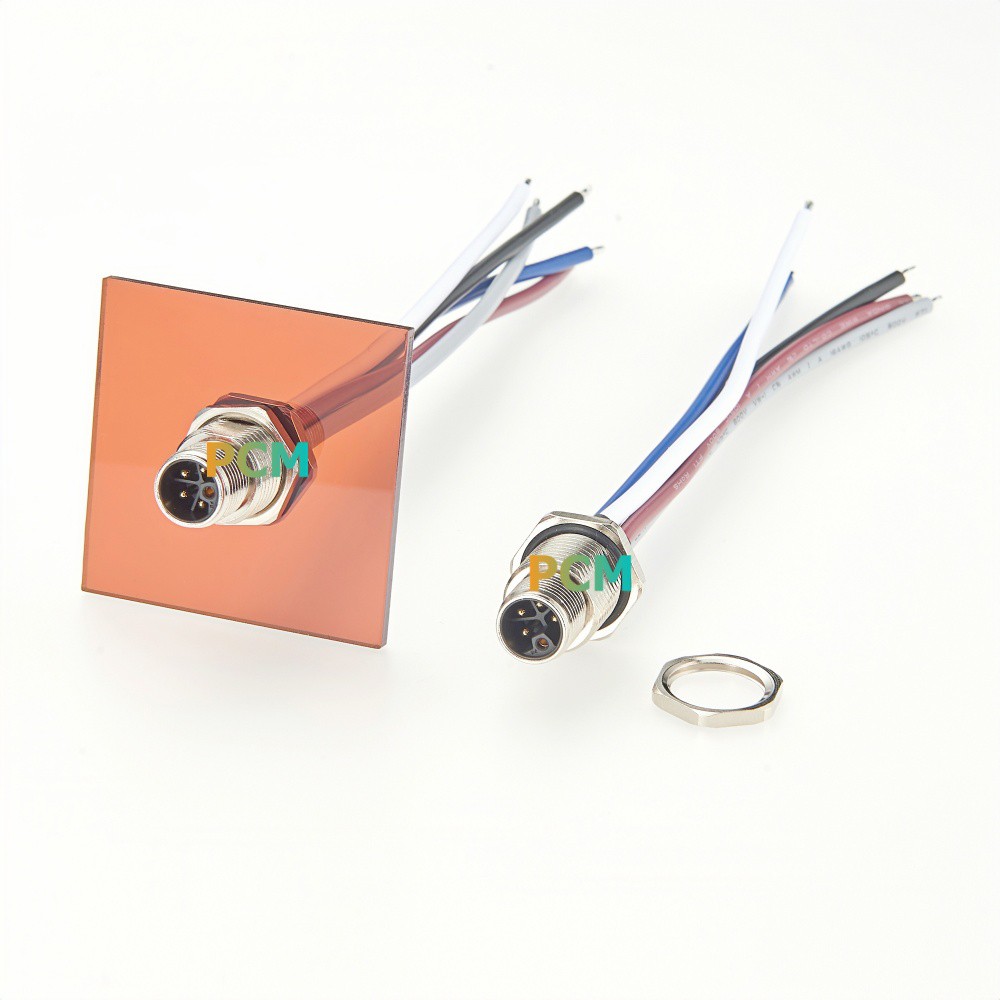

▲ Panel-Mount Structure: Features a front-locking design with a 16mm panel cutout, ensuring secure mounting and facilitating seamless integration into equipment panels or control cabinets.

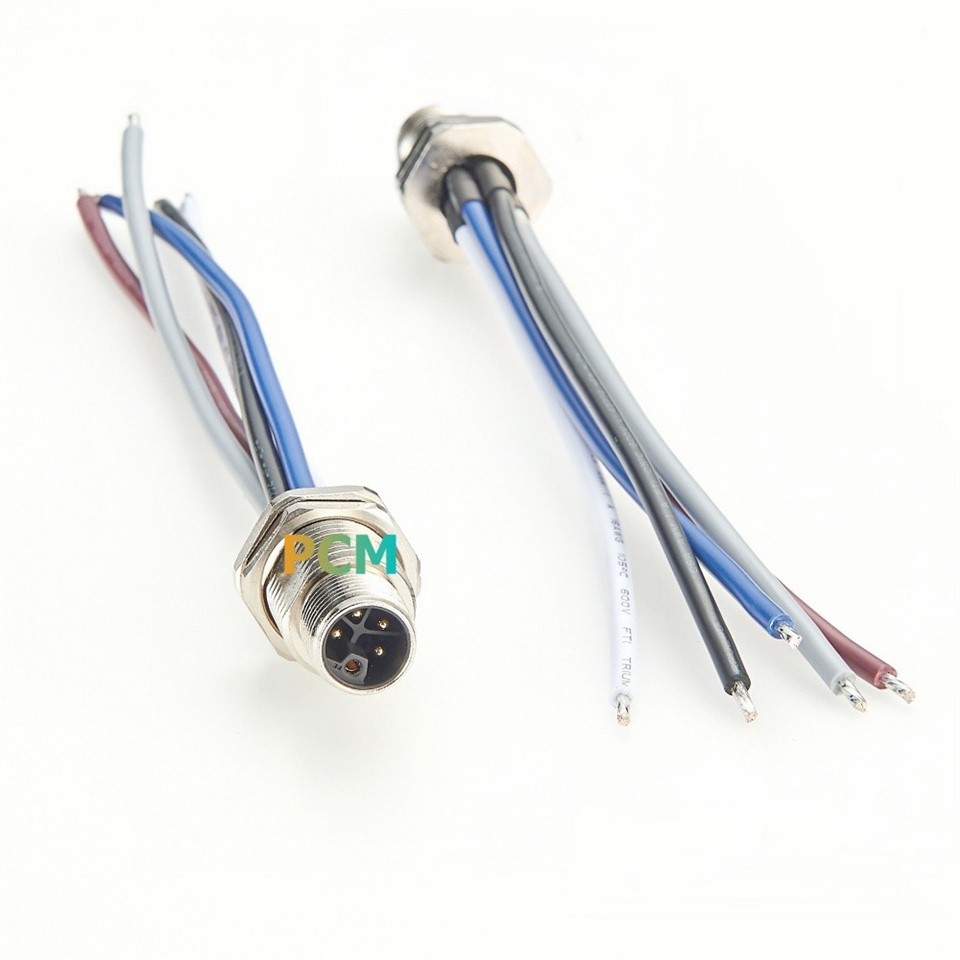

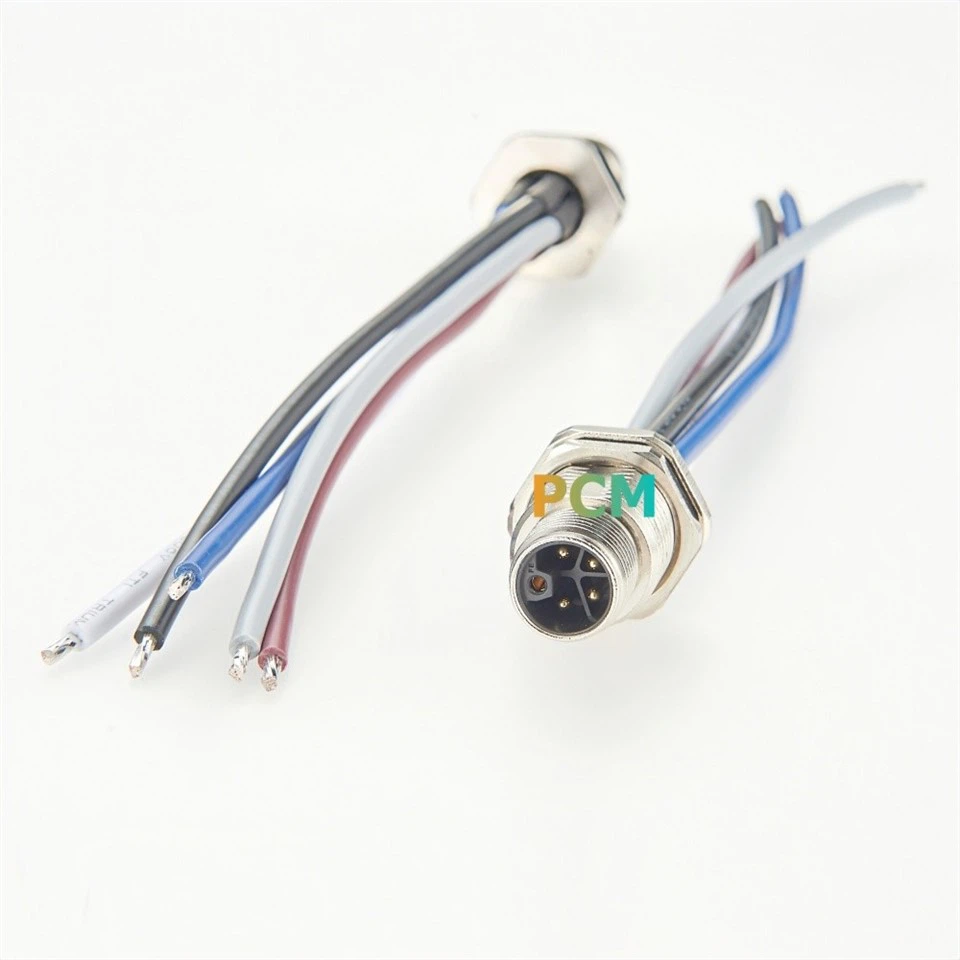

▲ Integrated Pigtail Cable: Equipped with a 5-core, 16AWG UL1015 pigtail cable (with tinned ends), allowing for direct PCB soldering or secondary connection, thereby enhancing installation flexibility.

▲ Compact and Reliable: Features a miniaturized structural design that enables highly reliable power connections within limited space constraints.

▲ Industrial-Grade Protection and Stability: Suitable for complex industrial environments-including those subject to vibration and dust-ensuring long-term, stable operation.
