Products Description

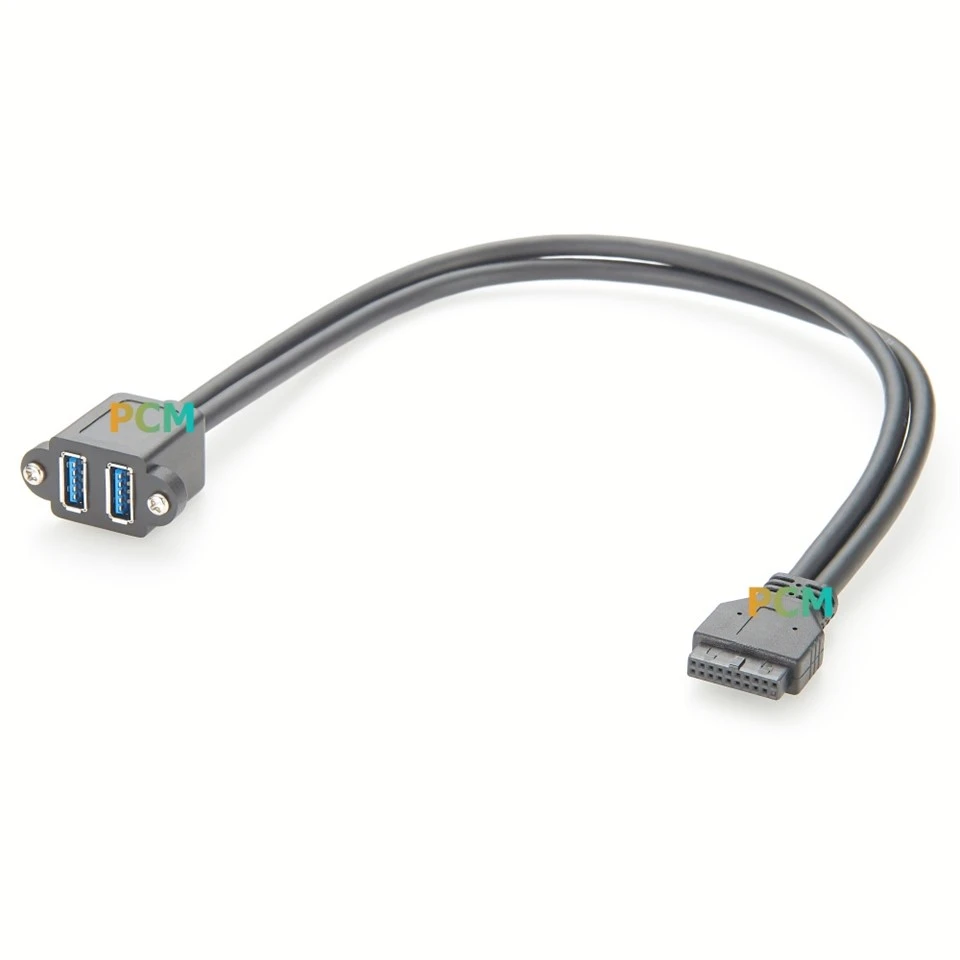

The USB 3.0 Type-A to IDC 20-Pin Panel Mount Cable facilitates the connection and extension between a USB 3.0 Type-A port and an IDC 20-pin motherboard header, supporting high-speed data transmission and stable power delivery. Featuring a panel-mount design, the PCM-0826 allows for easy integration and secure mounting within device enclosures or cabinets, thereby enhancing cable management neatness and connection reliability. The IDC 20-pin connector connects directly to the motherboard's front-panel USB 3.0 header, making it widely applicable in fields such as industrial PCs, servers, test equipment, and embedded systems. Customization options-including cable length, connector orientation, and structural configurations-are available to meet diverse application requirements.
Specification
| Product name | USB3.0 A to IDC 20Pin Panel Mount Cable |
| Connector A | USB3.0 A Female |
| Connector B | IDC 20Pin Female |
| Part No. | PCM-0826 |
| Screw | 5*5mm M3 |
| OD | 5.8mm |
| Wire | (28AWG*1P+EAM)*2+28AWG*1P+24AWG*2C+EAB |
| Cable Length | 0.45m |
Drawing
