Left-Angle Waterproof FAKRA Z Code Jack to Plug Extension Cable
Rosenberger 59K2LK-102A4-Z to 59Z176-C01-Z with LEONI DACAR 462 Automotive Coax
Waterproof FAKRA Extension for Space-Constrained Installations

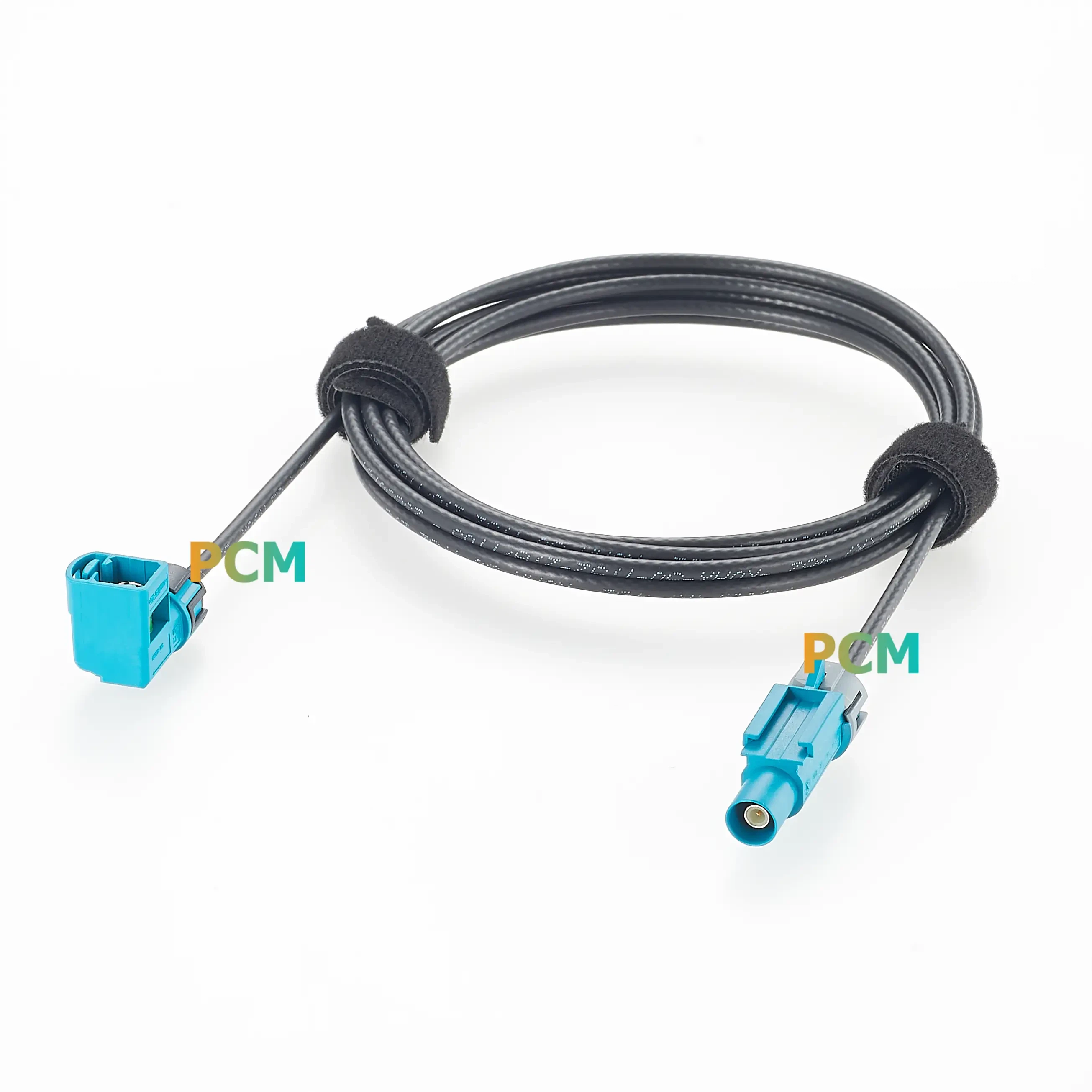

PCM-ZC-0179 is a single-channel FAKRA Z-code jack-to-plug extension cable designed for automotive coaxial connections requiring a sealed interface and controlled cable routing.

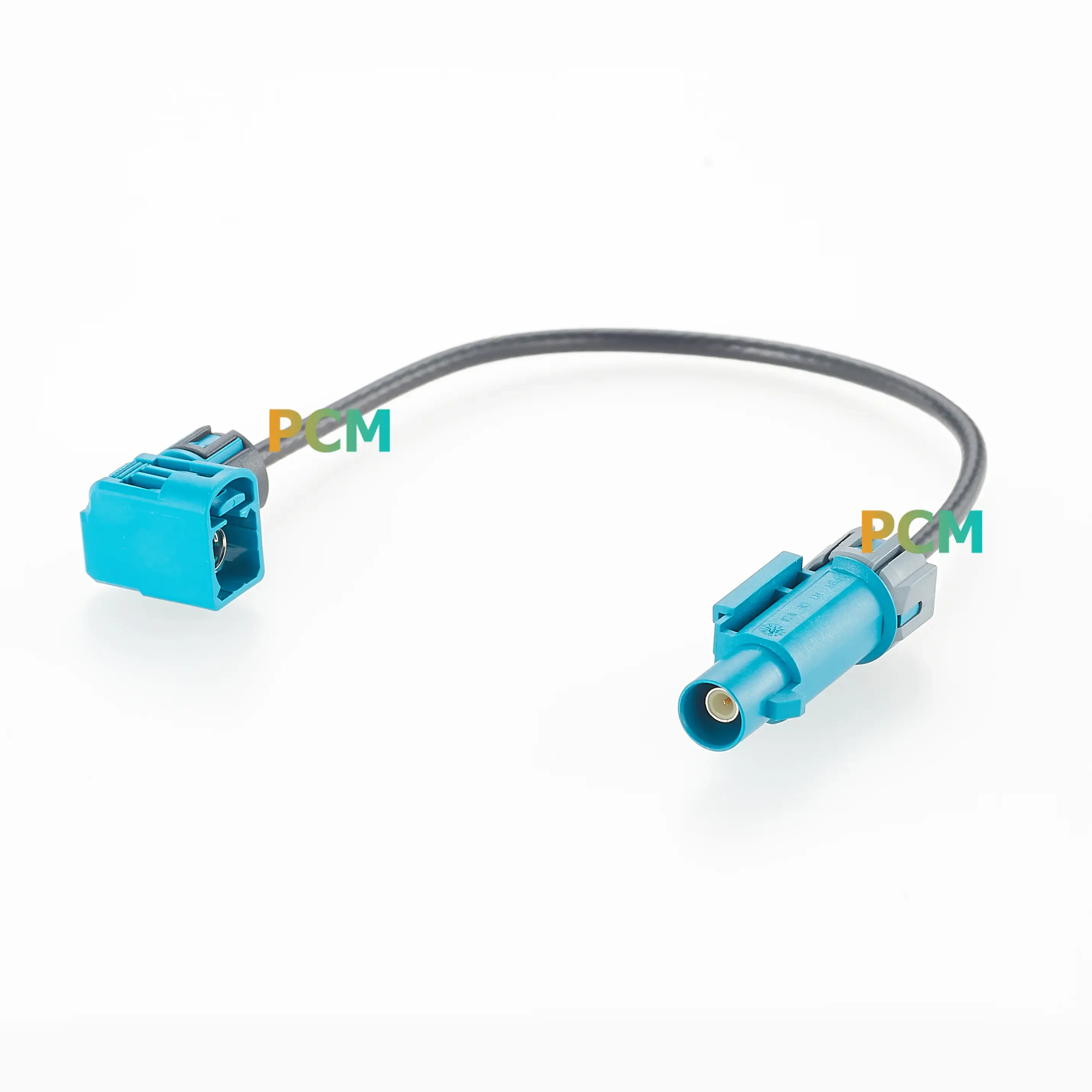

The assembly combines a Rosenberger 59K2LK-102A4-Z angled waterproof jack with a 59Z176-C01-Z FAKRA plug and LEONI DACAR 462 50-ohm coaxial cable.
Left-Angle Cable Exit for Cleaner Routing

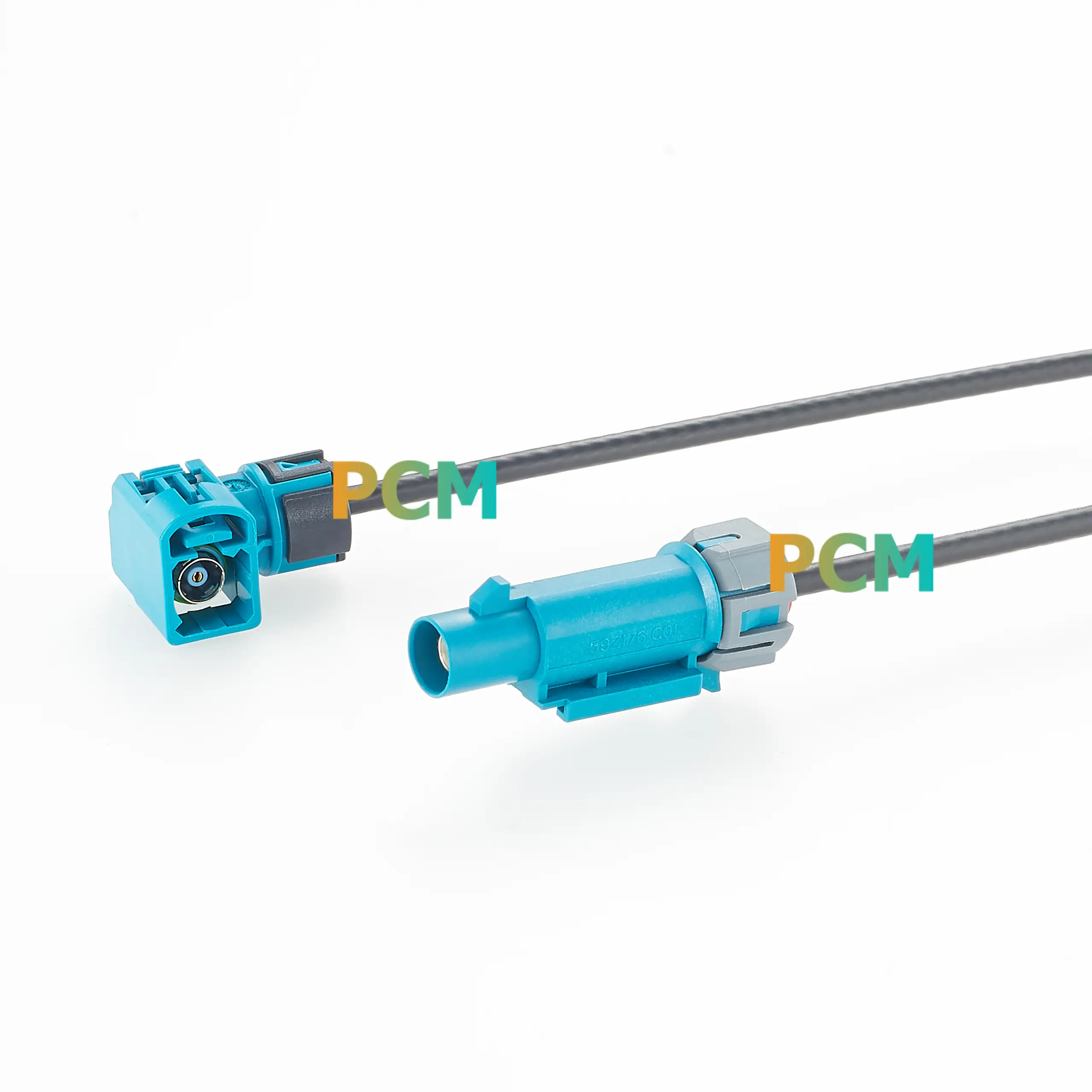

The 59K2LK-102A4-Z uses an angled connector construction with the cable exiting to the left relative to the defined connector orientation. This allows the coaxial cable to turn immediately after the FAKRA connection instead of extending straight behind the mating device.
The design can be useful behind vehicle modules, displays, antenna units or other components where rear clearance is restricted and a tighter cable routing path is required.
Jack-to-Plug FAKRA Interface
Unlike FAKRA cables using identical connector orientations on both ends, PCM-ZC-0179 provides a direct transition from a FAKRA jack to a FAKRA plug.
This makes the cable suitable as an extension or adapter between components whose existing FAKRA mating interfaces require opposite connector genders while retaining the same Z coding.
Connector Configuration
Waterproof FAKRA Jack
Rosenberger: 59K2LK-102A4-Z
Coding: Z Code
Configuration: Angled / cable-left
FAKRA Plug
Rosenberger: 59Z176-C01-Z
Coding: Z Code
Configuration: Straight
LEONI DACAR 462 Automotive Coaxial Cable
LEONI DACAR 462 is a compact automotive coaxial cable used for high-frequency signal transmission in vehicle RF systems. Its 50-ohm coaxial construction provides a shielded transmission path between the two FAKRA interfaces.
Rosenberger lists DACAR 462 among the applicable RG174-size cables for this waterproof angled FAKRA connector family.
Technical Specifications
| Product Type | Waterproof FAKRA Jack to Plug Extension Cable |
| Premier Cable Part No. | PCM-ZC-0179 |
| Connector 1 | Rosenberger 59K2LK-102A4-Z |
| Connector 1 Interface | FAKRA Jack, Z Code, Waterproof, Angled |
| Connector 2 | Rosenberger 59Z176-C01-Z |
| Connector 2 Interface | FAKRA Plug, Z Code, Straight |
| Cable | LEONI DACAR 462 |
| Impedance | 50 Ω Nominal |
| Frequency Range | DC – 3 GHz |
| VSWR | 1.80 Maximum |
| Hi-Pot | 800 VRMS Minimum |
| Continuity | 100% Tested |
| Cable Retention | 110 N Minimum |
| Temperature Range | -40°C to +105°C |
| Drawing Length | 150 ± 5 mm |
Where This Cable Configuration Helps
Custom Waterproof FAKRA Cable Assemblies
Different cable lengths, FAKRA coding, connector orientations and cable exit directions can be supplied according to the mating connector, installation space and vehicle RF system requirements.
PCM-ZC-0179 Cable Drawing
