AU1-Compatible Automotive USB Type-C Cable Assembly

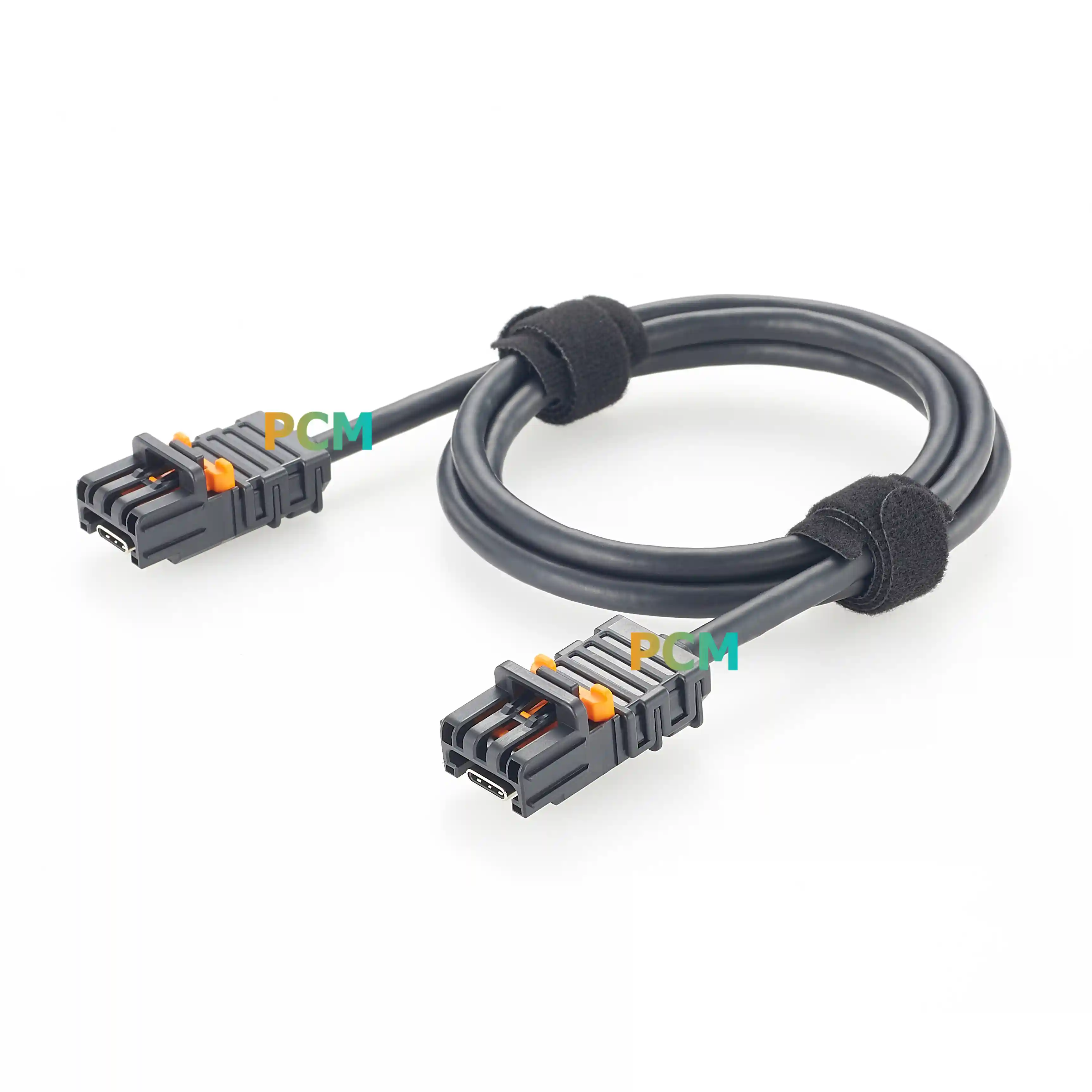

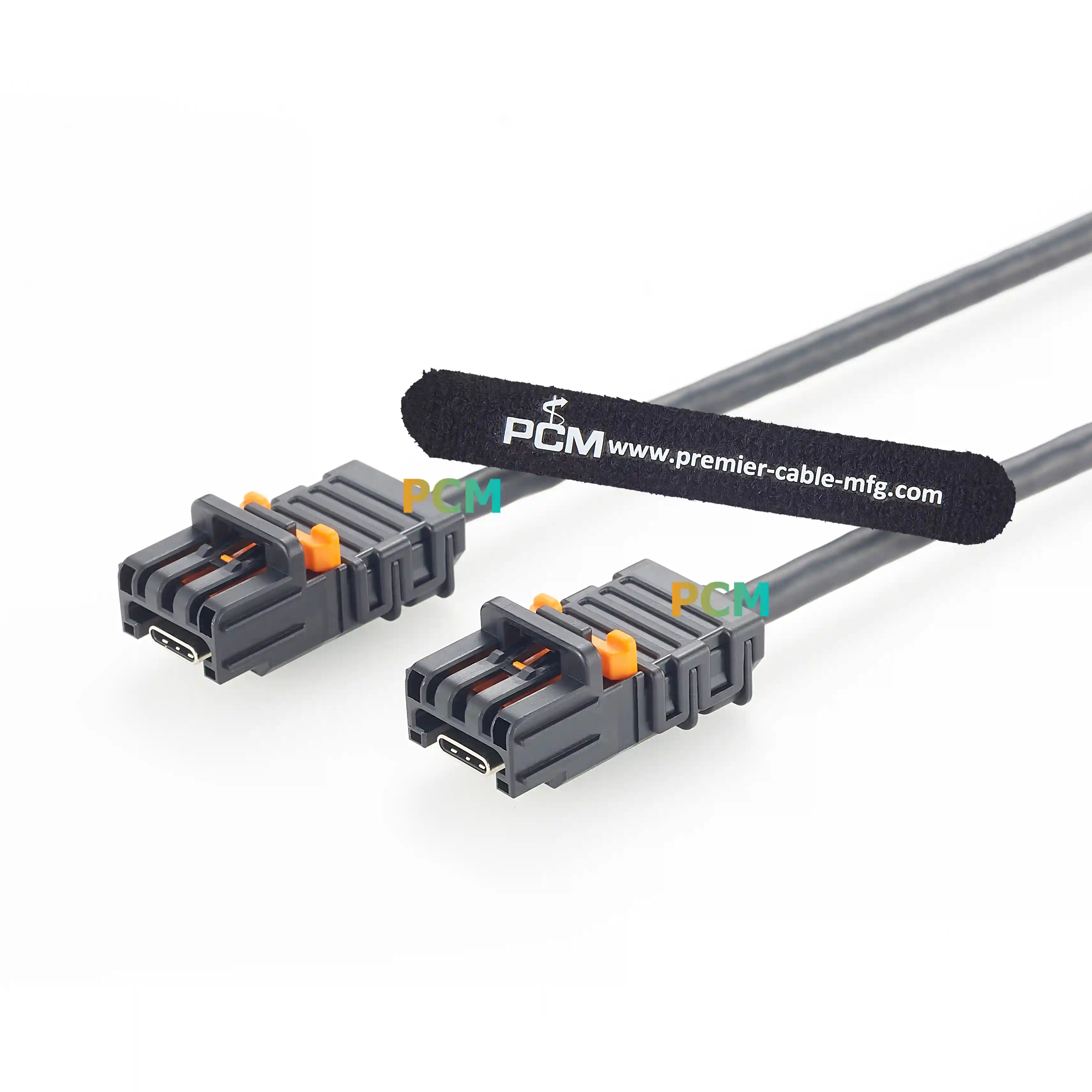

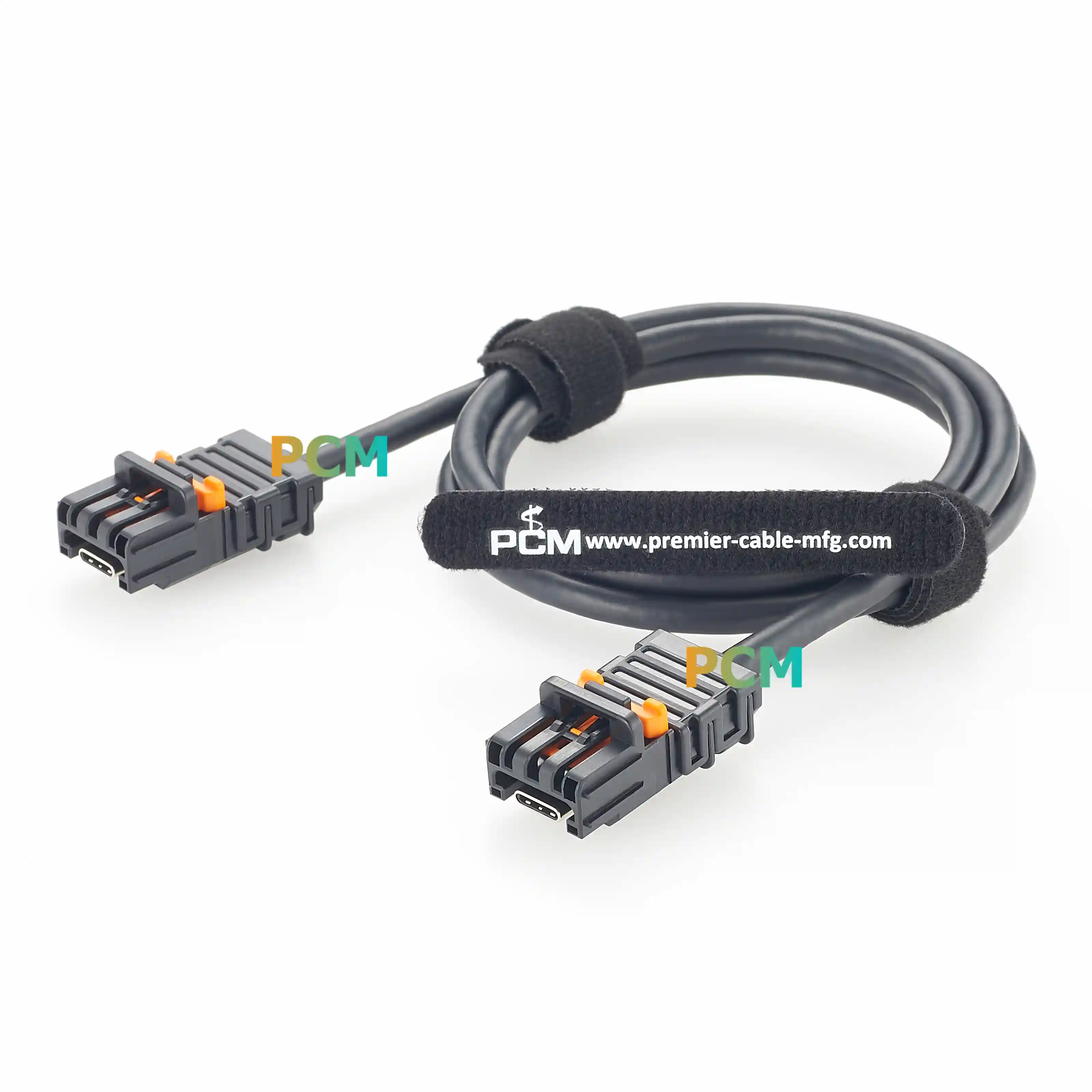

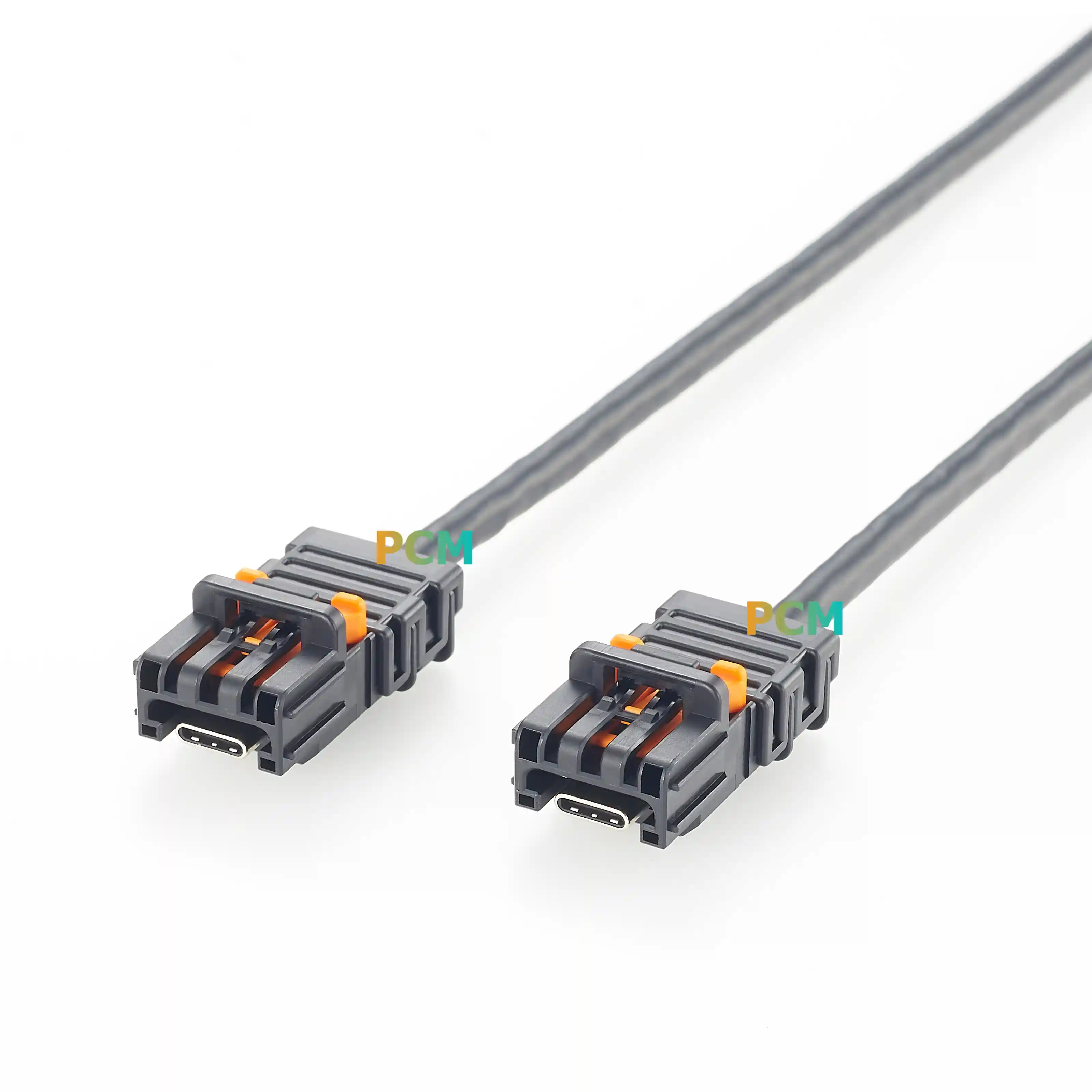

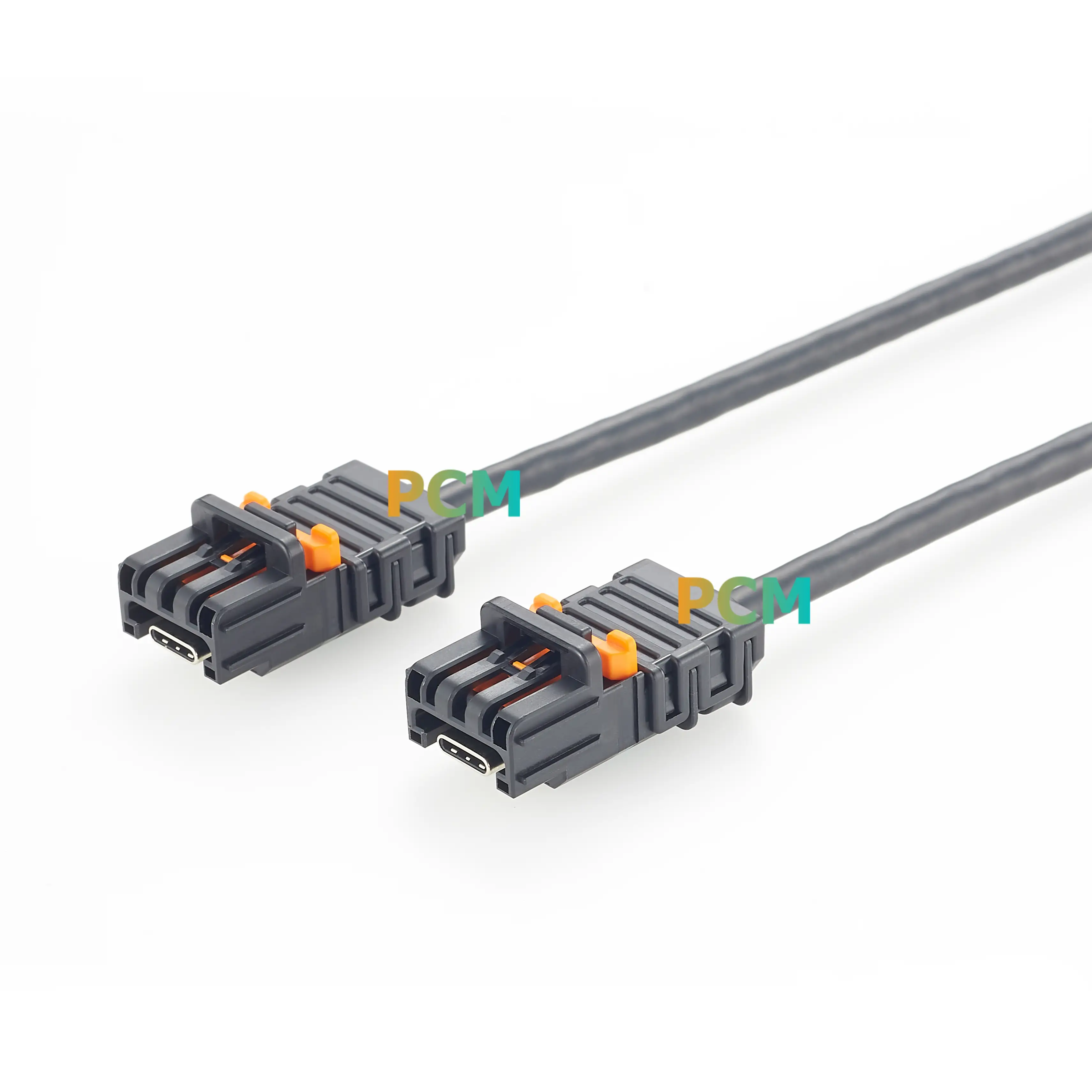

PCM-HD-0307 is an independently manufactured AU1-compatible automotive USB Type-C cable assembly with locking connectors on both ends. It is designed for compatible in-vehicle electronic systems that require a secured USB Type-C connection together with high-speed data, power delivery and DisplayPort Alt Mode support.
Secure AU1-Compatible Locking Connection
The PCM-HD-0307 uses AU1-compatible locking housings on both ends, making it suitable for applications where both connected devices require the same automotive-style USB Type-C interface.
The straight housings use a standard-key configuration with orange CPA locking components. This provides a clear mechanical locking structure for compatible automotive modules and internal vehicle electronic connections.
USB 3.2 Gen 2 Data and Power Support
The cable is designed for USB 3.2 Gen 2 applications with data transmission up to 10Gbps. It also supports power delivery up to 20V / 5A, providing a maximum power capability of 100W.
An E-Marker is integrated into the USB Type-C connector design, and the assembly also supports 4K 60Hz DisplayPort Alt Mode where the connected equipment is compatible.
Key Features
Locking automotive-style USB Type-C interfaces on both ends.
Designed for USB 3.2 Gen 2 data transmission up to 10Gbps.
Supports up to 20V / 5A power delivery with E-Marker.
Supports DisplayPort Alt Mode for compatible display systems.
Product Specifications
| Part Number | PCM-HD-0307 |
| Connector Configuration | AU1-Compatible Locking USB Type-C Male to Male |
| USB Standard | USB 3.2 Gen 2 |
| Data Rate | Up to 10Gbps |
| Power | Up to 20V / 5A, 100W |
| Video | 4K 60Hz DisplayPort Alt Mode |
| E-Marker | Yes |
| Keying | Standard Key |
| CPA | Orange CPA |
| Contact | Gold Plated |
| Shell | Nickel Plated |
| Cable Jacket | Black TPE |
| Cable OD | 5.0 ± 0.2 mm |
| Standard Lengths | 1m / 1.5m |
| Compliance | RoHS |
Typical Applications
In-Vehicle Infotainment
For compatible infotainment modules, displays and internal vehicle electronic connections.
Automotive USB Modules
Suitable for compatible USB interface modules and center-console electronic systems.
Development & Validation
Can be used in compatible prototype, development and validation systems requiring secured Type-C connections.
Technical Drawing
PCM-HD-0307 dimensions, pinout and cable construction reference.
Need an AU1-Compatible Automotive USB-C Cable?
Send us your required cable length, connector configuration, pinout and quantity. Custom cable assemblies can be produced according to your application requirements.
