AU1-Compatible to USB Type-C Automotive Cable Assembly
PCM-HD-0308 is an independently manufactured automotive USB Type-C cable assembly with an AU1-compatible locking connector on one end and a standard USB Type-C male connector on the other. It is designed for compatible vehicle electronics, development systems and other applications requiring these two interface types.
AU1-Compatible Locking to Standard USB-C
PCM-HD-0308 combines an AU1-compatible automotive locking interface with a conventional USB Type-C male connector. This configuration is useful when an automotive module or secured internal interface needs to connect to equipment using a standard USB-C receptacle.

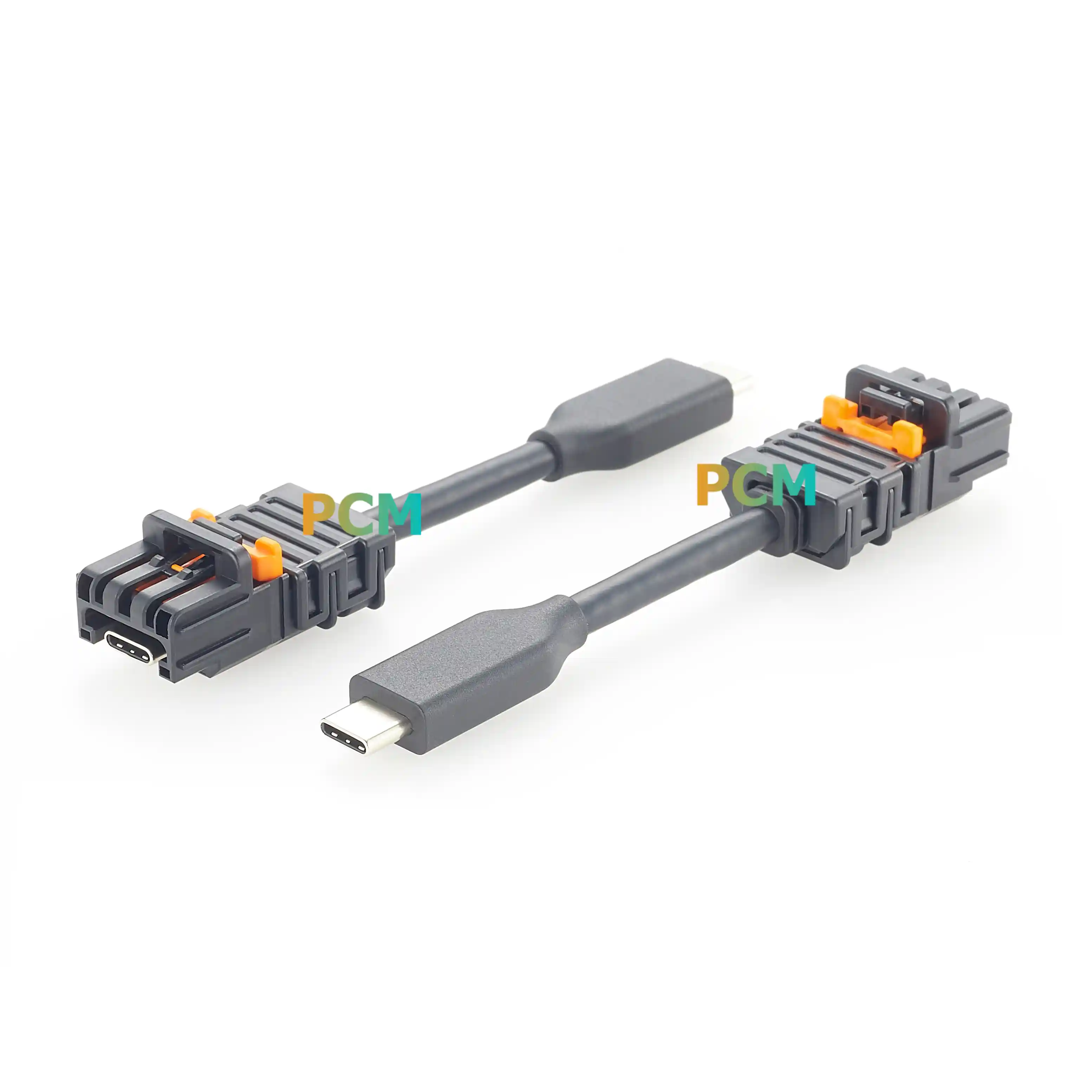

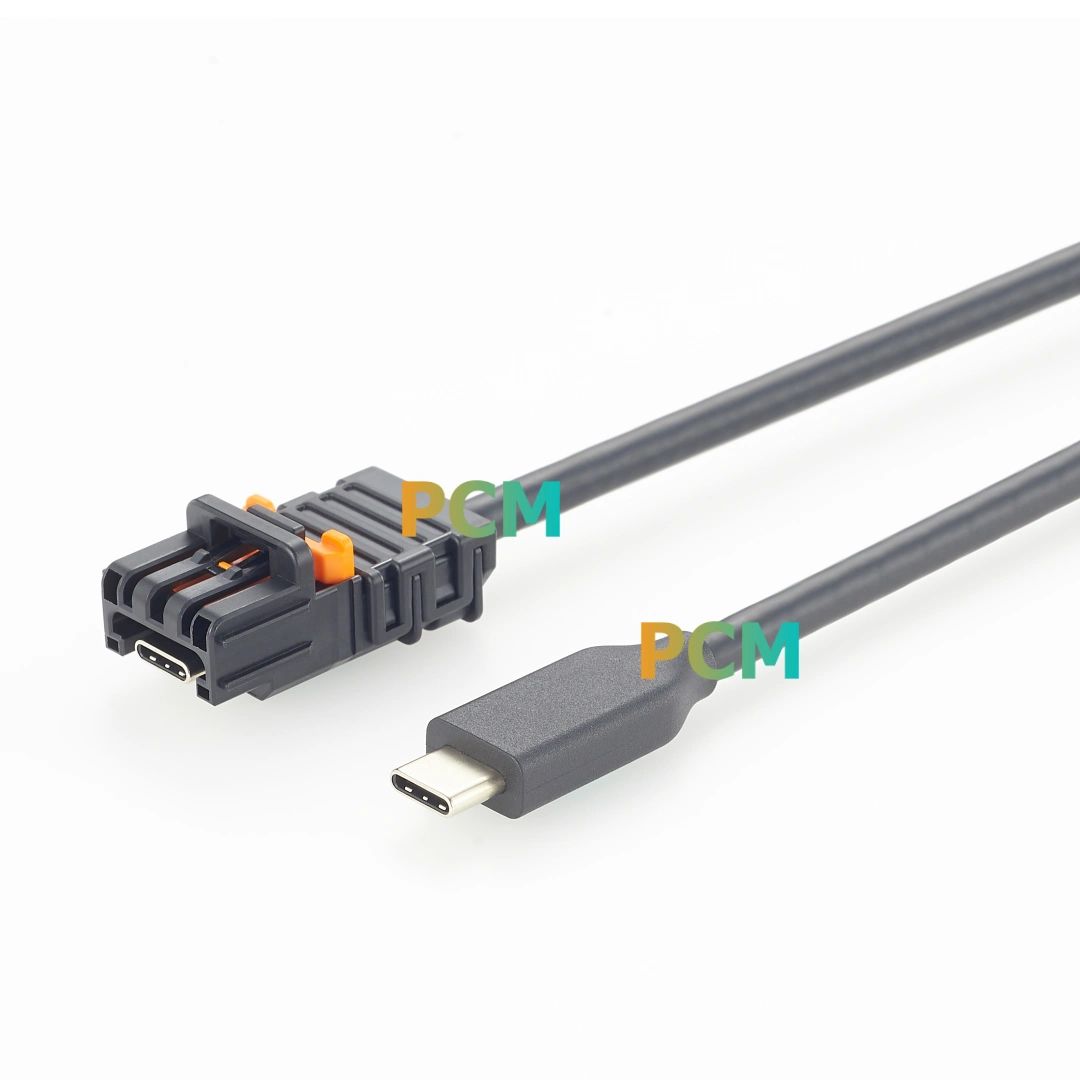

The AU1-compatible side uses a straight housing with standard keying and an orange CPA locking component, while the opposite side uses a standard overmolded USB Type-C male connector.
USB 3.2 Gen 2, 100W and DP Alt Mode
The cable supports USB 3.2 Gen 2 data transmission up to 10Gbps and power delivery up to 20V / 5A, providing a maximum power capability of 100W.
An E-Marker is integrated into the USB Type-C connector design. The cable also supports 4K 60Hz DisplayPort Alt Mode when used with compatible source and display equipment.
Key Features
AU1-compatible locking connector to standard USB Type-C male.
Designed for USB 3.2 Gen 2 data transmission up to 10Gbps.
Supports up to 20V / 5A power delivery with E-Marker.
Supports DisplayPort Alt Mode for compatible display applications.
Product Specifications
| Part Number | PCM-HD-0308 |
| Connector A | Standard USB Type-C Male |
| Connector B | AU1-Compatible Locking USB Type-C |
| USB Standard | USB 3.2 Gen 2 |
| Data Rate | Up to 10Gbps |
| Power | Up to 20V / 5A, 100W |
| Video | 4K 60Hz DisplayPort Alt Mode |
| E-Marker | Yes |
| Keying | Standard Key |
| CPA | Orange CPA |
| Contact | Gold Plated |
| Shell | Nickel Plated |
| Cable Jacket | Black TPE |
| Cable OD | 5.0 ± 0.2 mm |
| Standard Lengths | 0.2m / 1m / 1.5m |
| Compliance | RoHS |
Typical Applications
Vehicle Integration
Connect compatible automotive locking interfaces to equipment using standard USB Type-C.
Infotainment & USB Modules
Suitable for compatible infotainment, USB interface and in-vehicle electronic modules.
Development & Validation
Useful in compatible prototype, bench-test and validation systems requiring a standard USB-C interface on one side.
Technical Drawing
PCM-HD-0308 connector configuration, dimensions, pinout and cable construction reference.
Custom Cable Assembly Support
Cable length, connector configuration, wiring, shielding and labeling can be customized according to project requirements. Provide the mating connector information, required cable length, pinout and quantity for review.
Compatibility notice: AU1 is referenced only to identify the intended compatible interface. PCM-HD-0308 is an independently manufactured Premier Cable product and is not represented as a genuine Hirose product. Premier Cable is not affiliated with or endorsed by Hirose Electric.
Need an AU1-Compatible to USB-C Cable?
Send us your required cable length, connector configuration, pinout and quantity. Custom automotive USB Type-C cable assemblies can be produced according to your project requirements.
