Product Overview

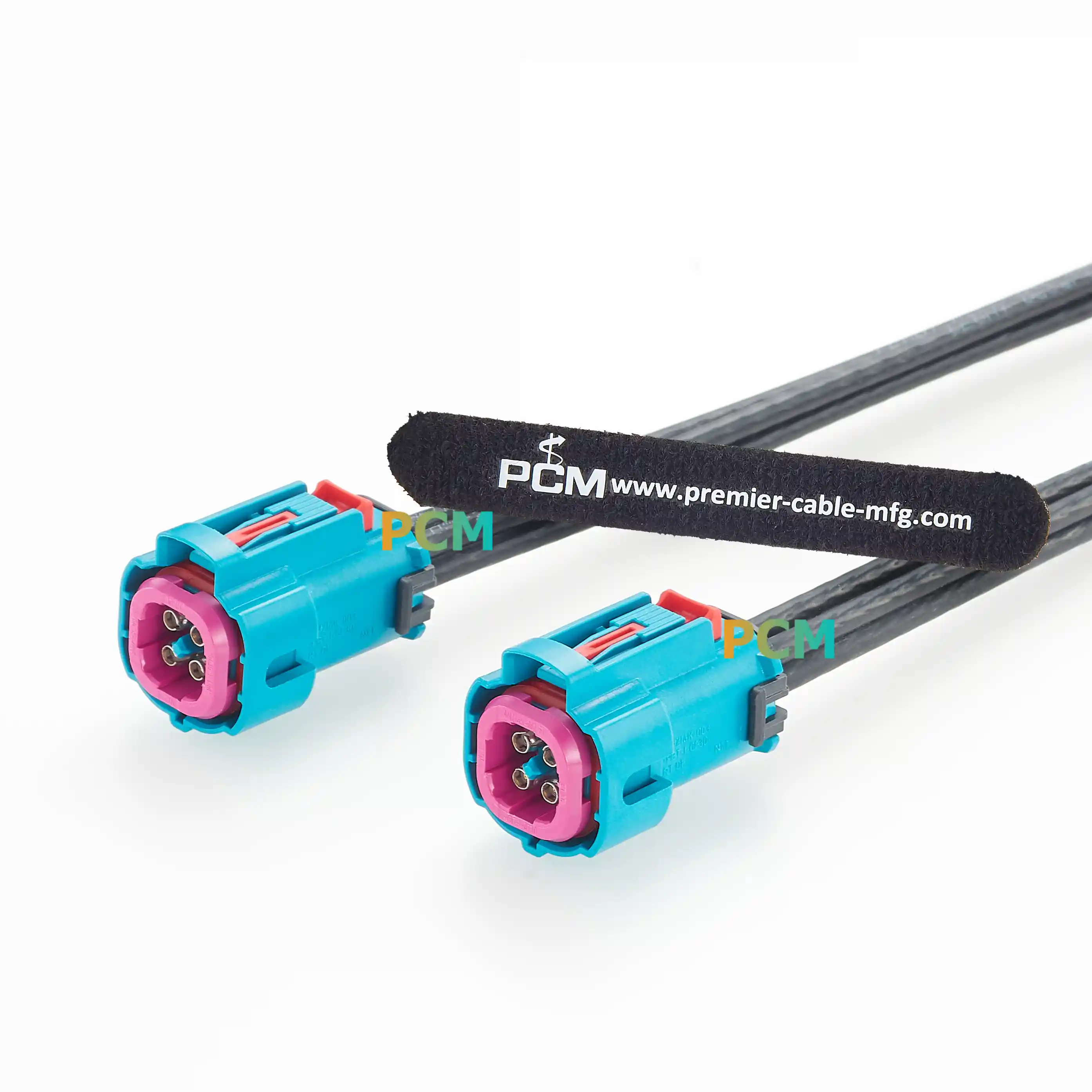

The AMK14K-1M4Z5-Z to AMK14K-1M4Z5-Z cable assembly is a four-channel automotive coaxial interconnect terminated with Rosenberger HFM Mini FAKRA Z-code jack connectors at both ends. The assembly combines four independent 50-ohm coaxial channels in one compact connector interface.
The standard construction uses LEONI DACAR 302-4 automotive coaxial cable and supports a specified frequency range from DC to 6 GHz. It is intended for space-constrained automotive electronic systems requiring multiple coaxial signal paths between cameras, displays, control units or related high-frequency modules.
Standard cable lengths are 0.5 m, 1 m and 2 m. Other lengths, identification labels, packaging and connector configurations can be evaluated according to the customer drawing, sample or application requirements.
Product Configuration
| Configuration Item | Description |
| Connector 1 | Rosenberger AMK14K-1M4Z5-Z HFM Mini FAKRA jack |
| Connector 2 | Rosenberger AMK14K-1M4Z5-Z HFM Mini FAKRA jack |
| Connector Coding | Z Code |
| Connector Arrangement | Jack to jack |
| Number of Channels | Four independent coaxial channels |
| Cable Type | LEONI DACAR 302-4 automotive coaxial cable |
| Internal Product Series | PCM-ZC-0195 |
This connector face contains four separate coaxial interfaces. It should not be described as a conventional four-pin electrical connector because each position includes an individual center contact and shielding structure.
Key Features
- Rosenberger AMK14K-1M4Z5-Z HFM Mini FAKRA connectors
- Four independent 50-ohm coaxial signal channels
- Compact four-port automotive coaxial interface
- Z-code jack-to-jack connector configuration
- LEONI DACAR 302-4 automotive coaxial cable
- Specified frequency range from DC to 6 GHz
- IP67 protection when correctly mated with compatible interfaces
- Operating temperature range from -40°C to +105°C
- Standard and customized cable lengths available
- 100% continuity inspection before shipment
Technical Specifications
| Specification | Value |
| Product Type | 4-port HFM Mini FAKRA automotive coaxial cable assembly |
| Nominal Impedance | 50 Ohm |
| Frequency Range | DC to 6 GHz |
| VSWR | 1.80 Max. |
| Dielectric Withstanding Voltage | 800 VRMS Min. |
| Connector Protection | IP67 when correctly and fully mated |
| Cable Retention | 110 N Min. |
| Operating Temperature | -40°C to +105°C |
| Electrical Inspection | 100% continuity test |
Standard Length Options
| Part Number | Nominal Cable Length |
| PCM-ZC-0195-0.5M | 500 ± 15 mm |
| PCM-ZC-0195-1M | 1000 ± 20 mm |
| PCM-ZC-0195-2M | 2000 ± 20 mm |
The listed dimensions are standard finished-length options. Custom lengths and tolerances can be manufactured after confirmation of the measurement reference, routing conditions and order quantity.
Four-Channel Signal Layout
The standard assembly uses a straight-through channel arrangement. Each coaxial channel includes a center conductor and an individual shield connection.
| P1 Channel | Signal Element | P2 Channel | Standard Routing |
| Pin 1 | Center conductor and shield | Pin 1 | Straight-through |
| Pin 2 | Center conductor and shield | Pin 2 | Straight-through |
| Pin 3 | Center conductor and shield | Pin 3 | Straight-through |
| Pin 4 | Center conductor and shield | Pin 4 | Straight-through |
Alternative channel mapping should only be manufactured against a customer-approved drawing or channel-assignment table. Connector coding, mating-interface orientation and channel numbering must be confirmed before production.
Drawing
