DB9 Female Right Angle RS232 Serial Cable





DB9 Female Right Angle to Open End Cable

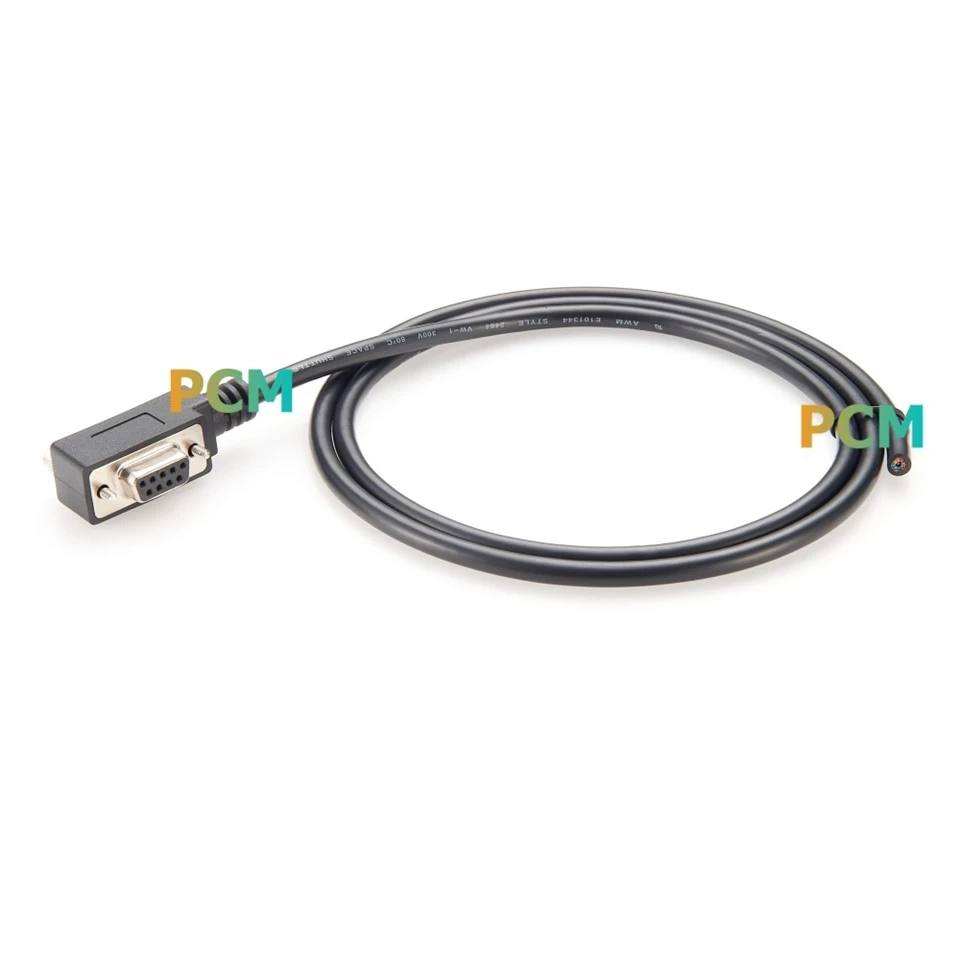

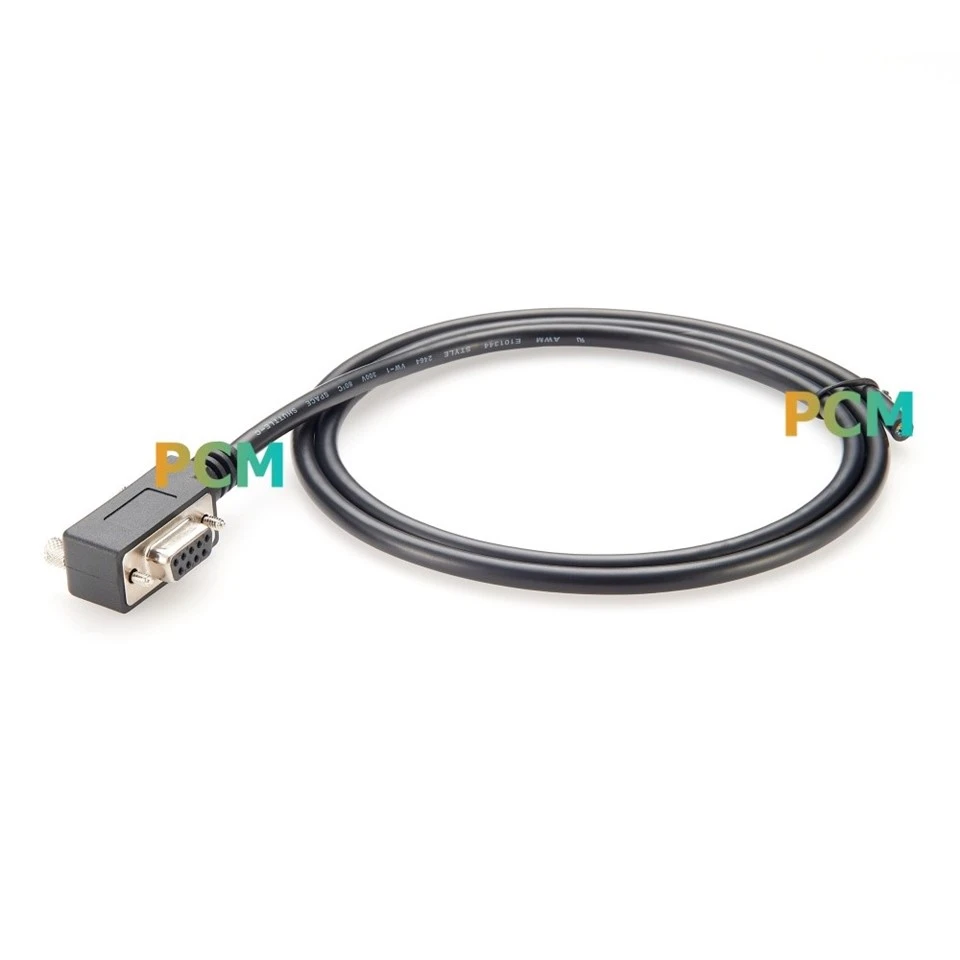

The DB9 Female Right Angle RS232 Serial Cable is a serial communication cable featuring a 90° lateral bend design. When viewed from the socket side, the female connector has a standard "five pins on top, four pins on the bottom" arrangement. This lateral bend structure allows the cable to run horizontally along the side of the device, making it particularly suitable for multi-layered rack-mounted equipment, wall-mounted control panels, and serial servers with horizontally arranged ports-situations where vertical cabling is limited. It effectively prevents excessively large bends from obstructing or interfering with adjacent interfaces.

1. 90° Lateral Bend Design, Freeing Up Vertical Space

Unlike traditional straight or up-and-down bend connectors, this cable features a lateral horizontal exit structure, allowing the cable to run close to the side of the equipment after connection. This is particularly advantageous for multi-layer stacked racks, wall-mounted panels, or equipment with horizontally arranged ports-it avoids excessive cable bending radii and prevents drooping cables from obstructing or compressing lower interfaces, significantly improving space utilization in high-density cabling environments.

2. Five-Pin Standard Female Connector, Clear Compatibility

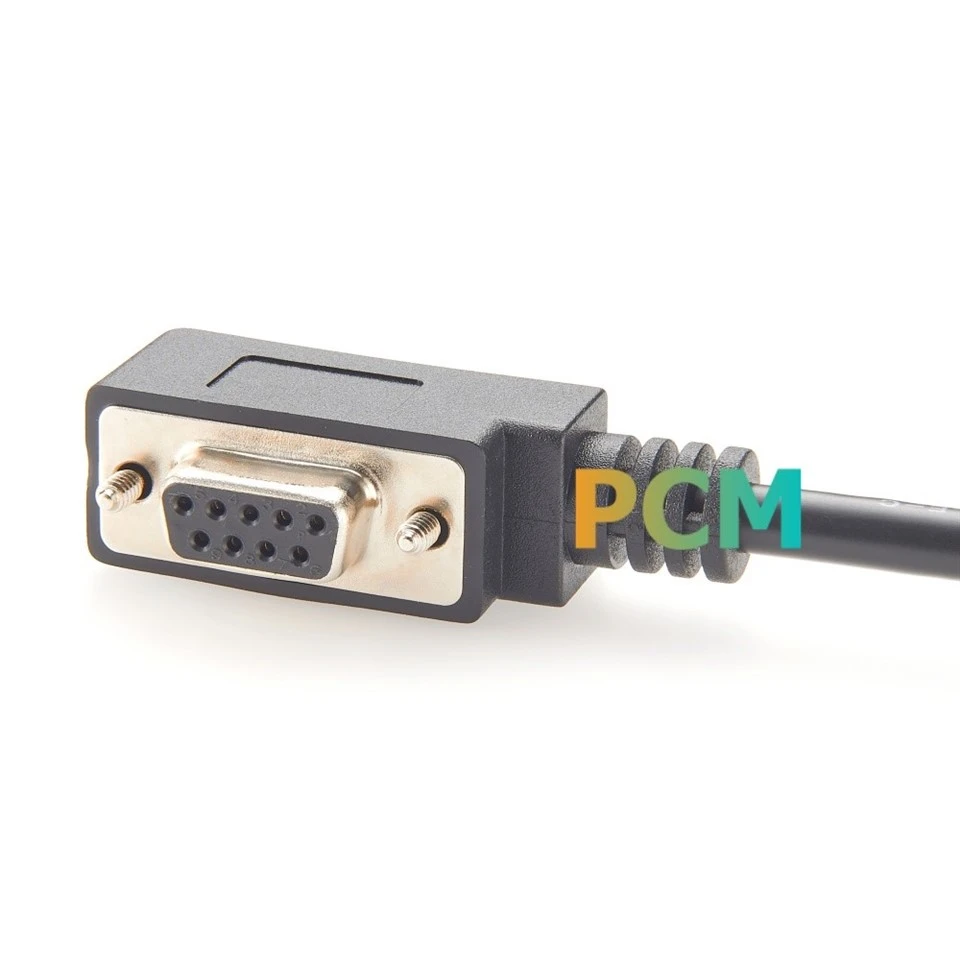

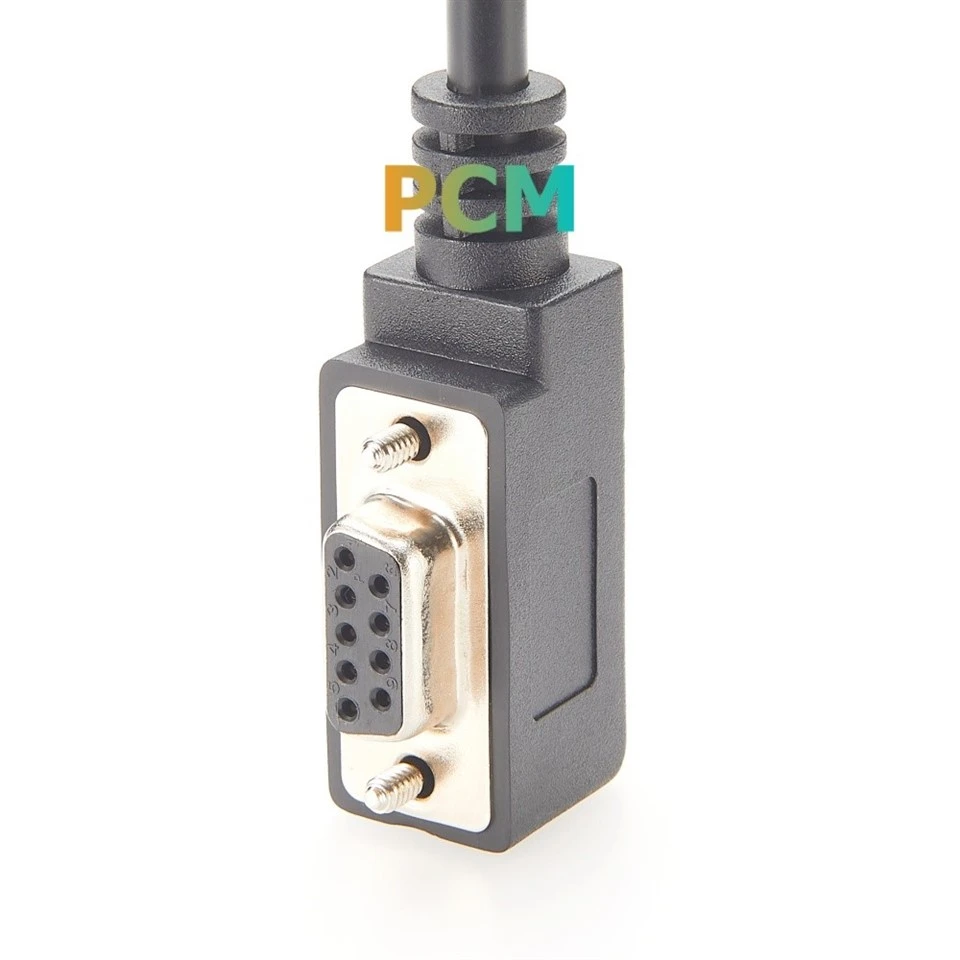

The DB9 female connector features a standard "five pins on top, four pins on the bottom" arrangement facing the user. The pin definitions are clear, facilitating quick identification and insertion without requiring additional orientation confirmation, effectively reducing the risk of mis-insertion.

3. Double-Layer Shielding Structure, Stable and Reliable Signal

Internally, it uses multi-strand stranded tinned copper conductors, combined with aluminum foil + braided double-layer shielding and an independent grounding lead, effectively suppressing electromagnetic interference (EMI) and radio frequency interference (RFI). Even near strong interference sources such as industrial motors and frequency converters, the integrity and accuracy of RS232 long-distance communication data can still be guaranteed.
