Products Description
This JST PH type 4-pin female-to-female connector cable features 4-pin PH type female connectors at both ends, enabling quick connections between compatible interfaces and providing a simple and stable connection solution for power and signal transmission in electronic devices.
The four wires are clearly color-coded for easy installation, wiring, and line identification:
Black - Pin 1
Red - Pin 2
Blue - Pin 3
Yellow - Pin 4
The compact 4-pin connection design saves internal space and reduces complex soldering operations, making it suitable for applications such as PCB modules, sensors, controllers, development boards, robotic devices, electronic prototypes, and DIY electronics projects.
Specification
|
Product Name |
JST PH-Style Female to Female Cable 4Pin |
|
Connector A |
JST PH 4Pin Female |
| Connector B | JST PH 4Pin Female |
|
Cable Length |
16cm, Or OEM |
| Wire Gauge |
24AWG |
| Rated Current | 2A |
| Rated Voltage | 100V |
| Pin 1 | Black |
| Pin 2 | Red |
| Pin 3 | Blue |
| Pin 4 | Yellow |

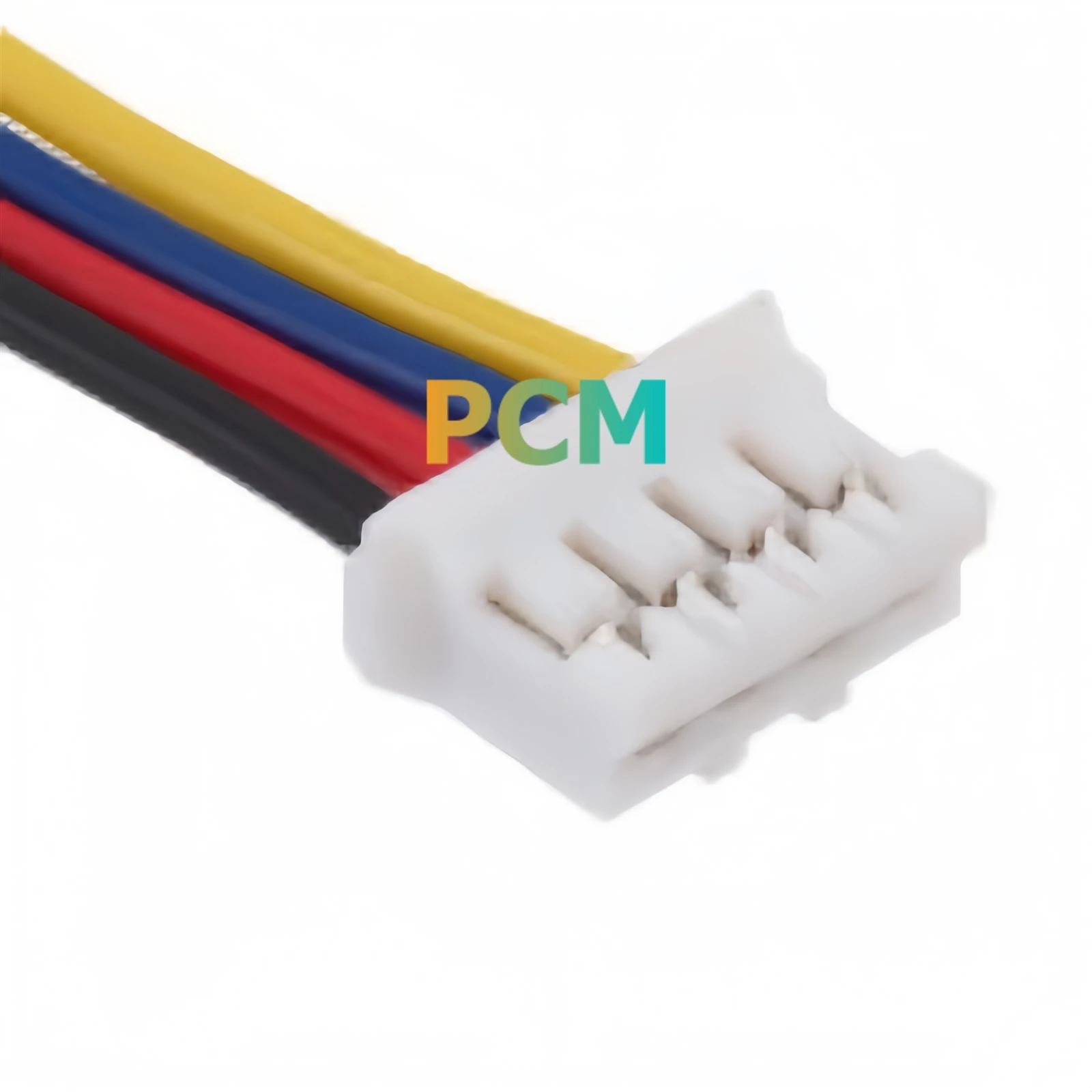

Product Display
Application Scenarios
Electronic Device and Control Module Connections
Suitable for connections between sensors, control modules, PCB circuit boards, and small electronic devices. The JST PH 2.0mm interface has a compact structure, enabling stable signal and power transmission within limited space, suitable for applications such as smart devices, embedded systems, electronic modules, and internal device wiring.

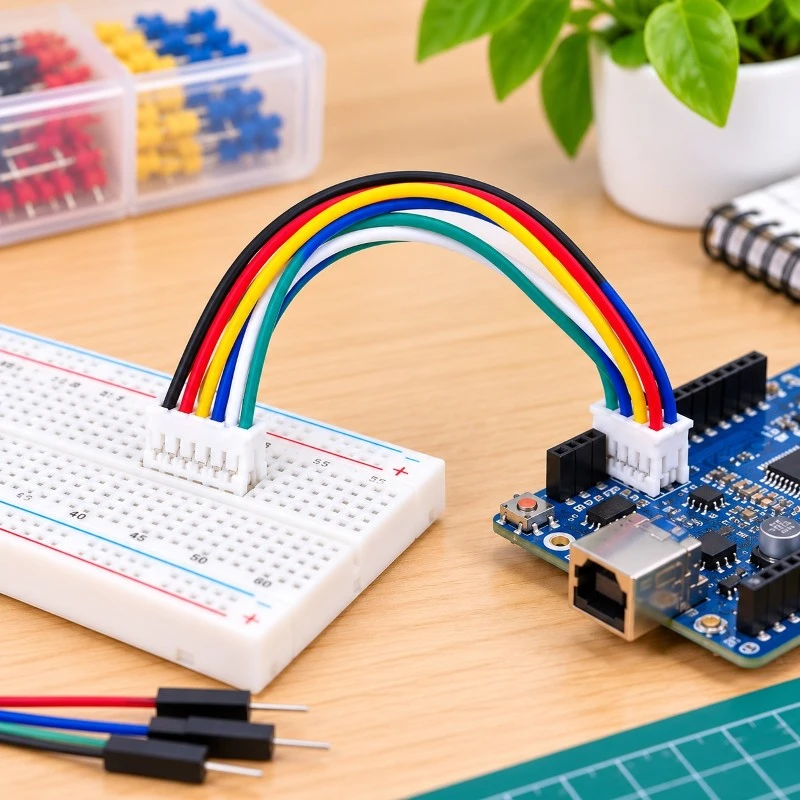

Breadboard Development and Prototype Testing
Can be used to connect the main control board to sensors, actuators, and other external electronic devices, providing stable power and signal transmission. The compact 4-pin interface design facilitates internal wiring and is suitable for automation equipment, robots, and embedded control systems.
Products Advantages
Stable Transmission
24 AWG UL 1007 cable provides reliable power and signal transmission.
Four-Color Cable Design
Black, red, blue, and yellow wires with clearly identifiable pin configurations for easy wiring identification.
Compact and Space-Saving
The PH type connector is compact, suitable for PCBs and internal wiring in space-constrained electronic devices.
Wide Range of Applications
Suitable for PCBs, sensors, controllers, development boards, robots, and DIY electronics projects.
