Hirose DH Series Compatible Connector

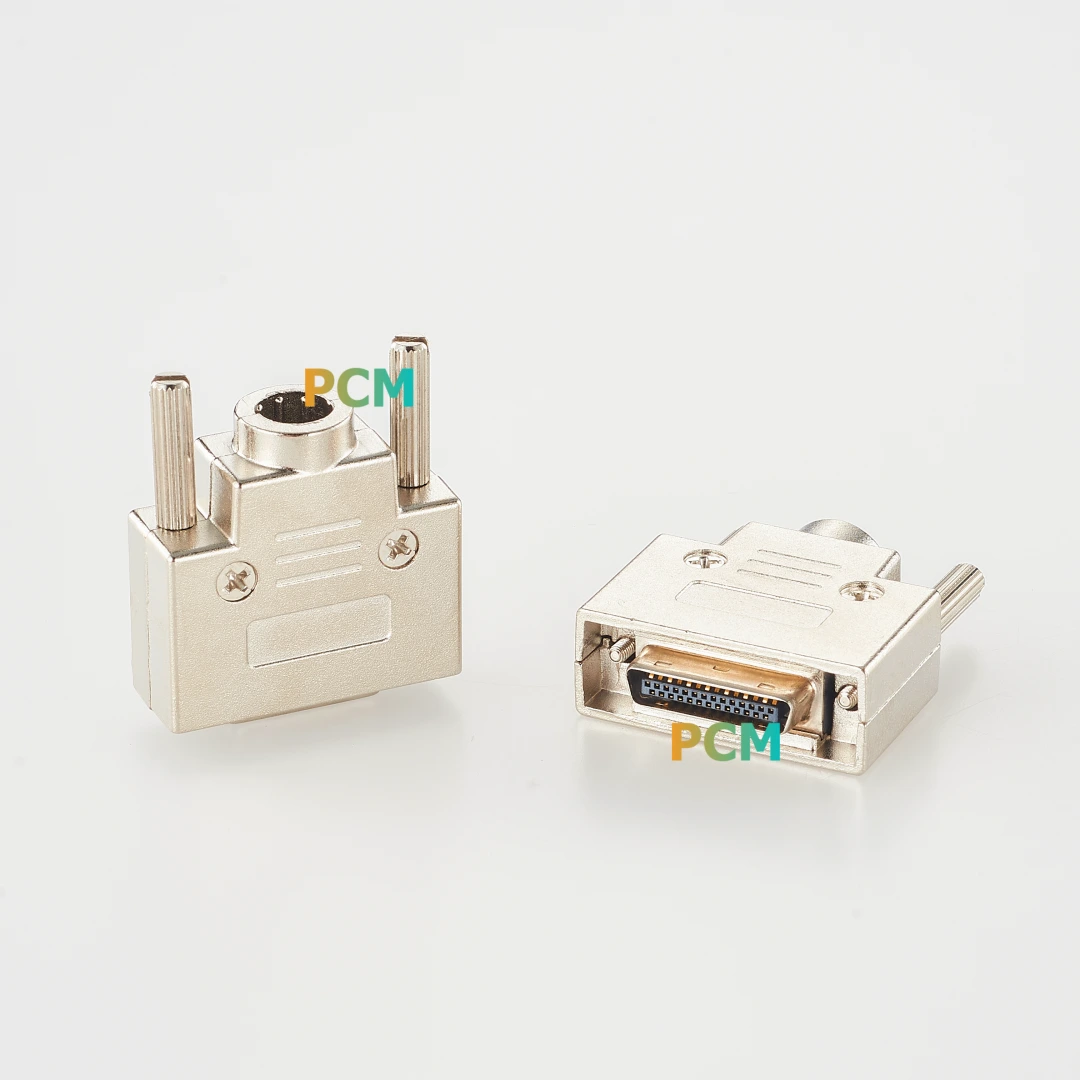

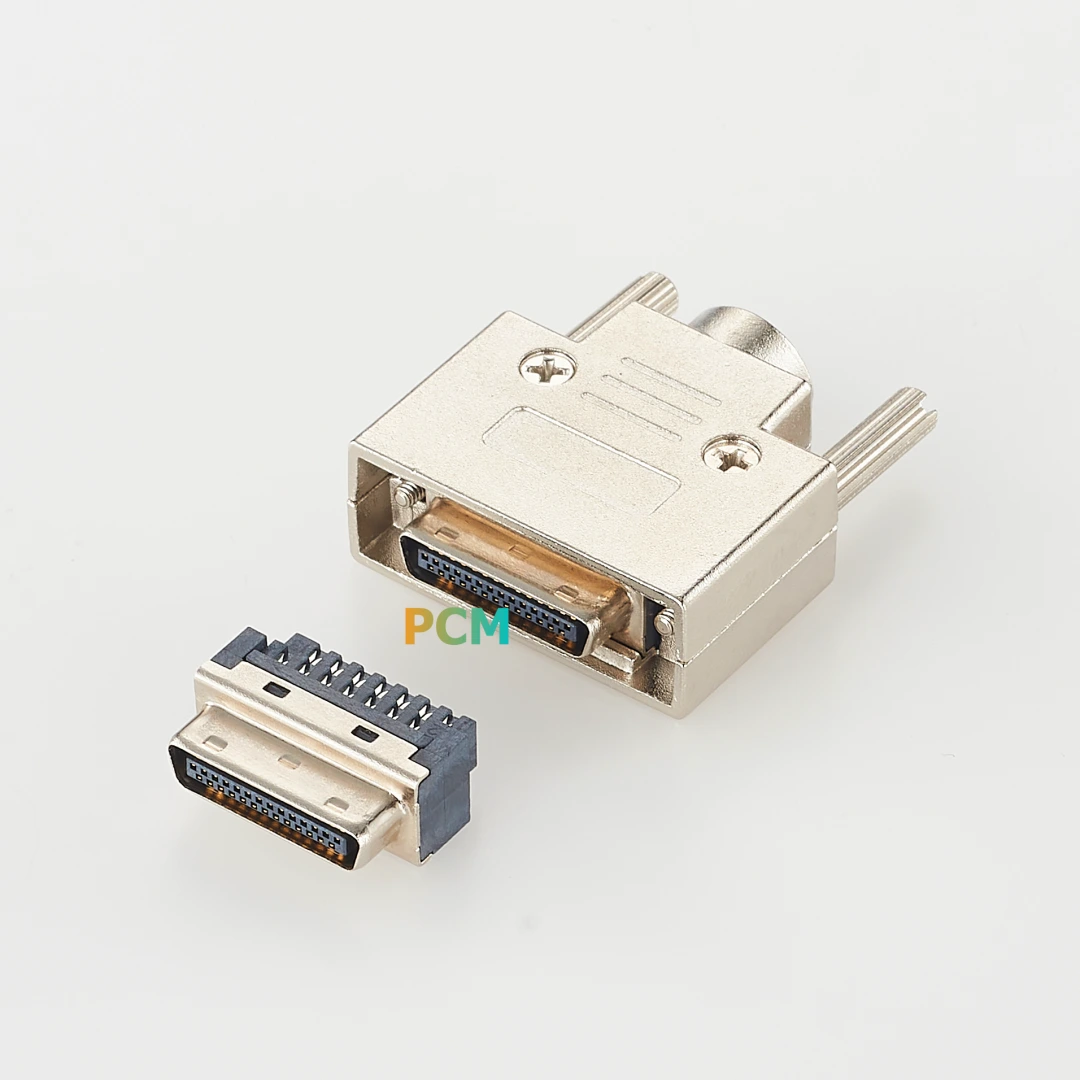

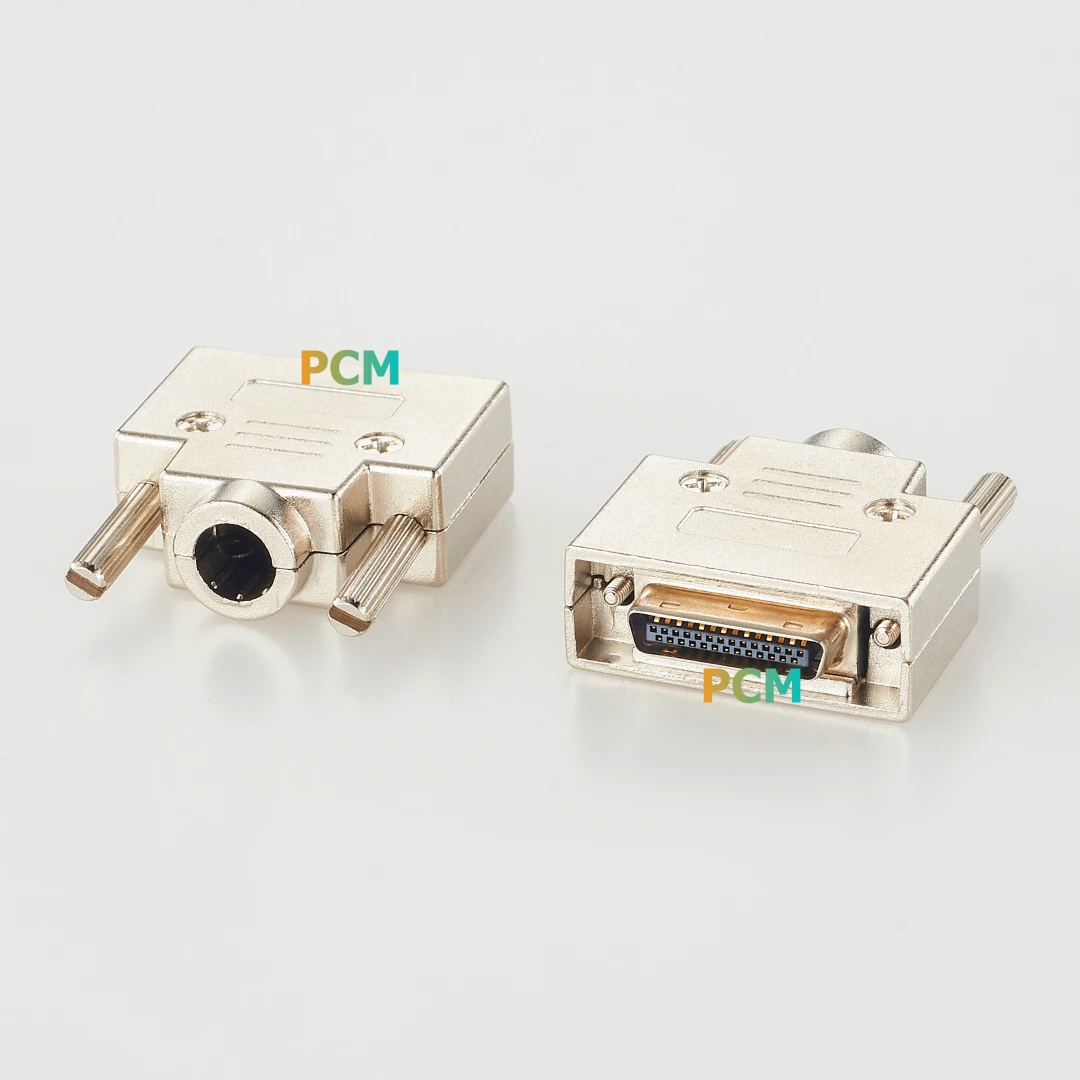

27 Pin High Speed Connector Compatible Hirose DH30B-27S DH40-27S
PCM-TAT-0008 is a compact 27-position solder plug connector designed for Hirose DH-series compatible high-density signal interconnection. Featuring a 1.0 mm pitch interface, solder-wire termination and zinc alloy backshell, it is suitable for machine vision, industrial I/O, trigger cables, test equipment and custom high-density cable assemblies.
Compact Interface
27-Position Connector with 1.0 mm Contact Pitch
The 27-position contact arrangement provides multiple signal connections within a compact connector footprint. Its 1.0 mm pitch format is well suited to industrial equipment where interface space is limited but a relatively high number of signal contacts is required.
PCM-TAT-0008 can be used as the cable-side plug in custom signal, trigger, control and equipment interconnection assemblies requiring a compact shielded connector structure.
| Contact Positions | 27 Pin |
| Contact Pitch | 1.0 mm |
| Termination | Solder Wire |
| Backshell | Zinc Alloy |
DH Series Reference
Related Hirose DH Series Part Numbers
PCM-TAT-0008 is intended for applications using the 27-position Hirose DH connector format. The following part numbers are useful references when evaluating connector and backshell requirements.
| Reference Part Number | Component Type |
| DH30B-27S | 27-position DH Series connector reference |
| DH40-27S | 27-position DH Series solder plug reference |
| DH-27-CV1B | DH Series cover case reference |
| DH-27-CV2B | DH Series cover case reference |
Reference part numbers are provided for connector identification. Confirm mating interface, wiring and equipment requirements before ordering.
Cable-Side Construction
Solder Termination with Zinc Alloy Backshell
The solder-wire termination allows individual conductors to be connected according to the required equipment pin assignment. This makes the connector suitable for custom assemblies where wiring varies between machine vision, trigger, control and industrial I/O applications.
The assembled zinc alloy backshell surrounds the connector termination area and provides a rigid cable-side enclosure, helping create a compact finished interface for industrial equipment installation.
Termination: Solder Type
Housing: Zinc Alloy Backshell
Fastening: M2 Screw Structure
Application: Custom Signal Cable Assembly
PCM-TAT-0008 Electrical Specifications
1.0 A
Current Rating
AC 250 V
Withstand Voltage
65 mΩ
Contact Resistance Max
1000 MΩ
Insulation Resistance Min
-55°C to +85°C
Operating Temperature
Machine Vision Application
Connector for Frame Grabber Trigger and I/O Cable Assemblies
The 27-pin DH-series connector format is used in compact high-density equipment interfaces and can be evaluated for machine vision trigger and I/O cable assemblies, including selected Teledyne DALSA Xtium and Xtium2 frame grabber applications.
For machine vision systems, PCM-TAT-0008 can be incorporated into customized trigger, synchronization, GPIO or auxiliary signal cables according to the frame grabber interface and required wiring configuration.
| 01 Frame grabber trigger cables |
| 02 Machine vision I/O cables |
| 03 Camera synchronization interfaces |
| 04 Industrial control signal cables |
| 05 Custom OEM equipment interconnects |
Application Range
More Than Machine Vision
The compact 27-position connector format can also be used in other industrial and electronic equipment requiring high-density signal interconnection.
Technical Specifications
| Premier Cable No. | PCM-TAT-0008 |
| Connector Type | 27 Pin DH Series Compatible Plug Connector |
| Contact Positions | 27 |
| Contact Pitch | 1.0 mm |
| Termination Style | Solder Wire |
| Backshell | Zinc Alloy |
| Current Rating | 1.0 A |
| Withstand Voltage | AC 250 V |
| Contact Resistance | 65 mΩ Max |
| Insulation Resistance | 1000 MΩ Min |
| Operating Temperature | -55°C to +85°C |
Custom DH 27 Pin Cable Assembly Support
Premier Cable can integrate PCM-TAT-0008 into custom machine vision, trigger, industrial I/O and equipment interconnection cable assemblies.
Cable length, conductor arrangement, pin assignment, shielding, cable type, opposite-end connector and labeling can be customized according to the connected equipment, drawing or sample.
PCM-TAT-0008
Mechanical Drawing
