HD-VI Video Conferencing Camera Connector
HD-VI 28 Pin Camera Cable Connector for Huawei VPC600 VPC620 TE30 TE40 TE50 TE60
PCM-TAT-0009 is a 28-pin HD-VI camera cable connector designed for compatible Huawei video conferencing camera and endpoint interconnection. It can be used in custom cable assemblies for VPC600 and VPC620 cameras with compatible TE30, TE40, TE50 and TE60 conferencing systems. The compact multi-pin interface and screw-locking structure provide a secure cable-side connection for professional video conferencing equipment.
HD-VI Interface
28-Pin Camera Interface for Video Conferencing Equipment
The HD-VI 28-pin connector provides a compact multi-contact interface for camera-to-video-conferencing-system connections. Its high pin count allows multiple electrical connections to be carried through one compact cable connector rather than separate individual interfaces.
PCM-TAT-0009 is designed as a cable-side connector and includes a locking structure that helps maintain a secure connection between compatible conferencing cameras and endpoint equipment.
| Interface | HD-VI |
| Contact Count | 28 Pin |
| Connector Type | Cable-Side Connector |
| Locking | UNC 2-56 Screw Lock |
Equipment Reference
Camera and Video Conferencing Endpoint Connections
The connector can be evaluated for custom HD-VI camera cable assemblies connecting compatible Huawei VPC-series PTZ cameras with TE-series video conferencing endpoints.
Camera
Huawei VPC Series
VPC600
VPC620
Video Conferencing Endpoint
Huawei TE Series
| TE30 | TE40 |
| TE50 | TE60 |
Equipment compatibility should be confirmed by connector interface, system version and required wiring configuration before ordering.
Mechanical Design
Compact Backshell with Screw-Locking Retention

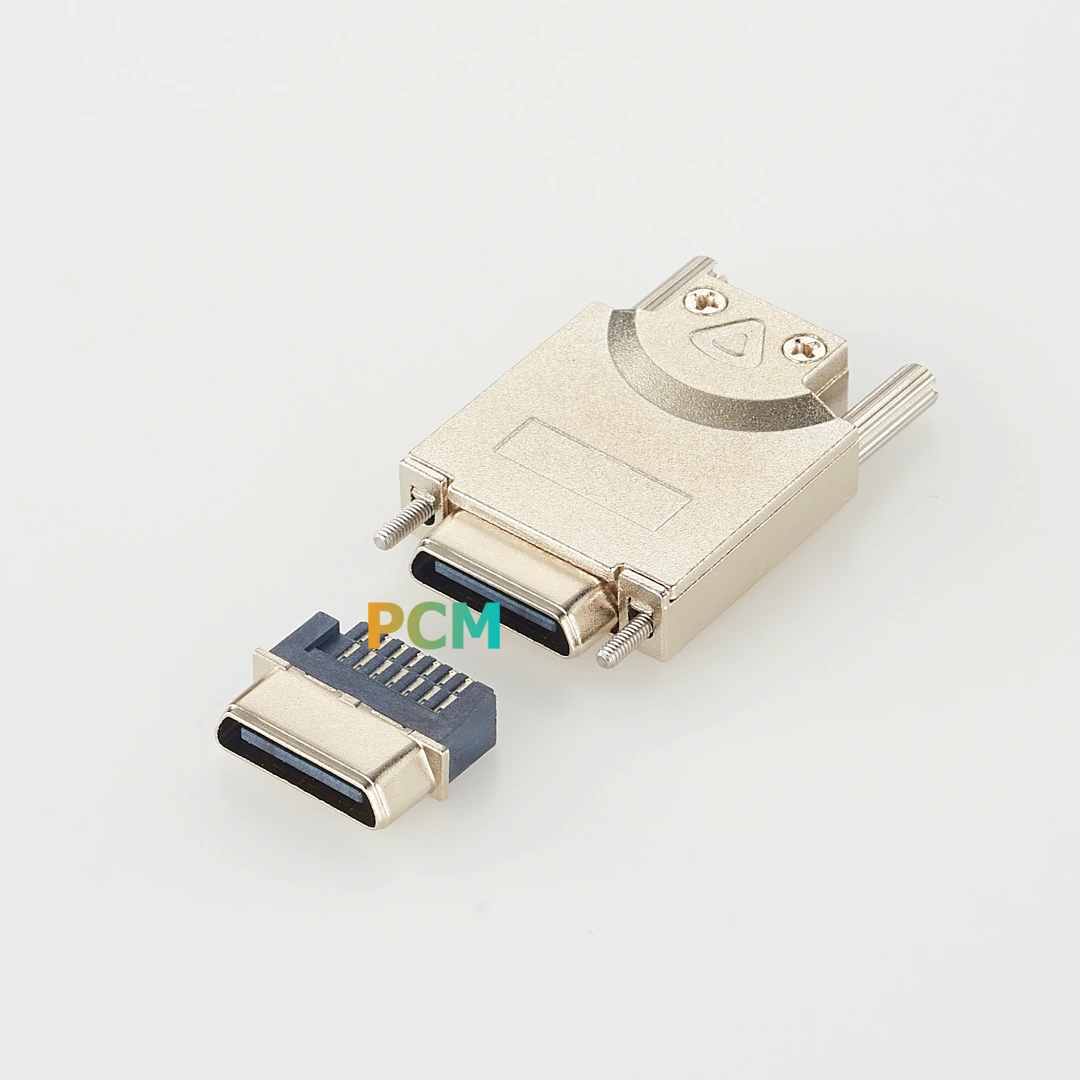

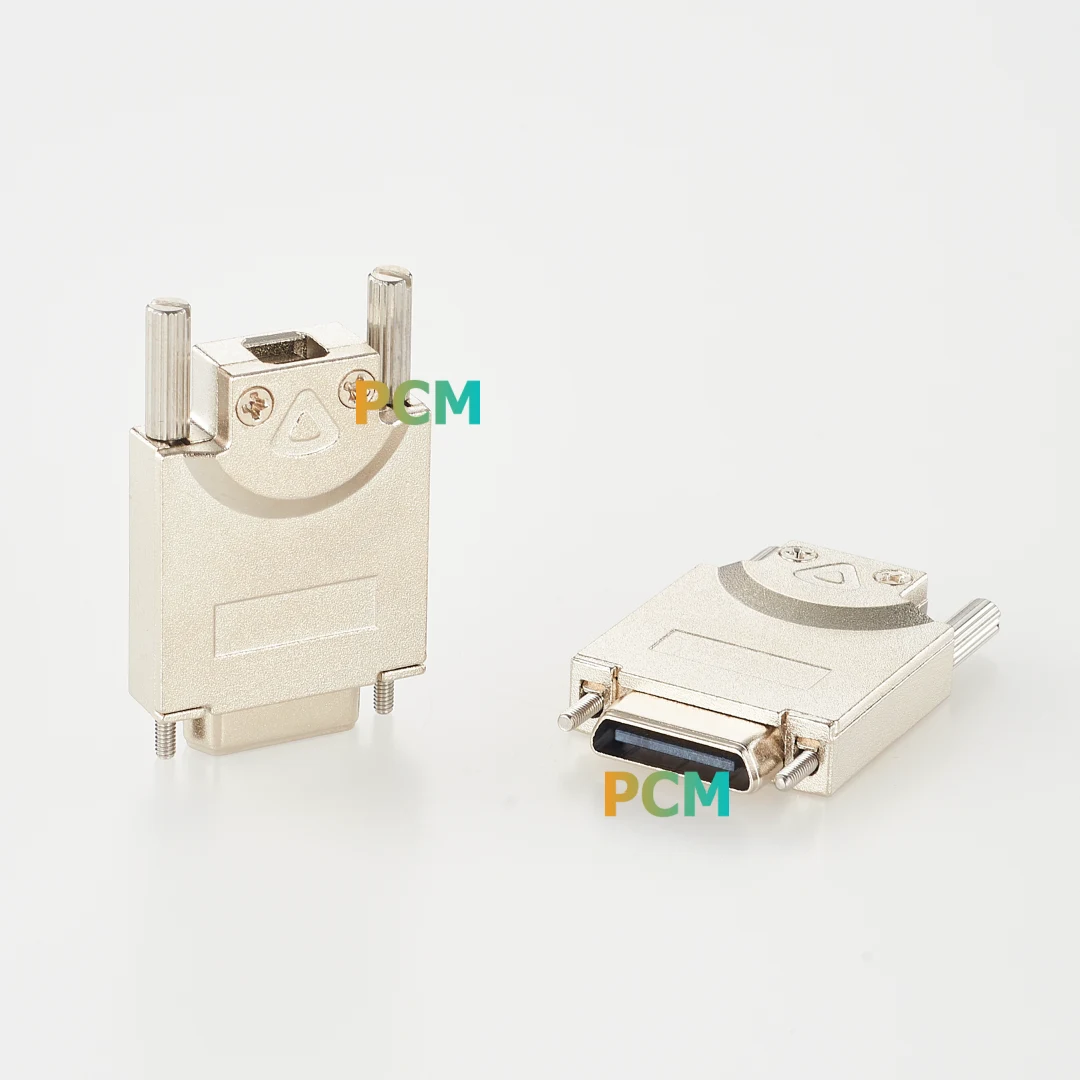

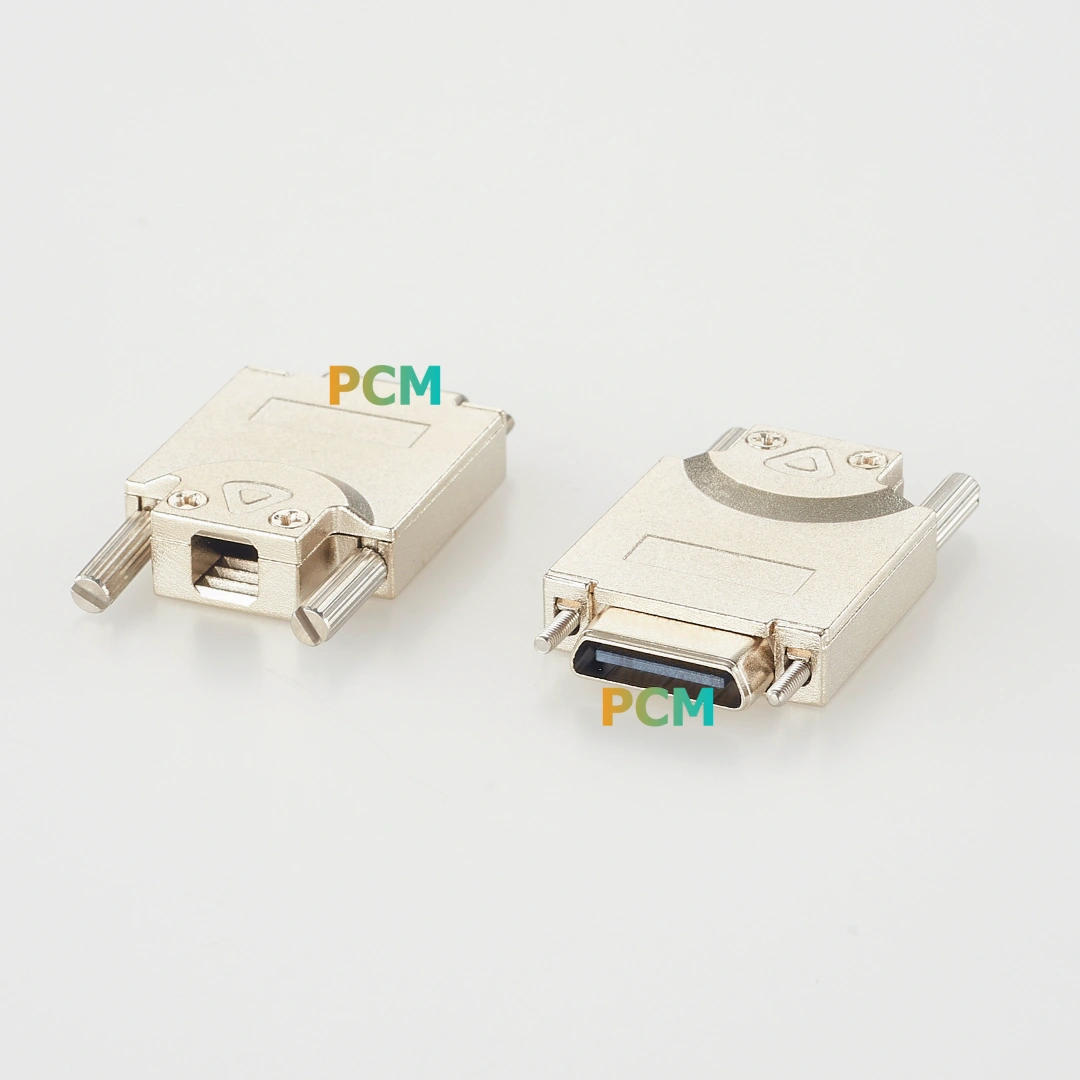

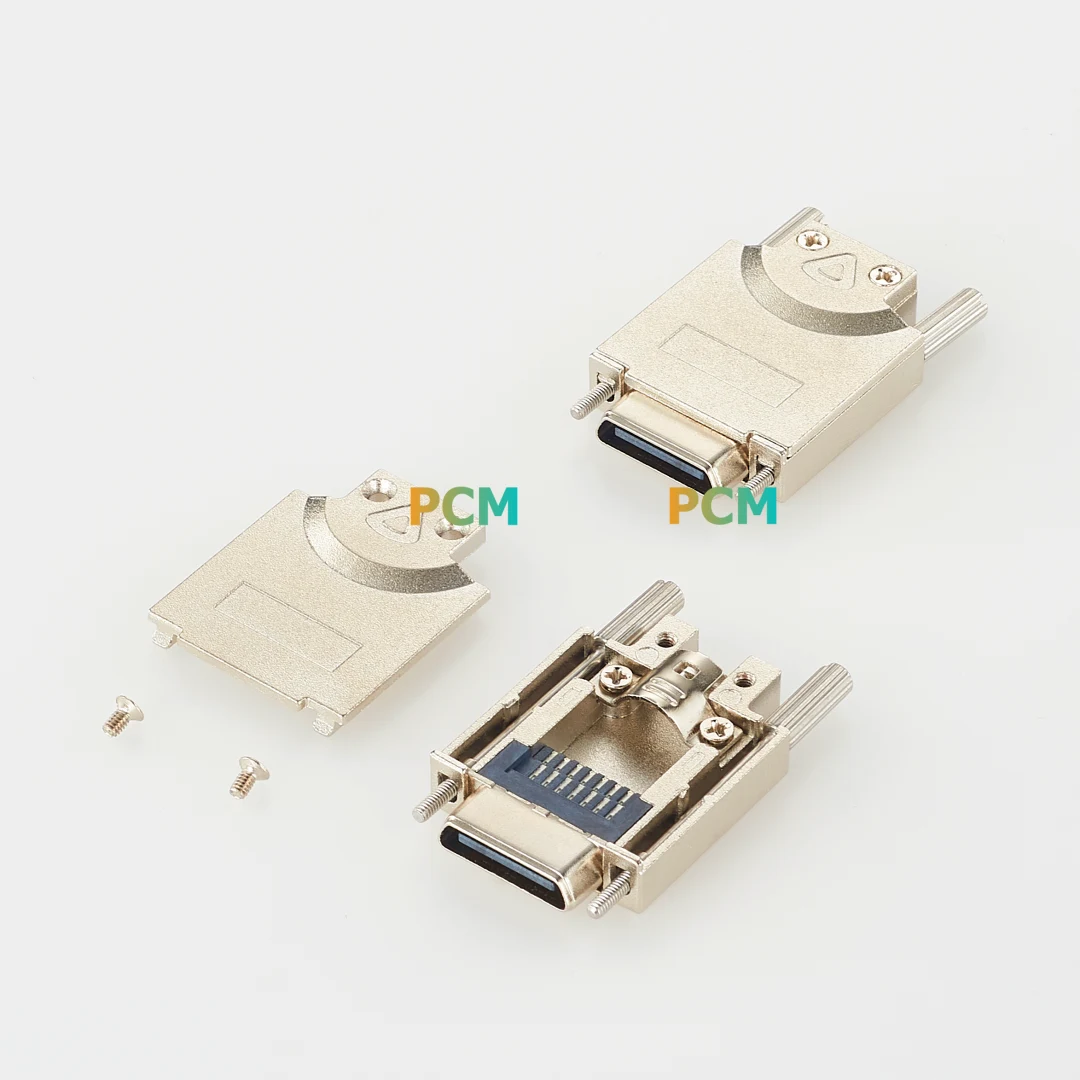

The connector housing encloses the rear termination area and provides a finished cable-side structure for equipment installation. Its compact profile is suitable for conferencing systems where connector space around the camera or terminal interface is limited.
Two UNC 2-56 locking screws provide positive mechanical retention after mating, helping reduce accidental disconnection when the camera cable is installed behind conferencing equipment or within fixed meeting-room installations.
Compact Housing - suitable for camera cable assembly
2-56 Screw Lock - secure mating retention
28 Contacts - multi-signal equipment interface
Electrical Characteristics
1.0 A
Current Rating
AC 250 V
Withstand Voltage
65 mΩ
Contact Resistance Max
1000 MΩ
Insulation Resistance Min
-55°C to +85°C
Operating Temperature
Custom Camera Cable
Build Custom HD-VI Camera Cable Assemblies
PCM-TAT-0009 can be integrated into custom HD-VI camera cable assemblies for video conferencing equipment installation, replacement and system integration. Cable construction can be produced according to the connected camera, endpoint interface and required wiring configuration.
| 01 Custom cable length |
| 02 Equipment-specific wiring |
| 03 Opposite-end connector configuration |
| 04 Shielding and cable construction |
| 05 OEM labeling and assembly |
Technical Specifications
| Premier Cable No. | PCM-TAT-0009 |
| Connector Type | HD-VI Camera Cable Connector |
| Contact Positions | 28 Pin |
| Locking Type | UNC 2-56 Screw Lock |
| Current Rating | 1.0 A |
| Withstand Voltage | AC 250 V |
| Contact Resistance | 65 mΩ Max |
| Insulation Resistance | 1000 MΩ Min |
| Operating Temperature | -55°C to +85°C |
HD-VI Cable Compatibility and Ordering
When ordering an HD-VI camera cable or connector assembly, please provide the camera model, video conferencing endpoint model, required cable length and wiring information where available.
Connector appearance alone does not confirm cable compatibility. Equipment interface and pin assignment should be verified before production.
PCM-TAT-0009
Mechanical Drawing
