Details:

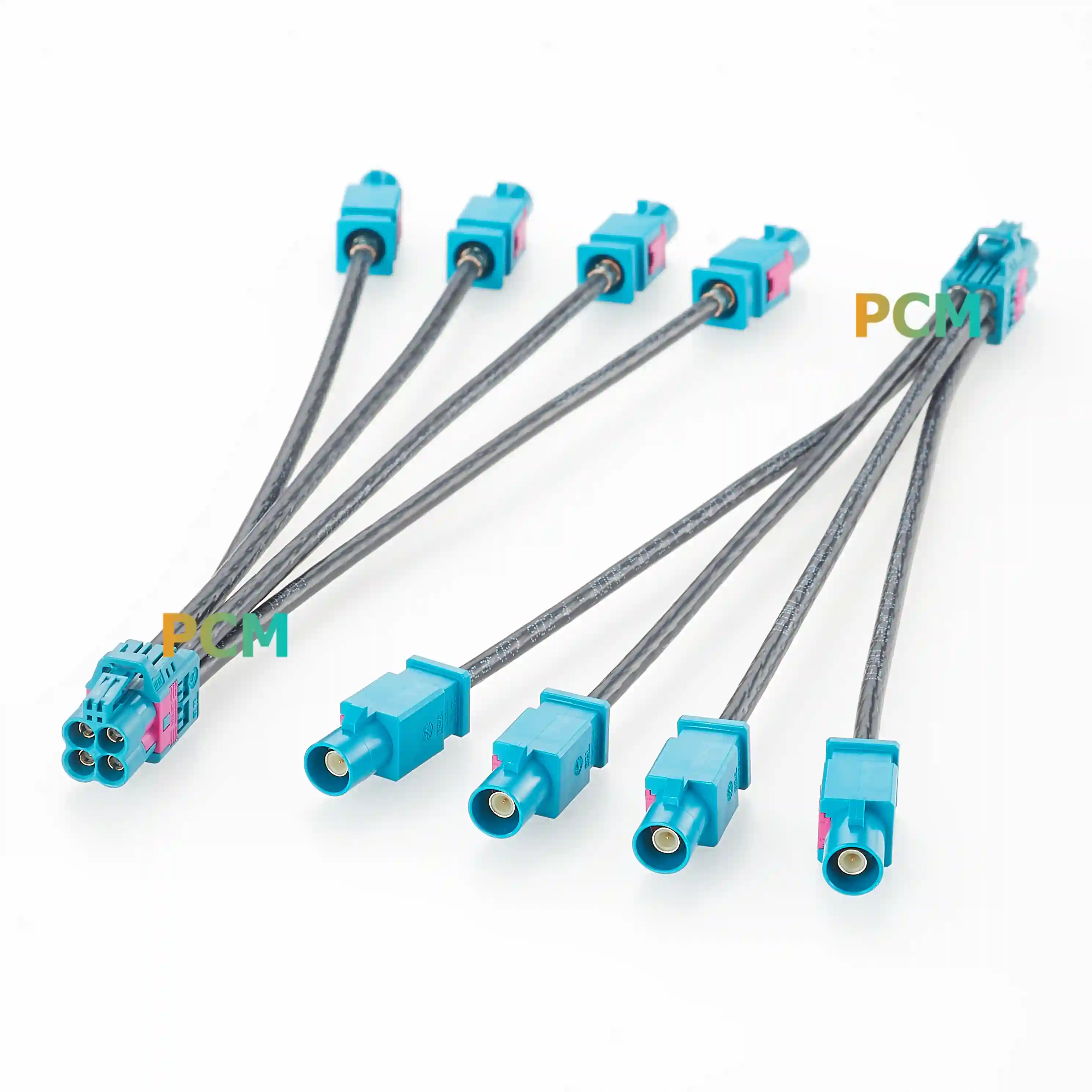

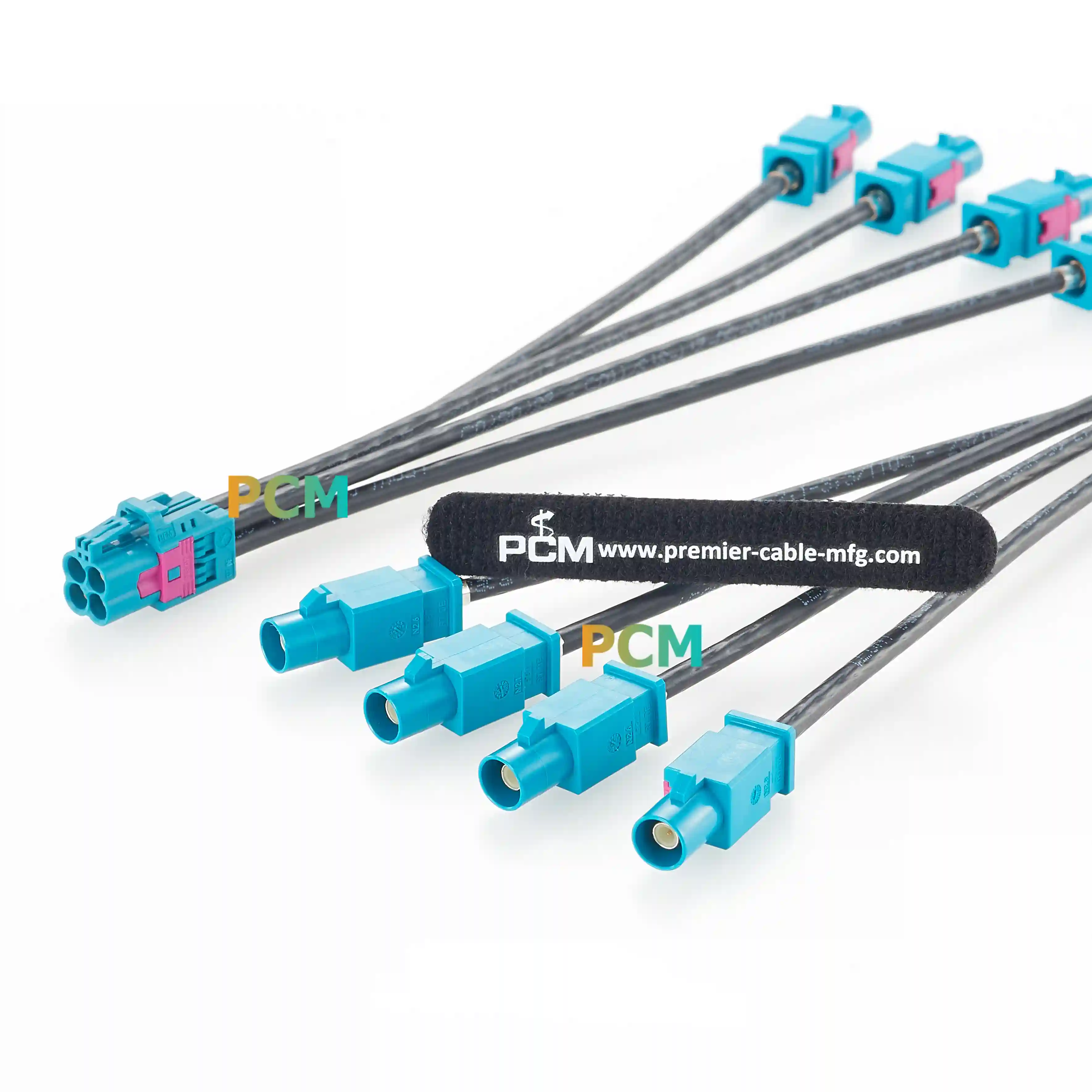

This 4-port HFM Mini FAKRA jack to 4 FAKRA plug adapter cable combines a Rosenberger AMK12D-1M4Z5-Z quad HFM interface with four 59Z114-000-Z FAKRA Z-code plug branches. Built with LEONI DACAR 302-4 50-ohm coaxial cable, it provides four individually shielded signal paths for automotive RF, video and multi-channel coaxial connections.

Send Inquiry

Online Store: www.premier-cable.store

Small Orders: Buy online at retail price

Bulk Orders: Contact sales for volume pricing

Description

Send Inquiry

4-Port HFM Mini FAKRA Jack to 4 FAKRA Plug Adapter Cable

Rosenberger AMK12D-1M4Z5-Z Quad HFM Jack to Four 59Z114-000-Z FAKRA Z-Code Plug Interfaces

Quad HFM Jack to FAKRA Plug Transition Harness

PCM-ZC-0197 provides a direct transition from one four-port HFM / High-Speed FAKRA Mini jack to four individual FAKRA plug interfaces.

The mixed jack-to-plug arrangement is useful when the HFM-side equipment and the four FAKRA-side devices use different mating orientations, eliminating the need for additional inline adapters.

Interface Mapping

MULTI-PORT SIDE

P1 - Quad HFM Jack

Connector: Rosenberger AMK12D-1M4Z5-Z

Series: HFM / High-Speed FAKRA Mini

Coding: Z Code

→

BREAKOUT SIDE

P2–P5 - Four FAKRA Plugs

Connector: Rosenberger 59Z114-000-Z

Quantity: 4 independent interfaces

Coding: Z Code

Why Connector Orientation Matters

HFM and FAKRA cable assemblies can use different plug and jack combinations depending on the mating interfaces installed in the vehicle module, camera, antenna unit or test equipment.

PCM-ZC-0197 is specifically configured with a quad HFM jack on the P1 side and four FAKRA plugs on the branch side. This makes it different from jack-to-jack or plug-to-plug versions even when the connector coding and coaxial cable type are otherwise similar.

Four Separate Coaxial Signal Paths

The four HFM ports are routed individually to P2, P3, P4 and P5. Each branch retains its own center conductor and shield connection, creating four independent coaxial channels.

The harness therefore functions as a multi-channel adapter and fan-out assembly rather than an RF power divider or one-to-four signal splitter.

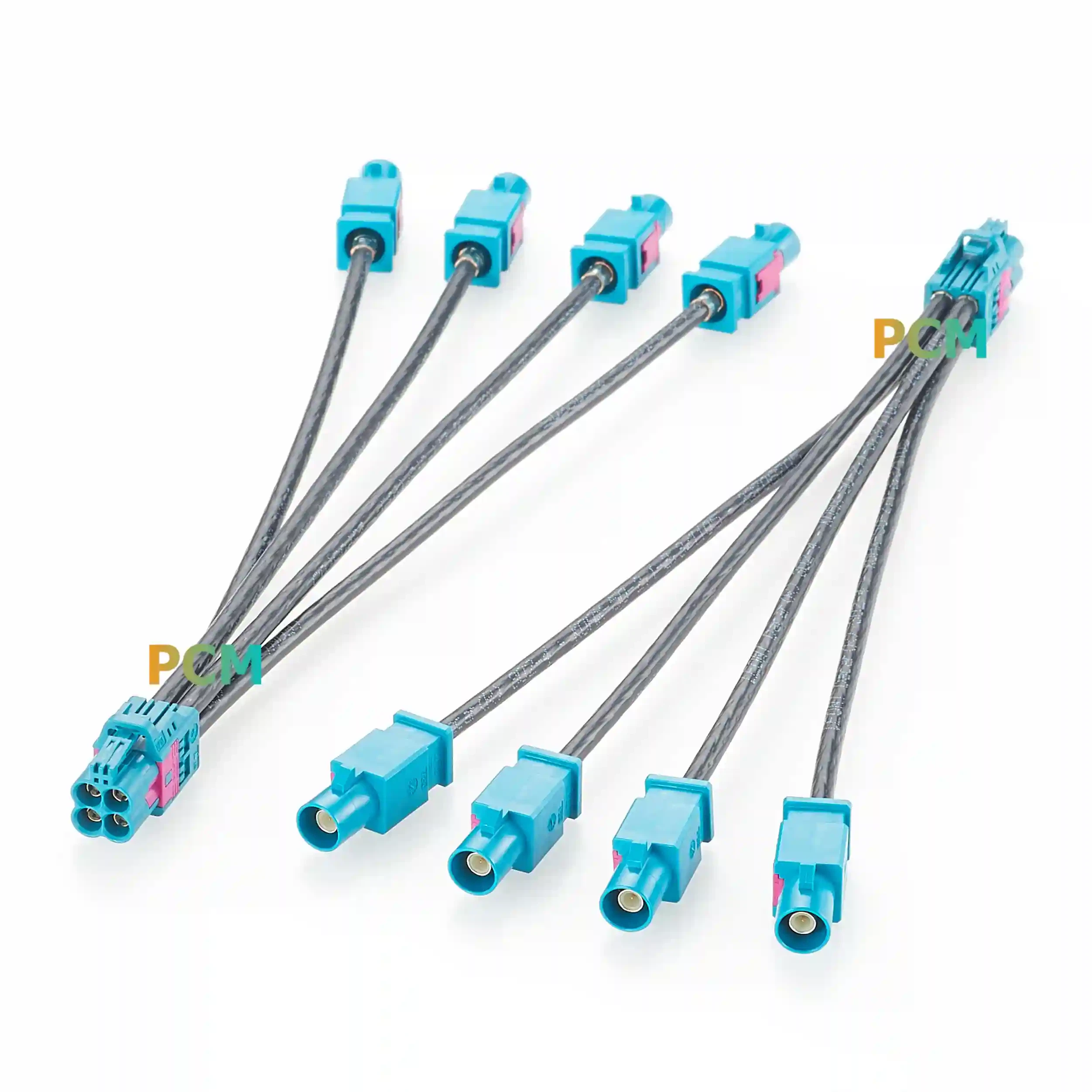

Quad HFM Jack to Four FAKRA Plug Coaxial Fanout Cable

Electrical and Mechanical Data

Premier Cable Part No.	PCM-ZC-0197
P1 Connector	Rosenberger AMK12D-1M4Z5-Z
P1 Interface	4-Port HFM Mini FAKRA Jack, Z Code
P2–P5 Connector	4 × Rosenberger 59Z114-000-Z
P2–P5 Interface	FAKRA Plug, Z Code
Coaxial Cable	LEONI DACAR 302-4
Characteristic Impedance	50 Ω Nominal
Frequency Range	DC – 3 GHz
VSWR	1.80 Maximum
Hi-Pot	800 VRMS Minimum
Continuity	100% Tested
Cable Retention	110 N Minimum
Temperature Range	-40°C to +105°C
Drawing Length	150 ± 5 mm

LEONI DACAR 302-4 50-Ohm Coax

The assembly uses four runs of LEONI DACAR 302-4 automotive coaxial cable. The controlled 50-ohm transmission path and individual shielding support reliable multi-channel signal routing between the compact HFM connector and conventional FAKRA interfaces.

Check These Interfaces Before Ordering

HFM Housing Verify that the mating device requires a four-port HFM jack cable interface.

FAKRA Orientation This version uses plug housings on all four breakout branches.

Coding P1 and all four FAKRA interfaces use neutral Z coding.

Channel Count The assembly carries four independent coaxial channels.

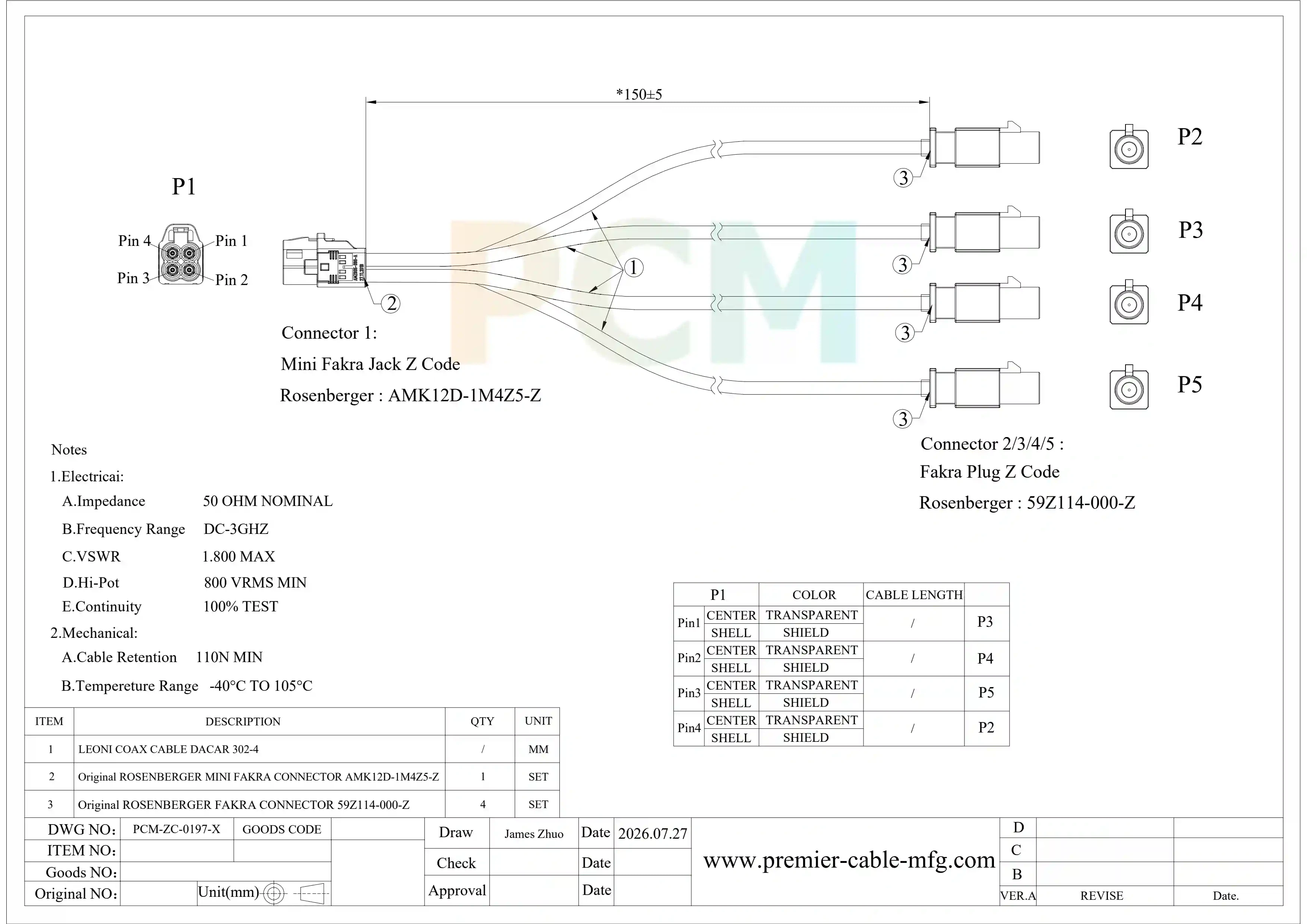

PCM-ZC-0197 Cable Drawing
