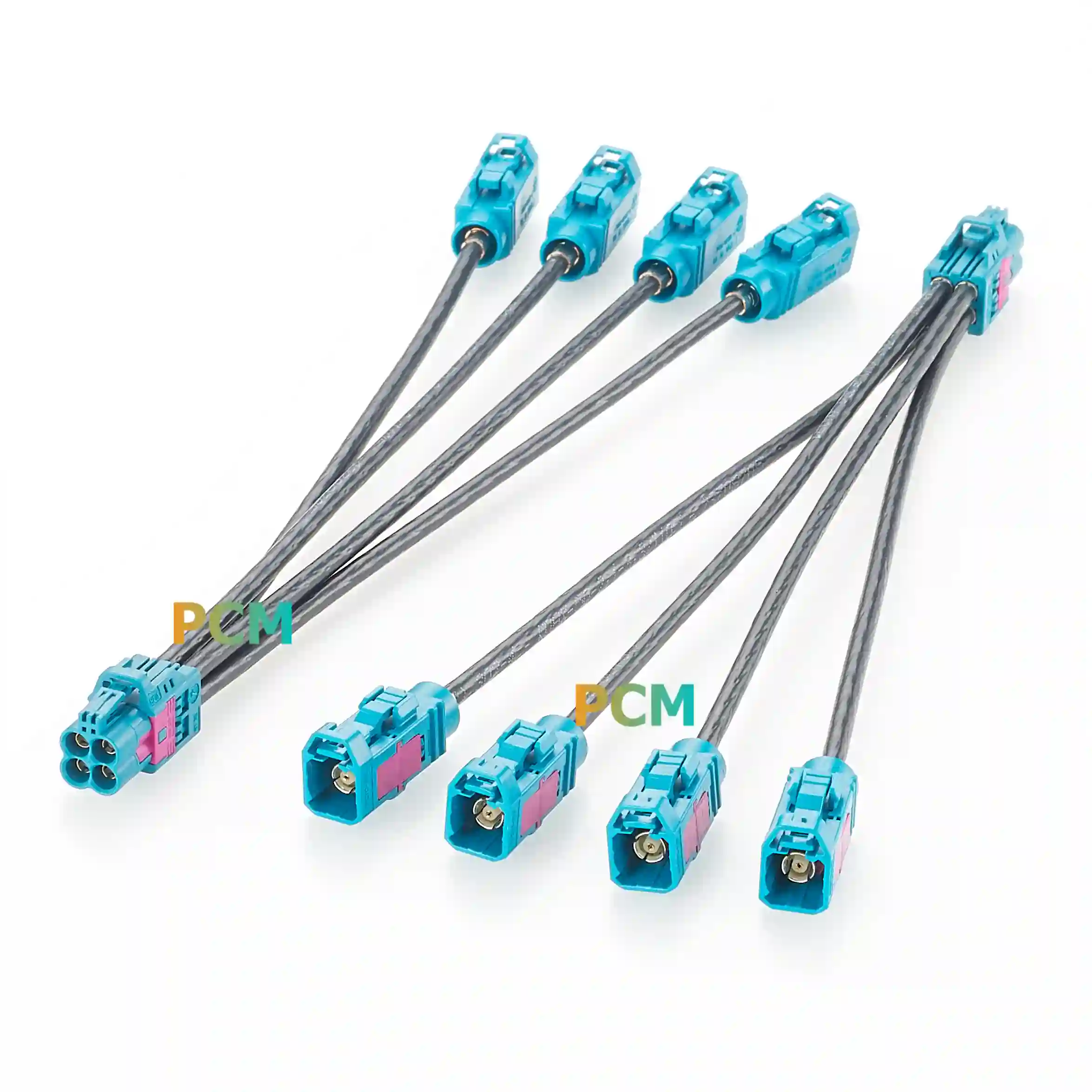

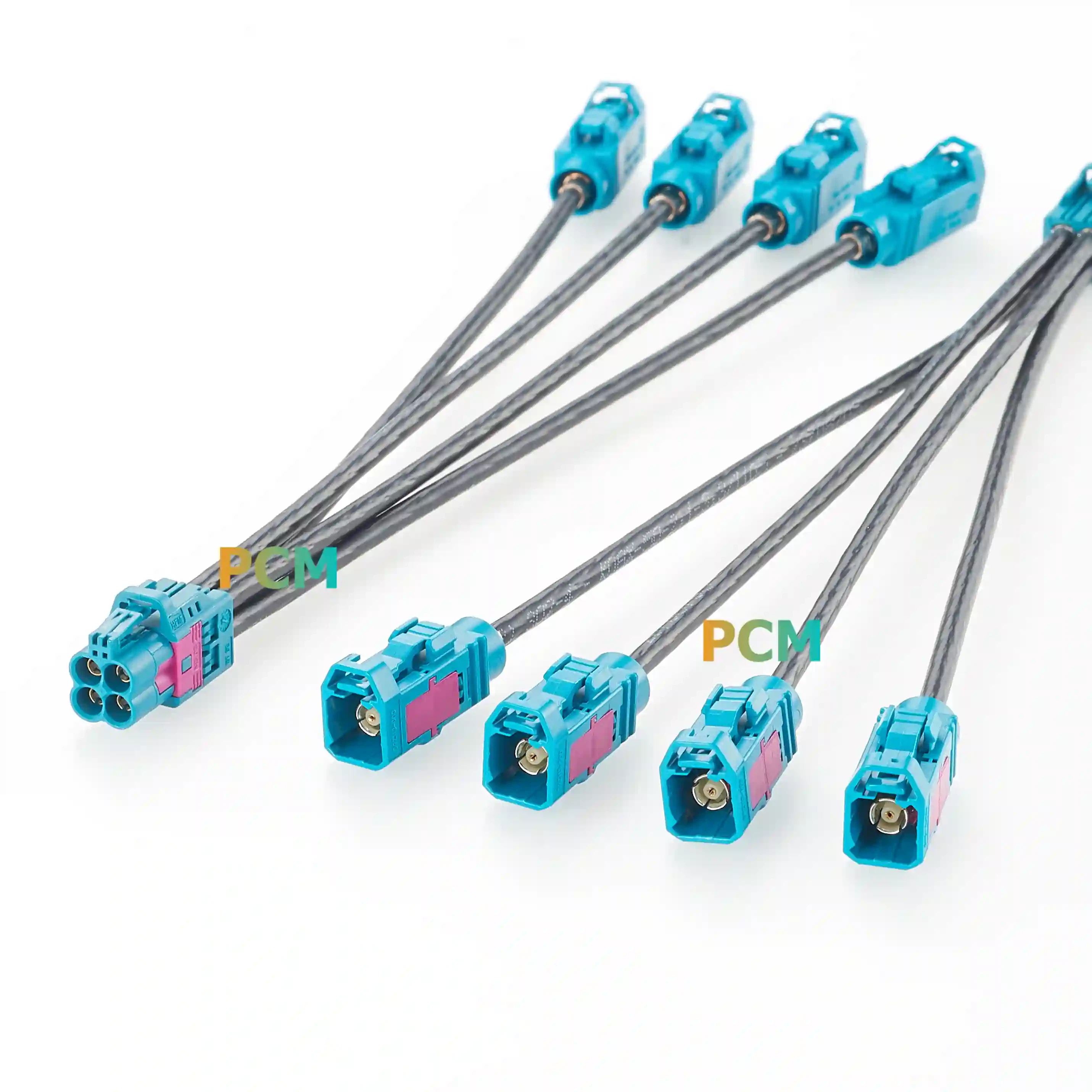

4-Port HFM Mini FAKRA Jack to 4 FAKRA Jack Breakout Cable
Rosenberger AMK12D-1M4Z5-Z Quad HFM Jack to Four 59Z113-000-Z FAKRA Z-Code Jack Interfaces
Quad HFM Jack-to-Jack Adapter Harness
PCM-ZC-0175 combines a four-port Rosenberger HFM / Mini FAKRA jack with four individual FAKRA jack interfaces. It is designed for applications where both sides of the harness require jack-style Z-code connector housings.
Four independent 50-ohm coaxial paths are routed through LEONI DACAR 302-4 cable, allowing multiple RF or video channels to be connected through one compact multi-port HFM interface.
Connector Configuration
Quad HFM / Mini FAKRA Jack
Rosenberger: AMK12D-1M4Z5-Z
Straight jack with four integrated coaxial ports and neutral Z coding.
Individual FAKRA Jack Interfaces
Rosenberger: 59Z113-000-Z
Four separate Z-code FAKRA jack housings provide individual access to each coaxial channel.
When Is a Jack-to-Jack HFM Harness Used?
Mini FAKRA and conventional FAKRA cable assemblies are available in different plug and jack combinations. Selecting the correct connector orientation is important because a cable with the correct coding but the wrong mating interface cannot be connected to the intended device.
This version is intended specifically for configurations requiring a quad HFM jack on the multi-port side and FAKRA jack housings on all four branch connections. For equipment with plug-style interfaces, a different cable configuration should be selected.
PCM-ZC-0175 Specifications
| Product | Quad HFM Mini FAKRA Jack to 4 FAKRA Jack Cable |
| Premier Cable No. | PCM-ZC-0175 |
| HFM Connector | Rosenberger AMK12D-1M4Z5-Z |
| HFM Interface | 4-Port Mini FAKRA Jack, Z Code |
| FAKRA Connectors | 4 × Rosenberger 59Z113-000-Z |
| FAKRA Interface | Jack, Z Code |
| Coaxial Cable | LEONI DACAR 302-4 |
| Characteristic Impedance | 50 Ω Nominal |
| Frequency Range | DC – 3 GHz |
| VSWR | 1.80 Maximum |
| Hi-Pot | 800 VRMS Minimum |
| Continuity | 100% Tested |
| Cable Retention | 110 N Minimum |
| Temperature Range | -40°C to +105°C |
| Drawing Length | 150 ± 5 mm |
Four Independent 50-Ohm Coaxial Channels
The four branches are electrically independent. Each HFM cavity maps to its corresponding FAKRA interface rather than dividing one RF input into multiple outputs.
LEONI DACAR 302-4 automotive coaxial cable provides the controlled 50-ohm transmission path required by the assembly while keeping the four channels individually shielded.
Connector Selection Notes
Before ordering a Mini FAKRA to FAKRA cable assembly, verify the connector family, coding, plug/jack orientation and number of channels required by the mating equipment.
- HFM / High-Speed FAKRA Mini interface
- Four-port connector configuration
- Z / neutral coding
- Jack interface on both HFM and FAKRA sides
- 50-ohm coaxial signal path
Alternative HFM and FAKRA Configurations
Different Mini FAKRA / HFM connector arrangements, FAKRA coding, mating orientations, branch lengths and overall cable lengths can be supplied according to the required device interface and cable drawing.

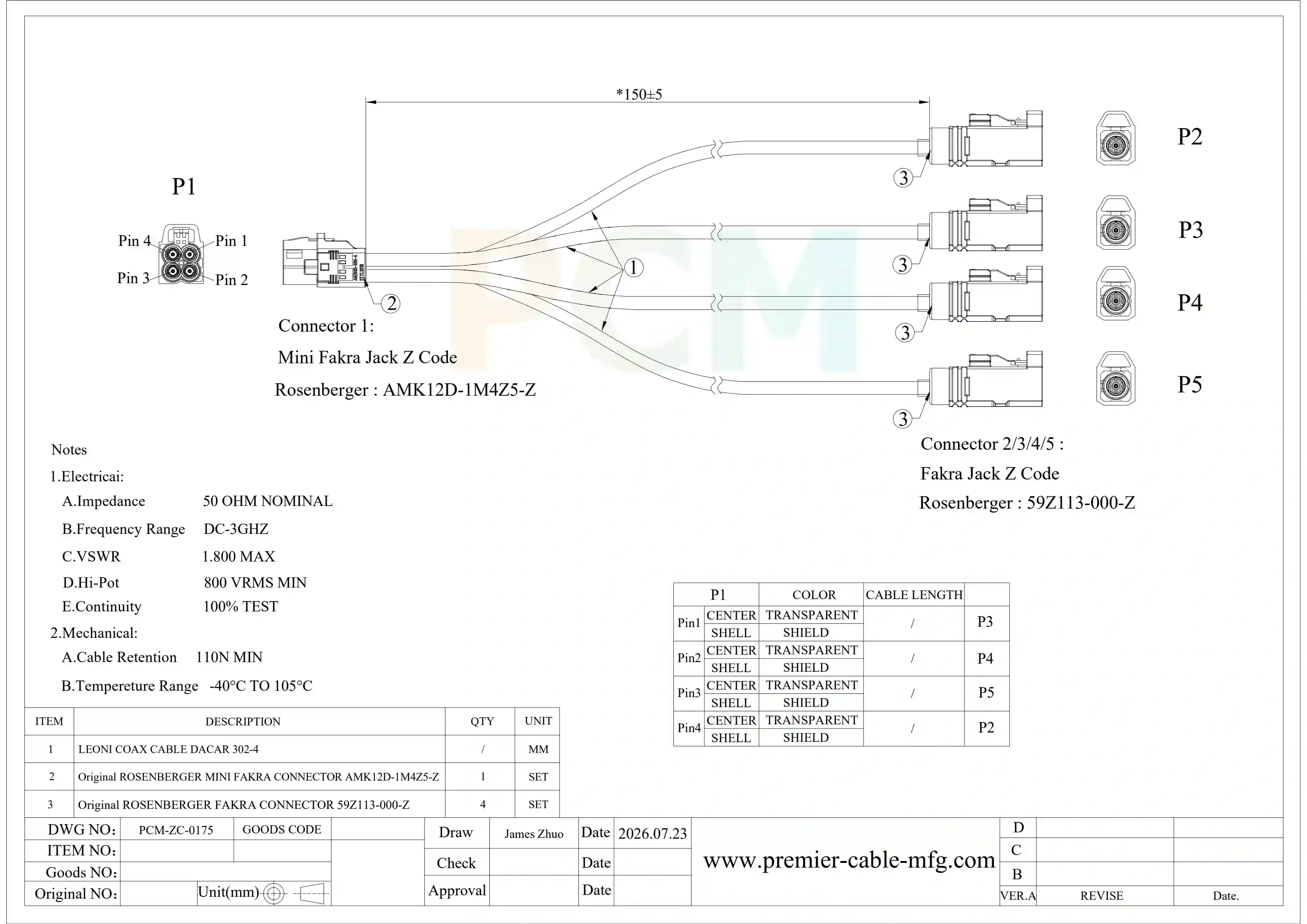

PCM-ZC-0175 Cable Drawing
