Details:

This 4-port HFM Mini FAKRA plug to 4 FAKRA jack adapter cable uses a Rosenberger AMS11D-1M4Z5-Z quad HFM connector and four 59Z113-000-Z FAKRA Z-code jack interfaces. Four LEONI DACAR 302-4 50-ohm coaxial channels provide a compact connection solution for automotive RF, video and multi-channel coaxial systems.

Send Inquiry

Online Store: www.premier-cable.store

Small Orders: Buy online at retail price

Bulk Orders: Contact sales for volume pricing

Description

Send Inquiry

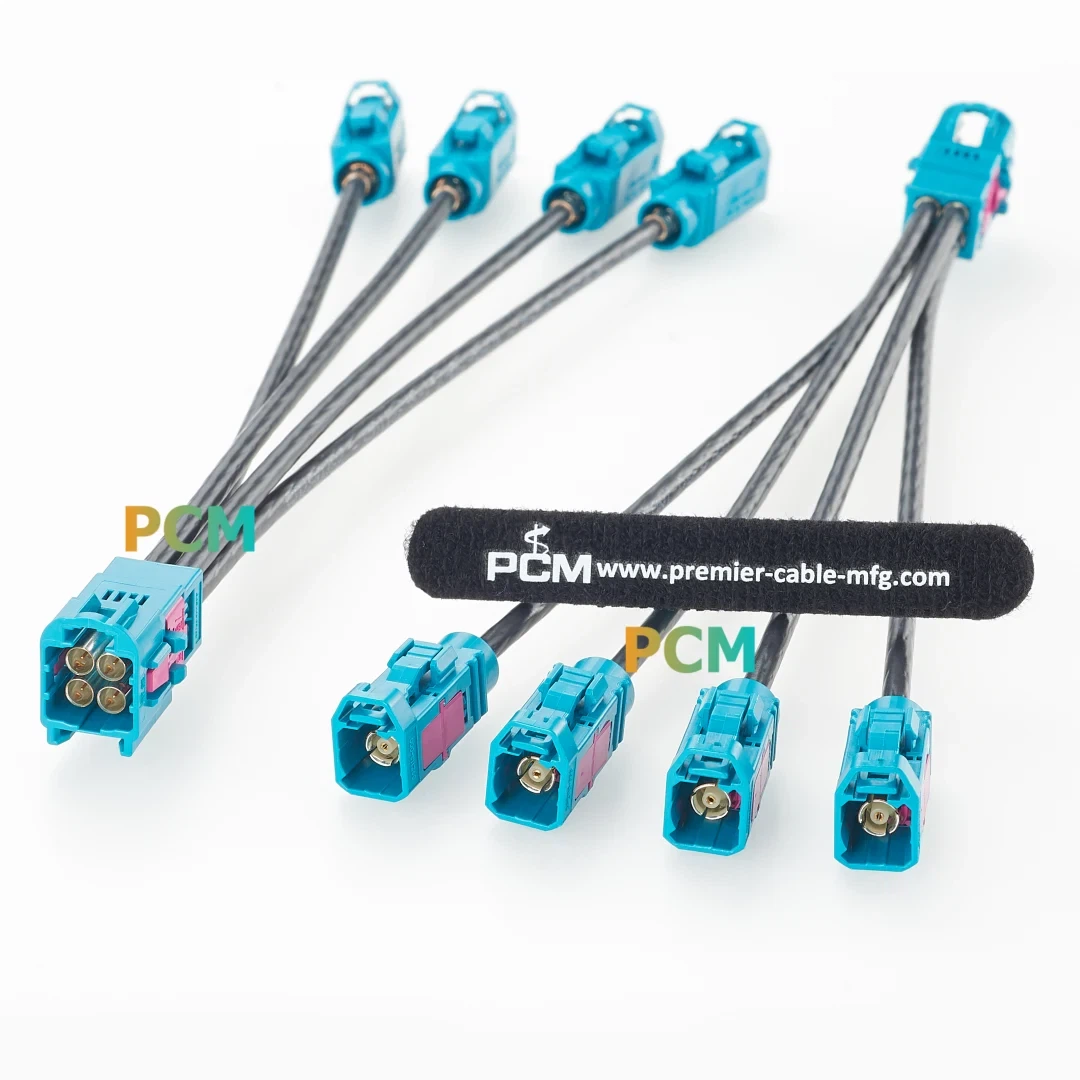

4-Port HFM Mini FAKRA Plug to 4 FAKRA Jack Adapter Cable

Rosenberger AMS11D-1M4Z5-Z Quad HFM Plug to Four 59Z113-000-Z FAKRA Z-Code Jack Interfaces

Quad HFM Plug to Four FAKRA Jack Interfaces

PCM-ZC-0178 converts a compact four-port HFM / Mini FAKRA plug interface into four individually accessible FAKRA jack connections.

The cable is intended for systems where the equipment on the HFM side requires a plug-style multi-port connection while the opposite devices require individual FAKRA jack interfaces.

Plug-to-Jack Connection Layout

P1 - 4 PORT

HFM Mini FAKRA Plug

Rosenberger: AMS11D-1M4Z5-Z

Configuration: Quad

Coding: Z Code

P2 – P5

Four FAKRA Jack Interfaces

Rosenberger: 59Z113-000-Z

Quantity: 4

Coding: Z Code

Designed for Mixed HFM and FAKRA Mating Interfaces

Connector family and coding alone are not sufficient when selecting an automotive coaxial harness. The mating orientation must also match the connector installed on the vehicle module or test equipment.

This version combines an HFM plug with four FAKRA jack interfaces, providing a direct cable solution where these two connector orientations are required in the same four-channel system.

Four Independent Coaxial Channels

Each cavity of the quad HFM connector is connected directly to one FAKRA branch. Signal and shield paths remain independent throughout the harness.

This is therefore a four-channel fan-out adapter rather than a passive RF splitter. No single input signal is divided between the four outputs.

Quad HFM Plug to Four FAKRA Jack Coaxial Cable Harness

Technical Data

Premier Cable Part No.	PCM-ZC-0178
P1 Connector	Rosenberger AMS11D-1M4Z5-Z
P1 Interface	4-Port HFM / Mini FAKRA Plug, Z Code
P2–P5 Connectors	4 × Rosenberger 59Z113-000-Z
P2–P5 Interface	FAKRA Jack, Z Code
Cable	LEONI DACAR 302-4 Automotive Coaxial Cable
Characteristic Impedance	50 Ω Nominal
Frequency Range	DC – 3 GHz
VSWR	1.80 Maximum
Hi-Pot	800 VRMS Minimum
Continuity	100% Tested
Cable Retention	110 N Minimum
Temperature Range	-40°C to +105°C
Drawing Length	150 ± 5 mm

Interface Checklist

Quad HFM Four integrated coaxial ports on the P1 side.

HFM Plug Verify the mating interface before selecting the harness.

FAKRA Jack Four separate jack-style branch interfaces.

Z Coding Neutral Z coding is used on both connector sides.

Custom HFM to FAKRA Cable Configurations

Cable length, branch length, HFM / FAKRA connector orientation, coding and related multi-port coaxial configurations can be customized according to the mating connector and equipment requirements.

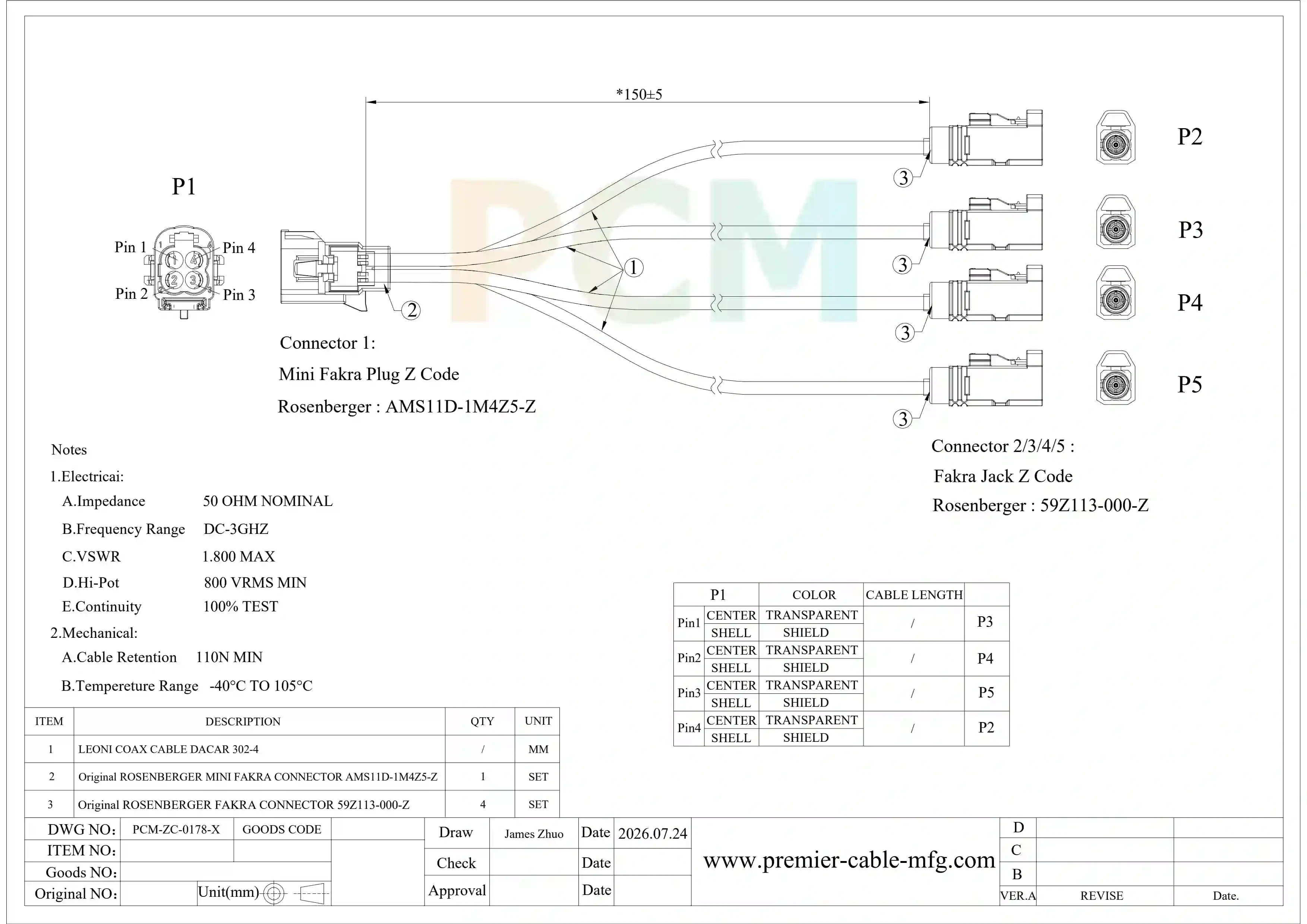

PCM-ZC-0178 Cable Drawing
