HPDB68 High-Density Connector

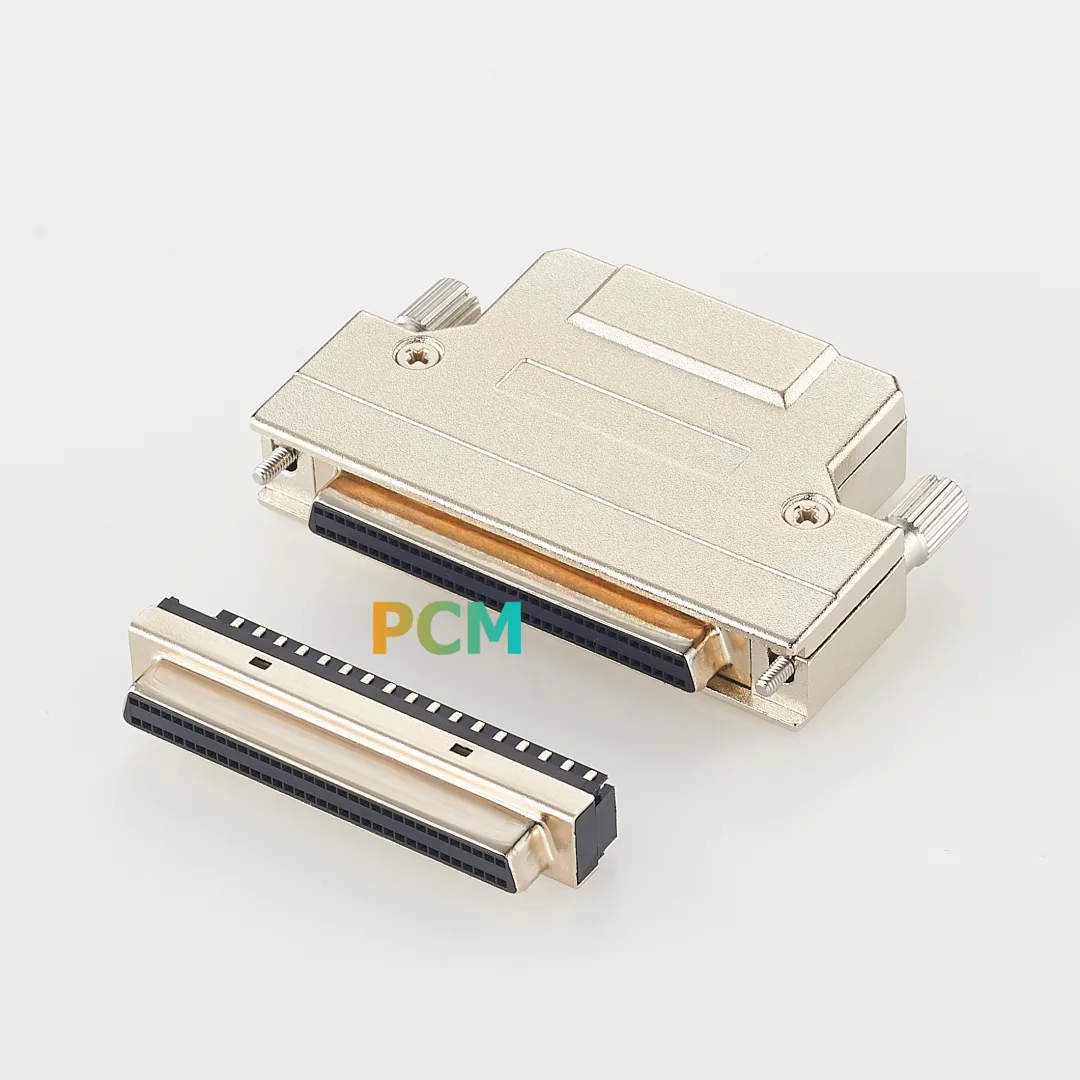

HPDB 68 Pin Female SCSI Connector with Backshell
PCM-TAT-0010 is a 68-pin female HPDB connector designed for compact high-density signal interconnection. The 1.27 mm contact pitch, protective backshell and UNC 2-56 screw-locking structure make it suitable for SCSI-style interfaces, industrial equipment, data acquisition systems, test instruments and custom multi-signal cable assemblies.
68 Pin
Female Connector
1.27 mm
Contact Pitch
1.0 A
Current Rating
AC 500 V
Withstand Voltage
Connector Profile
68-Position Half-Pitch High-Density Interface
HPDB68 is a commonly used designation for a 68-position half-pitch high-density connector format. The closely spaced contacts allow a large number of electrical connections to be accommodated within a relatively compact connector body.
This female version combines the connector interface with a protective backshell and external fastening hardware, making it suitable for cable-side equipment connections where both contact density and mechanical retention are required.
Connector: HPDB 68 Pin Female
Pitch: 1.27 mm / 0.050 inch
Locking: UNC 2-56 Screw Lock
Technical Specifications
| Premier Cable No. | PCM-TAT-0010 |
| Connector Type | HPDB 68 Pin Female |
| Contact Positions | 68 |
| Contact Pitch | 1.27 mm / 0.050 inch |
| Locking Type | UNC 2-56 Screw Lock |
| Current Rating | 1.0 A |
| Withstand Voltage | AC 500 V |
| Contact Resistance | 35 mΩ Max |
| Insulation Resistance | 500 MΩ Min |
| Operating Temperature | -55°C to +85°C |
Mechanical Retention

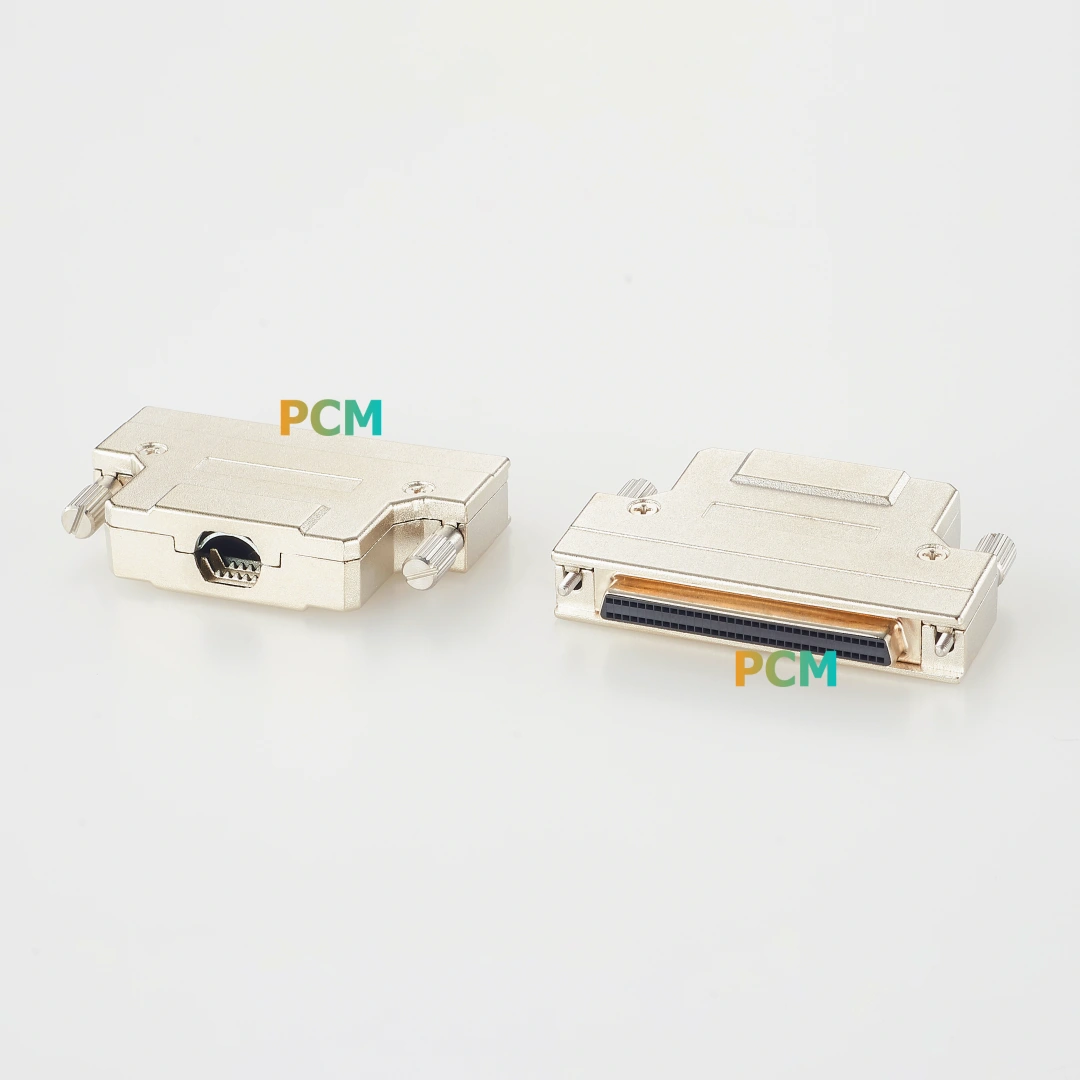

Backshell Protection with 2-56 Screw Locking
The backshell encloses the rear of the connector and provides additional mechanical protection around the cable termination area. This construction is useful where the connector will be installed repeatedly or used as part of an equipment cable assembly.
Two external UNC 2-56 locking screws secure the mating interface after connection. Compared with a friction-fit connection alone, the screw-locking structure provides more positive retention and helps prevent accidental separation during equipment installation or operation.
● Protective connector backshell
● Two UNC 2-56 locking screws
● Compact cable-side connector construction
Electrical Performance
CURRENT RATING
1.0 A
WITHSTAND VOLTAGE
AC 500 V
CONTACT RESISTANCE
35 mΩ Max
TEMPERATURE
-55°C to +85°C
Equipment Interconnection
For High-Pin-Count Signal and Equipment Connections
The HPDB 68-pin format is commonly used where many signal contacts must be carried through a compact connector. Beyond traditional SCSI-style connections, the connector format is also used in industrial and electronic equipment requiring dense multi-signal interconnection.
| 01 Data acquisition systems | 02 Test & measurement |
| 03 Industrial control equipment | 04 SCSI-style interfaces |
| 05 Laboratory instruments | 06 OEM cable assemblies |
Custom HPDB68 Cable Assembly Options
Premier Cable can supply HPDB 68-pin connector solutions as part of custom cable assemblies for equipment integration, replacement cables and OEM applications.
Cable length, mating connector type, wire construction, shielding, pin assignment, labeling and overall assembly configuration can be produced according to the application, customer drawing or sample.
Product Highlights
PCM-TAT-0010
Mechanical Drawing
