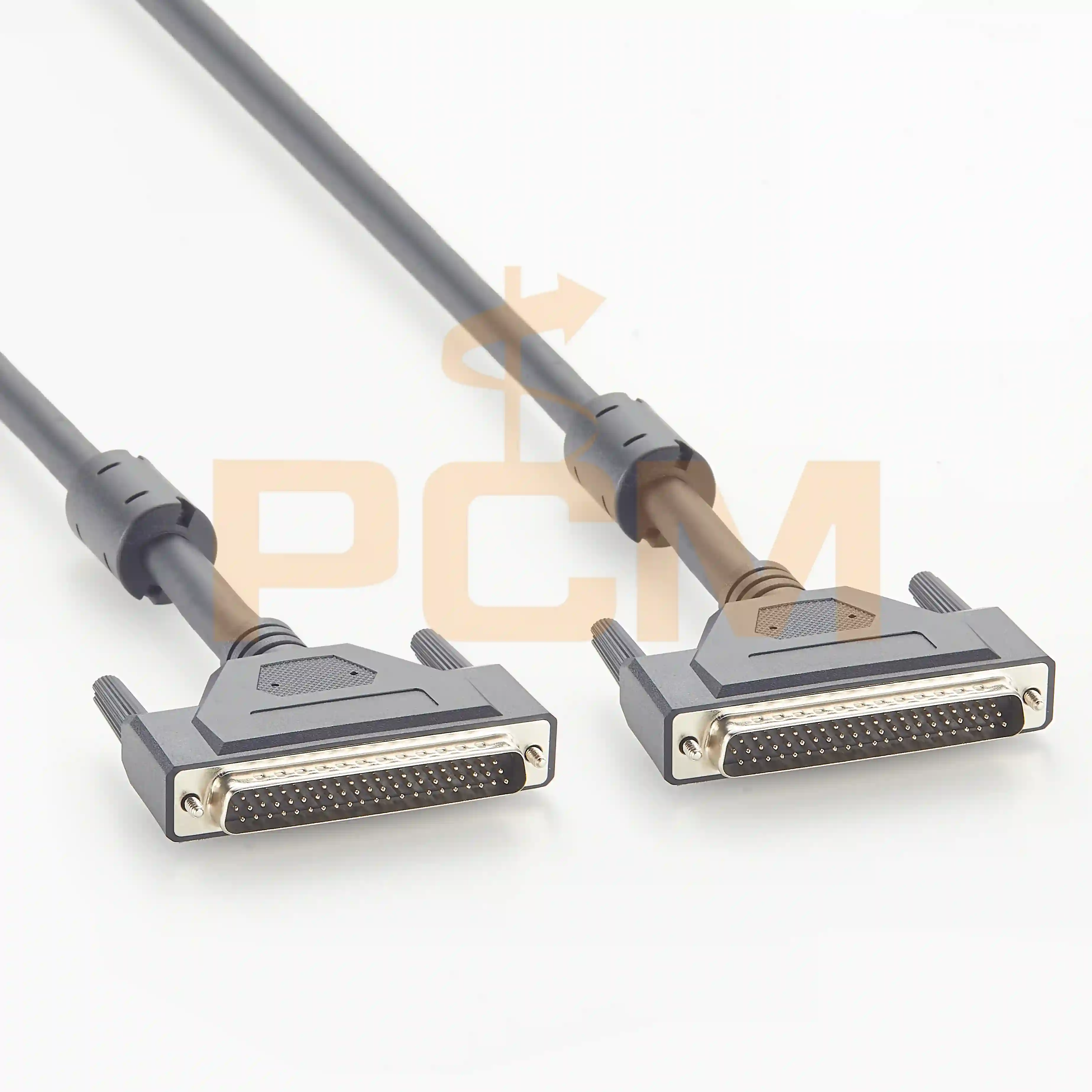

PCL-10162 Compatible DB62 Cable Guide: PCM-0957 Lengths and Compatibility
Compatible replacement options for PCL-10162-1E, PCL-10162-2E and PCL-10162-3E applications
Quick cross-reference: PCM-0957-1M is the 1 m replacement option for PCL-10162-1E applications. PCM-0957-2M is the 2 m version within the PCM-0957 series and may be evaluated for cables identified as PCL-10162-2E, subject to verification of the original part number and wiring. PCM-0957-3M is the 3 m replacement option for PCL-10162-3E applications.
Compatibility note: Matching connector type and cable length do not establish compatibility. Verify the complete pin mapping, twisted-pair allocation, shielding, connector-shell grounding and connected equipment before ordering.
Contents
What Is the PCL-10162 Cable Series?
The PCL-10162 series is a shielded 62-position D-Sub cable family used for industrial I/O and data-acquisition wiring. The original product configuration uses two DB-62 male connectors, allowing a controller, I/O card, terminal interface or test fixture with compatible female ports to be connected through one detachable cable assembly.
Advantech publicly describes the original PCL-10162 construction as a grey UL2464 cable with aluminum/Mylar foil and braided-copper double shielding. The published connector configuration is two DB62 male connectors.
The assembly uses 62-position high-density D-Sub male connectors at both ends and is intended for equipment interfaces with compatible female ports. Typical applications may include data-acquisition systems, industrial control interfaces, automated test equipment and multi-channel I/O connections, subject to pinout and equipment verification.
Naming clarification: The official product name commonly uses DB-62. The more descriptive technical term is a 62-position high-density D-Sub, which is also shortened to HDB62. Both terms may appear in buyer searches.
Compatible Part Numbers and Lengths
PCM-0957 is offered in 1 m, 2 m and 3 m finished lengths. All three versions use the same HDB62 male-to-male connector arrangement; within the PCM-0957 series, the primary ordering variation is finished cable length. Compatibility with a PCL-10162 application must still be evaluated based on wiring, shielding, grounding and connected equipment.
| Premier Cable P/N | Finished Length | Compatible Reference | Selection Note |
|---|---|---|---|
| PCM-0957-1M | 1000 ± 30 mm | PCL-10162-1E application | Short cabinet, controller-to-terminal or nearby fixture connection. |
| PCM-0957-2M | 2000 ± 30 mm | 2 m PCL-10162 replacement reference | Use for a 2 m installation; verify any PCL-10162-2E identification against the original order record or current original-manufacturer documentation. |
| PCM-0957-3M | 3000 ± 30 mm | PCL-10162-3E application | Longer test-bench, cabinet-to-cabinet or equipment-to-interface connection. |
Length selection: Choose enough cable to avoid tension at the screw-lock connectors, but avoid unnecessary excess cable in dense control cabinets or test racks.
Original PCL-10162 vs. PCM-0957
A compatible cable does not need to copy every visible material detail of the original product, but the differences must be understood. The connector interface, pin mapping and required electrical performance determine whether the alternative is suitable for the equipment.
| Comparison Item | Original PCL-10162 Public Description | PCM-0957 Drawing | Compatibility Meaning |
|---|---|---|---|
| Connector arrangement | 2 × DB62 male | HDB62 male to HDB62 male | The mechanical connector family and gender correspond. |
| Length options | 1 m and 3 m versions are publicly listed. Any 2 m PCL-10162 reference should be verified against the original order record or current original-manufacturer documentation. | 1 m, 2 m and 3 m versions | Select the same nominal length as the required installation or original cable. |
| Cable standard | UL2464 | UL20276 | The alternative does not use an identical cable designation. |
| Jacket color | Grey | Black | Color difference does not determine electrical compatibility. |
| Shielding description | Aluminum/Mylar foil and braided-copper double shielding | 28 AWG multi-pair construction, according to the PCM-0957 drawing | Confirm the required shielding construction and termination against the approved production drawing. |
| Cable diameter | Not stated as a principal public specification | Approximately 10.3 mm | Check routing space, bend radius and backshell clearance. |
| Locking hardware | Confirm against the connected equipment | UNC #4-40 | The equipment posts must accept the cable screwlocks. |
Compatible does not mean identical: PCM-0957 is a Premier Cable assembly offered for compatible replacement evaluation. It is not an original Advantech cable, and its cable standard, jacket color and internal construction should not be described as identical to the original product.
How to Verify Cable Compatibility
Two cables can use the same DB62 male connectors and still have different wiring or shield connections. Compatibility should be reviewed at three levels.
Mechanical Interface
- 62-position high-density D-Sub
- Male connector at both cable ends
- Matching shell geometry and orientation
- Compatible UNC #4-40 screwlocks
- Sufficient connector and cable clearance
Wiring and Shielding
- Complete P1-to-P2 contact map
- Required direct or crossed wiring
- Twisted-pair allocation
- Shield and drain-wire termination
- Connector-shell grounding method
Electrical Application
- Connected card and equipment models
- Signal type and channel grouping
- Operating voltage and current
- Required shielding and EMC performance
- Maximum acceptable cable length
Do not assume straight-through wiring: A male-to-male connector arrangement only defines connector gender. Use the original cable drawing, equipment pinout or a verified sample to establish the required contact map.
How to Select 1 m, 2 m or 3 m
| Length | Recommended Use | Installation Check |
|---|---|---|
| 1 m | Interfaces located in the same cabinet or at a short distance. | Confirm enough allowance for bends and connector servicing. |
| 2 m | General control-cabinet, test-bench and equipment routing. | Check excess-cable management and minimum bend radius. |
| 3 m | Longer controller-to-fixture or cabinet-to-cabinet connections. | Review signal margin, voltage drop and installation environment. |
Longer is not automatically better. Select the shortest length that allows correct routing, service access and strain-free connector installation.
Inspection and Ordering Checklist
PCM-0957 Drawing Inspection
- 100% open-circuit, short-circuit and miswire test
- Insulation resistance: 10 MΩ minimum at 300 VDC
- Electrical resistance acceptance criterion: according to the approved PCM-0957 production drawing
- Finished cable length inspection
- Connector orientation and workmanship inspection
Information Required for Quotation
- Original PCL-10162 part number
- Connected card or equipment model
- Required 1 m, 2 m or 3 m length
- Complete pin-to-pin wiring table
- Shield and connector-shell grounding requirement
- Quantity and labeling requirement
When no wiring document is available: An original cable sample may be used for connector-orientation review and continuity mapping. The resulting production drawing should be approved before manufacturing.
Frequently Asked Questions
Is PCM-0957 an original Advantech PCL-10162 cable?
No. PCM-0957 is a Premier Cable assembly offered for compatible replacement evaluation. It should not be described or labeled as an original Advantech product.
Which PCM-0957 version corresponds to PCL-10162-1E?
PCM-0957-1M is the 1 m replacement option intended for PCL-10162-1E applications, subject to final connector, wiring and equipment confirmation.
Which version corresponds to PCL-10162-2E or PCL-10162-3E?
PCM-0957-3M is the 3 m replacement option intended for PCL-10162-3E applications. PCM-0957-2M is the 2 m version within the PCM-0957 series; when replacing a cable identified as PCL-10162-2E, verify the original part number, pin mapping and connected equipment before ordering.
Are all DB62 male-to-male cables interchangeable?
No. The connector interface may match while pin assignment, twisted-pair grouping, shielding, grounding and electrical ratings differ.
Is HDB62 the same interface as DB62?
HDB62 emphasizes that the connector is a 62-position high-density D-Sub. DB62 is the naming used in the PCL-10162 product description and is also widely used in purchasing searches.
Can PCM-0957 be customized?
Yes. Available options can include cable length, contact mapping, twisted-pair allocation, shield termination, connector orientation, labels and customer-specified testing or inspection requirements.
Need a PCL-10162 Compatible DB62 Cable?
Send the original PCL-10162 part number, connected equipment model, required length, pinout and quantity. If the original wiring document is unavailable, provide an existing cable sample or continuity test results. Connector photographs can support mechanical identification but cannot confirm the internal pin mapping.
Premier Cable supplies PCM-0957 DB62 male-to-male assemblies in 1 m, 2 m and 3 m configurations, with custom wiring and identification options available.
Reference note: The original PCL-10162 connector and cable-construction description is summarized from Advantech's public PCL-10162 product documentation. Product names and part numbers remain the property of their respective owners. Compatibility should be verified for the complete application.
